Hose and Tubing

View as Grid List

Sort by

Display items per page

THERM-O-FLOW HOSE, HEATED, 10-FT, #8, 3000 PSI

GG 19M402

THERM-O-FLOW HOSE, HEATED, 10-FT, #8, 3000 PSI

Graco 19M402 10 ft. (3.0 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 8 (0.401 in. /10.2 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 10
Hose Length (m): 3

Inside Diameter (in): 0.401
Inside Diameter (mm): 10.2
Material: PTFE Lined Stainless Steel Braid
Maximum Temperature (°C): 204
Maximum Temperature (°F): 400
Maximum Working Pressure (bar): 276
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000

$3,150.00

THERM-O-FLOW HOSE, HEATED, 15-FT, #10, 3000 PSI

GG 19M406

THERM-O-FLOW HOSE, HEATED, 15-FT, #10, 3000 PSI

Graco 19M406 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 15
Hose Length (m): 4.6

Inside Diameter (in): 0.495
Inside Diameter (mm): 12.6
Material: PTFE Lined Stainless Steel Braid
Maximum Temperature (°C): 204
Maximum Temperature (°F): 400
Maximum Working Pressure (bar): 276
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000

$5,580.00

THERM-O-FLOW HOSE, HEATED, 15-FT, #12, 3000 PSI

GG 19M413

THERM-O-FLOW HOSE, HEATED, 15-FT, #12, 3000 PSI

Graco 19M413 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 15
Hose Length (m): 4.6

Inside Diameter (in): 0.617
Inside Diameter (mm): 15.7
Material: PTFE Lined Stainless Steel Braid
Maximum Temperature (°C): 204
Maximum Temperature (°F): 400
Maximum Working Pressure (bar): 276
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000

$6,540.00

THERM-O-FLOW HOSE, HEATED, 15-FT, #16, 3000 PSI

GG 19M418

THERM-O-FLOW HOSE, HEATED, 15-FT, #16, 3000 PSI

Graco 19M418 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 15
Hose Length (m): 4.6

Inside Diameter (in): 0.867
Inside Diameter (mm): 22.0
Material: PTFE Lined Stainless Steel Braid
Maximum Temperature (°C): 204
Maximum Temperature (°F): 400
Maximum Working Pressure (bar): 276
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000

$7,330.00

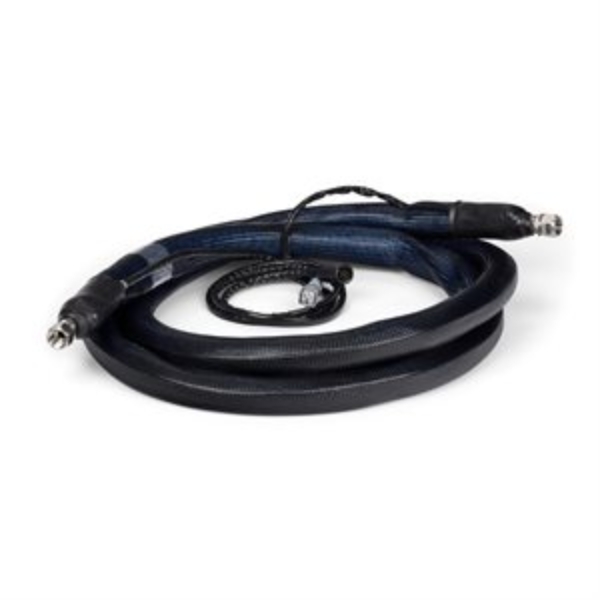

THERM-O-FLOW HOSE, HEATED, 15-FT, #20, 3000 PSI

GG 19M422

THERM-O-FLOW HOSE, HEATED, 15-FT, #20, 3000 PSI

Graco 19M422 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Hot Melt Heated Hose, No. 20 (1.13 in. / 28.6 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.

Hose Heating Type: Heated
Hose Length (ft): 15
Hose Length (m): 4.6

Inside Diameter (in): 1.13
Inside Diameter (mm): 28.6
Material: PTFE Lined Stainless Steel Braid
Maximum Temperature (°C): 204
Maximum Temperature (°F): 400
Maximum Working Pressure (bar): 207
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000

$10,660.00

THERM-O-FLOW HOSE, HEATED, 15-FT, #8, 3000 PSI

GG 19M403

THERM-O-FLOW HOSE, HEATED, 15-FT, #8, 3000 PSI

15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 8 (0.401 in. /10.2 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$3,660.00

THERM-O-FLOW HOSE, HEATED, 20-FT, #10, 3000 PSI

GG 19M407

THERM-O-FLOW HOSE, HEATED, 20-FT, #10, 3000 PSI

Graco 19M407 20 ft. (6.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 20
Hose Length (m): 6.1

$7,480.00

THERM-O-FLOW HOSE, HEATED, 20-FT, #12, 3000 PSI

GG 19M414

THERM-O-FLOW HOSE, HEATED, 20-FT, #12, 3000 PSI

20 ft. (6.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$7,710.00

THERM-O-FLOW HOSE, HEATED, 20-FT, #16, 3000 PSI

GG 19M419

THERM-O-FLOW HOSE, HEATED, 20-FT, #16, 3000 PSI

Graco 19M419 20 ft. (6.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 20
Hose Length (m): 6.1

$8,210.00

THERM-O-FLOW HOSE, HEATED, 25-FT, #10, 3000 PSI

GG 19M408

THERM-O-FLOW HOSE, HEATED, 25-FT, #10, 3000 PSI

Graco 19M408 25 ft. (7.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 25
Hose Length (m): 7.6

$7,920.00

THERM-O-FLOW HOSE, HEATED, 25-FT, #12, 3000 PSI

GG 19M415

THERM-O-FLOW HOSE, HEATED, 25-FT, #12, 3000 PSI

25 ft. (7.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$8,880.00

THERM-O-FLOW HOSE, HEATED, 25-FT, #16, 3000 PSI

GG 19M420

THERM-O-FLOW HOSE, HEATED, 25-FT, #16, 3000 PSI

25 ft. (7.6 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$9,390.00

THERM-O-FLOW HOSE, HEATED, 30-FT, #10, 3000 PSI

GG 19M409

THERM-O-FLOW HOSE, HEATED, 30-FT, #10, 3000 PSI

Graco 19M409 30 ft. (9.1 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 10 (0.495 in. / 12.6 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 30
Hose Length (m): 9.1

$8,810.00

THERM-O-FLOW HOSE, HEATED, 3FT #12, 3000 PSI

GG 19M410

THERM-O-FLOW HOSE, HEATED, 3FT #12, 3000 PSI

3 ft. (0.9 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$2,720.00

THERM-O-FLOW HOSE, HEATED, 6-FT, #12, 3000 PSI

GG 19M411

THERM-O-FLOW HOSE, HEATED, 6-FT, #12, 3000 PSI

Graco 19M411 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 12 (0.617 in. / 15.7 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 6
Hose Length (m): 1.8

$4,400.00

THERM-O-FLOW HOSE, HEATED, 6-FT, #16, 3000 PSI

GG 19M416

THERM-O-FLOW HOSE, HEATED, 6-FT, #16, 3000 PSI

6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 16 (0.867 in. / 22.0 mm ID) Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality. For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives. Maximum Fluid Working Pressure is dependent on operating temperature. Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C) Rated at 3000 psi (207 bar, 20.7 Mpa) at Temperatures up to 400°F (204°C)

$6,060.00

THERM-O-FLOW HOSE, HEATED, 6-FT, #8, 3000 PSI

GG 19M401

THERM-O-FLOW HOSE, HEATED, 6-FT, #8, 3000 PSI

Graco 19M401 6 ft. (1.8 M) Insulated Stainless Steel Braided PTFE Warm Melt/Hot Melt Heated Hose, No. 8 (0.401 in. /10.2 mm ID)

For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.
Maximum Fluid Working Pressure is dependent on operating temperature.
Rated at 4000 psi (276 bar, 27.6 MPa) at Temperatures from -65°F to 212°F (-54°C to 100°C)

Hose Heating Type: Heated
Hose Length (ft): 6
Hose Length (m): 1.8
