Hoist

HA NER010L-15

Description

Features

• Capacities 1/8 - 20 Tons
• Guardian Smart Brake has an electrical fail-safe design that uses DC current to control brake activation
• Hoist motor has a 60 minute duty rating, H4 classification, Class B insulation, cooling fins and standard thermal motor protection
• External pins allow for a quick and easy change from hook to lug for trolley mount configurations on most models.
• Most models are certified and listed to UL 1340 “Standard for Hoists.”
• A count hour meter records and displays the number of lowering starts and hoist on time which is valuable for preventive maintenance
• Three phase power
• Pendant control

IR 41619-1

IR 45471059

IR 45471083

IR 46094-6

IR 7776E-2C15-C11U

IR 7776E-2C15-C6U

IR 7792A-2C10-C6U

IR CL125K-2C10-C6U-E

IR CL125K-2C18-C6U

IR CL125K-2C20-C16U

IR CL250K-2C12-C8U

IR CL250K-2C14-C10U

IR CL500K-2C15-C11

IR CL500K-2C15-C11U

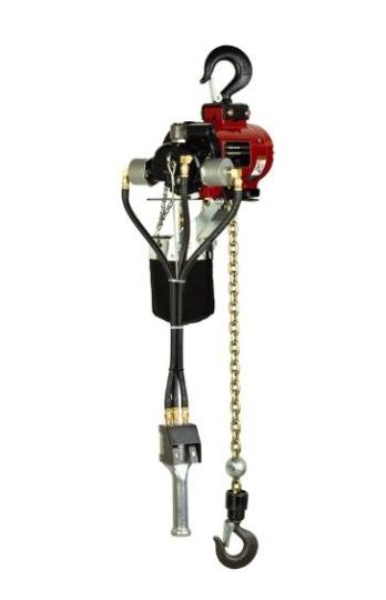

CL500K-2C15-C11U Air Hoist, 1100 Lb Capacity, 15ft Lift, Pendant Control, Hook Mount, Fabric Chain Container

Designed for production applications and loads up to 1100 lbs. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls.

Includes:

Product Application/Uses:

Features and Benefits:

• Meets ASME HST-5 Specifications and OSHA requirements
• Rugged, lightweight and compact design
• Disc brake is non-asbestos and spring engaged with air release
• Internal muffler reduces sound levels to a best-in-the-industry 75 dBA
• High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
• Upper and lower limit stops prevent dangerous over-travel of the hook
• 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
• Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.
• Ergonomic pendent handle is rugged and durable. Guard covers both levers and can be used with or without gloves.

Capacity (lb): 1100

Lift (ft): 15

IR D04-S4055N

IR ELK100-1ND100H-15-11-4CF15

IR ELK100-1ND100P-20-15-A4CF15

IR ELK100-2ND200H-18-26-4CF15

IR ELK200-2ND300M2-14-10-3CF15

IR ELK25-1ND12H-10-6-4CF15

IR ELK25-1ND25H-10-6-3CF15

IR ELK25-1ND25H-14-10-4CF30

IR ELK50-1HD25H-10-6-3CF30

IR ELK50-1NS25-1PHH-10-6-1CF30
