Grinders
3HP Cyclone Vertical Grinder
ATP ATP360HL-8
ATP ATP360HL-8
3HP Cyclone Vertical Grinder
Call for pricing
Die Grinder
IR 3107G
IR 3107G
Air Die Grinder, 27,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Ingersoll Rand’s EDGE Series 3017G 1/4" Air Straight Die Grinder is the right tool for the job. It offers a ball-bearing construction that is sturdy yet lightweight. Features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. An ergonomic grip makes this pneumatic grinder comfortable to hold and use and provides exceptional torque accuracy. Offering longer life and higher free speed at 27,000 rpm, this general purpose air grinder is designed for finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.Features And Benefits
- Powered by compressed air and comes with a 1/3 HP motor, a 1/4" collet, rear exhaust and a self-locking throttle. With 27,000 rpm, it will power through difficult jobs.
- Contoured grip gives greater comfort and control. Its ergonomic design delivers exceptional torque precision, as well as increased productivity and safety.
- The 3107G is light and sturdy at only 1 lb. It has a ball bearing construction and is exceptionally rugged, compact and lightweight.
- Use this air grinder as a handheld power rotary tool for grinding, cutting, polishing and more.
- Each componet, mechanism and function has undergone rigerous testing to ensure its long-lasting performace.
Includes: tool, Large Wrench, Small Wrench
Product Application and Uses: Finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 3
Air Consumption @ Free Speed (l/min): 85
Air Consumption @ Load (cfm): 18
Air Consumption @ Load (l/min): 500
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.36
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 27000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Width (in): 2.87
Product Height (in): 1.46
Product Weight (lb): 1
Rated Power (hp): 0.33
Right Angle Length (in): 4.92
Right Angle Length (mm): 125
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 92.4 / 103.4
Vibration Level (m/s2): 2.6
Warranty: 1-year
Similar IR
- 307B
$49.28
G1 DIE GRINDER, 1/4" COLLET
IR G1H200RG4
IR G1H200RG4
Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust
The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.Features And Benefits
- Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
- Reliability: Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
- Comfort: Whether you’re repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.
- At .4 hp, the G1 Series packs a lot of power in a small package
- Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
- Ergonomically designed D-shaped grip
- One-nut access for all motor servicing
- Patent-pending soft-mount system reduces vibration for extended motor and switch life
- 1-year warranty
Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Width (in): 6.7
Product Height (in): 2.7
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Side to Center Distance (in): 0.87
Side to Center Distance (mm): 22
Sound Pressure/Power Db(A): 82.3 / 93.3
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 2.9
Warranty: 1-year
Wheel Type: Burr
Similar IR
- G1H200FG4
- M2H180RG4
- G1H250RG4
$431.80

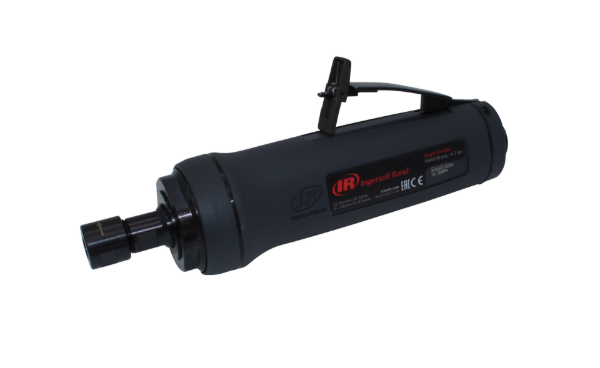

G3 DIE GRINDER
IR G3H180RG4
IR G3H180RG4
Air Angle Die Grinder, 18,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust
The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.Features And Benefits
- Power: Powerful 1.35 18,000 RPM vane motor that won’t let you down on job that call for maximum power.
- Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
- Vibration dampening for ease-of-use.
Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 87.4 / 98.4
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
$924.80
SEAT (49450-112)
IR LG2-303
IR LG2-303
Seat for Ingersoll Rand GH07A, GX07A, HDS, TDS, TA, TXA, TD, TX, TXD Series Grinders
$15.00

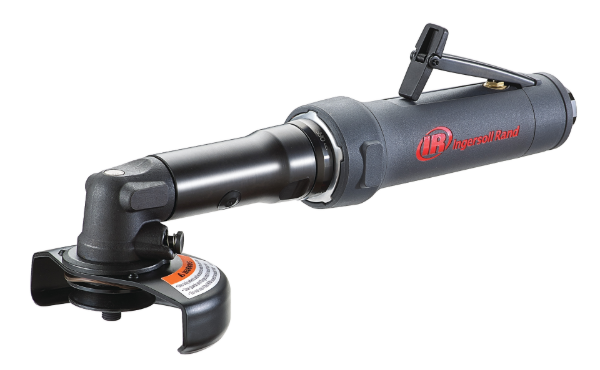

MERCURY ANGLE GRINDER,
IR M2E145RP64
IR M2E145RP64
Extended Angle Air Grinder, 4" Type 27 Wheel, 14,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust
Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.Features And Benefits
- Power: With a powerful, lube-free 1 HP 14,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
- Ergonomic: Low profile throttle lever and ergonomic extended reach handle design reduces hand fatigue, increases comfort, and improves productivity.
- Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
- Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.
Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.13
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 14500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 11.57
Product Weight (lb): 3.78
Rated Power (hp): 1
Right Angle Length (in): 10.62
Right Angle Length (mm): 270
Sound Pressure/Power Db(A): 87.7 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 8.8
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27
Similar IR
- M2E135RP64
$850.00

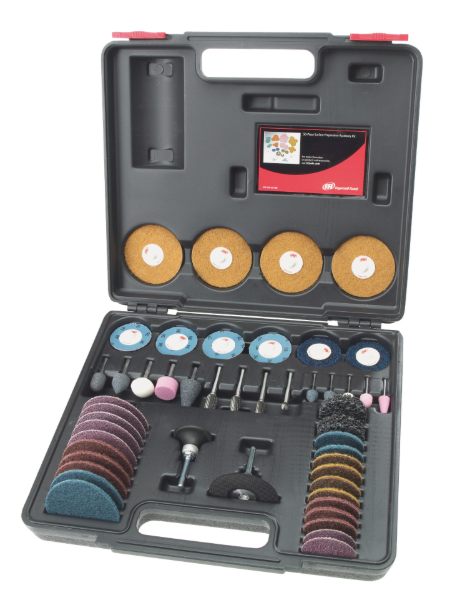

50 PIECE GRINDER KIT
IR 23A-VAR-GR
IR 23A-VAR-GR
Surface Prep Accessory Kit, 50-Piece
Includes: (4) 1/4" Shank Carbide Burs; (5) 1/8" Shank Mounted Points; (5) 1/4" Shank Mounted Points; (1) 2" Quick Change Disc Backing Pad; (1) 3" Quick Change Disc Backing Pad; (6) 2" 36 Grit Sanding Discs; (9) 2" Various Grit Surface and Conditioning Discs; (2) 2" Paint and Corrosion Removal Discs; (2) 2" High Strength Buffing Discs; (5) 3" 36 Grit Sanding Discs; (9) 3" Various Grit Surface Conditioning Discs; (1) Carrying CaseProduct Application and Uses: For use with 1/4" Collet Die Grinders
Arbor/Collet: 1/4"
$315.00
