Grinders

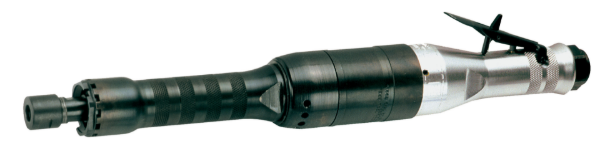

IR 61H120G4

Air Die Grinder, 12,000 RPM, 1.25 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• POWER: With a powerful 1.25 HP vane motor and 12,000 RPM, these grinders remove materials at top speed for maximum efficiency.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Configuration/Handle Type: Straight
Exhaust Location: Side
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.25
Warranty: 1-year

IR 61H150G4

Air Die Grinder, 15,000 RPM, 1.33 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• POWER: With a powerful 1.33 HP vane motor and high power 15,000 RPM output, these grinders remove materials at top speed for maximum efficiency.
• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Exhaust Location: Side
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.33
Speed Setting: Variable Speed
Warranty: 1-year

IR 7114-E

Air Pencil Grinder, 20,000 RPM, 1/8" Collet

Made with a metal housing and equipped with a vane motor, the rear exhaust ARO Series Die Grinder is one tough tool. It’s straight configuration and lever actuation throttle make it an ideal tool for industrial jobs and even aerospace projects.

Features And Benefits

• Comfort: Lightweight and easy to handle, this tool is easy to use for longer periods of time.
• Access: Get your work done fast with this compact tool, which can reach tight spaces and hard-to-access angles
• Durable: With a durable metal housing, this tool is built to last.

Product Application and Uses: Ideal tool for industrial jobs and even aerospace projects.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Lever
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 2.8
Configuration/Handle Type: Straight
Grinder Type: Die Grinder
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Power Source: Air Powered
Product Length (in): 6
Product Weight (lb): 13
Spindle Offset (in): 0.5
Vibration Level (m/s2): 3.9
Warranty: 1-year

IR 77H120L10

Cone and Plug Air Grinder, 12000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Air Consumption @ Load (cfm): 39
Air Consumption @ Load (l/min): 1104
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

IR 88H60-67

LOCKWASHER

IR 88H60-961A

GUARD

IR 88V60-204-P10

ARBOR

IR 88V60-38

BUSHING (99V, 49845-110)

IR 88V60-53

ROTOR

IR 88V60-86A

FLANGE

IR 88V60-A216

GUARD

IR 88V60-A25

CYL CASE ASSEMBLY (49845-221)

IR 88V60-A524

CONTROLLER ASSEMBLY (-A424)

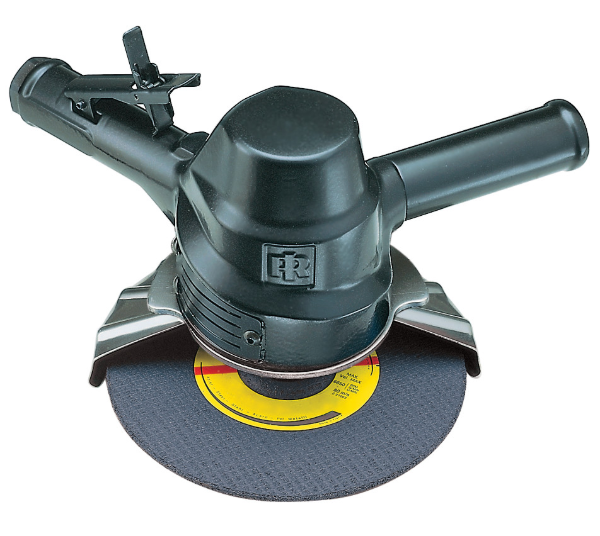

IR 88V60P109

Vertical Air Grinder, 9" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 9.13
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86.2 / 97.2
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Diameter (in): 9
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

IR 88V60S106

Vertical Air Grinder, 5" Type 6/11 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Grinder Type 6/11
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 8.38
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86 / 99
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 5 or 6
Wheel Type: Type 6, 11

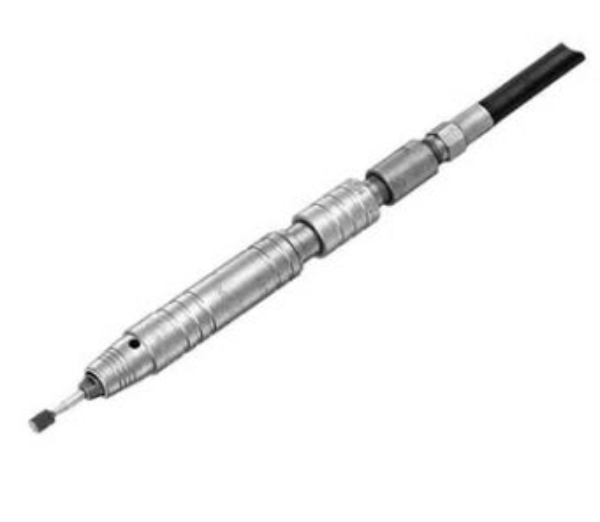

IR DG600G2

Air Pencil Grinder, 60,000 RPM, 1/8" Collet

Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Power Source: Air Powered
Product Length (in): 5
Product Weight (lb): 1.5
Sound Pressure/Power Db(A): 76
Spindle Offset (in): 0.34
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year

DY 55065

Grinder Guard Assy

AIM 5206EC

Extended Air Die Grinder 3 Inch, 25,000 rpm

AJ 961

.498 TAPERED SHEET METAL PUNCH

CL 10L2081-01

Grinder, RE, 20K, 1/4" Collet

DC 10L2000-01

GRINDER,FE,25K,1/4" COLLET

DC 10L2080-01

GRINDER,RE,25K,1/4" COLLET

DC 10L2502-01

GRINDER,FE,18K,1/4" COLLET

DC 12LF280-36

RA SNDR/GRD,RE,12K,1/4" COLLET

DC 12LF200-36

RA SNDR/GRD,12K,1/4" COLLET
