Grinders

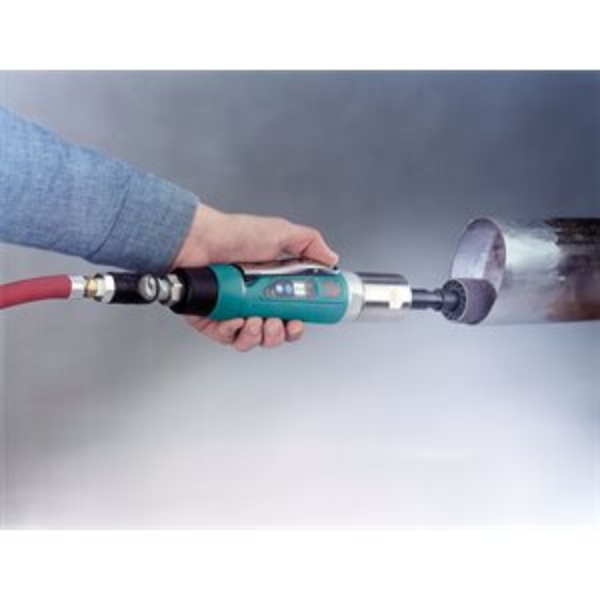

DY 52662

1 hp Straight-Line Die Grinder

3,400 RPM, Planetary-Geared, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Governor-controlled to maintain RPM under heavy load.

• HP: 1.0
• Max. RPM: 3400.0
• Motor RPM: 3400

DY 52667

1 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 52666

1 hp Straight-Line Die Grinder

12,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12000

DY 52669

1 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 20000.0
• Motor RPM: 20000

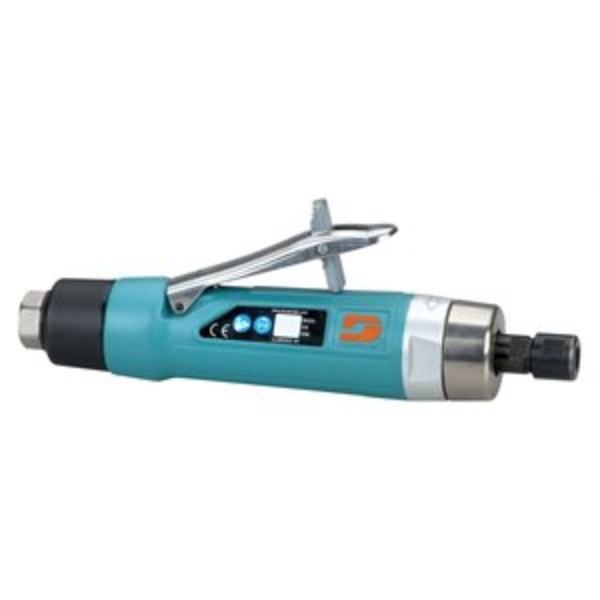

DY 52668

1 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 52678

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

18,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 52675

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

9,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 9000.0
• Motor RPM: 9,000

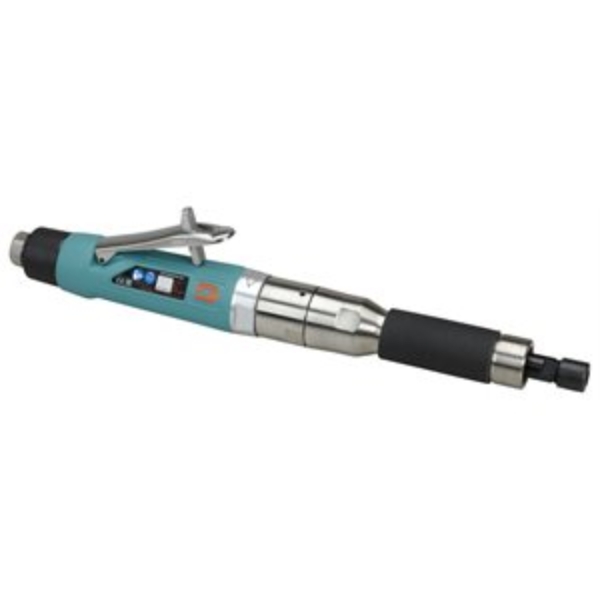

DY 52679

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

20,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 20000.0
• Motor RPM: 20,000

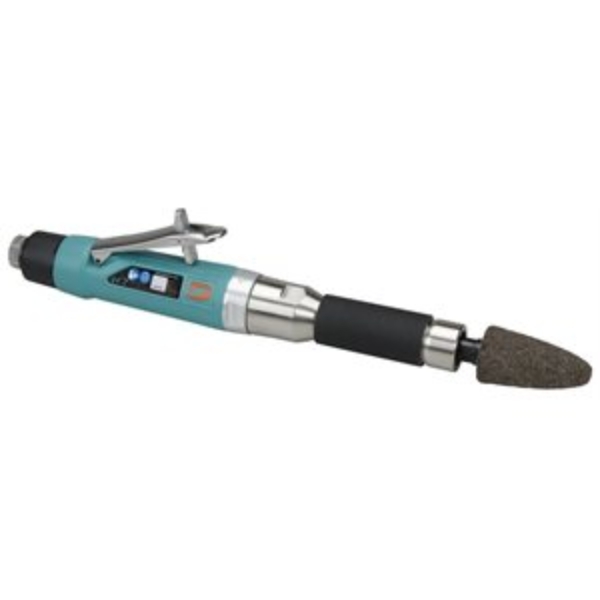

DY 52720

Cone or Plug 6in (152 mm) Extension Wheel Grinder

1 hp, Straight-Line, 15,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

Straight Line, 1 hp, Rear Exhaust, 6in Extension, 15,000 RPM.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15,000

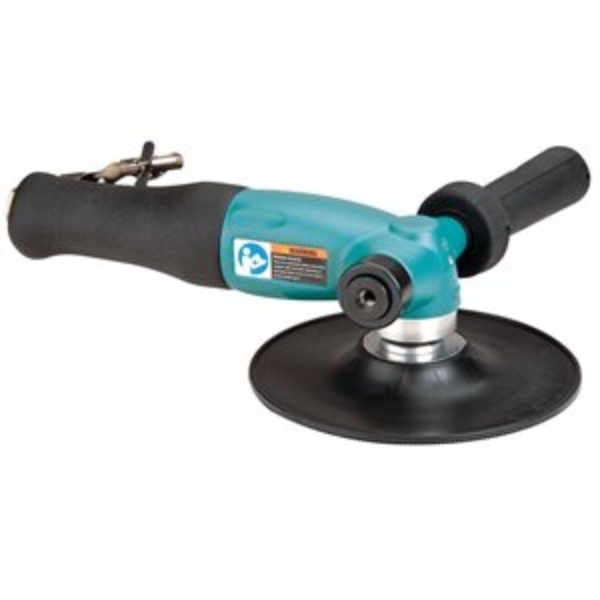

DY 52802

7in (178 mm) Diameter Right Angle Disc Sander

1.3 hp, 7,200 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

Includes 51151 Backing Pad, 7in (178 mm) diameter, plus mounting hardware. Accepts optional 7in (178 mm) diameter Abrasive Discs with 7/8in (22 mm) center hole.

Dynabrade's 1.3 hp (970 W) Right Angle Sander offer countless grinding and material removal solutions to industries such as metal/stainless steel fabrication, composites, masonry, ironwork and general welding. Designed to the Dynabrade standard of excellence, these tools offer a wide array of features to increase efficiency and maximize operator comfort!Vibration Dampening Side Handle Specially designed to reduce vibration transfer to operator. Removable for left or right hand use. Rotational Exhaust System Rotates a full 360 degree to ensure that exhaust is directed away from operator.

• HP: 1.3
• Max. RPM: 7200.0
• Motor RPM: 7,200

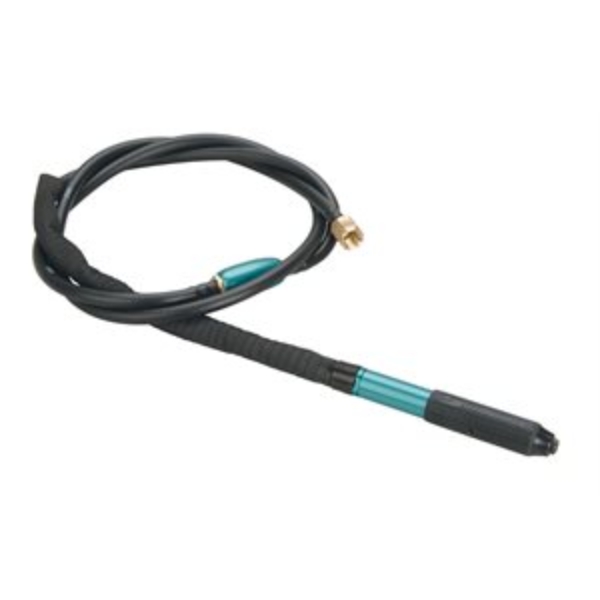

DY 52850

0.1 hp Straight-Line Variable Speed Pencil Grinder

35-60,000 RPM, Rotary Vaned Air Motor, 1/8in Collet

Dynabrade's Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool and die shops, machine shops, investment castings, jewelry, medical implants, composites and more!

High-Quality Air Line. 1/4in (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly. Helps direct air and excess oil away from operator - 12in (305 mm) in length. Variable Speed Flow Control. Adjust your desired speed with dial, up to 60,000 RPM. Unlike roll valves, your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed. Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!

• HP: 0.1
• Max. RPM: 60000.0
• Motor RPM: 60,000

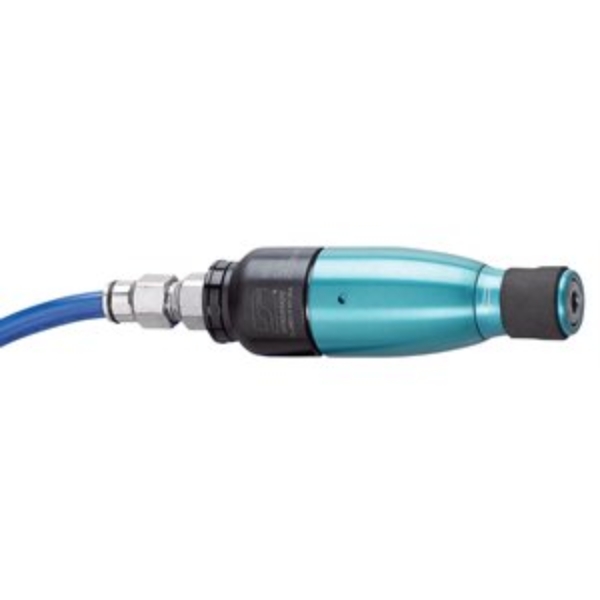

DY 52861

.4 hp Straight-Line Pencil Grinder

25,000 RPM, Rotary Vane Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (01495). Optional 52898 Thread Guard allows easy access to collet cap. With Thread Guard in place, larger diameter accessories may be run by tool. (All accessories must have maximum operating speed of 25,000 RPM).

High-efficiency rotary vane air motor models are ideal for precision deburring and finishing on a variety of surfaces.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

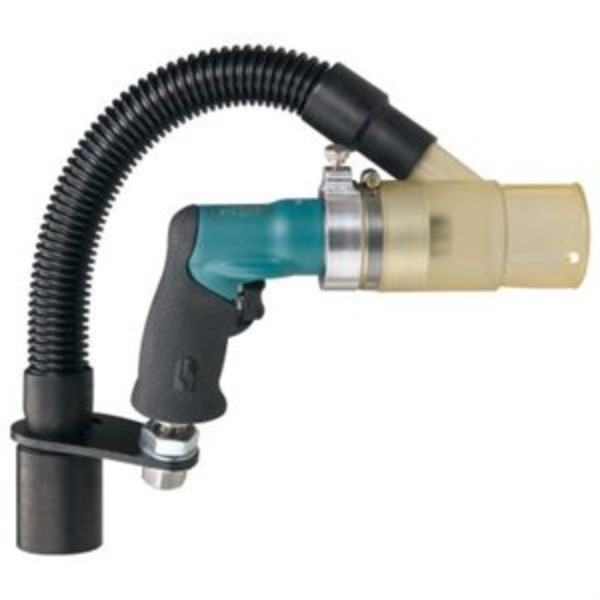

DY 52906

1/4in Drill, Central Vacuum

.4 hp, 3,600 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck

.4 hp (298 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.

Pistol Grip design includes slow-speed start-up trigger.

• HP: 0.4
• Max. RPM: 3600.0
• Motor RPM: 3,600

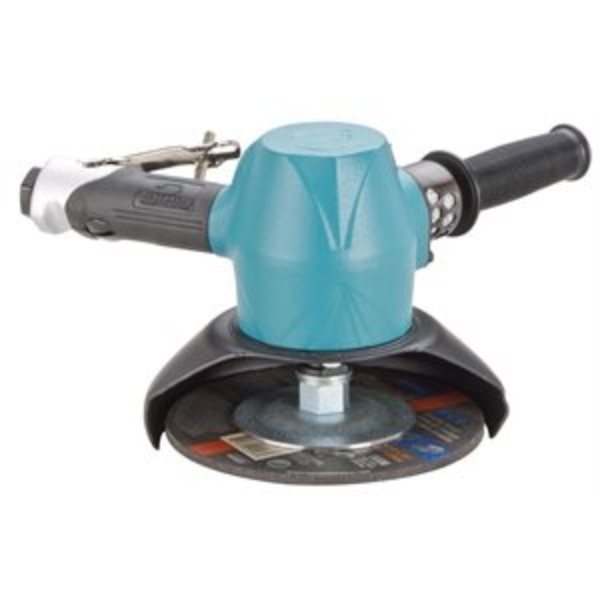

DY 53245

7in (178 mm) Diameter Type 27 Vertical Depressed Center Wheel Grinder

3 hp, 8,500 RPM, Gearless, Rotational Exhaust, 5/8in -11 Spindle Thread

Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.

Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.

• HP: 3.0
• Max. RPM: 8500.0
• Motor RPM: 8,500

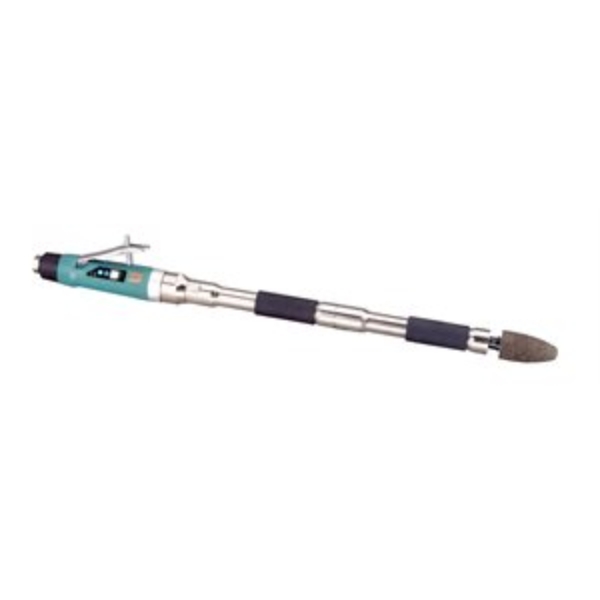

DY 53532

Cone or Plug Grinder (Double Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

AA 7980-2

Grinder

DY 66402

Air Tool Post Grinder

1.86 hp, 7,200 RPM, Side Exhaust, 4,700 SFPM, for 1-1/2in W x 24in L (38 mm x 610 mm) Belts

For use on metal, glass, stone, rubber, ceramic, carbide composites and other hard to grind materials. Mounts to standard lathes. Simple tool holder mounting. Holds close tolerances.

Reduce surface finish on materials prior to a superfinishing process.In-line belt tracking prevents uneven belt stretching, as found on conventional belt tracking arrangements.

• HP: 1.86
• Max. RPM: 7200.0
• Motor RPM: 7200

U UT8766-25-85

Universal Tool, 7 In, 2.5HP, Angle Grinder, 8500 RPM

U UT8780-1

Angle Grinder, Ac, 4-1/2In.

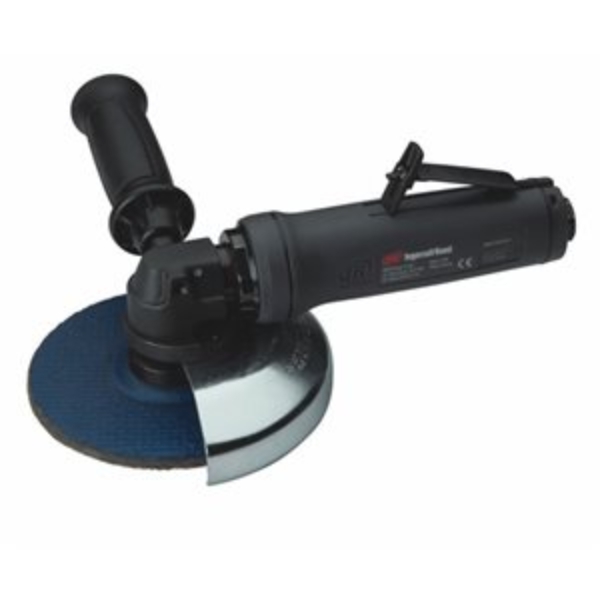

IR G3A120RP1045

Air Angle Grinder, 4.5" Type 27 Wheel, 12,000 RPM 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.9
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

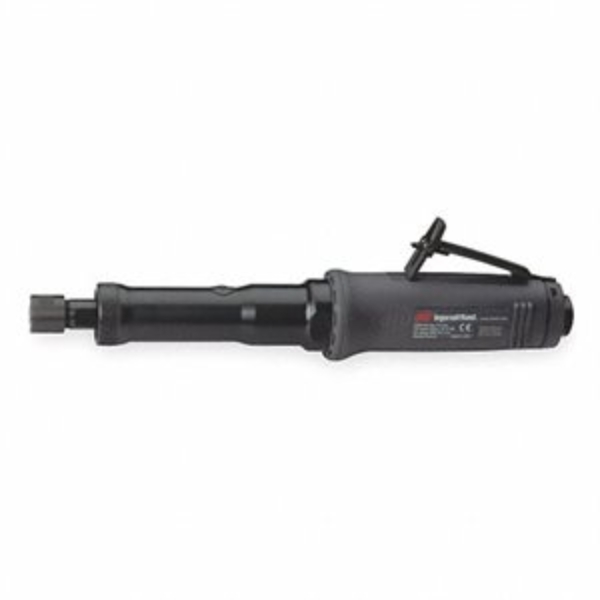

IR G3X150RG4

Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

IR 325SC4A

SUPERCEDED TO 5108MAX

U UT2740-1

4 In R/A Grinder, 12000 Rpm

U 8724T-20

1/4 In Right Angle Grinder 20,000 rpm

AIM UG-1250L-72

Grinder with Guard, 5in Wheel Capacity 7200rpm
