Grinders

DY 66402

Air Tool Post Grinder

1.86 hp, 7,200 RPM, Side Exhaust, 4,700 SFPM, for 1-1/2in W x 24in L (38 mm x 610 mm) Belts

For use on metal, glass, stone, rubber, ceramic, carbide composites and other hard to grind materials. Mounts to standard lathes. Simple tool holder mounting. Holds close tolerances.

Reduce surface finish on materials prior to a superfinishing process.In-line belt tracking prevents uneven belt stretching, as found on conventional belt tracking arrangements.

• HP: 1.86
• Max. RPM: 7200.0
• Motor RPM: 7200

DC 12L2762-80

RA SND/GRD,FE,4.5K,GOV,5/8-11E

DC 12L2778-84

RA SND/GRD, ERGO, RE, 14. 5, 4" TP27

IR M2A180RG4

Angle Air Die Grinder, 18,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 30
Air Consumption @ Free Speed (l/min): 849
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.94
Product Weight (lb): 3.56
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 88.8 / 99.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 3.1
Warranty: 1-year
Wheel Type: Burr

AA 7980-2

Grinder

DY 48365

.4 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Rear Exhaust, 1/8in and 3 mm Collets, Standard Muffler

.4 hp Dynabrade Die Grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more! Dynabrade's .4 hp (298 W) Die Grinders are designed for peak efficiency and longer life! Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation!

Integrated Safety-Lock Throttle Lever has a contoured shape for operator comfort, with new dowel-pin that minimizes lever wear. Increased Tool Life due to Unique Pre-Filter that provides extra defense against contaminants in air stream.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

DY 49420

.4 hp Angle-Head Die Grinder

3,200 RPM, Planetary-Geared, Rear Exhaust, 1/4in Collet

Includes 50055 Collet Assembly and extended rear exhaust muffler to reduce noise levels.

Governor-controlled motor maintains speed under load.

• HP: 0.4
• Max. RPM: 3200.0
• Motor RPM: 3,200

DY 50302

4in (102 mm) Diameter Right Angle Depressed Center Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

4in Diameter, Right Angle, 1 hp, Rear Exhaust, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 51301

.5 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 51304

.5 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 51306

.5 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 50340

4-1/2in -5in (114 mm-127 mm) Diameter Pistol Grip Depressed Center Wheel Grinder

.7 hp, 11,000 RPM, Rear Exhaust, 5/8in -11 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

4-1/2in - 5in Diameter, Pistol Grip, .7 hp, Rear Exhaust, 11,000 RPM.

• HP: 0.7
• Max. RPM: 11000.0
• Motor RPM: 11,000

DY 52378

3in (76 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

3in Diameter, Straight Line, 1 hp, 6in Extension, 18,000 RPM.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 52335

.4 hp 7 Degree Die Grinder

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

• Motor RPM: 25,000

DY 52315

.4 hp Right Angle Die Grinder

12,000 RPM, Geared, Rear Exhaust, 1/4in Collet

• Motor RPM: 12000

DY 52563

7in (178 mm) Diameter Right Angle Disc Sander

1 hp, 6,000 RPM, Extended Rear Exhaust, 5/8in -11 Female Pad

Air motor is governor-controlled to maintain RPM under heavy load. Lubricated gears increase durability.

Side handle is reversible for left or right hand operation. Safety-lock throttle lever included.

• HP: 1.0
• Max. RPM: 6000.0
• Motor RPM: 6000

DY 52376

3in (76 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

3in Diameter, Straight Line, 1 hp, 6in Extension, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52537

3in (76 mm) Diameter Straight-Line Vacuum Extension Cut-Off Wheel Tool

1 hp, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.

Ideal for 3in Diameter Diamond Cut-Off Wheels.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 52290

.7 hp 7 Degree Offset Die Grinder

20,000 RPM, Gearless, Front Exhaust, Short Shank, 1/4in and 6mm Collets

High-Quality Air-Powered Die Grinder 7 Degree Offset, Long Shank, Gearless, Front Exhaust Model

Gearless for reduced maintenance and downtime.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52379

4in (102 mm) Diameter Straight-Line Type 1 Extension Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

4in Diameter, Straight Line, 1 hp, 6in Extension, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52630

4in (102 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 13,500 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

13,500 RPM, 3/8in -24 Spindle Thread.

• HP: 1.3
• Max. RPM: 13500.0
• Motor RPM: 13,200

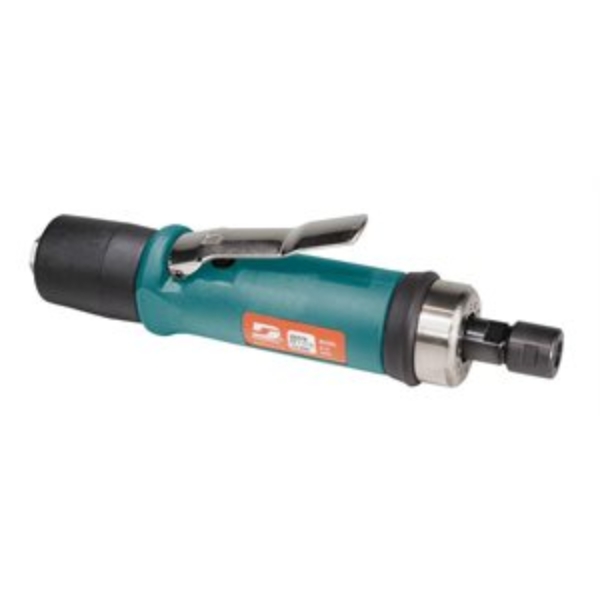

DY 52278

.7 hp Straight-Line Die Grinder

20,000 RPM, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52678

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

18,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 52675

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

9,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 9000.0
• Motor RPM: 9,000

DY 52679

1 hp Straight-Line 6in (152 mm) Extension Die Grinder

20,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 20000.0
• Motor RPM: 20,000
