Grinders

DC 12L2777-36

Rt. Angle Sander/Grinder, RE, 12K, 1/4in Collet

CSU 38502A

PIPE-MAX Weld Seam Grinder / Pipe Sander, Electric, 110V, 950-3500 rpm

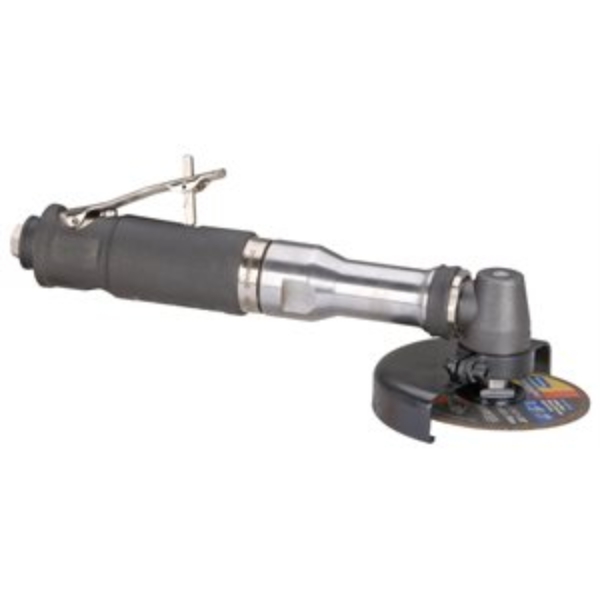

DY 54746

4in (102 mm) Diameter Extended Right Angle Type 41 Cut-Off Tool

.7 hp, 13,500 RPM, Steel

Model accepts 4in (102 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8in (9.5 mm) center hole

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 13,500

CL 236GEL-240-C4

Extended Grinder, Se, 1/4 In Collet

IR 77H120L10-EU

GRINDER

CL 2260AGL-06

GRINDER,RA,8.4K,5/8-11, 6" GUARD

CL 2260AGL-07

GRINDER, RA, 8.4K, 5/8-11, 7" GUARD

IR 88S45W109-EU

GRINDER

IR G3A120PP95AV

G3 ANGLE GRINDER M14 ARBOR 5" GUARD;AUTO BAL

DY 52563

7in (178 mm) Diameter Right Angle Disc Sander

1 hp, 6,000 RPM, Extended Rear Exhaust, 5/8in -11 Female Pad

Air motor is governor-controlled to maintain RPM under heavy load. Lubricated gears increase durability.

Side handle is reversible for left or right hand operation. Safety-lock throttle lever included.

• HP: 1.0
• Max. RPM: 6000.0
• Motor RPM: 6000

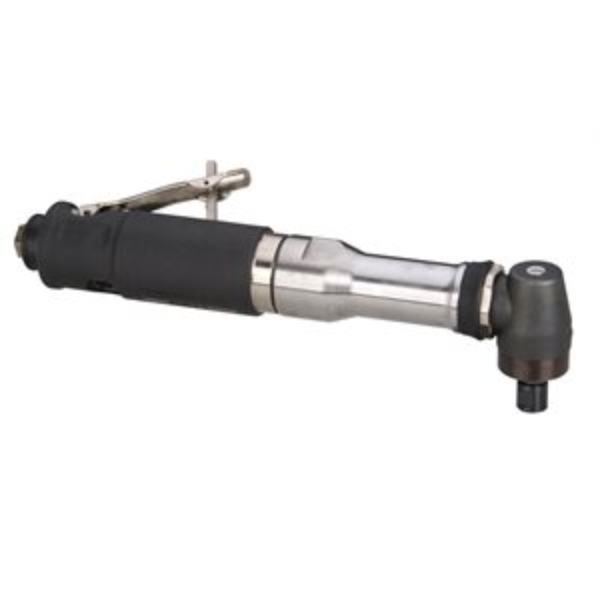

DY 54374

.7 hp Extended Right Angle Die Grinder

12,000 RPM, Steel, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 54391

.7 hp Extended Right Angle Die Grinder

18,000 RPM, Steel, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

CL 12L2674-1A

Dotco, .83 Multi. Ext, Re, 18K, 1/4in E300

IR G3A120PP945AV

G3 ANGLE GRINDER M14 ARBOR 4.5" GUARD AUTO BAL

IR G3A100PP96AV

G3 ANGLE GRINDER M14 ARBOR 6" GUARD AUTO BAL

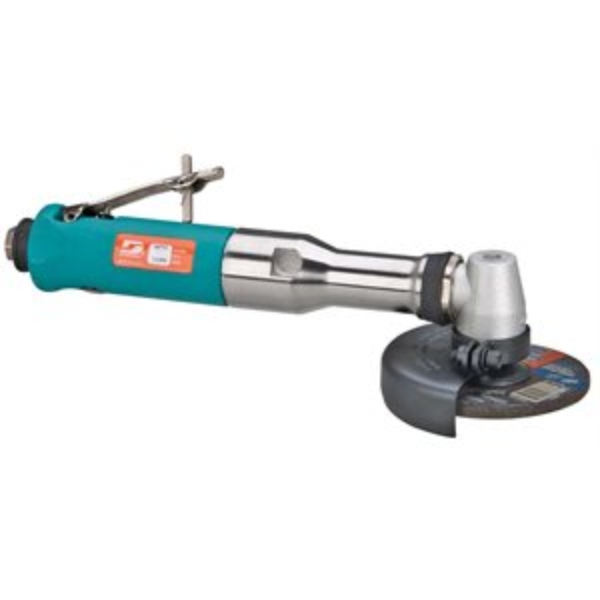

DY 54773

4in (102 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 12,000 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 12,000

DY 54777

4in (102 mm) Diameter Extended Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 13,500 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 13,500

CL 4060AVL-07

4HP VERT GRD, 6K RPM, 7in WHEEL GUARD

CL 4060AVL-06

4HP VERT GRD, 6K RPM, 6" CUP WHEEL GUARD

DY 53531

Cone or Plug Grinder (Single Extension)

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY 54787

4in (102 mm) Diameter Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 12,000 RPM, Steel

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 54783

3in (76 mm) Diameter Right Angle Type 27 Depressed Center Wheel Grinder

.7 hp, 18,000 RPM, Steel

Model accepts optional 3in (76 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR G3A120RP105

Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.6
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

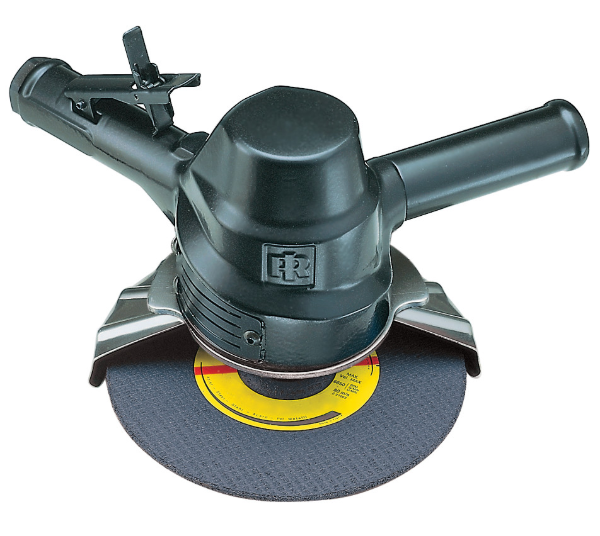

IR 88V77P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 7700 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 7700
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Rated Power (hp): 2.1
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

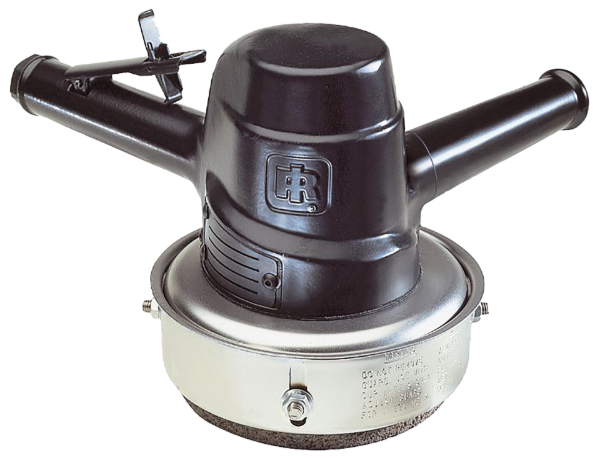

IR 99V60S106

Vertical Air Grinder, 5" or 6" Type 6 /11 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 10.8
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 82.4 / 93.4
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 5 or 6
Wheel Thickness (in): 1/4
Wheel Type: Type 6, 11

Similar IR

• 88V60S106
