Grinders

GG 25N667

GRINDLAZER SYSTEM, PRO, DC89 G

Graco 25N667 GrindLazer Pro DC89 G Gas-Powered Scarifier

The GrindLazer Pro DC89 G is a high-output drum style scarifier with a 9 HP Honda engine, 8 inch (20 cm) maximum cut width and larger selection of cutters for marking removal, leveling and surface preparation.

• Heavy-Duty All-Steel Frame

  • Jobsite Tough Design
• Durable 9 HP Honda Power With Cyclone Filter

  • Contractor-Preferred Power
  • Cyclone filter protects the engine from harmful airborne dust
• Center-Weight Design

  • Efficient “No-Bounce" Cutting
  • Better control for a better quality cut
• Precision All-Steel Wheel Assemblies

  • Accurate Cuts & Long Life
• Anti-Vibration Handlebars

  • Padded for minimal vibration transfer for all-day comfort
• Sealed Main Bearing

  • Maintenance-Free Design
  • Long life and ease-of-use
• Heavy-Duty Wide HTD Drive Belt

  • Eliminate Costly Downtime
• Vacuum Port

  • Less Dust
  • For optional LazerVac vacuum system
• Dual Purpose Tachometer and Hour Meter

  • Easy-to-Read Gauges
  • Ideal for maintenance—ensuring your equipment is in top shape
  • Displays engine RPMs while running

• Model: GrindLazer
• Series: Professional Series
• Product Series: Professional

• Air Filter Type: Cyclone

• Cutter Drum Diameter (in): 7
• Cutter Type: Drum

• Depth Adjustment: Manual

• Engine Brand: Honda
• Engine Model: GX270
• Engine Size (HP): 9
• Engine Start Type: Pull Start

• Maximum Cut Rate (ft2/hr): 400
• Maximum Cut Width (cm): 20
• Maximum Cut Width (in): 8
• Maximum Cut Width (mm): 203

GG 25R103

GRINDLAZER SYSTEM, DC1520 E DCS STD-SPD 380V

Graco 25R103 GrindLazer HP DC1520 E DCS Self-Propelled Electric Scarifier, Low-Speed Pulley Kit

The DC1520 E DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It is capable of removing a path up to 16 inches wide and features Graco's electronic DCS Depth Control System to quickly adjust cut depth without stopping.

• Do-It-All Solution

  • Adaptable for leveling, grooving, scarifying, and stripping coatings
  • Up to 16 inch removal path
  • Wide variety of cutters available
  • Low-speed pulley kit for carbide flail cutters
  • Quick-change side plate for easier drum removal
• Depth Control System

  • Eliminate Measuring & Guesswork
  • Quickly and precisely adjust the cutter depth with the push of a button
  • Achieve accurate cut depth for leveling, grooving, and inlay
  • Eliminate damage due to “dropped drums”
• DCS Controller
  • Total Operator Control
  • Easy adjustment via control panel buttons
  • Set “zero point” where the cutter meets the surface
  • Adjust cut depth in 0.01 inch increments
  • Displays “active depth” from zero point
  • English and metric units
  • Robust design stands up to harsh job site environments
  • Electronic components are protected against dust, debris, water, and vibration
• Designed for the Toughest Jobs

  • All-steel chassis
  • Low-vibration design
  • Long-life bearings
• Powered by 20 HP Motor, 380V, 50Hz, 3ph
• Dust Removal

  • Dust port for connecting to LazerVac vacuum systems

• Model: GrindLazer
• Series: High Production Series
• Product Series: High Production

• Cutter Drum Diameter (in): 10
• Cutter Type: Drum

• Engine Size (HP): 20

• Maximum Cut Rate (ft2/hr): 3500
• Maximum Cut Width (cm): 41
• Maximum Cut Width (in): 16
• Maximum Cut Width (mm): 406

GG 25R102

GRINDLAZER SYSTEM, DC1520 E DCS STD-SPD 480V

Graco 25R102 GrindLazer HP DC1520 E DCS Self-Propelled Electric Scarifier, Low-Speed Pulley Kit

The DC1520 E DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It is capable of removing a path up to 16 inches wide and features Graco's electronic DCS Depth Control System to quickly adjust cut depth without stopping.

• Do-It-All Solution

  • Adaptable for leveling, grooving, scarifying, and stripping coatings
  • Up to 16 inch removal path
  • Wide variety of cutters available
  • Low-speed pulley kit for carbide flail cutters
  • Quick-change side plate for easier drum removal
• Depth Control System

  • Eliminate Measuring & Guesswork
  • Quickly and precisely adjust the cutter depth with the push of a button
  • Achieve accurate cut depth for leveling, grooving, and inlay
  • Eliminate damage due to “dropped drums”
• DCS Controller

  • Total Operator Control
  • Easy adjustment via control panel buttons
  • Set “zero point” where the cutter meets the surface
  • Adjust cut depth in 0.01 inch increments
  • Displays “active depth” from zero point
  • English and metric units
  • Robust design stands up to harsh job site environments
  • Electronic components are protected against dust, debris, water, and vibration
• Designed for the Toughest Jobs

  • All-steel chassis
  • Low-vibration design
  • Long-life bearings
• Powered by 20 HP Motor, 480V, 60Hz, 3ph
• Dust Removal

  • Dust port for connecting to LazerVac vacuum systems

• Product Series: High Production

• Cutter Drum Diameter (in): 10
• Cutter Type: Drum

• Depth Adjustment: Depth Control System (DCS)

• Engine Size (HP): 20

• Maximum Cut Rate (ft2/hr): 3500
• Maximum Cut Width (cm): 41
• Maximum Cut Width (in): 16
• Maximum Cut Width (mm): 406

GG 26A706

GG 26A707

GG 26A708

GG 26A709

GG 26A710

GG 26A711

GG 26A712

GG 26A713

GG 26A714

GG 26A715

GG 25M992

GRINDLAZER SYSTEM, HP, DC89 G, BARE

Graco 25M992 GrindLazer HP DC89 G Gas-Powered Scarifier

The GrindLazer HP DC89 G is a good choice for general line removal. Its EasyGlide Wheel Mount System makes it as easy to use as a LineLazer, and its rugged, innovative design means you can count on it to perform for a lifetime of use.

• DialDown Depth Control System

  • Easy Cutter Depth Control
  • Easy to “dial down” for precise cutting depth control with multiple positions
• InstaCut Technology

  • Ultimate Removal or Inlay Flexibility
  • Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
  • Allows deck to “float” when on uneven surfaces No-tool system
• Vibration Reduction Technology

  • All-Day Comfort
  • Up to 4x less vibration than the competition
  • Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
  • Comfort-grip handlebars for precise steering
• Extreme-Duty ProStart System

  • Safer Operation
  • Easy cutter start/stop with centrifugal Easy cold weather starting
  • Provides longer belt life and eliminates broken recoils
• TriBelt Drive System

  • Maximum Road Handling
  • 3-cog belt design optimizes power transfer and eliminates costly downtime
• Fat Track Front Swivel Wheel

  • Fast, Easy Turning
  • Proven front caster wheel system makes turning fast and easy
  • Maneuver curves better No need to “muscle it” while moving
• EasyGlide Wheel Mount System

  • Safer, Easier To Maneuver
  • Front-mounted caster along with dual rear pneumatic air-filled tires
  • Pneumatic air-filled tires help eliminate vibration
• Dust Removal

  • Vacuum port for optional LazerVac vacuum system
• LineDriver Compatible

  • Double Your Productivity

• Model: GrindLazer
• Series: High Production Series
• Product Series: High Production

• Air Filter Type: Cyclone

• Cut Direction: Forward
• Cutter Drum Diameter (in): 7
• Cutter Type: Drum

• Depth Adjustment: Manual

• Engine Brand: Honda
• Engine Model: GX270
• Engine Size (HP): 9
• Engine Start Type: ProStart

• LineDriver Required: Optional

• Maximum Cut Rate (ft2/hr): 600
• Maximum Cut Rate w/ LineDriver (ft2/hr): 1300
• Maximum Cut Width (cm): 20
• Maximum Cut Width (in): 8
• Maximum Cut Width (mm): 203

IR 314AC4A

IR 320AC4A

U UT8724-20

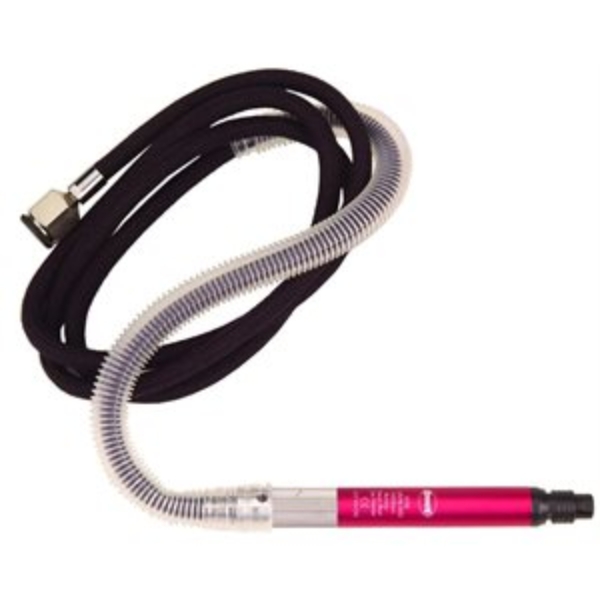

SX 5978A

MPT G12390E6-384TI

MPT G25306B

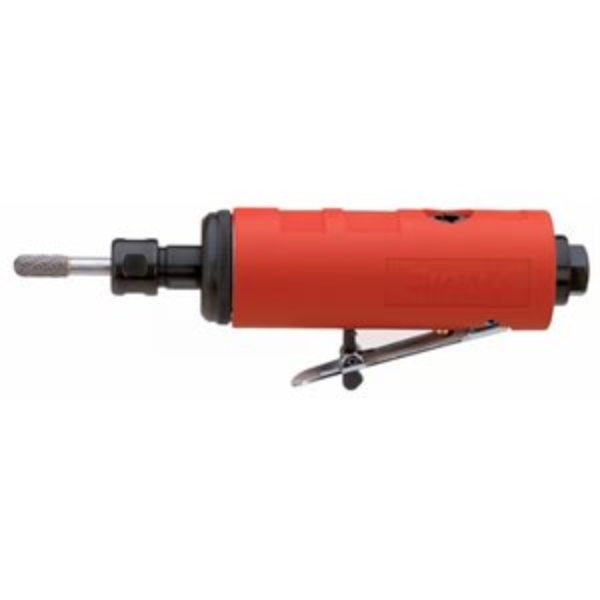

SX 5054A

SX AG22D847

MPT MP-7177G-ST

U UT8766-25-85

IR 325SC4A
