Grinders

DY 52632

4-1/2in (114 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 12,000 RPM, Side Exhaust, 5/8in -11 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

12,000 RPM, 5/8in -11 Spindle Thread.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

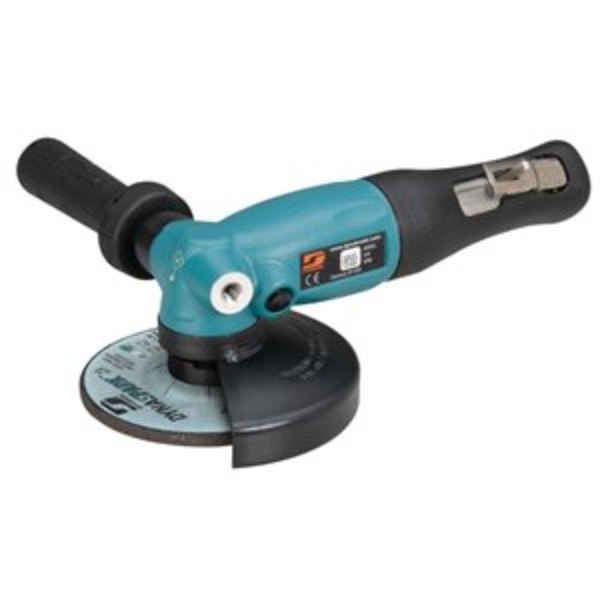

DY 52633

5in (127 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 12,000 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

12,000 RPM, 5/8in -11 Spindle Thread.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52639

5in (127 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 12,000 RPM, Rotational Exhaust, M14 x 2 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

12,000 RPM, M14 x2 Spindle Thread.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

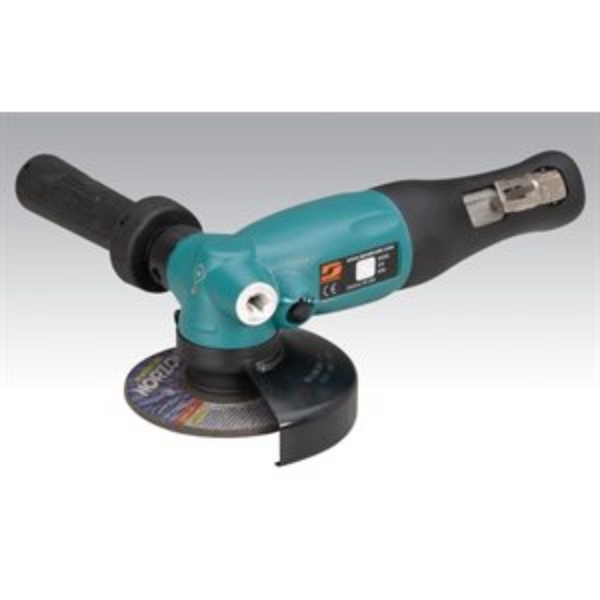

DY 52630

4in (102 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 13,500 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

13,500 RPM, 3/8in -24 Spindle Thread.

• HP: 1.3
• Max. RPM: 13500.0
• Motor RPM: 13,200

DY 54343

.7 hp Right Angle Die Grinder

12,000 RPM, Composite, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

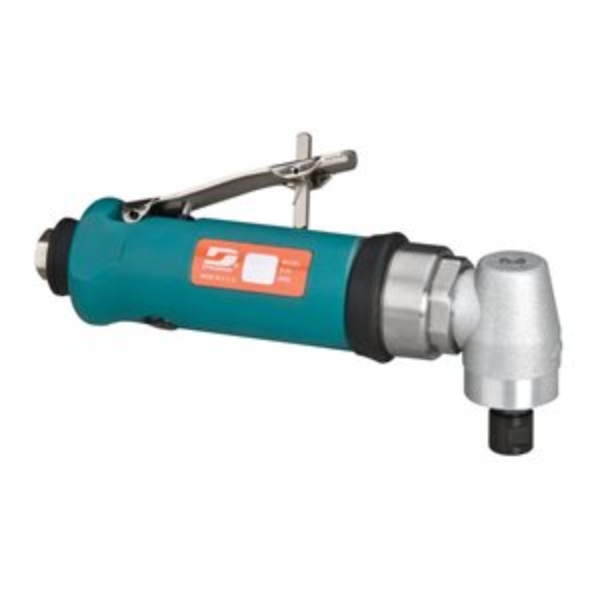

DY 54359

.7 hp Right Angle Die Grinder

18,000 RPM, Composite, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

DC 10L1181-36

5" EXT. GRINDER,28K,1/4" COLLET

DY 54730

3 in.Dia. Right Angle Type 41 Cut-Off Tool

DC 12L2542-01

GRINDR ERGO,RE,12K,GOV,1/4" COL

CL 3060AVL-06

3HP VERT GRD, 6K RPM, 6" CUP WHEEL GUARD

CL 3060AVL-09

3HP VERT GRD, 6KRPM, 9" GUARD

IR M2E145RP64

Extended Angle Air Grinder, 4" Type 27 Wheel, 14,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 14,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic extended reach handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.13
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 14500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 11.57
Product Weight (lb): 3.78
Rated Power (hp): 1
Right Angle Length (in): 10.62
Right Angle Length (mm): 270
Sound Pressure/Power Db(A): 87.7 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 8.8
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2E135RP64

AIM UG-65E

Grinder Front Exhaust Sleeve Wheel Capacity 2.5in 14600 RPM

DC 10L2580-36

GRINDER,RE,23K,1/4" COLLET

IR 88V60P107M-EU

GRINDER 88V60P107M-EU

CL 3060AVL-07

3HP VERT GRD, 6KRPM, 7" GUARD

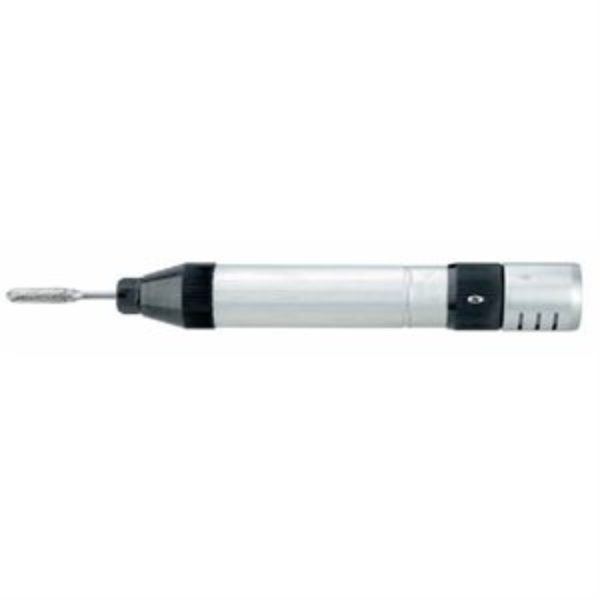

SX 1985A

Die Grinder

DY 52579

4in (102 mm) Diameter Straight-Line 6in (152 mm) Extension Cut-Off Wheel Tool

1 hp, 15,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

4in Diameter, Straight Line, 1 hp, 6in Extension, 15,000 RPM.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15,000

DY 53781

.7 hp Straight-Line Extension Die Grinder, Steel Housing

20,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Dynabrade's Steel Housing Die Grinders feature the quality and power you have come to expect.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20,000

DC 10N2080-0124

Grinder

DY 50340

4-1/2in -5in (114 mm-127 mm) Diameter Pistol Grip Depressed Center Wheel Grinder

.7 hp, 11,000 RPM, Rear Exhaust, 5/8in -11 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

4-1/2in - 5in Diameter, Pistol Grip, .7 hp, Rear Exhaust, 11,000 RPM.

• HP: 0.7
• Max. RPM: 11000.0
• Motor RPM: 11,000

DY 53783

Cone or Plug Grinder (Single Extension), Steel Housing

.7 hp, Straight-Line, 20,000 RPM, Gearless, Rear Exhaust, 3/8in -24 Male Spindle Thread

Tool feature's steel housing for increased durability. Used in Steel Fabrication, Welding Operations, Shipyards, Foundries and more!

Dynabrade?s Steel Housing Die Grinders feature the quality and power you have come to expect.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20,000

DC 10N1200-36M6

RA Sander/Grinder, 12K, 6MM Collet

DC 10N2080-01

GRINDER,RE,25K,1/4" COLLET

IR M2A090RP95

ANGLE GRINDER, 9K, M14, 5IN
