Grinders

JET 578010

DUAL WHEEL GRINDER, 10 (IBG-10)

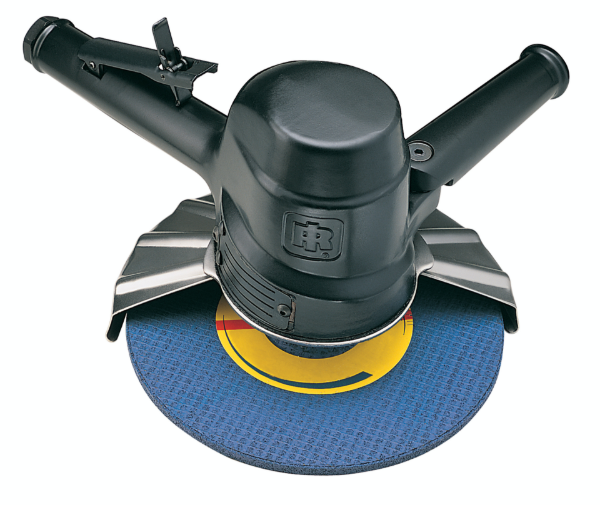

IR 99V60P109

Vertical Air Grinder, 9" Type 27/28 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio at 11.3 lbs, 3HP and 6,000 RPM.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Designed for heavy-duty production applications, the 99 Series Vertical Grinder is a trusted tool that will last you years to come.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 11.25
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 82.5 / 93.5
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Diameter (in): 9
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P107

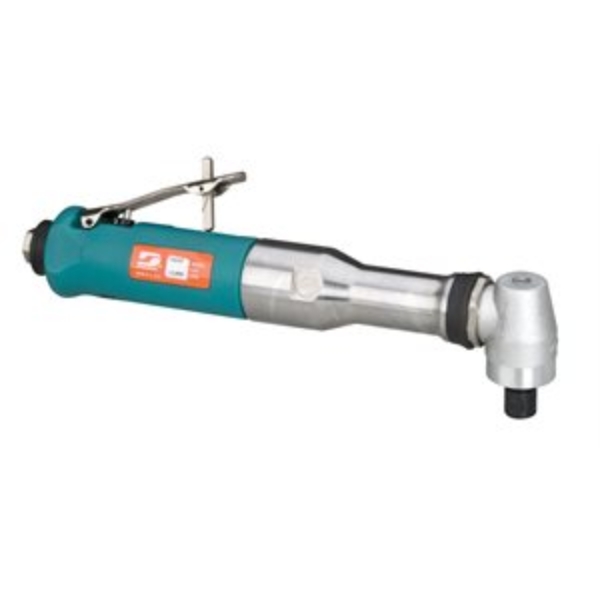

DY 54347

.7 hp Extended Right Angle Die Grinder

12,000 RPM, Composite, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 12000.0
• Motor RPM: 12,000

IR 99V60P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio at 2.8 lbs and 6,000 RPM.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 8.8
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 81.4 / 92.4
Vibration Level (m/s2): 2.8
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P109

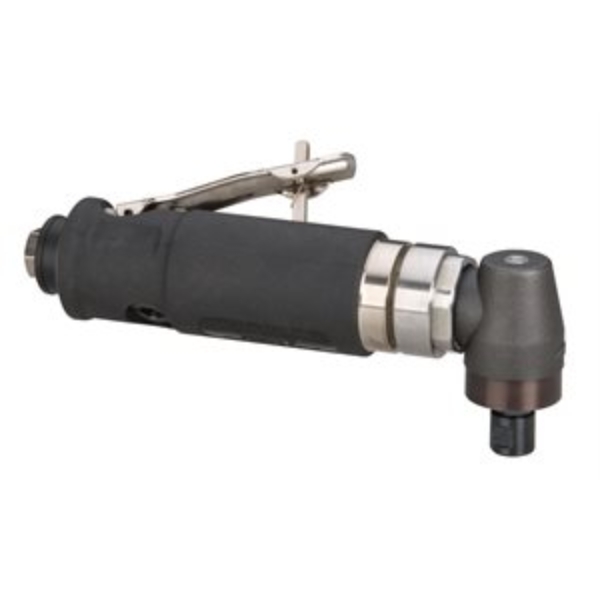

DY 54387

.7 hp Right Angle Die Grinder

18,000 RPM, Steel, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR G3X180PH63

Extended Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1.34 HP, 3/8"-24 Thread, Rear Exhaust

Features And Benefits

• Power: Superior power-to-weight ratio with a 1.34 HP 18,000 RPM motor so you can use to tackle the biggest jobs
• Comfort: Ergonomic and lightweight, the Type 1 Grinder offers easy handling all day long.
• Durability: Able to withstand harsh environments and repeated drops, the G3 Series Type 1 can withstand the test of time.
• Internal governor maximizes speed under load, increasing rate material removal

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.34
Rated Power (kW): 1
Warranty: 1-year
Wheel Thickness (in): 1/2
Wheel Type: Type 1

IR G3X180RH63

Extended Air Grinder, 3" Type 1 Wheel, 18,000 RPM, 1.34 HP, 3/8"-24 Thread, Rear Exhaust

Features And Benefits

• Power: Superior power-to-weight ratio with a 1.34 HP 18,000 RPM motor so you can use to tackle the biggest jobs
• Comfort: Ergonomic and lightweight, the Type 1 Grinder offers easy handling all day long.
• Durability: Able to withstand harsh environments and repeated drops, the G3 Series Type 1 can withstand the test of time.
• Internal governor maximizes speed under load, increasing rate material removal

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.34
Rated Power (kW): 1
Warranty: 1-year
Wheel Thickness (in): 1/2
Wheel Type: Type 1

IR 88V85P107

GRINDER

IR G3X150PH64

Extended Air Grinder, 4" Type 1 Wheel, 15,000 RPM, 1.34 HP, 3/8"-24 Thread, Rear Exhaust

Features And Benefits

• Power: Superior power-to-weight ratio with a 1.34 HP 15,000 RPM motor so you can use to tackle the biggest jobs
• Comfort: Ergonomic and lightweight, the Type 1 Grinder offers easy handling all day long.
• Durability: Able to withstand harsh environments and repeated drops, the G3 Series Type 1 can withstand the test of time.
• Internal governor maximizes speed under load, increasing rate material removal

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.34
Rated Power (kW): 1
Warranty: 1-year
Wheel Thickness (in): 1/2
Wheel Type: Type 1

DY 49425

.4 hp Right Angle Die Grinder

3,200 RPM, Planetary-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 3200.0
• Motor RPM: 3,200

IR G3A100RP106

Air Angle Grinder, 6" Type 27 Wheel, 10,000 RPM, 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 85.3
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR G3X150RH64

Extended Air Grinder, 4" Type 1 Wheel, 15,000 RPM, 1.34 HP, 3/8"-24 Thread, Rear Exhaust

Features And Benefits

• Power: Superior power-to-weight ratio with a 1.34 HP 15,000 RPM motor so you can use to tackle the biggest jobs
• Comfort: Ergonomic and lightweight, the Type 1 Grinder offers easy handling all day long.
• Durability: Able to withstand harsh environments and repeated drops, the G3 Series Type 1 can withstand the test of time.
• Internal governor maximizes speed under load, increasing rate material removal

Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Guard Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.34
Rated Power (kW): 1
Warranty: 1-year
Wheel Thickness (in): 1/2
Wheel Type: Type 1

IR G3X150PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

IR 88V60S106

Vertical Air Grinder, 5" Type 6/11 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Grinder Type 6/11
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 8.38
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86 / 99
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 5 or 6
Wheel Type: Type 6, 11

IR 99V60P109M-EU

GRINDER

IR 88V60P109

Vertical Air Grinder, 9" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Height (in): 8.2
Product Weight (lb): 9.13
Rated Power (hp): 2.1
Sound Pressure/Power Db(A): 86.2 / 97.2
Vibration Level (m/s2): 3.6
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Diameter (in): 9
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

IR 88S60W107

Vertical Air Sander, 7" Pad, 6,000 RPM, 2 HP, 5/8"-11 Thread, Side Exhaust

These Pro Series sanders are made to tackle large areas and heavy duty materials.

Features And Benefits

• The 88S sander was made with a solid steel motor, arbor housing, and double-row ball bearings to assure long life and smooth operation.
• Featuring a built-in mist lubricator, this tool stays well-oiled every time the throttle is activated.
• Made to tackle large areas and heavy duty materials.

Product Application and Uses: These Air Sanders are designed for both light and heavy sanding jobs such as roughing body filler, removing rust, and smoothing welds.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Double Row Ball
Configuration/Handle Type: Vertical
Exhaust Location: Side
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Weight (lb): 7.13
Rated Power (hp): 2
Sound Pressure/Power Db(A): 77.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

IR G3X150RG4

Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

IR G3A120RG4

Air Angle Die Grinder, 12,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 12,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 86.4 / 97.4
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year

IR G3X180PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

IR 88V60S106M-EU

GRINDER 88V60S106M-EU

IR G3X180RG4

Extended Air Die Grinder, 18,000 RPM, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 18,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 87.6 / 98.6
Vibration Level (m/s2): <2.5
Warranty: 1-year

IR 88S60W107-EU

GRINDER

DC 12L2718-36

RA SND/GRD,ERGO,RE,18K,1/4" COL

IR M2L100RP106

Extended Angle Air Grinder, 6" Type 27 Wheel, 10,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Features And Benefits

• Power: With a powerful, lube-free 1 HP 10,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 5.46
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.8 / 98.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.3
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1/4
Wheel Type: Type 27
