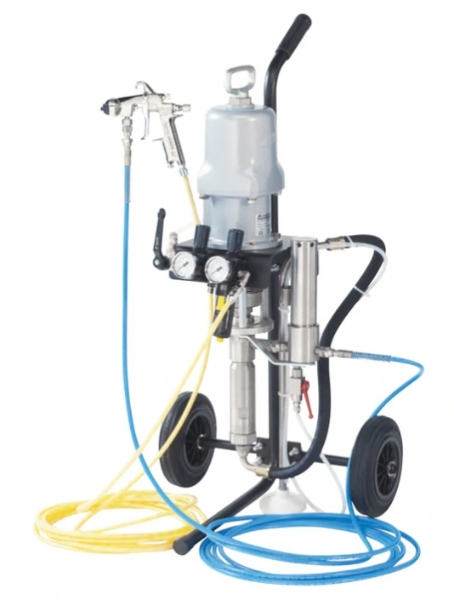

IW 7178-H

IW 7503

IW 7506SN

IW 7507SN

IW 7600

IW 7601

IW 7964

IW 7610

IW 8001

IW 8048

IW 8135B

IW 5722

IW 5725

IW 5733

IW 6009

IW 6001

IW 6010

IW 6011

IW 6023S1

IW 6051

IW 6012

IW 7016D

IW 7114

IW 7115

IW 7139B-W

IW 7116

IW 7142B-W

IW 7143B-W

IW 7506S

IW 7955

IW 8002

IW 8077B

IW 8101

IW 8212

IW 8172

IW 9013

IW 9023

IW 9014

IW 9024

IW 90407203

IW 9134

IW 9206

IW 9217

IW 9230

The Iwata Air Gunsa HVLP 1.3mm Nozzle Sealer Spray Gun (9230) is a dependable and efficient spray gun tailored for automotive refinishing professionals, particularly for sealer application. Utilizing HVLP (High Volume Low Pressure) technology, it ensures minimal overspray and high material transfer efficiency. The spray gun features a lightweight, ergonomic design that enhances user comfort during prolonged use, while its polished exterior simplifies cleanup and maintenance. Designed with performance and practicality in mind, this gravity-feed spray gun balances affordability and quality for consistently smooth and even finishes.

KEY FEATURES AND BENEFITS:

• Optimized Sealer Application: Engineered specifically for applying automotive sealers, delivering even and consistent coverage.
• Efficient HVLP Technology: Reduces overspray and increases material transfer, minimizing waste and saving costs.
• Ergonomic & Lightweight Design: Soft trigger pull and low weight reduce user fatigue during extended use.
• Polished Surface: Corrosion-resistant finish enables quick and easy cleanup, maintaining gun performance.
• Balanced Gravity-Feed System: Center post cup mount offers optimal balance and handling during operation.
• Consistent Spray Pattern: Delivers uniform atomization for professional results on every project.
• Economical & Versatile: High-quality build offered at an affordable price, compatible with a wide range of compressors.

SPECIFICATIONS:

• Nozzle Size: 1.3mm
• Cup Size: 600 ml
• Air Pressure at Gun Inlet: 2.0 bar (30 PSI)
• Air Consumption: 340 NL/min (12.0 CFM)
• Fluid Output: 150 ml/min
• Pattern Width: 280 mm
• Air Connection: G 1/4"M
• Fluid Connection: G 1/4"F
• Weight: 517 g

HOW TO USE:

1. Prepare Your Workspace: Ensure a well-ventilated area and use appropriate safety gear, including respirator, gloves, and safety glasses.
2. Mix Your Sealer: Prepare and strain the sealer as per manufacturer instructions to remove impurities.
3. Fill the Cup: Pour the mixed sealer into the 600 ml cup and attach it securely to the gun.
4. Connect Air Supply: Attach the compressor hose to the G 1/4"M air inlet on the spray gun.
5. Set Air Pressure: Adjust regulator to maintain 2.0 bar (30 PSI) for optimal spray performance.
6. Adjust Fluid and Pattern: Perform a test spray and fine-tune the fluid and fan pattern knobs for your desired spray width and material flow.
7. Apply Sealer: Spray at a steady pace while maintaining consistent distance; overlap each pass by approximately 50%.
8. Clean the Gun: Clean immediately after use per manufacturer guidelines; do not use halogenated hydrocarbon solvents.

BENEFITS OF USING IWATA AIR GUNSA HVLP 1.3MM NOZZLE SEALER SPRAY GUN (9230):

• Optimized for applying sealers, ensuring smooth and reliable finishes on automotive surfaces.
• Minimizes material waste through efficient HVLP transfer technology.
• Lightweight and ergonomic design enhances comfort and reduces fatigue during long jobs.
• Polished exterior allows quick, hassle-free cleaning and maintenance.
• Provides consistent, professional-grade spray results every time.
• Affordable pricing offers excellent value for both hobbyists and professionals.
• Compatible with a wide range of compressors due to
