GG SP4F.0004
SANIFORCE AODD PUMP, 4150HS.PS01ASSAFL-POEP21

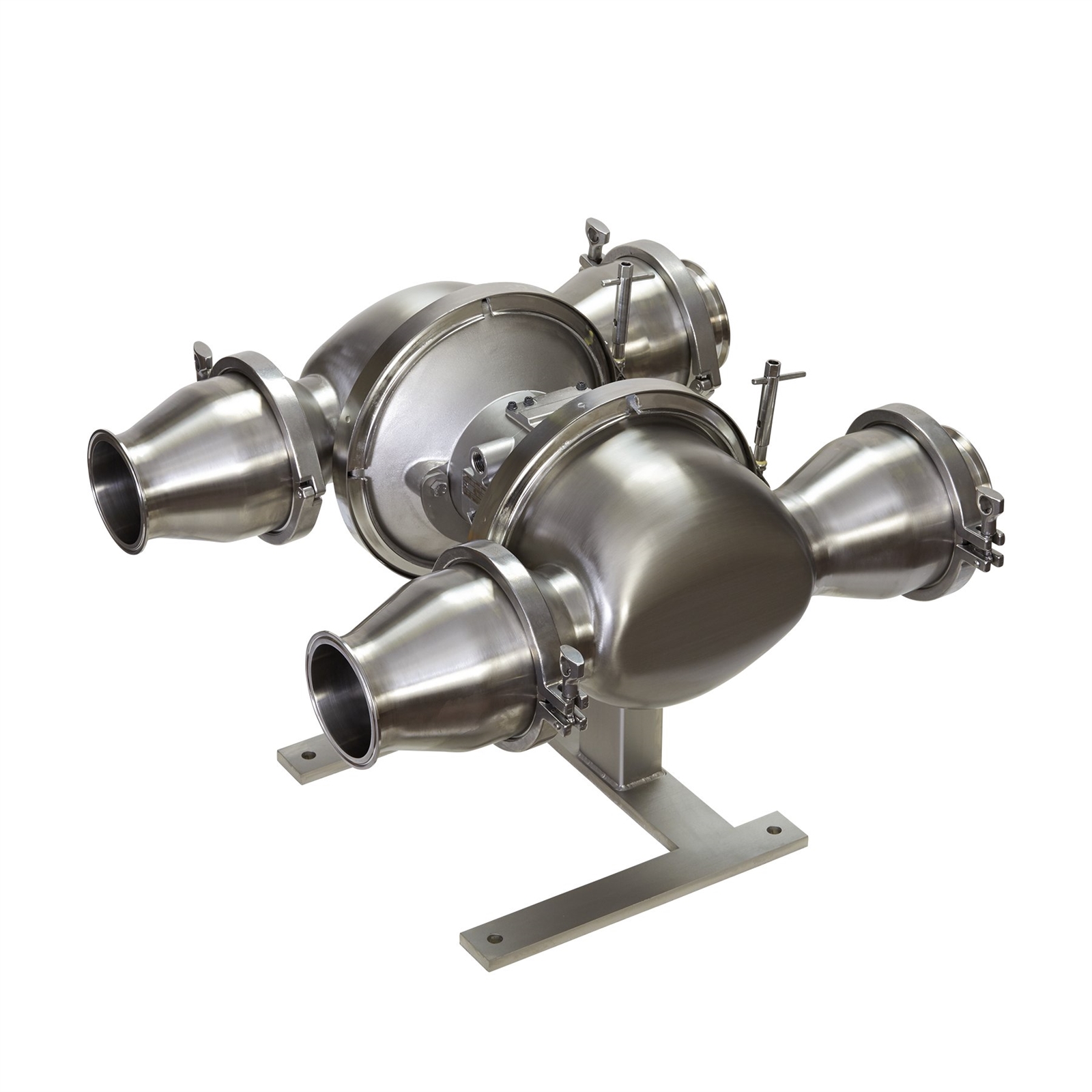

Graco SP4F.0004 SaniForce 4150, 4" HS SST Pneumatic Diaphragm Pump, SS Center, FL Checks, PO Diaphragms
Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
- 4 inch sanitary pump with flow rates up to 90 gpm (340 lpm) and pressures up to 120 psi (8 bar)
- Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
- Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
- Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
- PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side
- 316L stainless steel wetted section
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Flapper check enables passage of solids up to 3.8 in. (96.5 mm)
- Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design
- Model: SaniForce
- Series: 4150 HS
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ball Material: 316 Stainless Steel Flapper
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food, Personal Care
- Compressor Required: Yes
- Connection Type: Tri-Clamp
- Diaphragm Material: PTFE/EPDM Overmold
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food, Personal Care
- Hazardous Location Approval: ATEX, IECEx
- Manifold Configuration: Center Port
- Manifold O-Ring Material: EPDM
- Material: Stainless Steel
- Material Certification: EN 1024:2004 Type 2.1 (Standard)
- Maximum Air Consumption (SCFM): 235
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 225
- Maximum Flow Rate (GPM): 90
- Maximum Flow Rate (L/min): 340
- Maximum Fluid Operating Temperature ( degree C): 82
- Maximum Fluid Operating Temperature ( degree F): 180
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Operating Temperature ( degree C): 82
- Maximum Fluid Operating Temperature ( degree F): 180
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Flui
