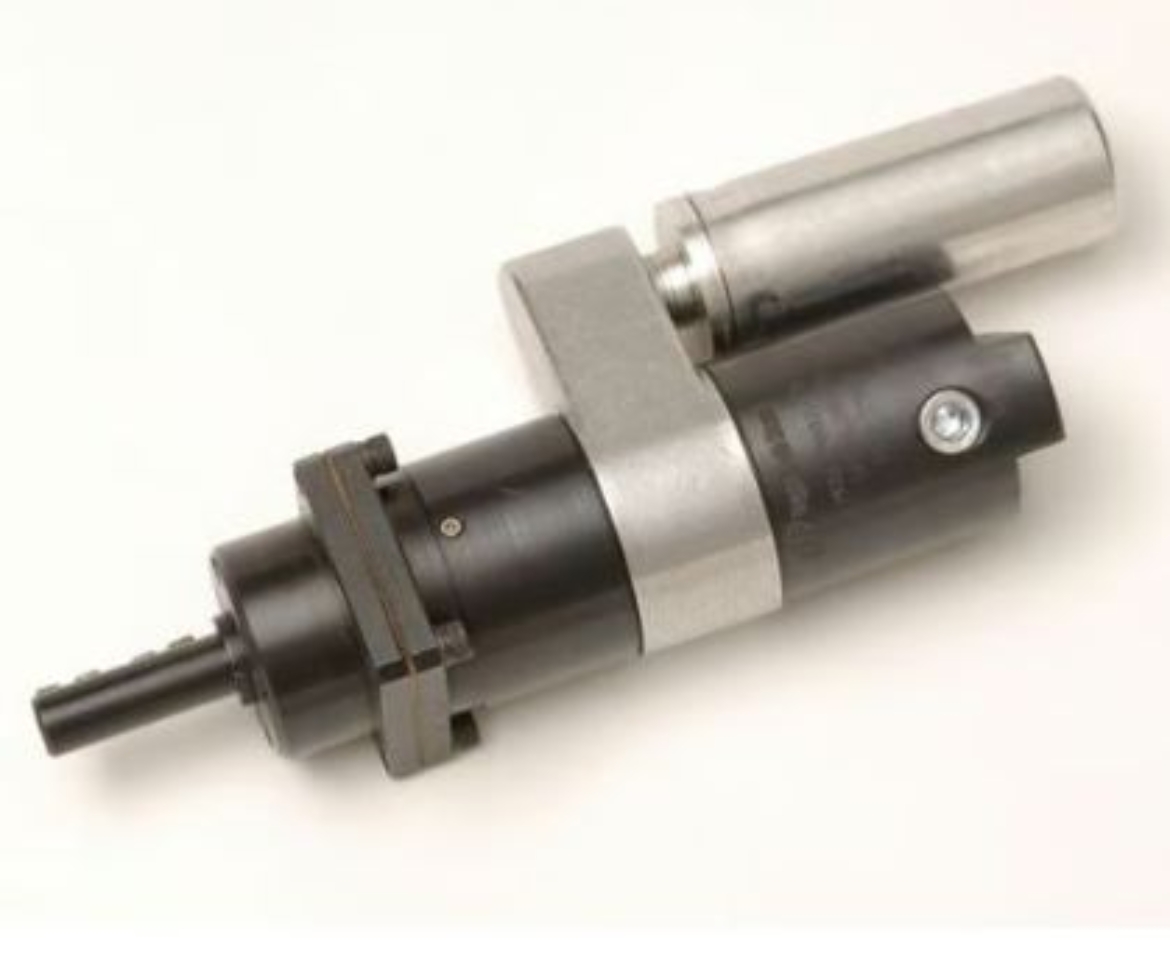

AA 8226-11A
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 110 RPM, 0.6 HP, 134.1 NM, Non-reversible
- Air Consumption at Max HP (scfm): 40.5
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1/2
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 165.1:1
- Gear Reduction: Triple
- Gear Train: Planetary
- Max Free Speed (rpm): 110
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 100
- Max Torque (in-lb): 1187
- Max Torque (nm): 134.1
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Weight (lb): 5.56
- Rated Power (hp): 0.6
- Rated Power (kW): 0.45
- Reversible: Non-reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 57
- Torque Output @ Max HP (ft-lb): 55
- Torque Output @ Max HP (nm): 74.5
- Warranty: 1-year
