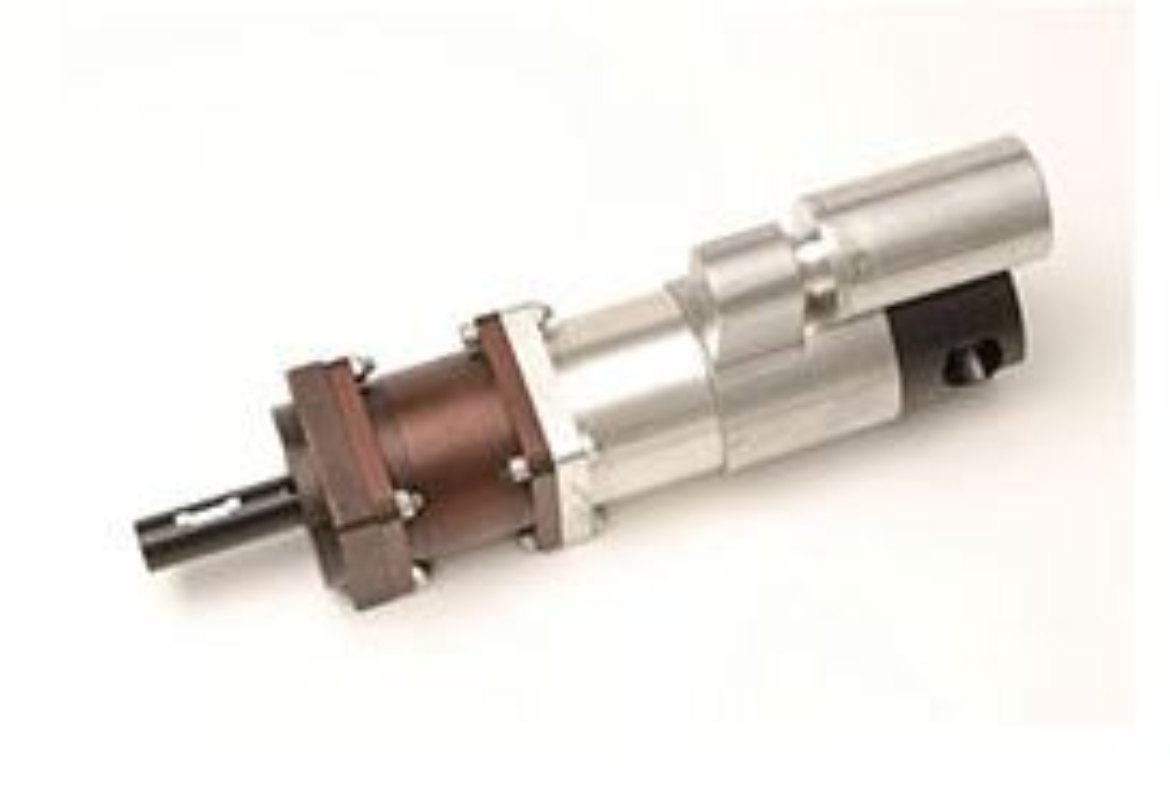

AA 8200-A
Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 275 RPM, 2 HP, 168 NM, Non-reversible
- Air Consumption at Max HP (scfm): 95
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Drive Size (in): 7/8
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 49:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 275
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 124
- Max Torque (in-lb): 1487
- Max Torque (nm): 168
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Weight (lb): 18.24
- Rated Power (hp): 2
- Rated Power (kW): 1.49
- Reversible: Non-reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 140
- Torque Output @ Max HP (ft-lb): 75
- Torque Output @ Max HP (nm): 101.6
- Warranty: 1-year
