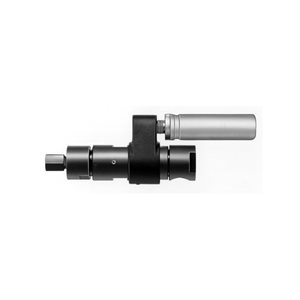

AA 7803-2B
Milling Air Motor, 3/8" Collet, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
- Air Consumption at Max HP (scfm): 41.7
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/8
- Drive Type: Collet
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 1200
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 16
- Max Torque (in-lb): 194
- Max Torque (nm): 21.9
- Motor: Rotary Vane
- Motor: Milling
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 6.39
- Rated Power (hp): 0.85
- Rated Power (kW): 0.63
- Reversible: Non-reversible
- Sound Level dB(A): 78
- Speed at Max Power (rpm): 600
- Torque Output @ Max HP (ft-lb): 7.5
- Torque Output @ Max HP (nm): 10.2
- Warranty: 1-year
