Fast-Flo Pump, 1:1

GG 226944

FAST-FLO PUMP, 1:1

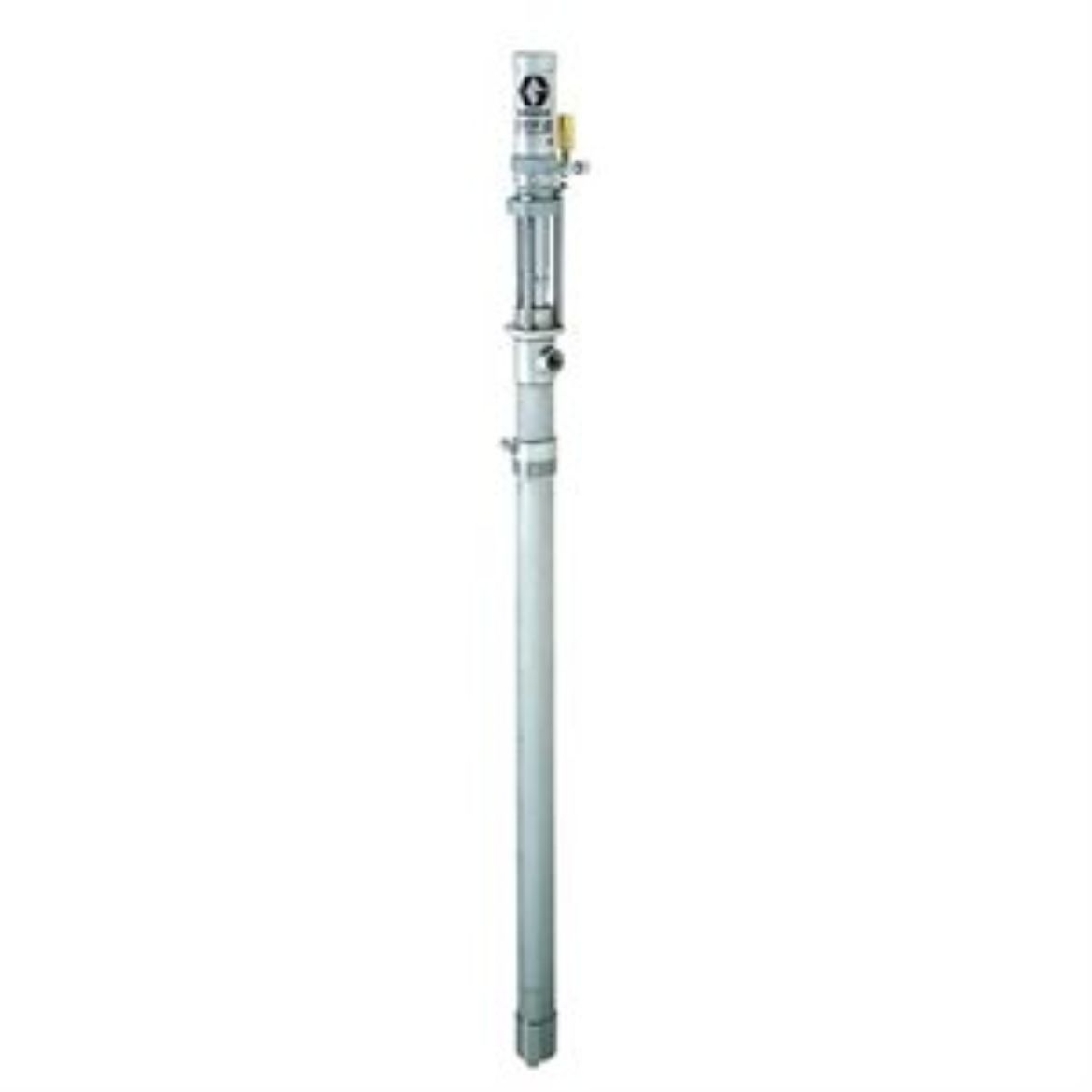

Graco 226944 1:1 Ratio Carbon Steel Fast-Flo Universal-Length Transfer Stubby Pump

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 7.1

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1
