IR 1AL1

DRILL

IR 1RLN2S3

SCREWDRIVER

IR 1RLNS1

SCREWDRIVER

IR 20A11CM248

O-Ring

IR 1RPMC1

SCREWDRIVER

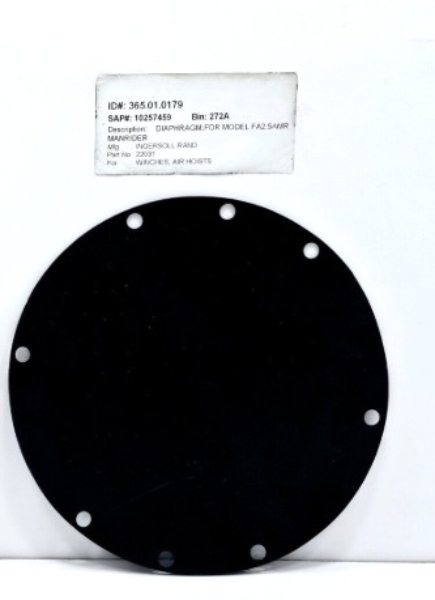

IR 22031

Diaphragm

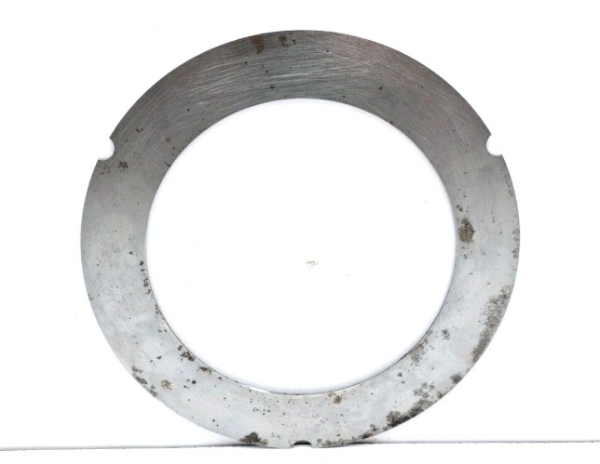

IR 22033

Separator Disc, Disc Brake

IR 23497001

Pad Filter

IR 23A-VAR-GR

Surface Prep Accessory Kit, 50-Piece

Includes: (4) 1/4" Shank Carbide Burs; (5) 1/8" Shank Mounted Points; (5) 1/4" Shank Mounted Points; (1) 2" Quick Change Disc Backing Pad; (1) 3" Quick Change Disc Backing Pad; (6) 2" 36 Grit Sanding Discs; (9) 2" Various Grit Surface and Conditioning Discs; (2) 2" Paint and Corrosion Removal Discs; (2) 2" High Strength Buffing Discs; (5) 3" 36 Grit Sanding Discs; (9) 3" Various Grit Surface Conditioning Discs; (1) Carrying Case
Product Application and Uses: For use with 1/4" Collet Die Grinders
Arbor/Collet: 1/4"

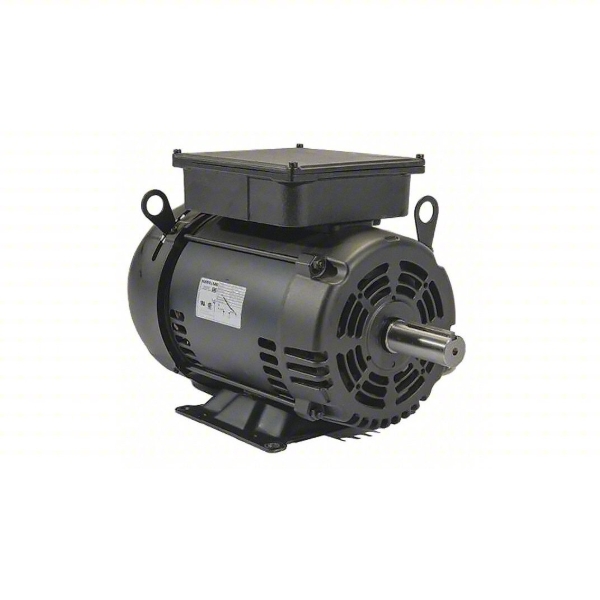

IR 23172604

Electric Motor 7-1/2 Hsp

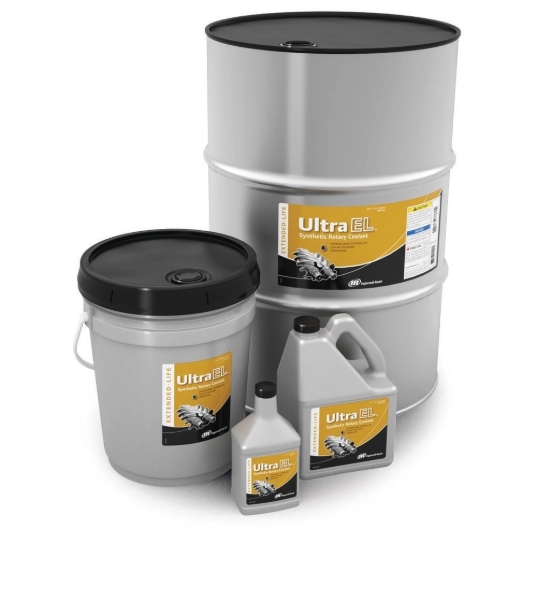

IR 24061624

Coolant Ultra EL

IR 2112-53

ROTOR

IR 2135M-BOOT

Protective Tool Boot for Ingersoll Rand 2235 Series Impact Wrenches

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand 2135 Series Impact wrenches.
Color: Grey

For Use With

• 2135PQXPA
• 2135PTIMAX
• 2135QXPA
• 2135QXPA-2

IR 2131-926-7

ANVIL

IR 2115TIMAX-D727

CASE, HAMMER ASSEMBLY.

IR 2135QXPA

1/2" Air Impact Wrench, Quiet, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features And Benefits

• Impact Power: Punish the toughest bolts with 1100 ft.-lbs. of nut-busting torque powered by a finely tuned motor and twin-hammer impact mechanism.
• Lightweight: At only 4 lbs., the 2135QXPA is as light as it is powerful so your hand tires less, letting you get more work done.
• Patented Quiet Technology: Ingersoll Rand's patented Quiet Tool Technology reduces sound levels without compromising best-in-class power.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 86.0 / 97.0
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.7
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 11000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Product Length (in): 7.5
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 700
Recommended Forward Torque Range (in-lb): 8399
Recommended Forward Torque Range (nm): 949
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Special Features: Quiet Tool
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.3
Warranty: 1-year

Similar IR

• 2235TIMAX
• 2235QTIMAX
• 2235QTIMAX-2
• 2135QXPA-2
• 2115QXPA
• 2236QTIMAX

IR 2145QIMAX-6

3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 6" Extended Anvil

As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.

Features And Benefits

• MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
• MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
• MAX PRODUCTIVITY: An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 906
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 8.5
Average Air Consumption (l/min): 241
Blows per Min: 1150
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1350
Max Torque (in-lb): 16197
Max Torque (nm): 1830
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1700
Nut-busting/Breakaway Torque (in-lb): 20401
Nut-busting/Breakaway Torque (nm): 2305
Power Source: Air Powered
Product Length (in): 14.5
Product Width (in): 3.3
Product Height (in): 8.1
Product Weight (lb): 9.3
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.7
Side to Center Distance (mm): 43
Special Features: Quiet Tool, 2-Year Max warranty
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Superseded To

• 2146Q1MAX-6

IR 2141P-A40

HOUSING ASSEMBLY

IR 2141-BOOT

Protective Tool Boot for Ingersoll Rand 2141 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Grey

IR 2141-703

HAMMER FRAME

IR 2141-727

HAMMER CASE

IR 2145QIMAX-3

3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 3" Extended Anvil

As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.

Features And Benefits

• MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
• MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
• MAX PRODUCTIVITY: An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
• The 3-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 906
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 8.5
Average Air Consumption (l/min): 241
Blows per Min: 1150
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1350
Max Torque (in-lb): 16197
Max Torque (nm): 1830
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1700
Nut-busting/Breakaway Torque (in-lb): 20401
Nut-busting/Breakaway Torque (nm): 2305
Power Source: Air Powered
Product Length (in): 11.5
Product Width (in): 3.3
Product Height (in): 8.1
Product Weight (lb): 8.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.7
Side to Center Distance (mm): 43
Special Features: Quiet Tool, 2-Year Max warranty
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Superseded To

• 2146Q1MAX-3

IR 2161-93R

TRIGGER

IR 2161-A93R

TRIGGER ASSEMBLY

IR 2161-724

HAMMER

IR 2161-658

LEVER

IR 2161-641

BUSHING

IR 2161-23

DEFLECTOR

IR 2161XP-53

ROTOR

IR 2161XP-6

3/4" Air Impact Wrench, ,6" Ext Anvil, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. It combines a six-vane high output air motor, through-bolt construction, ergonomic handle and housing design to create an impact tool that offers increased power and durability like no other. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.
• Power Regulator: 3-position power regulator with full power in reverse.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 92.8 / 103.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 14.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 13.11
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 9.8
Warranty: 1-year

Similar IR

• 2161XP
• 2171P

IR 216B-3

CYLINDER

IR 216B-A166

ASSEMBLY, SWIVEL INLET

IR 216B-A40

ASSEMBLY, MOTOR HOUSING

IR 2175MAX

1" Air Impact Wrench, 2000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 2175MAX 1” Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits

• POWER: A solid steel impact mechanism and robust motor deliver extreme torque that delivers 2,000 ft- lbs of torque.
• DURABILITY: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
• LIGHTWEIGHT: Weighs under 20 lbs.
• 360° adjustable handle: The side handle rotates fully around the tool as the job demands.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.

Includes: Bare Tool
Product Application and Uses: Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 56.7
Air Consumption @ Load (l/min): 1606
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 14.2
Average Air Consumption (l/min): 402
Blows per Min: 740
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.5 / 112.5
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 4500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2002
Max Torque (in-lb): 24030
Max Torque (nm): 2715
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
Product Length (in): 10
Product Width (in): 15
Product Height (in): 6.5
Product Weight (lb): 17.97
Recommended Forward Torque Range (ft-lb): 1903
Recommended Forward Torque Range (in-lb): 22835
Recommended Forward Torque Range (nm): 2580
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 7.5
Side to Center Distance (mm): 191
Special Features: 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 11.8
Warranty: 2-year

Similar IR

• 2175MAX-6
• 2146Q2MAX
• W8191-K2
• 2922P3
• 2925RBP3TI
• 2925RBP1TI

IR 2175-K303

INLET PARTS KIT

IR 2235QMAX-A40

Housing for Ingersoll Rand 2235Q Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235Q "Quiet" Impact wrenches.

For Use With

• 2235QPTIMAX
• 2235QTIMAX
• 2235QTIMAX-2

IR 2175-D102

BACKCAP ASSEMBLY

IR 2236QTIMAX-R

DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Red

The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits

• Visibility: The red 2236QTIMAX-R impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and green.
• Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2", and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
• Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
• Includes 1/2” Square Drive Anvil (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.

Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Product Application and Uses: Vehicle Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9
Average Air Consumption (l/min): 255
Blows per Min: 1350
Color: Red
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Titanium
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.2 / 105.2
Max Bolt Diameter (in): 1 1/4
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1000
Max Torque (in-lb): 12002
Max Torque (nm): 1356
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 1500
Nut-busting/Breakaway Torque (in-lb): 18002
Nut-busting/Breakaway Torque (nm): 2034
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 339
Product Length (in): 7.36
Product Width (in): 2.9
Product Height (in): 7.34
Product Weight (lb): 4.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 900
Recommended For

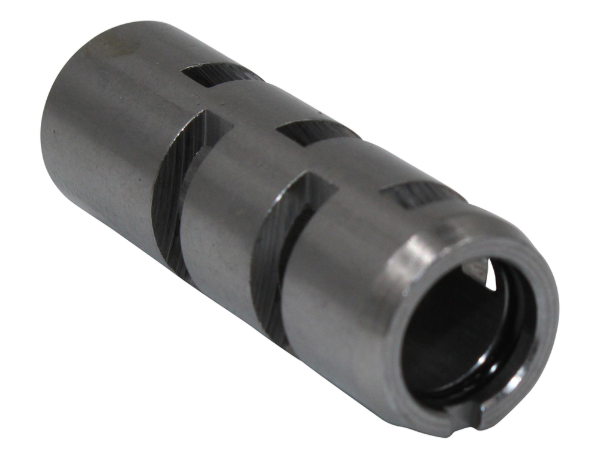

IR 231-A330

Reverse Valve Bushing for Ingersoll Rand 231G Impact Wrench

For Use With

• 236G

IR 231-BOOT

Protective Boot for Ingersoll Rand 231C, 231HA, 231HA-2 Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• 231C
• 231C-AP
• 231HA
• 231HA-2

IR 232TGSL-P32

Protective Boot for Ingersoll Rand 232TGSL ThunderGun Street Legal Impact Wrench

Product Application and Uses: For use with ingersoll Rand 232TGSL impact wrench

For Use With

• 232TGSL

IR 231HP-B40

HOUSING ASSEMBLY

IR 231C-A40

HOUSING ASSEMBLY

IR 2175MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2000 ft-lb Torque, Thru-hole Retainer, Pistol

The 2175MAX 1” Pistol Grip Impact Wrench - engineered to make quick work of big bolting jobs and semi trucks, bus and heavy equipment tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits

• Power: A solid steel impact mechanism and robust motor deliver 2,000 ft- lbs of torque.
• Durability: The steel core and chemical resistant housing are made to last even in the harshest working conditions.
• Ergomonics: The 2175MAX-6 weighs in under 20 lbs. and the 360° adjustable handle design increases maneuverability and comfort.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• Extended Reach: 6” anvil extension: Increases accessibility in hard to reach places

Includes: Bare Tool
Product Application and Uses: Heavy Duty Fastening On Trucks, Buses Or Other Large Vehicles
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 56.7
Air Consumption @ Load (l/min): 1606
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 14.2
Average Air Consumption (l/min): 402
Blows per Min: 740
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.6 / 114.6
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.5 / 112.5
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 4500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2002
Max Torque (in-lb): 24030
Max Torque (nm): 2715
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 111.2
Product Length (in): 16
Product Width (in): 14
Product Height (in): 6.5
Product Weight (lb): 20.04
Recommended Forward Torque Range (ft-lb): 1903
Recommended Forward Torque Range (in-lb): 22835
Recommended Forward Torque Range (nm): 2580
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 7
Side to Center Distance (mm): 178
Special Features: 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 11.2
Warranty: 2-year

Similar IR

• 2175MAX

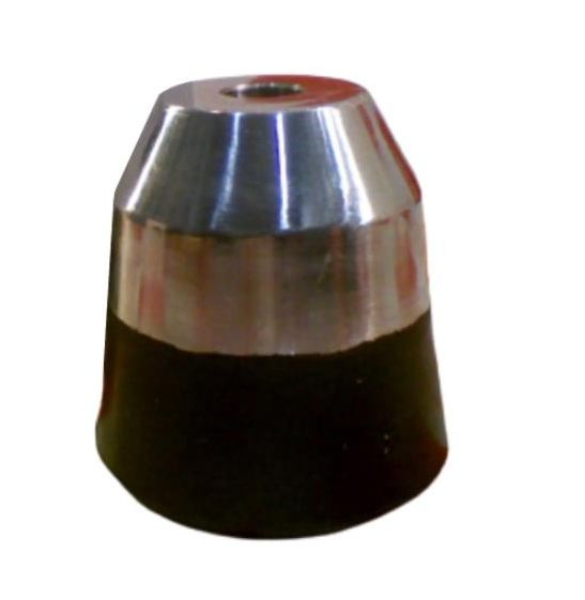

IR 24SR-83R-3

Rubber Tipped Butt, 3" Diameter 5/8” Tapered Rod for Ingersoll Rand 241A1M Sand Rammers

Product Application and Uses: For use with Ingersoll Rand 241A1M Sand Rammers
Butt Diameter (in): 3

For Use With

• 241A1M
• 241A1M-EU

IR 259-212

SOCKET, 259 SPANNER

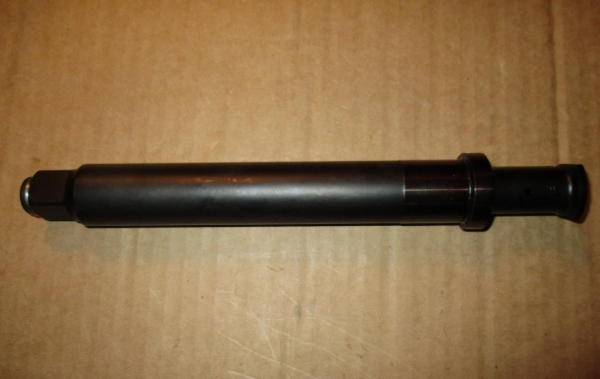

IR 265-A626-6

ANVIL

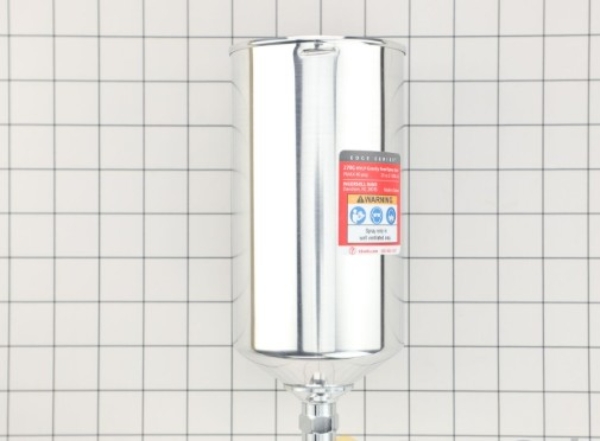

IR 270G-100

CUP

IR 285B-703

HAMMER FRAME

IR 2850-A626

Anvil Assembly for Ingersoll Rand 2175MAX and 2850MAX Impact Wrench

For Use With

• 2175MAX
• 2850MAX

IR 285B-706

SIDE PLATE

IR 2902P-465

Bushing

IR 2906P-11

FRONT END PLATE

IR 2906P-638-10

SCREW PACK

IR 290-A503

Bushing

IR 2908-716

PIN (48951-111)

IR 2910-674

THREAD-ON MUFFLER

IR 2910-724

HAMMER

IR 2910-A703

FRAME

IR 2920B1

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

The 2920 Series' finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.

Features And Benefits

• Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
• Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
• Pressure-fed mechanism lubrication
• Integral muffler

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 36
Average Air Consumption (l/min): 1020
Blows per Min: 950
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 84.9 / 95.9
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12.5
Product Weight (lb): 13.19
Recommended Forward Torque Range (ft-lb): 250-800
Recommended Forward Torque Range (in-lb): 3000-9603
Recommended Forward Torque Range (nm): 339-1085
Recommended Reverse Torque (ft-lb): 250-800
Recommended Reverse Torque (nm): 339-1085
Retainer Type: Thru-hole
Side to Center Distance (in): 1.91
Side to Center Distance (mm): 49
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.9
Warranty: 1-year

Similar IR

• 2920B9

IR 2920B-A727

CASE (2910B-A727)

IR 2921HP-12

END PLATE (2920-12)

IR 2925-102

BACK CAP

IR 2925RBP1TIEX

3/4" Air Impact Wrench, ATEX/Hazardous Duty, 1600 ft-lb Torque, Titanium Hammercase, Pistol

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements and armed with a titanium hammer case and a corrosion preventative treatment, this ATEX certified impact wrench is rust and corrosion resistant.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits

• Durability: Bronze end plates and a corrosion preventative treatment prevent internal corrosion and wear in wet, outdoor environments. And thanks to a titanium hammer case, this impact wrench is both lightweight and durable.
• Reliability: The 2925 Series’ twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench’s effectiveness.
• Control: This tool features a feather-touch trigger that provides users precise delivery of pressure and speed.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• ATEX markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified
• 3/8" NPT inlet
• 1-year warranty

Includes: Bare Tool
Product Application and Uses: Optimized For General Industrial Use, Rail, Heavy Machinery, Oil And Gas, And Shipbuilding
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 60
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1-1/8
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2925P1TI
• 2925B2TI
• 2925P3TI

IR 2925RBP3TI

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits

• Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 9.04
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.74
Side to Center Distance (mm): 44
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Warranty: 1-year

Similar IR

• 2925P3TI
• 2920B1
• 2175MAX

IR 293

1" Air Impact Wrench, Super Duty, 2000 ft-lb Torque, Thru-hole Retainer, Pistol

With a twin hammer impact mechanism and a finely tuned motor, the 293 Series is great for any job, from vehicle repair, to heavy machinery.

Features And Benefits

• Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
• Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
• Safety: Thanks to its square thru-hole anvil, this wrench offers a stronger connection to the socket, so you never have to sacrifice performance for safety.

Product Application and Uses: This pneumatic impact wrench is especially suited for working on trucks, agricultural equipment, and other heavy duty machinery.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 64
Air Consumption @ Load (l/min): 1812
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 810
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.3 / 98.3
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1.375
Max Free Speed (rpm): 3500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2000
Max Torque (in-lb): 24003
Max Torque (nm): 2712
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.3
Product Width (in): 4
Product Height (in): 6
Product Weight (lb): 22.8
Recommended Forward Torque Range (ft-lb): 1000-1600
Recommended Forward Torque Range (in-lb): 12002-19197
Recommended Forward Torque Range (nm): 1356-2169
Retainer Type: Thru-hole
Side to Center Distance (in): 2
Side to Center Distance (mm): 51
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18.1
Warranty: 1-year

Similar IR

• 285B
• 2850MAX

IR 2934-704

Hammer Pin

IR 2934-A1

OUTSIDE TRIG HANDLE

IR 2934-A92A

INSIDE TRIGGER HANDLE

IR 2934B2

1" Air Impact Wrench, Super Duty, 1500 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.

Features And Benefits

• Durability: This Series features an iron hammer case and metal housing that’ll withstand harsh conditions and drops.
• Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 47
Average Air Consumption (l/min): 1331
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.5 / 105.5
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 6600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1500
Max Torque (in-lb): 18002
Max Torque (nm): 2034
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11.25
Product Width (in): 4.4
Product Height (in): 6.7
Product Weight (lb): 18.5
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Recommended Reverse Torque (ft-lb): 500-1099
Recommended Reverse Torque (nm): 678-1490
Retainer Type: Thru-hole
Side to Center Distance (in): 2.2
Side to Center Distance (mm): 56
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18.8
Warranty: 1-year

Similar IR

• 2934B9
• 2934P2

IR 2934-K23

DEFLECTOR (1741B-K23)

IR 2940-314-6

EXTENDED ANVIL

IR 2940-53

ROTOR

IR 2940-A40

HOUSING

IR 2940-A703

Hammer Frame Assembly Service Part for Ingersoll Rand 2940 Impact Wrench

For use with Ingersoll Rand 2940 Series Air Impact Wrench

Includes: Hammer Frame and (2) Hammer Pins
Product Application and Uses: For use with Ingersoll Rand 2940 Series Air Impact Wrench

For Use With

• 2940B1
• 2940B2

IR JQP2-A40

ASSEMBLY, HOUSING

IR JQP-38

REVERSE KNOB

IR KL075-5

LEVER HOIST, 0.75T. 5'

IR KM050X

MANUAL HOIST, 1/2 TON FLEX BODY, ATEX / CR

IR L01-67

WASHER

IR LA412-191

GEAR FRAME

IR LA412-37

GEAR CASE

IR LC2A040SIP3RU6M5AJ123-E

4 Ton LC2A Series Chain Hoist, 1 Fall, 2 Motor Pendant

IR LC2A120DIP2C9m15b-e

12 Ton Air Chain Hoist

IR M007-271

SPINDLE SEAL

IR M007-A13

BEARING ASSEMBLY

IR M745S

CHAIN PER FT, NON-RETURNABLE PART

IR ML1000K-2C10-C12U

HOIST, AIR, 1 TON, MLK SERIES, STEEL HOOKS, 10' LIFT, 12 DROP

IR ML1000K-2C15-C11S

HOIST, AIR, 1 TON, MLK SERIES, STEEL HOOKS, 15' LIFT, 11 DROP

IR ML1000K2C40VRH1546

HOIST, AIR, ML1000K2C40VRH1546, NAVY HOIST

IR ML1000K-590A

YOKE

IR ML100K-99

LOAD DECAL

IR ML20-K749-20

BUCKET

IR ML20-K749A

BUCKET

IR ML250K-2C15-C10U

Air Hoist, 550 Lb Cap

IR ML250K-2C18-C11U

Hoist, Air, 1/4 Ton, Mlk Series, Steel Hooks, 18ft Lift, 11ft Drop

IR ML250KR-1R10-R6

ML250KR-1R10-R6 : HOIST 01359173

IR ML250KR-2R10-R6PU

Spark Resistant Hoist, 550 Lb Capacity

IR ML250KS-2C12-C6U

MLK Series, Hoist, Air, 1/4 Ton, Steel Hooks, 12ft Lift, 6ft Drop

IR ML500K/D10232

ML500K/D10232 : HOIST, MLK >
