IR M007-12

REAR END PLATE

IR M007-207

MOTOR CLAMP WASHER

IR M007-216-037

GEAR HEAD

IR M007-27

COUPLING NUT

IR M007-37

GEAR CASE

IR M007-53-000

ROTOR

IR M007-580

FLANGE

IR M007-N40

MOTOR HOUSING

IR M007-R3

CYLINDER

IR M007-R40

HOUSING FOR M007

IR M007RVR374BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 47 RPM, 0.61 HP, 274 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Product Application and Uses: Limited to 224 lb-ft (304) Nm
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 374:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 47
Max Pressure (bar): 6.2
Max Torque (ft-lb): 202
Max Torque (in-lb): 2425
Max Torque (nm): 274
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.61
Rated Power (kW): 0.46
Reversible: Reversible
Speed at Max Power (rpm): 23
Standards/Certifications: ATEX
Starting Torque (ft-lb): 152
Starting Torque (nm): 206
Warranty: 1-year

IR LCCF025ND

CHAIN PER FT - ND, NON-RETURNABLE PART

IR M002RHR021AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 1165 RPM, 0.19 HP, 3.9 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 11.8
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 21:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1165
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2.9
Max Torque (in-lb): 35
Max Torque (nm): 3.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1.13
Rated Power (hp): 0.19
Rated Power (kW): 0.14
Reversible: Non-reversible
Speed at Max Power (rpm): 555
Standards/Certifications: ATEX
Starting Torque (ft-lb): 2.2
Starting Torque (nm): 2.93
Warranty: 1-year

IR M002RVR013BR3

MOTOR

IR M002RVR044AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 485 RPM, 0.14 HP, 7.16 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 9.6
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 44:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 485
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5.3
Max Torque (in-lb): 63
Max Torque (nm): 7.16
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1.13
Rated Power (hp): 0.14
Rated Power (kW): 0.1
Reversible: Reversible
Speed at Max Power (rpm): 240
Standards/Certifications: ATEX
Starting Torque (ft-lb): 4.0
Starting Torque (nm): 5.37
Warranty: 1-year

IR M002RVR159BR3

MOTOR

IR M002RVS021AS3

MOTOR

IR M004LHR050AR3

MOTOR

IR M004RHR006AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 2680 RPM, 0.47 HP, 4.37 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 19.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 2680
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.2
Max Torque (in-lb): 39
Max Torque (nm): 4.37
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.19
Rated Power (hp): 0.47
Rated Power (kW): 0.35
Reversible: Non-reversible
Speed at Max Power (rpm): 1490
Standards/Certifications: ATEX
Starting Torque (ft-lb): 2.4
Starting Torque (nm): 3.28
Warranty: 1-year

IR M004RHR004AT3

Inline Multi-Vane Air Motor, 3/8"-24 Thd Shaft, 4450 RPM, 0.47 HP, 2.63 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 19.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Drive Size (in): 3/8
Drive Type: Threaded
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 4:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.9
Max Torque (in-lb): 23
Max Torque (nm): 2.63
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.19
Rated Power (hp): 0.47
Rated Power (kW): 0.35
Reversible: Non-reversible
Speed at Max Power (rpm): 2470
Standards/Certifications: ATEX
Starting Torque (ft-lb): 1.5
Starting Torque (nm): 1.98
Warranty: 1-year

IR M004RVR050AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 280 RPM, 0.31 HP, 22.4 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 50:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 17
Max Torque (in-lb): 198
Max Torque (nm): 22.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 140
Standards/Certifications: ATEX
Starting Torque (ft-lb): 12
Starting Torque (nm): 16.7
Warranty: 1-year

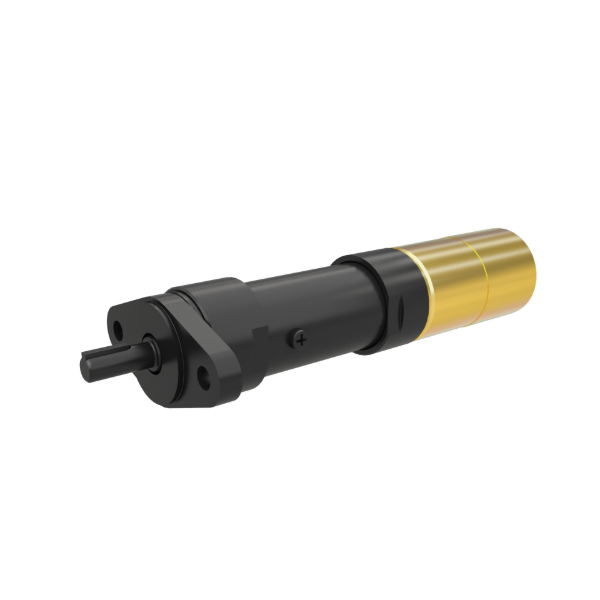

IR M004RVR083AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 169 RPM, 0.31 HP, 37.3 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 83:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 169
Max Pressure (bar): 6.2
Max Torque (ft-lb): 28
Max Torque (in-lb): 330
Max Torque (nm): 37.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 84
Standards/Certifications: ATEX
Starting Torque (ft-lb): 21
Starting Torque (nm): 27.9
Warranty: 1-year

IR M004RVR167AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 85 RPM, 0.31 HP, 74.5 NM, Reversible

The M004 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments for a multitude of applications.
• Productive: Thanks to easy servicing, you never have to break for long to fix your equipment.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Length (in): 1
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 167:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 0.625
Max Free Speed (rpm): 85
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 659
Max Torque (nm): 74.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 7.7
Product Width (in): 1.76
Product Height (in): 1.76
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 42
Standards/Certifications: ATEX
Starting Torque (ft-lb): 41
Starting Torque (nm): 56
Warranty: 1-year

IR M004RVR167BR3

MOTOR

IR M007RHR027BS4

MOTOR

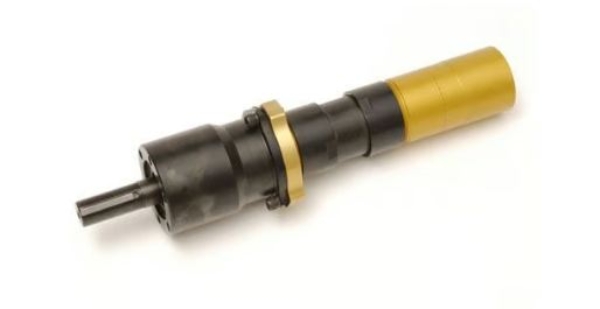

IR M007RHR037AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 540 RPM, 0.79 HP, 35.7 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 37:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 540
Max Pressure (bar): 6.2
Max Torque (ft-lb): 26
Max Torque (in-lb): 316
Max Torque (nm): 35.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.5
Rated Power (hp): 0.79
Rated Power (kW): 0.59
Reversible: Non-reversible
Speed at Max Power (rpm): 270
Standards/Certifications: ATEX
Starting Torque (ft-lb): 20
Starting Torque (nm): 26.7
Warranty: 1-year

IR M007RHR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 103 RPM, 0.76 HP, 174 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 188:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 103
Max Pressure (bar): 6.2
Max Torque (ft-lb): 128
Max Torque (in-lb): 1540
Max Torque (nm): 174
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.76
Rated Power (kW): 0.57
Reversible: Non-reversible
Speed at Max Power (rpm): 52
Standards/Certifications: ATEX
Starting Torque (ft-lb): 96
Starting Torque (nm): 130
Warranty: 1-year

IR M007RHR374BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 52 RPM, 0.76 HP, 344 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Product Application and Uses: Limited to 224 lb-ft (304) Nm
Air Consumption at Max HP (scfm): 36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 374:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 52
Max Pressure (bar): 6.2
Max Torque (ft-lb): 254
Max Torque (in-lb): 3045
Max Torque (nm): 344
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.76
Rated Power (kW): 0.57
Reversible: Non-reversible
Speed at Max Power (rpm): 26
Standards/Certifications: ATEX
Starting Torque (ft-lb): 191
Starting Torque (nm): 259
Warranty: 1-year

IR M007RHR188BS5

MOTOR

IR M007RVR021AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 855 RPM, 0.64 HP, 16.5 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 21:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 855
Max Pressure (bar): 6.2
Max Torque (ft-lb): 12
Max Torque (in-lb): 146
Max Torque (nm): 16.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.5
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 425
Standards/Certifications: ATEX
Starting Torque (ft-lb): 9.2
Starting Torque (nm): 12.5
Warranty: 1-year

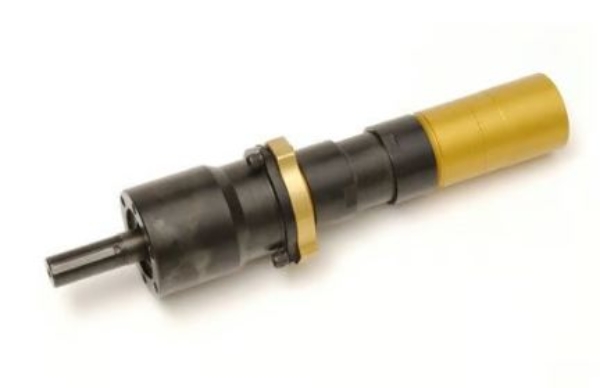

IR M007RVR027BR4

MOTOR

IR M007RVR086BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 215 RPM, 0.64 HP, 66.3 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 86:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 215
Max Pressure (bar): 6.2
Max Torque (ft-lb): 49
Max Torque (in-lb): 587
Max Torque (nm): 66.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.13
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 107
Standards/Certifications: ATEX
Starting Torque (ft-lb): 37
Starting Torque (nm): 49.8
Warranty: 1-year

IR M007RVR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 94 RPM, 0.61 HP, 138 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 188:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 94
Max Pressure (bar): 6.2
Max Torque (ft-lb): 102
Max Torque (in-lb): 1221
Max Torque (nm): 138
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.61
Rated Power (kW): 0.46
Reversible: Reversible
Speed at Max Power (rpm): 47
Standards/Certifications: ATEX
Starting Torque (ft-lb): 77
Starting Torque (nm): 104
Warranty: 1-year

IR M007RVR275BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 64 RPM, 0.61 HP, 201 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Product Application and Uses: Limited to 224 lb-ft (304) Nm
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 275:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 64
Max Pressure (bar): 6.2
Max Torque (ft-lb): 148
Max Torque (in-lb): 1779
Max Torque (nm): 201
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.61
Rated Power (kW): 0.46
Reversible: Reversible
Speed at Max Power (rpm): 32
Standards/Certifications: ATEX
Starting Torque (ft-lb): 111
Starting Torque (nm): 151
Warranty: 1-year

IR M007RVS374BR6

MOTOR

IR ML1000K-2C10-C10U

HOIST, AIR, 1 TON, MLK SERIES, STEEL HOOKS, 10' LIFT, 10 DROP

IR ML1000K-2C18-C14

HOIST, AIR, 1 TON, MLK SERIES, STEEL HOOKS, 18' LIFT, 14’ DROP

IR ML1000K-2C20-C16

HOIST, AIR, 1 TON, MLK SERIES, STEEL HOOKS, 20' LIFT, 16 DROP

IR ML1000KS-2F12A18-C12U

Hoist 2200 lbs Cap., Pendant Control, 18ft Lift, 12ft Drop

IR ML250K-2C12-C8U

HOIST, AIR, 1/4 TON, MLK SERIES, STEEL HOOKS, 12' LIFT, 8' DROP

IR ML250K-2C14-C10U

HOIST, AIR, 1/4 TON, MLK SERIES, STEEL HOOKS, 14' LIFT, 10’ DROP,

IR ML250K-2C65-C35

Hoist, Air, Pendant Control, 65ft Lift, 36ft Drop, Steel Hook, Exceeded Fabric Chain Container

IR MLK-KS304

HOOK

IR MVA017A

Direct Drive Air Motor, 5/8" Keyed Shaft, 5450 RPM, 1.93 HP, 9.5 NM, Reversible

Air Consumption at Max HP (scfm): 76
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 5450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 7.0
Max Torque (in-lb): 84
Max Torque (nm): 9.5
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Foot
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 12.5
Rated Power (hp): 1.93
Rated Power (kW): 1.44
Reversible: Reversible
Speed at Max Power (rpm): 2800
Starting Torque (ft-lb): 4.5
Starting Torque (nm): 6.1
Warranty: 1-year

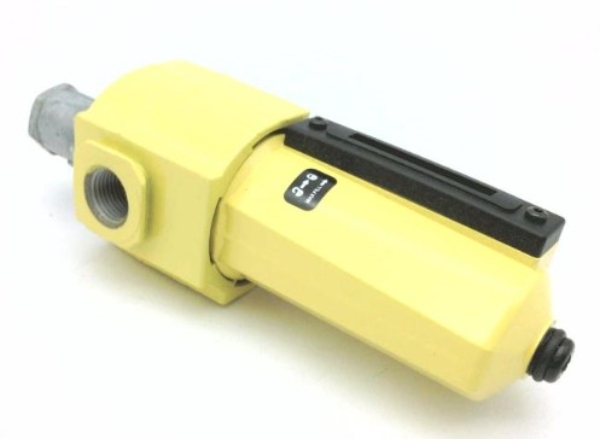

IR NL-8-8

IN-LINE LUBRICATOR - 1

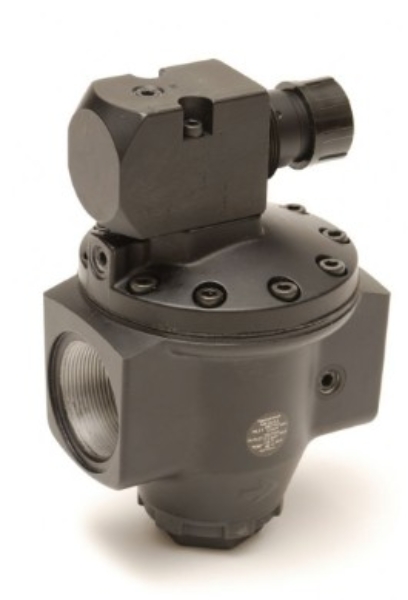

IR NR-24-8

REGULATOR

IR PS2-1000R-PH6M

2200 Lb. Pullstar Winch w/6 Meter Pendant Control

IR Q110P4

IMPULSE TOOL

IR Q140P4

PULSE TOOL

IR Q60P3

NON SHUT-OFF PULSE TOOL-3/8 SQUARE DRIVE

IR Q80P3

IMPULSE TOOL

IR Q90P3

IMPULSE TOOL

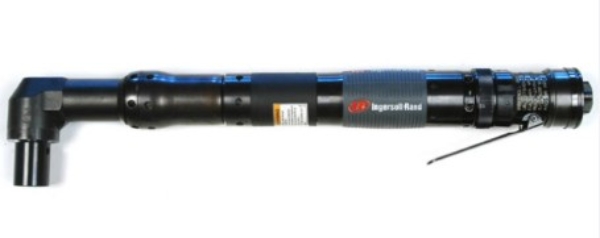

IR QA4AALD011NP25S06

NUT RUNNER

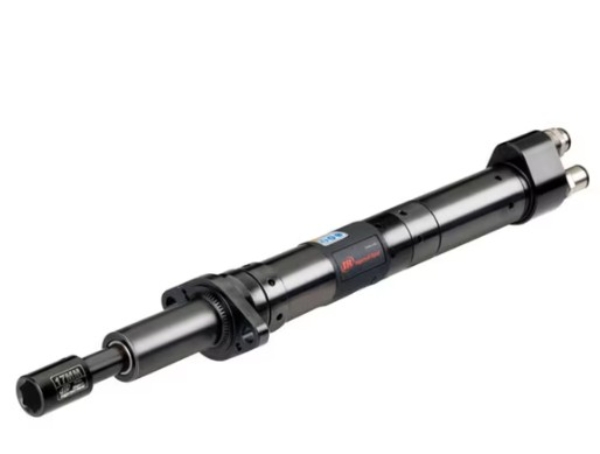

IR QA4ASLS012NP41S06

NUTRUNNER

IR QA6-1-K53

Motor Tune Up Kit

IR QA6-53-8

QA6 ROTOR

IR QA6-A3

CYLINDER ASSEMBLY

AA 48876

Shroud

AA 48882

O-Ring

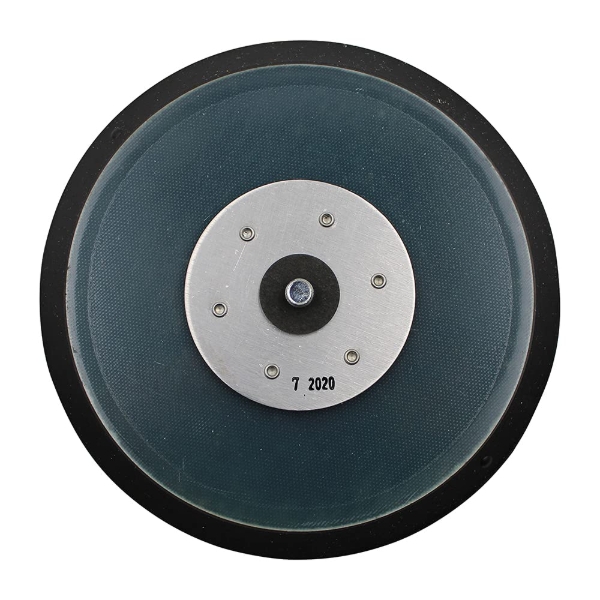

AA 49097

Pad, Sanding

AA 49164

Plate

AA 49260

Gear, Ring

AA 49581

Housing Assembly

AA 49602

Shroud (48863)

AA 49643

Spindle

AA 49648

Valve

AA 49720

Head Asm

AA 49775

Manifold Asm

AA 49804

Bearing, Ndle

AA 49847

Ball

AA 8506-ADB

Drill

AA 8515-APR-A

Screwdriver

aa 90001-1

Air Supply Package-1/2 , 50 Ft

IR AV1-22S-16

RIVET SET

IR AVC10-6

BARREL (AVC101-A6)

IR AVC10-TK2

TUNE-UP KIT

IR BHD-45

Heavy Duty Spring Balancer, 77-99 lb Capacity, 6.5' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

Cable Material: Stainless steel
Capacity (lb): 77 - 99
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 9.8
Product Height (in): 24
Product Weight (lb): 27.3
Reel Height (in): 25.47
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

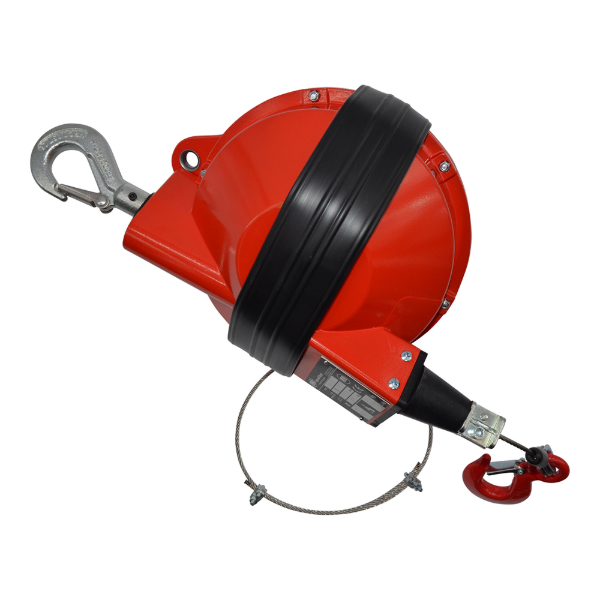

IR BHD-55

Heavy Duty Spring Balancer, 99-121 lb Capacity, 6.5' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

Cable Material: Stainless steel
Capacity (lb): 99 - 121
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 9.8
Product Height (in): 24
Product Weight (lb): 27.6
Reel Height (in): 25.47
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

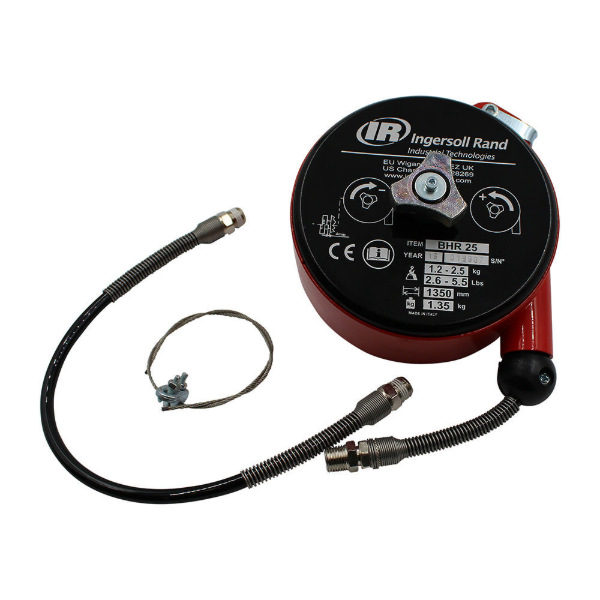

IR BHR-25

Hose Reel Spring Balancer, 2.6-5.5 lb Capacity, 4.25' Lift

Features And Benefits

• Aluminum body
• Nylon Hose
• Adjustable capacity
• Adjustable stroke limiting device
• Designed for one-way shutoff operation

Air Consumption (cfm): 18.4
Air Inlet: 1/4" NPT
Cable Material: Nylon
Capacity (lb): 2.625 - 5.5
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 4.25
Lock Mechanism: Non-Locking
Lower Hook: Threaded Hose Adapter
Product Length (in): 11.75
Product Width (in): 5.75
Product Height (in): 4.1
Product Weight (lb): 2.9
Reel Height (in): 11.77
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Warranty: 1-year

IR BIL-0352

CABLE

IR BN403-302

SCREW (48951-178)

IR BNV107XPA-A123

DIFFUSER ASSEMBLY

IR BSD-120

Super Duty Spring Balancer, 220-265 lb Capacity, 8.2' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Upper rotary suspension with safety hook
• Locking device to block the load at any height
• Adjustable stroke limiting device
• Visible cable for inspection

Cable Material: Stainless steel
Capacity (lb): 220 - 265
Color: Red
Duty Rating: Super Duty
Housing Material: Aluminum
Lift (ft): 8.2
Lock Mechanism: Ratchet
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 12
Product Height (in): 27.6
Product Weight (lb): 85.3
Reel Height (in): 27.95
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Warranty: 1-year

IR BSD-30

Super Duty Spring Balancer, 44-66 lb Capacity, 8.2' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Upper rotary suspension with safety hook
• Locking device to block the load at any height
• Adjustable stroke limiting device
• Visible cable for inspection

Cable Material: Stainless steel
Capacity (lb): 44 - 66
Color: Red
Duty Rating: Super Duty
Housing Material: Aluminum
Lift (ft): 8.2
Lock Mechanism: Ratchet
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 12
Product Height (in): 27.6
Product Weight (lb): 43.7
Reel Height (in): 27.95
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Warranty: 1-year

IR BSD-40

Super Duty Spring Balancer, 66-88 lb Capacity, 8.2' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Upper rotary suspension with safety hook
• Locking device to block the load at any height
• Adjustable stroke limiting device
• Visible cable for inspection

Cable Material: Stainless steel
Capacity (lb): 66 - 88
Color: Red
Duty Rating: Super Duty
Housing Material: Aluminum
Lift (ft): 8.2
Lock Mechanism: Ratchet
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 12
Product Height (in): 27.6
Product Weight (lb): 45.9
Reel Height (in): 27.95
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Warranty: 1-year

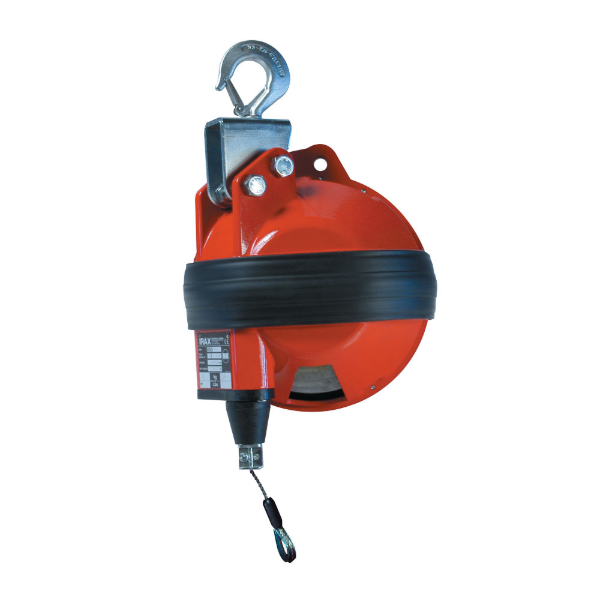

IR BSDL-25

Super Duty Long Spring Balancer, 44-55 lb Capacity, 9.85' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Upper rotary suspension with safety hook
• Precision-guided cable-winding prevents jamming
• Manual locking device for instant clamping or release
• Worm screw capacity adjustment
• Alignable rotating upper hook
• Cable replacement without balancer disassembly
• Cable visible for inspection

Cable Material: Stainless steel
Capacity (lb): 44 - 55
Color: Red
Duty Rating: Super Duty
Housing Material: Aluminum
Lift (ft): 9.85
Lock Mechanism: Ratchet
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 12
Product Height (in): 27.6
Product Weight (lb): 43.9
Reel Height (in): 27.95
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

IR BSDL-35

Super Duty Long Spring Balancer, 55-77 lb Capacity, 9.85' Lift

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits

• Stainless steel cable and anti-friction cable guide
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Upper rotary suspension with safety hook
• Precision-guided cable-winding prevents jamming
• Manual locking device for instant clamping or release
• Worm screw capacity adjustment
• Alignable rotating upper hook
• Cable replacement without balancer disassembly
• Cable visible for inspection

Cable Material: Stainless steel
Capacity (lb): 55 - 77
Color: Red
Duty Rating: Super Duty
Housing Material: Aluminum
Lift (ft): 9.85
Lock Mechanism: Ratchet
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 12
Product Height (in): 27.6
Product Weight (lb): 46.1
Reel Height (in): 27.95
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year

IR 92RMG10-11

END PLATE

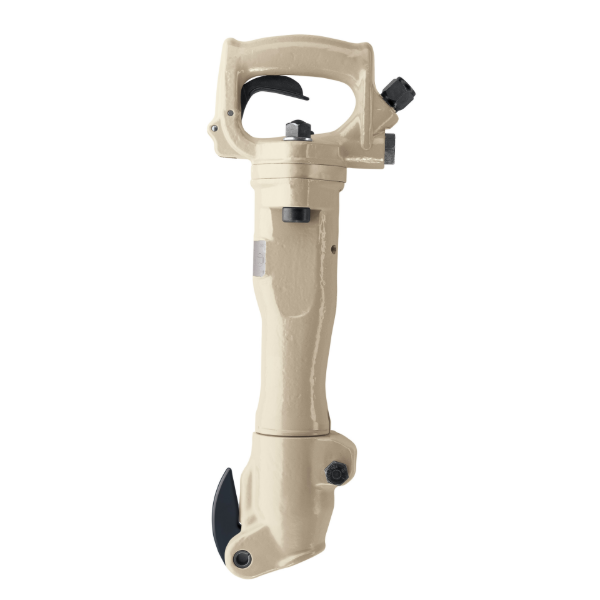

IR 93LA1

Digger, 7/8 x 3-1/4" Hex Shank, 2350 BPM, 2.5" Stroke Length, 1.69" Bore

Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework, the 93 Series diggers can tackle almost anything. With a short, powerful 2.5 inch piston stroke and multiple configurations available, you can remove material quickly and easily.

Features And Benefits

• Access: The 93 Series features a tease throttle for maximum precision, coupled with a D-shape handle to allow access to tighter spaces.
• Durability: With a rubber buffer retainer to absorb shock and protect the tool, the 93 Series diggers will last for years.
• Reliability: The side exhaust and steel cone increase user safety and productivity for better use every time.
• Weight: Built with premium materials, the 93 Series diggers are lightweight and easy to use.

Product Application and Uses: Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 45
Air Consumption @ Load (l/min): 12.74
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2350
Bore Diameter (in): 1.69
Collar Type: Round
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 18.88
Product Weight (lb): 23
Retainer Type: Latch
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2.5
Vibration Level (m/s2): 28 / 8.0
Warranty: 1-year

Similar IR

• 93A1
• 93A4
• 95A1
• 95LA1

IR 9400.3032.3

ROTOR

IR 9400.3047.4

LINING

IR 9400.3054.3

RUBBER TOUCH

IR 9400.3144.3

ASSY, ROTOR, 2 SPD, QCH50

IR 9401.3003.4

CHAIN GUIDE BOTTOM

IR 9401.3004.4

CHAIN GUIDE TOP

IR 9402.1655.2

42V CTRL ASSEMBLY, 2SPEED, 100-480V

IR 94-024

BPN_94-024 : CYLINDER, TEFUA, JPA10, PC24

IR 9515.3119.4

SAFETY LATCH COMPL

IR 9505

Hammer Spring Retainer for Ingersoll Rand 114GQC Air Hammer, 2-Piece

This spring set includes 2 hammer-spring retainers designed to guard against accidental shank release. Pair with your Ingersoll Rand 114GQC Edge Series Air Hammer for best results.

Includes: (2) hammer-spring retainers
Retainer Type: Spring

For Use With

• 114GQC

IR 9520.3204.2

STEEL CHAIN BUCKET, 32.8/19.7FT
