IR HL4500K-3A20-C16S

HOIST, AIR, 4-1/2 TON, HLK SERIES, 20' LIFT, 16' DROP, STEEL CHAIN CONTAINER

IR HL4500K-2DA24-C36MS

HOIST, AIR, 4-1/2 T, HLK SERIES, RIGID TROLLEY(A FLG), STEEL HOOK, 24' LIFT, 36’ DROP, STEEL CHAIN CONTAINER

IR HL4500K-3HA16-C13

HOIST, AIR, 4-1/2 TON, HLK SERIES, 16' LIFT, 13' DROP

IR HL4500K-3HA10-C6

HOIST, AIR, 4-1/2 TON, HLK SERIES, POWERED TROLLEY(A FLG.) & STEEL HOOK, 10' LIFT, 6’ DROP

IR HL4500K-3HA16-C13S

HOIST, AIR, 4-1/2 TON, HLK SERIES, 16' LIFT, 13' DROP, STEEL CHAIN CONTAINER

IR HL4500K-3HA20-C14

HOIST, AIR, 4 1/2 TON, HLK SERIES, POWERED TROLLEY MOUNT, 20 LIFT, 14 DROP

IR HL4500K-4HA10-C6S

HOIST, AIR, 4 1/2 TON, HLK SERIES, POWERED TROLLEY MOUNT, 10 LIFT, 6 DROP

IR HL4500K-4HA10-C15S

HOIST, AIR, 4 1/2 TON, HLK SERIES, POWERED TROLLEY MOUNT, 10 LIFT, 15 DROP

IR HL4500K-99

DECAL, NON-RETURNABLE PART

IR HL4500K-590

MOUNT

IR HL4500K-ABB377

HOOK

IR HL4500K-AS377

HOOK

IR HL4500K-3HA20-C21S

HOIST, AIR, 4-1/2 TON, HLK SERIES, POWERED TROLLEY(A FLG.) & STEEL HOOK, 20' LIFT, 21’ DROP, STEEL CHAIN CONTAINER

IR HL4500K-ASR377

HOOK

IR HL4500K-K378

BLOCK

IR HL4500K-K378-CR

HL4500K-K378-CR : BLOCK ASSEMBLY, LOWER, CORROSION RESISTANT

IR HL4500K-K379

BLOCK ASSEMBLY

IR HL4500K-K590

MOUNT KIT

IR HL4500K-R377N

BRONZE HOOK, MACHINED

IR HL6000K-1C10-C0

HOIST, AIR, 6 TON, HLK SERIES, STEEL HOOKS, 10' LIFT, 0' DROP

IR HL4500K-SR377N

HOOK AND LATCH ASSEMBLY

IR HL6000K-1C80-C76

HOIST, AIR, 6 TON, HLK SERIES, STEEL HOOK, 80' LIFT, 76 DROP

IR HL6000K-259

STOP

IR HL6000K-2C49-C45

HOIST, AIR, 6 TON, HLK SERIES, STEEL HOOKS, 49' LIFT, 45’ DROP

IR HL6000K-2C15-C14S

HOIST, AIR, 6 TON, HLK SERIES, STEEL HOOKS, 15' LIFT, 14’ DROP

IR HL6000K-377

HOOK

IR HL6000K-378

BLOCK

IR HL6000K-382

SHAFT

IR HL6000K-3HA30-C25

HOIST, AIR, 6 TON, HLK SERIES, POWERED TROLLEY, STEEL HOOK, 30' LIFT, 25' DROP

IR HL6000K-441

COVER

IR HL6000K-445

GUARD

IR HL6000K-462

LOCK PLATE

IR HL6000K-590

MOUNT

IR HL6000K-974

WASHER

IR HL6000K-962

PIN

IR HL6000K-99

DECAL, NON-RETURNABLE PART

IR HL6000K-A380

WHEEL

IR HL6000K-ASR377

HOOK ASSEMBLY

IR HL6000K-K378

BLOCK

IR HL6000K-K590

MOUNT KIT

IR HL6000K-K379

BLOCK ASSEMBLY

IR HL6000K-R377N

BRONZE HOOK, MACHINED

IR HL6000K-SR377N

HOOK AND LATCH ASSEMBLY

IR HL6000K-SR4055N

LATCH KIT

IR HLK-10

GEAR

IR HLK-191

SHAFT

IR HLK-20

PIN

IR HLK-305

NUT, NON-RETURNABLE PART

IR HLK-323

WASHER

IR EEG-526

ROTARY VALVE

IR EEG-752

MOTOR PINION

IR EEG-755

MOTOR PINION PACKING

IR EEG-768

DRIVE SHAFT KEY

IR EEUD-753

MOTOR PINION SPACER

IR EEG-770

WASHER

IR EIS017138W16UL

E-Lift Balancer, 80KG, Standard, UL

IR EIS017138W16

E-Lift Balancer, 80KG, Standard, UL

IR EIS044138W16UL

E-Lift Balancer, 200KG, Standard, UL

IR SM2AMC-A

Lube-Free Multi-Vane Air Motor, 1/2 Round Flat on Shaft, 0.9HP, 1.7ft-lb, 8000 RPM, Foot/Face Mount

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 30
Air Inlet: 3/8"-18 NPT
Air Pressure (psi): 90
Drive Length (in): 1.13
Drive Size (in): 1/2
Drive Type: Round Flat on Shaft
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2.3
Max Torque (in-lb): 27
Max Torque (nm): 3.1
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 4.62
Product Width (in): 3.74
Product Height (in): 6.42
Product Weight (lb): 9.15
Rated Power (hp): 0.9
Rated Power (kW): 0.67
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 1.7
Starting Torque (nm): 2.3
Warranty: 1-year

Supersedes

• SM2AMC

IR SM450-203

SEAL

IR SM450B-607-1

SEAL

IR SM450-53/VRSM-1068

ROTOR

IR SM450B-607-2

SEAL

IR SM450B-G522

SEAL

IR SM450B-TK2

TUNE-UP KIT

IR SM451-606

RING

IR SM450LA-8

SHAFT

IR SM451-638

RACE

IR SM451-A379

BEARING

IR SM4AM-AH634

FOOT MOUNT

IR SM4AM-AH634-A

Mounting Foot for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM4AMB-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM4AMB-A

IR SM4AMAN-TK1-A

Tune-Up Kit for Ingersoll Rand SM4AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM4AMAN-A Air Motor

For Use With

• SM4AMAN-A

IR SM4AMAN-005-A

Vane Kit for Ingersoll Rand SM4AMAN-A/SM4AMB-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM4AMAN-A and SM4AMB-A Air Motors

For Use With

• SM4AMAN-A
• SM4AMB-A

IR SM4AMB-A

Lube-Free Multi-Vane Air Motor, 1/2 Round Woodruff Key, 1.5HP, 2.6ft-lb, 7900 RPM, Foot/Face Mount

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 67
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.12
Drive Size (in): 1/2
Drive Type: Round Woodruff
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 0.13
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 50
Max Torque (nm): 5.6
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 5.67
Product Width (in): 3.9
Product Height (in): 7
Product Weight (lb): 11.22
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 2.6
Starting Torque (nm): 3.5
Warranty: 1-year

IR SM4AMB-TK1-A

Tune-Up Kit for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM4AMB-A Air Motor

For Use With

• SM4AMB-A

IR SM6AMA-005-A

Vane Kit for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors

For Use With

• SM6AMA-A
• SM6AMAN-A

IR SM6AM-AH634

FOOT MOUNT

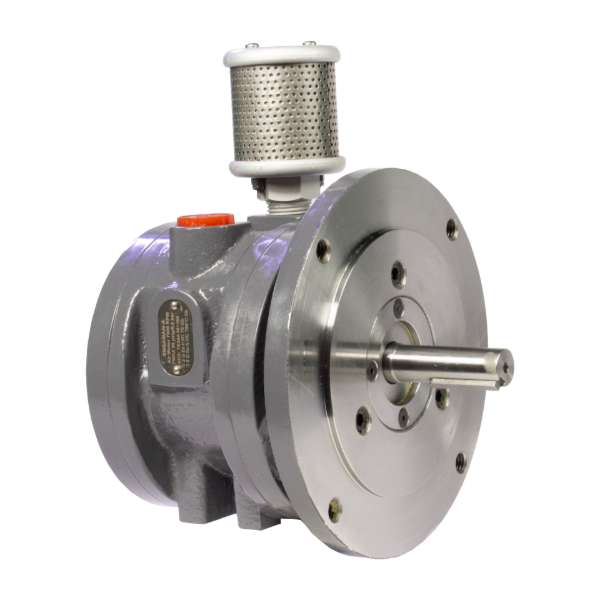

IR SM6AMA-A

Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 3.6HP, 5.3ft-lb, 7900 RPM, Foot/Face Mount

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 120
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.35
Drive Size (in): 5/8
Drive Type: Round Keyed
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.26
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 8.7
Max Torque (in-lb): 104
Max Torque (nm): 11.8
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 7
Product Width (in): 5.12
Product Height (in): 8.19
Product Weight (lb): 16.25
Rated Power (hp): 3.6
Rated Power (kW): 2.7
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 5.3
Starting Torque (nm): 7.2
Warranty: 1-year

IR SM6AM-AH634-A

Mounting Foot for Ingersoll Rand SM6AMA-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM6AMA-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM6AMA-A

IR SM6AMA-TK1-A

Tune-Up Kit for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors

For Use With

• SM6AMA-A
• SM6AMAN-A

IR SM8AMA-005-A

Vane Kit for Ingersoll Rand SM8AMA-A/SM8AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A
• SM8AMAN-A

IR SM8AMA-A

Lube-Free Multi-Vane Air Motor, 3/4 Round Keyed, 4.8HP, 10ft-lb, 7000 RPM, Foot/Face Mount

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 152
Air Inlet: 1"-11 1/2 NPT
Air Pressure (psi): 90
Drive Length (in): 1.45
Drive Size (in): 3/4
Drive Type: Round Keyed
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 0.98
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 14
Max Torque (in-lb): 168
Max Torque (nm): 19
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 7.3
Product Width (in): 5.85
Product Height (in): 13.66
Product Weight (lb): 22.5
Rated Power (hp): 4.8
Rated Power (kW): 3.6
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 10
Starting Torque (nm): 13.6
Warranty: 1-year

IR SM8AM-AH640

FOOT MOUNT

IR SM8AM-AH640-A

Mounting Foot for Ingersoll Rand SM8AMA-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM8AMA-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM8AMA-A

IR SM8AMA-TK1-A

Tune-Up Kit for Ingersoll Rand SM Series Air Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A

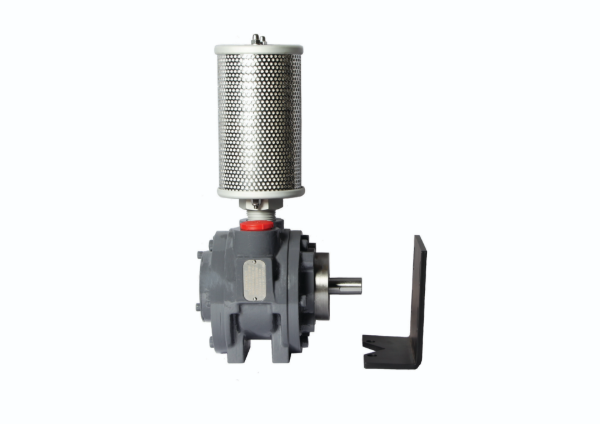

IR SM8AMAN-A

Lube-Free Multi-Vane Air Motor, 7/8 Round Keyed, 4.8HP, 10ft-lb, 7000 RPM, NEMA

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 152
Air Inlet: 1"-11 1/2 NPT
Air Pressure (psi): 90
Drive Length (in): 1.97
Drive Size (in): 7/8
Drive Type: Round Keyed
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.04
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 14
Max Torque (in-lb): 168
Max Torque (nm): 19
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: NEMA
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 8.76
Product Width (in): 5.85
Product Height (in): 13.66
Product Weight (lb): 22.5
Rated Power (hp): 4.8
Rated Power (kW): 3.6
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 10
Starting Torque (nm): 13.6
Warranty: 1-year

IR SMB005-15-11V

HOIST

IR SMB005-23-21V

MANUAL CHAIN HOIST WITH 23' LIFT & 21' CHAIN DROP

IR SMB005-FV

MANUAL CHAIN HOIST

IR SMB005-8-6V

SMB005-8-6V : MANUAL CHAIN HOIST

IR SMB010-15-6V

SMB010-15-6V : HOIST, MANUAL CHAIN, 1 TON, 15' LIFT, 6' DROP

IR SMB010-20-16V

MANUAL CHAIN HOIST, SMB010-20-16V

IR SMB010-12-10V

MANUAL CHAIN HOIST

IR SMB010-35-35V

HOIST, SMB010 MANUAL CHAIN, 35' LIFT, 35' DROP

IR SMB010-20-8V

MANUAL CHAIN HOIST

IR SMB010-40-15V

MANUAL CHAIN HOIST SMB010-40-15V

IR SMB010-FV

SMB010-FV : PULL CHAIN HOIST

IR SMB015-FV

SMB015-FV : PULL CHAIN HOIST

IR SMB020-10-12V

HOIST, MANUAL CHAIN

IR SMB020-15-11V

HOIST
