CONTRACTOR FLAT TIP, SPRAY 215
GG 269215
CONTRACTOR FLAT TIP, SPRAY 215
Contractor Flat Tip, 215 The 215 Contractor Flat Tip is designed for narrower surfaces. The 215 Flat Tip has a 0.015 inch orifice and produces a 4 to 6 inch fan.
CONTRACTOR FLAT TIP, SPRAY
GG 269315
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 315 The 315 Contractor Flat Tip is designed for narrow surfaces. The 315 Flat Tip has a 0.015 inch orifice and produces a 6 to 8 inch fan.
CONTRACTOR FLAT TIP, SPRAY
GG 269325
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 325 The 325 Contractor Flat Tip is designed for narrow surfaces and thicker materials. The 325 Flat Tip has a 0.025 inch orifice and produces a 6 to 8 inch fan.
CONTRACTOR FLAT TIP, SPRAY
GG 269327
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 327 The 327 Contractor Flat Tip is designed for narrow surfaces and thicker materials. The 327 Flat Tip has a 0.027 inch orifice and produces a 6 to 8 inch fan.
CONTRACTOR FLAT TIP, SPRAY
GG 269415
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 415 The 415 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.015 inch orifice.
CONTRACTOR FLAT TIP, SPRAY
GG 269417
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 417 The 417 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.017 inch orifice.
CONTRACTOR FLAT TIP, SPRAY
GG 269427
CONTRACTOR FLAT TIP, SPRAY
Graco 269427 Contractor Flat Tip, 427
The 427 Contractor Flat Tip produces an 8 to 10 inch fan and has a 0.027 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.74
- Maximum Flow Rate (L/min): 2.80
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.027
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
CONTRACTOR FLAT TIP, SPRAY
GG 269523
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 523 The 523 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.023 inch orifice.
CONTRACTOR FLAT TIP, SPRAY 613
GG 269613
CONTRACTOR FLAT TIP, SPRAY 613
Graco 269613 Contractor Flat Tip, 613
The 613 Contractor Flat Tip produces a 12 to 14 inch fan and has a 0.013 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.013
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6

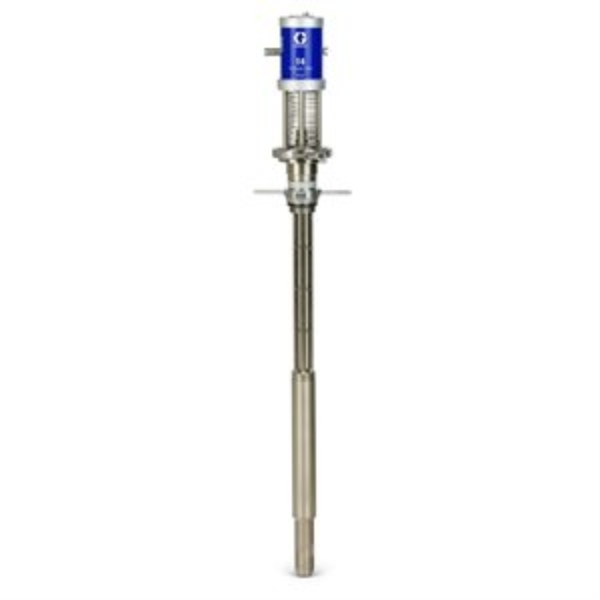

KIT, CS T4, PUMP/FLUID
GG 26D002
KIT, CS T4, PUMP/FLUID
T4 Package: Includes 2 Pumps (Carbon Steel) and 2 Supply Hoses Transfer Pumps are required to move A and B materials to the Reactor® Spray Systems. The T4 Transfer Pump combines Graco’s proven Merkur® air-motor and carbon steel lower. The T4 is a 3:1 ratio pump with ProConnect technology – allowing you to quickly connect and disconnect the air motor from the pump lower. Quick Transfer Between Drums – quickly change to a new drum of material without the mess of dripping chemical by using multiple pump lowers. Easier to Maneuver – easily transfer the T4 pump between drums by quickly disconnecting the air motor from the lower before transferring. This makes the pump lighter weight and reduces the necessary ceiling height of your rig. Eliminate Downtime – get up and running quickly when your pump lower requires maintenance by having a spare pump lower that can easily be installed.
RAC 5 TIP, SPRAY
GG 286207
RAC 5 TIP, SPRAY
Graco 286207 RAC 5 SwitchTip, 207
The Reverse-A-Clean (RAC) 207 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 207 SwitchTip has a 0.007 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.05
- Maximum Flow Rate (L/min): 0.19
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.007
RAC 5 TIP, SPRAY
GG 286235
RAC 5 TIP, SPRAY
Graco 286235 RAC 5 SwitchTip, 235
The Reverse-A-Clean (RAC) 235 RAC 5 SwitchTip is designed for narrower surfaces and thicker materials. The 235 SwitchTip has a 0.035 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.035
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
RAC 5 TIP, SPRAY
GG 286409
RAC 5 TIP, SPRAY
Graco 286409 RAC 5 SwitchTip, 409
The Reverse-A-Clean (RAC) 409 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.009 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.09
- Maximum Flow Rate (L/min): 0.34
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.009
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286435
RAC 5 TIP, SPRAY
Graco 286435 RAC 5 SwitchTip, 435
The Reverse-A-Clean (RAC) 435 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.035 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.035
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286609
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 609 The Reverse-A-Clean (RAC) 609 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.009 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286611
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 611 The Reverse-A-Clean (RAC) 611 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.011 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286615
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 615 The Reverse-A-Clean (RAC) 615 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286721
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 721 The Reverse-A-Clean (RAC) 721 RAC 5 SwitchTip produces a 14 to 16 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286723
RAC 5 TIP, SPRAY
Graco 286723 RAC 5 SwitchTip, 723
The Reverse-A-Clean (RAC) 723 RAC 5 SwitchTip produces a 14 to 16 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 40.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.023
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
RAC 5 TIP, SPRAY
GG 286819
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 819 The Reverse-A-Clean (RAC) 819 RAC 5 SwitchTip produces a 16 to 18 inch fan and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286821
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 821 The Reverse-A-Clean (RAC) 821 RAC 5 SwitchTip produces a 16 to 18 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
KIT, ACCY, SILVER PLUS GUN, GH83
GG 287850
KIT, ACCY, SILVER PLUS GUN, GH83
Get up and spraying quickly with the industry’s preferred spray gun for high-pressure applications and needed accessories. Keep a spare kit on hand to always be prepared for large projects where dual gun applications are required.
- Silver Plus Gun
Lightweight, Rugged Design
Exclusive Needle Design
2-Finger Trigger Design and Handle
Stainless Steel Fluid Tube
- RAC X LTX 517 & 655 SwitchTips
Provides a 10 inch and 12 inch spray patterns
Ideal for larger surfaces such as houses/buildings, walls and ceilings
100% tested for flow rate
- BlueMax II Airless Hoses
The lightest, most flexible hoses on the market
Easy to connect and maintain
The highest level of performance from the sprayer to the gun
- Model: Silver Plus

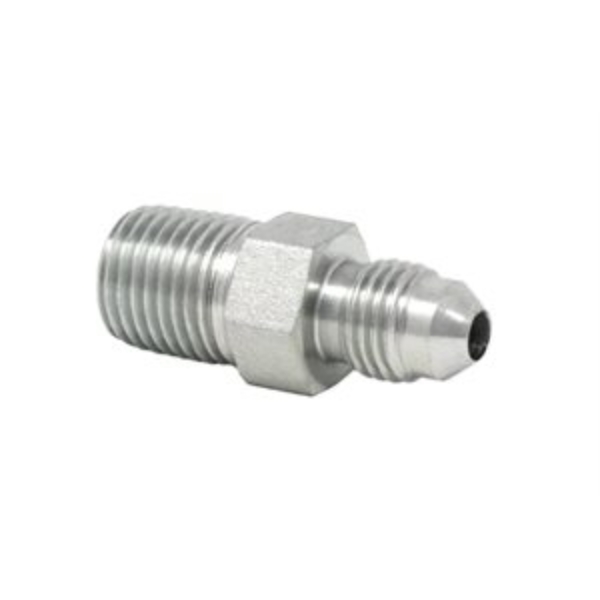

FITTING, CONNECTOR, # 4 JIC 1/4PM
GG 556762
FITTING, CONNECTOR, # 4 JIC 1/4PM
Hose Fitting - Connector, 1/4 inch (6.4 mm) NPT, #4 JICConnector - 1/4 inch (6.4 mm) NPT, #4 JIC
Lubriquip part number 441-070-030 Trabon part number 4JA4

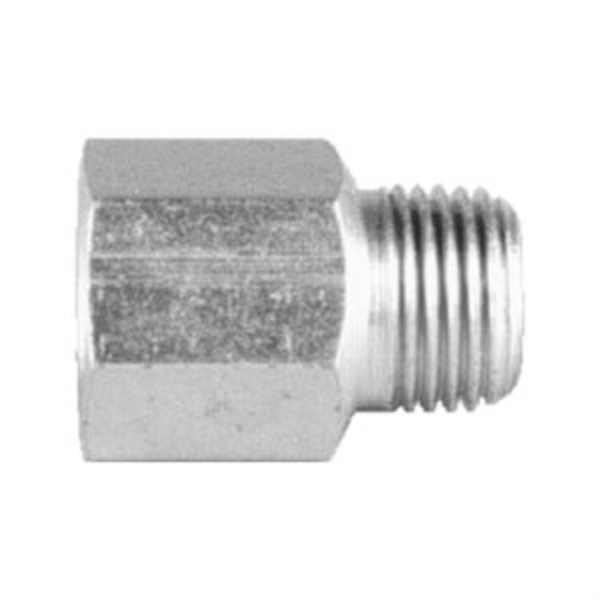

ADAPTER, 1/8 NPTF HEX
GG 557392
ADAPTER, 1/8 NPTF HEX
Graco 557392 Pipe Extension - 1/8 NPT male X 1/8 NPT female, 3/4 long
- 1/8 NPTF Thread Pipe Extension Nipple - Steel
- 3/4&Prime, overall length
- Lubriquip part number 509-027-000
- Connection Type: Threaded
- Finish/Coating: Zinc
- For Use With: Pipe
- Material: Steel
