PAVING BREAKER 1 1/4 X 6
IR MX60B
IR MX60B
Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 1250 BPM, 2.06" Bore
The most versatile of our available pavement breakers, the MX60 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.Features And Benefits
- Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
- Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
- Power: The MX60 pavement breakers deliver large blow energy at 1250 BPM thanks to our Power-Strok™ piston technology.
Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year
Similar IR
- MX60BF
$1,316.00
SPIKE DRIVER
IR MX90F-SD
IR MX90F-SD
Spike Driver, Vibration Reduced Flex T-Handle, 5.75" Stroke, 1250 BPM, 2.62" Bore
The MX90 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok™ piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.Features And Benefits
- Powerful: The MX Series spike drivers are powerful, but still easy to handle.
- Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series’ 360-degree directional exhaust capabilities.
- Vibration-Reduced Flex Handle: The flex handles of the MX Series provide vibration dampening in a full 360-degree range of movement, increasing maximum operator comfort and productivity.
- Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.
Product Application and Uses: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Exhaust Location: Side - Adjustable
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 86
Stroke Length (in): 5.75
Warranty: 1-year
$1,730.40
HOUSING
IR NS11-A24
IR NS11-A24
Needle Housing Assembly, Round for Ingersoll Rand 172 and 182 Series Percussive Scaler
For Use With- 172L
- 172LNA1
- 182K1
- 182L
- 182LNA1
$227.00
PAVING BREAKER PB50AS1
IR PB50AS1
IR PB50AS1
Pavement Breaker, 1-1/8 X 6" Hex Shank, 6.25" Stroke Length, 1150 BPM, 1-3/4" Bore
Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB50 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.Features And Benefits
- Power: With 1150 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
- Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
- Built-in lubricator helps ensure adequate lubrication.
- Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
- 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
- Muffler Reduces Noise
Product Application and Uses: These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work; breaking large boulders in mines, quarries and general demolition work.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 58
Air Consumption @ Load (l/min): 1643
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1150
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 55
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year
Similar IR
- PB50AL1
$1,299.20
WARNING TAG (71059612), NON-RETURNABLE PART
IR 04612776
IR 04612776
WARNING TAG (71059612), NON-RETURNABLE PART $41.00

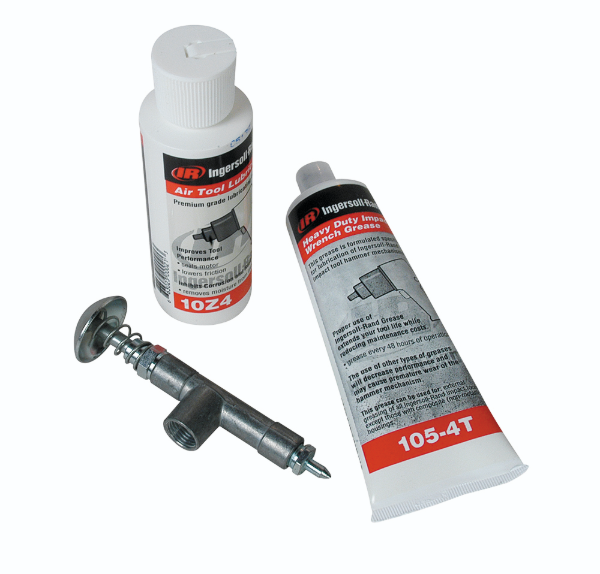

AIR CARE KIT
IR 105-LBK1
IR 105-LBK1
Air Care Lubrication Kit for Ingersoll Rand Tools, includes 10Z4 oil, 105 Grease and Grease Gun
It goes without saying that proper lubrication of any tool is essential if you want the tool to last. By lubricating your air tools, you’ll prolong the life of tool motors, mechanisms, gearing, and other vital parts. Ingersoll Rand offers a complete line of specialized oils and greases that are engineered specifically for use with our air tools.Features And Benefits
- Proper lubrication of your air tools will prolong the life of tool motors, mechanisms, gearing and other vital parts.
Includes: 4oz. 105-4T Heavy Duty Impact Wrench Grease, 4oz. 10Z4 Air Tool Oil, Grease Gun
Product Application and Uses: For use with Ingersoll Rand impacts, straight grinders, ratchets, nutrunners, drills and screwdrivers.
Product Length (in): 1.57
Product Width (in): 4
Product Height (in): 7.25
Product Weight (lb): 0.79
Similar IR
- 67-LBK1
- 105-4T
- 10Z4
- 10P
- 10G
$64.00
RIVET BUSTER
IR 11001A
IR 11001A
Rivet Buster, 11" Stroke, 650 BPM, Jumbo Shank, Grooved Barrel Lock Spring Retainer, Swan Neck Outside Trigger
The 11001 Series rivet buster is the heaviest hitting unit in the Ingersoll Rand line. With an 11-inch extra long stroke length, the 11001 is ideal for both large rivet and material removal. It’s your best bet for all your heavy duty construction needs.Features And Benefits
- Durable: The 11001 Series of rivet busters can hold up to repeated drops and jobs in harsh environments without ever missing a beat.
- Better Performance in Tight Spaces: The swan neck open handle of the 11001 Series allows for use in tight places for better and easier performance.
- Accepts Industry Standard Jumbo Steel: You can easily purchase steel for our 8001 Series rivet buster at most retail locations.
Product Application and Uses: Designed for breaking concrete and other demolition work in construction applications. Ideal for heavy duty construction needs and both large rivet and material removal.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 45
Air Consumption @ Load (l/min): 1274
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 650
Bore Diameter (in): 1.06
Color: Black
Configuration/Handle Type: Swan Neck
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 24.5
Product Weight (lb): 30.2
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): .866
Shank Type: Jumbo
Stroke Length (in): 11
Warranty: 1-year
$3,010.00
UPPER SLEEVE QTY 1
IR 9001-220
IR 9001-220
Upper Sleeve, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters
Product Application and Uses: For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 threaded or grooved rivet busters.Housing Material: Steel
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$23.00
SIDE CUT CHISEL - 18"
IR 9001-277-18
IR 9001-277-18
18" Side-cut Rivet Buster Chisel Steel, Jumbo Shank
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Our jumbo shank rivet buster steels and attachments are ideal for general demolition and steel demolition applications.Includes: (5) Rivet Buster Chisel Steels
Product Application and Uses: Designed for steel, rivet cutting. For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 rivet busters.
Chisel Style: Side-cut
Housing Material: Steel
Product Length (in): 18
Product Weight (lb): 3.75
Shank SIze (in): 0.866
Shank Type: Jumbo
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$71.00
MOIL POINT - 9"
IR 9001-297-9
IR 9001-297-9
9" Moil Point Rivet Buster Steel, Jumbo Shank
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Our jumbo shank rivet buster steels and attachments are ideal for general demolition and steel demolition applications.Includes: (15) Moil Point Steels
Product Application and Uses: Ideal for general demolition. For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 rivet busters.
Chisel Style: Moil Point
Housing Material: Steel
Product Length (in): 9
Product Weight (lb): 2
Shank SIze (in): 0.866
Shank Type: Jumbo
For Use With
- 11001
- 11001A
- 8001A
- 9001
- 9001A
$52.00
MOTOR -- MULTI-VANE
IR 92RA008
IR 92RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1296 RPM, 8.15 HP, 148 NM, Reversible
Air Consumption at Max HP (scfm): 230Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 1296
Max Pressure (bar): 6.2
Max Torque (ft-lb): 109
Max Torque (in-lb): 1310
Max Torque (nm): 148
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 620
Starting Torque (ft-lb): 80
Starting Torque (nm): 109
Warranty: 1-year
$7,181.00
MOTOR -- MULTI-VANE
IR 92RB078
IR 92RB078
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 120 RPM, 7.9 HP, 1478 NM, Reversible
The 92R Series has a durable spur gear system and robust vane motor design making it one of the most durable and powerful motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 92 Series can withstand harsh environments and are deal for high torque and increased side loading applications.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Paper Machinery, Large conveyers, Heavy Lifting, Valve Actuators, Industrial Equipment
Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Length (in): 3.0625
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Ratio: 78:1
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Keyaway Length (in): 2
Max Free Speed (rpm): 120
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1090
Max Torque (in-lb): 13081
Max Torque (nm): 1478
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 15.22
Product Width (in): 10.5
Product Height (in): 10.5
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 59
Standards/Certifications: ATEX
Starting Torque (ft-lb): 770
Starting Torque (nm): 1044
Warranty: 1-year
$8,213.00
MOTOR -- MULTI-VANE
IR 92RA014
IR 92RA014
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 682 RPM, 8.15 HP, 282 NM, Reversible
Air Consumption at Max HP (scfm): 230Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 682
Max Pressure (bar): 6.2
Max Torque (ft-lb): 208
Max Torque (in-lb): 2496
Max Torque (nm): 282
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 327
Starting Torque (ft-lb): 152
Starting Torque (nm): 206
Warranty: 1-year
$7,439.00
DIGGER 93LA1
IR 93LA1
IR 93LA1
Digger, 7/8 x 3-1/4" Hex Shank, 2350 BPM, 2.5" Stroke Length, 1.69" Bore
Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework, the 93 Series diggers can tackle almost anything. With a short, powerful 2.5 inch piston stroke and multiple configurations available, you can remove material quickly and easily.Features And Benefits
- Access: The 93 Series features a tease throttle for maximum precision, coupled with a D-shape handle to allow access to tighter spaces.
- Durability: With a rubber buffer retainer to absorb shock and protect the tool, the 93 Series diggers will last for years.
- Reliability: The side exhaust and steel cone increase user safety and productivity for better use every time.
- Weight: Built with premium materials, the 93 Series diggers are lightweight and easy to use.
Product Application and Uses: Ideal for digging clay, frozen ground, horizontal concrete demolition, tunneling, and bridgework
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 45
Air Consumption @ Load (l/min): 12.74
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2350
Bore Diameter (in): 1.69
Collar Type: Round
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 18.88
Product Weight (lb): 23
Retainer Type: Latch
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2.5
Vibration Level (m/s2): 28 / 8.0
Warranty: 1-year
Similar IR
- 93A1
- 93A4
- 95A1
- 95LA1
$1,304.80
42V CTRL ASSEMBLY, 2SPEED, 100-480V
IR 9402.1655.2
IR 9402.1655.2
42V CTRL ASSEMBLY, 2SPEED, 100-480V $1,640.00
BPN_94-024 : CYLINDER, TEFUA, JPA10, PC24
IR 94-024
IR 94-024
BPN_94-024 : CYLINDER, TEFUA, JPA10, PC24 $174.00
RETAINER (MPQ=1) PACK OF 2
IR 9505
IR 9505
Hammer Spring Retainer for Ingersoll Rand 114GQC Air Hammer, 2-Piece
This spring set includes 2 hammer-spring retainers designed to guard against accidental shank release. Pair with your Ingersoll Rand 114GQC Edge Series Air Hammer for best results.Includes: (2) hammer-spring retainers
Retainer Type: Spring
For Use With
- 114GQC
$15.00
