RAMMER
IR 130A1M
IR 130A1M
Pneumatic Bench Sand Rammer, 2-1/2" Round Malleable Butt, 2.5" Stroke, 1" Bore
With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. Ideal for compacting small sand molds in a foundry or casting facility. Its shorter height and light weight allow this unit to be used on smaller molds that are set up waist high.Features And Benefits
- Reliability: Thanks to a built-in lubricator, these tools will run smoothly and last.
- Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
- Access: This tool is as lightweight as it is powerful, making compact spaces easy to reach.
Product Application and Uses: Ideal for compacting small sand molds in a foundry or casting facility
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 14
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 870
Bore Diameter (in): 1
Butt Diameter (in): 2.5
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: Built In
Power Source: Air Powered
Product Length (in): 21.5
Product Weight (lb): 11.56
Retainer Type: Latch
Shank Opening: 1/2" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 2.5
Warranty: 1-year
$1,304.80
3" SURFACE PREP.MPQ=25 DISC-MED, MAROON BOX=25
IR 03A-MEDBR-25
IR 03A-MEDBR-25
3" SURFACE PREP.MPQ=25 DISC-MED, MAROON BOX=25 $81.00
SCALER - CHISEL
IR 170PG-CS
IR 170PG-CS
Air Chisel Scaler, 3000 BPM, 1.4" Stroke
This pistol grip chisel scaler is designed with both power and ergonomics in mind. With a rubber over mold grip for maximum comfort, you can use this tool for hours with minimal fatigue.Features And Benefits
- Comfort: Ergonomic handle and low vibration provides operator comfort.
- Power: 3,000 blows per minute maximize material removal.
Includes: Scaler Tool with 1/2" square shank bushing, 7" x 3/4" straight steel chisel
Product Application and Uses: Designed for removing weld splatter or other unwanted surface deposits from metal
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 5.5
Air Consumption @ Load (l/min): 15.6
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 3000
Bore Diameter (in): 0.93
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Lock Mechanism: Retaining Ball
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 5.3
Shank SIze (in): 1/2
Shank Type: Square
Standards/Certifications: Vibration : ISO 28927-9:2009Sound : ISO 15744:2008Safety : ISO 11148-4:2012
Stroke Length (in): 1.4
Warranty: 1-year
Similar IR
- 180PG-CS
- 180PG-KIT
- 170PG
$377.40
HEAVY DUTY IMPACTOOL
IR 1712B2
IR 1712B2
1" Air Impact Wrench, Heavy Duty, 1400 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger
The 1712B2 Impact Wrench features a jumbo hammer impact mechanism and a square thru hole anvil. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.Features And Benefits
- Power: Vane motor and jumbo hammer
- Durability: Steel hammercase
- Productivity: Thru-hole 1" square drive and D-handle with auxiliary handle
Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 47
Air Consumption @ Load (l/min): 1331
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 800
Color: Black
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103.0 / 114.0
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1400
Max Torque (in-lb): 16800
Max Torque (nm): 1898
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 73.7
Product Length (in): 11.25
Product Width (in): 10.24
Product Height (in): 6.3
Product Weight (lb): 18.25
Recommended Forward Torque Range (ft-lb): 451-1003
Recommended Forward Torque Range (in-lb): 5417-12037
Recommended Forward Torque Range (nm): 612-1360
Retainer Type: Thru-hole
Side to Center Distance (in): 5.1
Side to Center Distance (mm): 130
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.7
Warranty: 1-year
$2,264.40
MOTOR
IR 1801W
IR 1801W
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 370 RPM, 1.35 HP, 94.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 370
Max Pressure (bar): 6.2
Max Torque (ft-lb): 70
Max Torque (in-lb): 840
Max Torque (nm): 94.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 175
Starting Torque (ft-lb): 52
Starting Torque (nm): 70.5
Warranty: 1-year
$3,139.00
MOTOR
IR 1801Q
IR 1801Q
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 650 RPM, 1.35 HP, 54.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 40
Max Torque (in-lb): 480
Max Torque (nm): 54.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 300
Starting Torque (ft-lb): 30
Starting Torque (nm): 40.7
Warranty: 1-year
$2,924.00
MOTOR
IR 1801P
IR 1801P
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1050 RPM, 1.35 HP, 31.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1050
Max Pressure (bar): 6.2
Max Torque (ft-lb): 23
Max Torque (in-lb): 276
Max Torque (nm): 31.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Length (in): 8.5
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 500
Starting Torque (ft-lb): 17
Starting Torque (nm): 23.3
Warranty: 1-year
$2,838.00
MOTOR
IR 1801N
IR 1801N
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1990 RPM, 1.4 HP, 19 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1990
Max Pressure (bar): 6.2
Max Torque (ft-lb): 14
Max Torque (in-lb): 168
Max Torque (nm): 19
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.38
Rated Power (hp): 1.4
Rated Power (kW): 1.04
Reversible: Non-reversible
Speed at Max Power (rpm): 918
Starting Torque (ft-lb): 10
Starting Torque (nm): 14.2
Warranty: 1-year
$3,500.00
Motor
IR 1841U
IR 1841U
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 380 RPM, 1.1 HP, 67.8 NM, Reversible
Air Consumption at Max HP (scfm): 43Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 380
Max Pressure (bar): 6.2
Max Torque (ft-lb): 50
Max Torque (in-lb): 600
Max Torque (nm): 67.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.88
Rated Power (hp): 1.1
Rated Power (kW): 0.82
Reversible: Reversible
Speed at Max Power (rpm): 175
Starting Torque (ft-lb): 37
Starting Torque (nm): 50.2
Warranty: 1-year
$3,113.20
NEEDLE SCALER
IR 172LNA1
IR 172LNA1
Air Needle Scaler, 5500 BPM, 9/16" Stroke
At 5,500 blows per minute, this lever-operated needle scaler is not only fast, but extremely durable and efficient.Features And Benefits
- Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
- Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.
- Comfort: Compact, well balanced and low vibration maximize operators comfort
- Power: 9/16" stroke, 5500 blows per minute.
Includes: 19 steel precision heat-treated needles (1/8" diameter 5" length)
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 12
Air Consumption @ Load (l/min): 340
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 5500
Bore Diameter (in): 0.94
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Qty: 19 Needles
Non Sparking: No
Power Source: Air Powered
Product Length (in): 13.75
Product Width (in): 6.8
Product Height (in): 2.7
Product Weight (lb): 5.25
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.5 / 118.5
Stroke Length (in): 0.56
Vibration Level (m/s2): 12.5
Warranty: 1-year
Similar IR
- 182LNA1
- 172L
- 182L
$503.20
CHIPPER ROUND NOZZLEW/RETAINER
IR 1A2SA
IR 1A2SA
Air Chipping Hammer, 1" Stroke, 2500 BPM, Round Shank Oval Collar
Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.Features And Benefits
- Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
- Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.
Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2500
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 16
Product Weight (lb): 14.75
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 1
Warranty: 1-year
$534.80
50 PIECE GRINDER KIT
IR 23A-VAR-GR
IR 23A-VAR-GR
Surface Prep Accessory Kit, 50-Piece
Includes: (4) 1/4" Shank Carbide Burs; (5) 1/8" Shank Mounted Points; (5) 1/4" Shank Mounted Points; (1) 2" Quick Change Disc Backing Pad; (1) 3" Quick Change Disc Backing Pad; (6) 2" 36 Grit Sanding Discs; (9) 2" Various Grit Surface and Conditioning Discs; (2) 2" Paint and Corrosion Removal Discs; (2) 2" High Strength Buffing Discs; (5) 3" 36 Grit Sanding Discs; (9) 3" Various Grit Surface Conditioning Discs; (1) Carrying CaseProduct Application and Uses: For use with 1/4" Collet Die Grinders
Arbor/Collet: 1/4"
$315.00
CONTROL ASS. 1S+NA, 42V, GP 250/500
IR 9512.1000.2
IR 9512.1000.2
CONTROL ASS. 1S+NA, 42V, GP 250/500 $685.00
CONTROL ASS.1S+NA, 110V, GP 250/500
IR 9512.1001.2
IR 9512.1001.2
CONTROL ASS.1S+NA, 110V, GP 250/500 $685.00
CONTROL ASS.1PH 1S+NA, 230/42V GP250/500
IR 9512.1052.2
IR 9512.1052.2
CONTROL ASS.1PH 1S+NA, 230/42V GP250/500 $855.00
CONTROL ASS.1PH 1S+NA, 115/42V GP250/500
IR 9512.1053.2
IR 9512.1053.2
CONTROL ASS.1PH 1S+NA, 115/42V GP250/500 $855.00
CONTROL ASS. 2S+NA, 42V, GP 250/500
IR 9512.1100.2
IR 9512.1100.2
CONTROL ASS. 2S+NA, 42V, GP 250/500 $645.00
CONTROL ASS. 2S+NA, 110V, GP 250/500
IR 9512.1101.2
IR 9512.1101.2
CONTROL ASS. 2S+NA, 110V, GP 250/500 $605.00
CONTROL ASSEMBLY. 42V, DUAL SPEED
IR 9517.1100.2
IR 9517.1100.2
CONTROL ASSEMBLY. 42V, DUAL SPEED $820.00
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 10' LIFT, 6' DROP
IR CL125K-2C10-C6U-E
IR CL125K-2C10-C6U-E
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 10' LIFT, 6' DROP $3,820.00
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 15' LIFT, 11 DROP
IR CL125K-2C15-C11U
IR CL125K-2C15-C11U
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 15' LIFT, 11 DROP $3,580.00
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 18' LIFT, 6 DROP
IR CL125K-2C18-C6U
IR CL125K-2C18-C6U
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 18' LIFT, 6 DROP $3,660.00
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 20 LIFT, 16 DROP
IR CL125K-2C20-C16U
IR CL125K-2C20-C16U
HOIST, AIR, 1/8 TON, CLK SERIES, STEEL HOOKS, 20 LIFT, 16 DROP $3,820.00
HOIST, AIR, 1/4 TON, CLK SERIES, STEEL HOOKS, 12' LIFT, 8' DROP
IR CL250K-2C12-C8U
IR CL250K-2C12-C8U
HOIST, AIR, 1/4 TON, CLK SERIES, STEEL HOOKS, 12' LIFT, 8' DROP $3,780.00

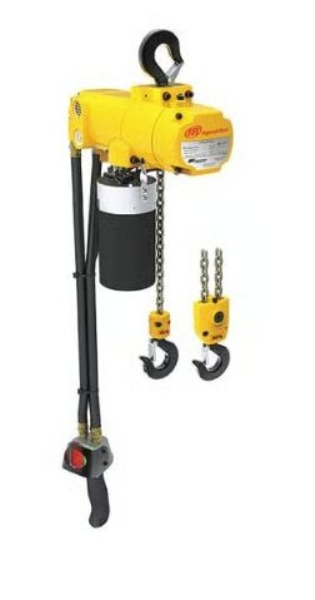

HOIST, AIR, 1/2 TON, CLK SERIES, STEEL HOOKS, 12' LIFT, 8 DROP
IR CL500K-2C12-C8U
IR CL500K-2C12-C8U
HOIST, AIR, 1/2 TON, CLK SERIES, STEEL HOOKS, 12' LIFT, 8 DROP $4,120.00
HOIST, AIR, 1/2 TON, CLK SERIES, STEEL HOOKS, 20' LIFT, 6 DROP
IR CL500K-2C20-C6U
IR CL500K-2C20-C6U
HOIST, AIR, 1/2 TON, CLK SERIES, STEEL HOOKS, 20' LIFT, 6 DROP $4,460.00
Signature Bundle Handler Aluminum Block Clamp Device
IR D1910651A
IR D1910651A
Signature Bundle Handler Aluminum Block Clamp Device Call for pricing
1/2T Dual speed / Hook Mt. / 12ft LIFT / 16ft PENDANT / 460V/3/60, 20ft POWER CORD
IR ELK100-1ND100H-12-16-4CF20
IR ELK100-1ND100H-12-16-4CF20
1/2T Dual speed / Hook Mt. / 12ft LIFT / 16ft PENDANT / 460V/3/60, 20ft POWER CORD Call for pricing
2 ton Electric Hoist, 460v, 3 Phase, 65 Ft Lift
IR ELK200-1ND200H-65-55-4CF15
IR ELK200-1ND200H-65-55-4CF15
2 ton Electric Hoist, 460v, 3 Phase, 65 Ft Lift Call for pricing
Electric Hoist, 3 Phase
IR ELK200-2ND300E-15-0-4CF15
IR ELK200-2ND300E-15-0-4CF15
Electric Hoist, 3 Phase Call for pricing
3 Ton Hoist, Electric, 14 Ft Lift, 10 Ft Drop
IR ELK200-2ND300M2-14-10-3CF15
IR ELK200-2ND300M2-14-10-3CF15
3 Ton Hoist, Electric, 14 Ft Lift, 10 Ft Drop Call for pricing
5 Ton ETO ELK Hoist with No Pendant, Wireless Controls
IR ELK250-JM012301
IR ELK250-JM012301
5 Ton ETO ELK Hoist with No Pendant, Wireless Controls Call for pricing
1/4 Ton Hoist. 208V 3-Phase, 10ft Lift, 6ft Drop
IR ELK25-1ND25H-10-6-3CF15
IR ELK25-1ND25H-10-6-3CF15
1/4 Ton Hoist. 208V 3-Phase, 10ft Lift, 6ft Drop Call for pricing
ELK Series Electric Chain Hoist
IR ELK25-1ND12H-12-8-4CF15
IR ELK25-1ND12H-12-8-4CF15
ELK Series Electric Chain Hoist $2,920.00
