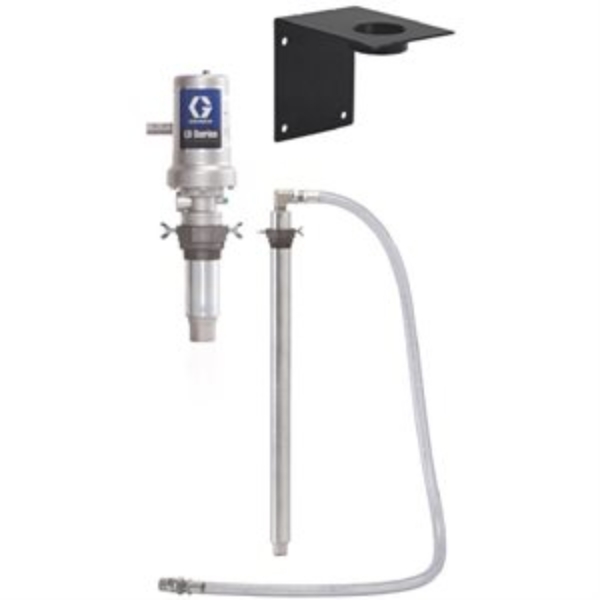

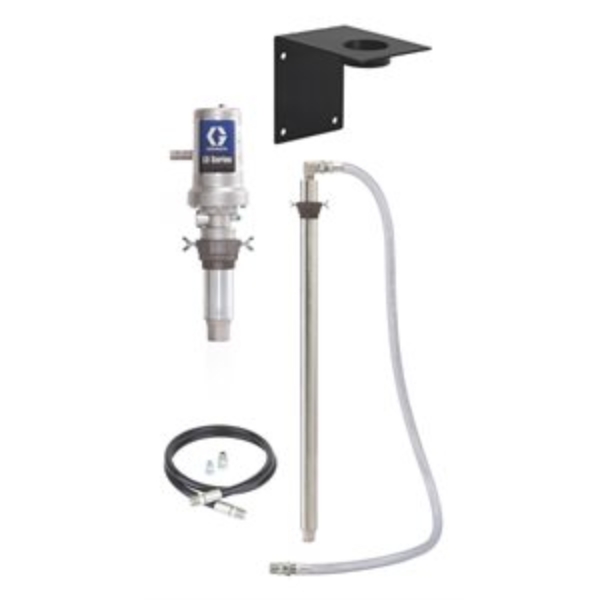

KIT, 3:1 WALL MOUNT TOTE-NPT
GG 24H695
KIT, 3:1 WALL MOUNT TOTE-NPT
Graco 24H695 LD Series 3:1 Wall Mount 275 Gallon (1040 Liter) Oil Pump Package - NPT
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
- Three Inch Air Motor - Provides more power to create better flow.
- Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

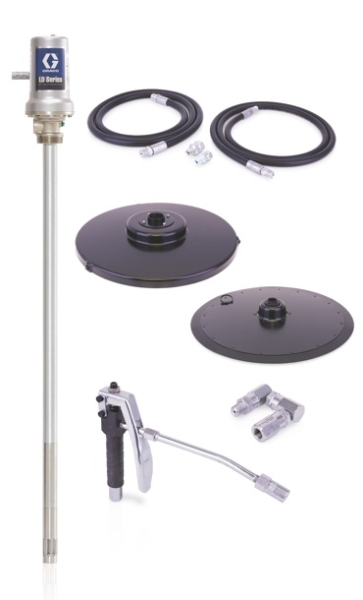

KIT, PACKAGE, 400# DRUM NPT
GG 24J042
KIT, PACKAGE, 400# DRUM NPT
Graco 24J042 LD Series 50:1 400 lb. (180 kg) Grease Pump - Stationary Package
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
- Three Inch Air Motor - Provides more power to create better flow.
- Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
GBL 7500 PUMP, SUCTION, 3/16
GG 24J391
GBL 7500 PUMP, SUCTION, 3/16
Manzel® GBL 7500 Replacement Pump, Suction Fed, 3/16 in (4.8 mm)The Graco Manzel GBL 7500 Suction pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
For force-feed oil lubrication systems Mechanically driven from camshaft in reservoir. Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar). Rugged construction for high quality performance and durability with easy to adjust pump output. 1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments. Double Ball Outlet Check reduces ball travel. Improved O-ring seals to eliminate leak paths. Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life. Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

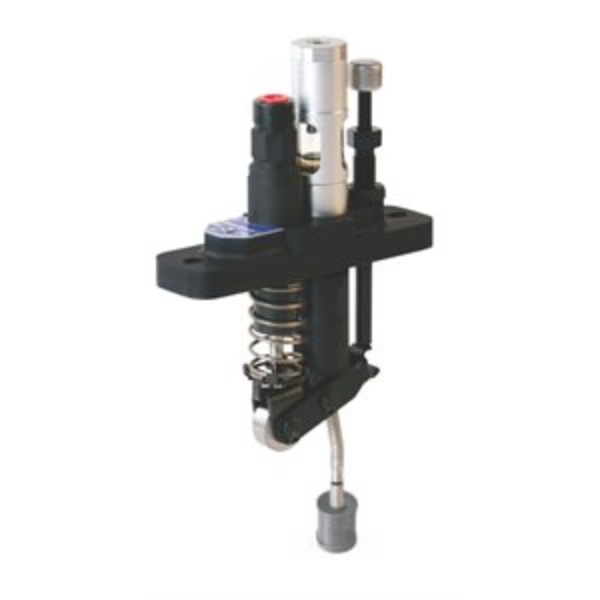

GBL 7500 PUMP, SUCTION, 1/4
GG 24J392
GBL 7500 PUMP, SUCTION, 1/4
Manzel® GBL 7500 Replacement Pump, Suction Fed, 1/4 in (6.4 mm)The Graco Manzel GBL 7500 Suction pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
For force-feed oil lubrication systems Mechanically driven from camshaft in reservoir. Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar). Rugged construction for high quality performance and durability with easy to adjust pump output. 1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments. Double Ball Outlet Check reduces ball travel. Improved O-ring seals to eliminate leak paths. Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life. Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

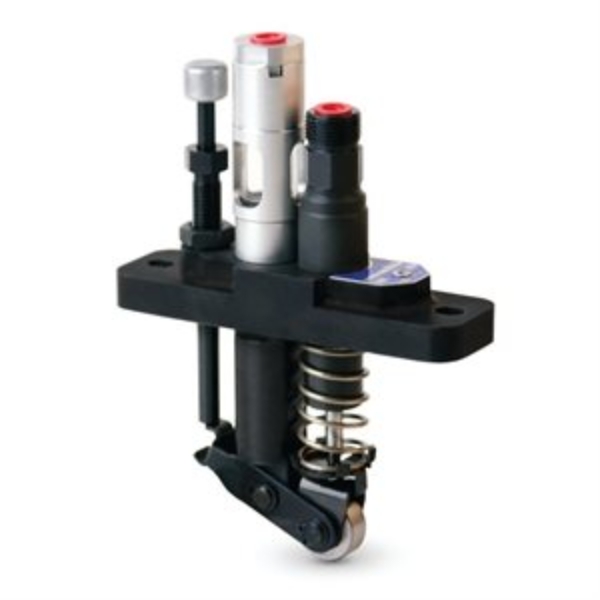

GBL 7500 PUMP, GRAVITY, 3/16
GG 24J394
GBL 7500 PUMP, GRAVITY, 3/16
Graco 24J394 Manzel® GBL 7500 Replacement Pump, Gravity Fed, 3/16 in (4.8 mm)
The Graco Manzel GBL 7500 Gravity pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
Application: For force-feed oil lubrication systems- Mechanically driven from camshaft in reservoir.
- Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar).
- Rugged construction for high quality performance and durability with easy to adjust pump output.
- Double Ball Outlet Check reduces ball travel.
- Improved O-ring seals to eliminate leak paths.
- Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
- Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.

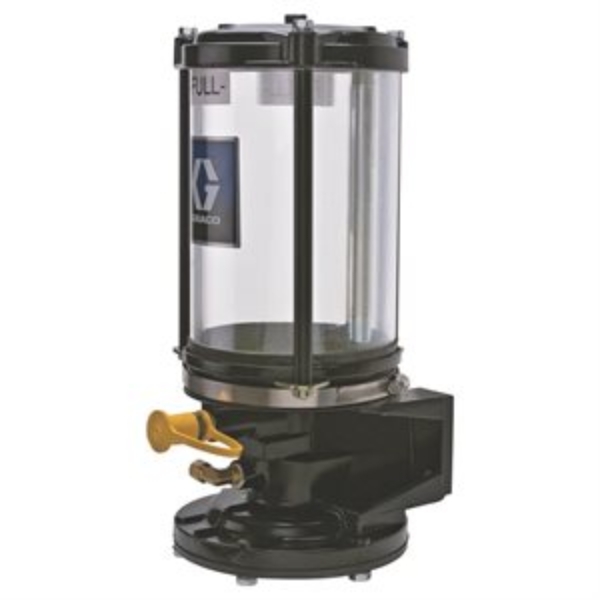

GREASE JOCKEY PUMP, 6 LB PLSTC RESV TEE
GG 24K164
GREASE JOCKEY PUMP, 6 LB PLSTC RESV TEE
Graco 24K164 Pneumatic Grease Jockey® Pump with 6 lb. (2.72 kg) Reservoir, Straight Fill Port, Fluid Tee Outlet
Classic Grease Jockey pump
Application: Air powered grease pump for automatic lubrication systems- For NLGI #000 to #0 grade grease
PLATE, BASE, MSP, BSPP, 4 SECT, SS
GG 24N389
PLATE, BASE, MSP, BSPP, 4 SECT, SS
Trabon® MSP Stainless Steel Divider Valve - 4 Section Base Plate Assembly, BSPPTrabon® MSP Stainless Steel Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve – and is still the best! Get the same reliable valve in stainless steel.
For machine tools, textile, glass and can machinery, and mobile equipment Face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting. Can be easily accessorized with electronic proximity switches to provide positive assurance of a successful lube event. Outlet checks ensure accurate lube delivery, every time. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime. Manufactured in our factory for quality and reliability. Each assembly is honed and match fitted for precise lube delivery every time.
APPLICATOR, GS35DBL, 110VAC
GG 24P076
APPLICATOR, GS35DBL, 110VAC
GS35 Plug-Free™ Hot Melt Applicator with 2 Modules 110 VAC Solenoid Pt 100 RTD (SA2B088)The InvisiPac Hot Melt Adhesive Applicators offer you a hassle-free operation with improved uptime. They have an innovative free-flow manifold design and integrated applicator filtering which eliminates nozzle plugs. And with a compact and custom design options, they can easily meet your application needs.
GS35 plug-free hot melt adhesive dispensing nozzle for case and carton sealing.Free Flow Manifold
- Reaches operating temperature in less than 10 minutes
- Manifold filter is included in a heated zone, eliminating coldspots and ensuring consistent adhesive application
- Manifold filter traps debris and char so it’s removed when you replace the filter
Free-Flow Path
- Designed to eliminate dead zones where char will build up
Integrated Module Filter
- Design protects ball and seat from debris and char
- Eliminates nozzle plugging when used with InvisiPac System
GS35: Plug free applicator for constant bead applications
- Features: Air open/spring close
- Cycle time: 3500 cycles per minute
- Single, dual, quad and custom designs available
XD SERIES 40 REEL, BARE, C SPRING, MP, BLU
GG 24P320
XD SERIES 40 REEL, BARE, C SPRING, MP, BLU
XD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Truck/Bench Only, Metallic Blue Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
XD SERIES 40 REEL, 3/4 X 100 OIL, BLUE
GG 24P345
XD SERIES 40 REEL, 3/4 X 100 OIL, BLUE
XD40™, Oil, 1 in. (25 mm) Inlet, 3/4 in. X 100 ft. (19 mm X 30 m) Hose, NPT, Metallic Blue Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

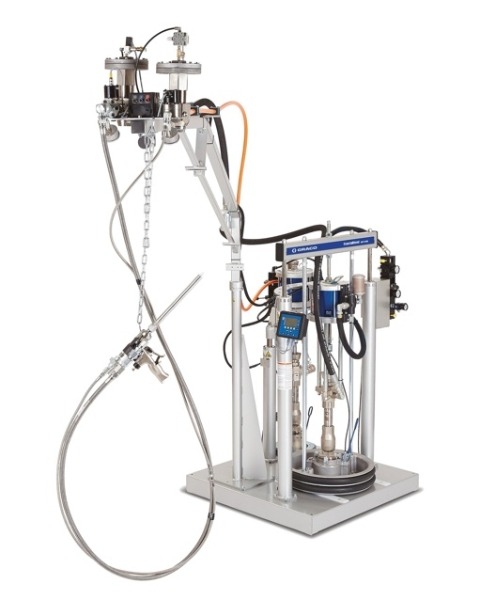

EXACTABLEND AGP SYSTEM, 100CC/100CC, BOOM
GG 24R815
EXACTABLEND AGP SYSTEM, 100CC/100CC, BOOM
55/5 gal (200/19 L) AGP-P100 Polysulfide Machine with BoomThe Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance.Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material. Real-time ratio assurance means less waste, more profits- Provides automatic shut-down if off-ratio conditions occur
- Cuts material waste and reduces rework for a healthier bottom line
- Ultimately reduces the chance of seal failure on insulating glass
- Results in better quality end product
- Quick and easy setup – operator simply enters the ratio setting
- Easy to switch ratio settings
- Base purge is fast, clean and easy with the simple touch of a button
- A & B material usage
- Flow rate
- Alarm events
- Ratio
KIT, PUMP 3, RESIN, HP
GG 24R969
KIT, PUMP 3, RESIN, HP
Graco 24R969 ProMix PD2K Expansion Pump, Air-Assist, 70 cc, High Pressure
Base Unit Expansion Kit to add a third or fourth pump to your system
- Model: ProMix
- Series: PD2K
- Includes: Pump, Control Module, Solenoid, Frame, Mounting Bracket, Cables
KIT, PUMP 4, CATALYST, LP
GG 24R970
KIT, PUMP 4, CATALYST, LP
Graco 24R970 ProMix PD2K Expansion Pump, Air Spray, 35 cc, Low Pressure
Base Unit Expansion Kit to add a third or fourth pump to your system
- Model: ProMix
- Series: PD2K
- Includes: Pump, Control Module, Solenoid, Frame, Mounting Bracket, Cables
GL-1 XL INJECTOR, 2 POINT
GG 24X812
GL-1 XL INJECTOR, 2 POINT
Graco 24X812 GL-1™ XL Grease Injector, Two Point
Custom fit your system with Graco&prime, s adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.
Application: High volume output at high pressures for the most demanding applications- The GL-1 XL injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications
- Includes an adjustable hex head nut to make adjusting the output simple
- No vent holes and fully enclosed press fittings to prevent leaking lubricant
- Rugged, single piece uni-body design built for the harshest environments
GL-1 XL INJECTOR, REPLACEMENT
GG 24X817
GL-1 XL INJECTOR, REPLACEMENT
GL-1™ XL Grease Injector, ReplacementCustom fit your system with Graco's adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.
High volume output at high pressures for the most demanding applications The GL-1 XL injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications Includes an adjustable hex head nut to make adjusting the output simple No vent holes and fully enclosed press fittings to prevent leaking lubricant Convenient top-mounted cycle pin indicator for quick confirmation that the injector is functioning properly Rugged, single piece uni-body design built for the harshest environments LUBEPRO H1900 PUMP
GG 24Y498
LUBEPRO H1900 PUMP
LubePro™ H1900 Horizontal Oil Pump - NPTWithout proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump - the leader in durability and quality for over 50 years.
Single Stroke Oil Pump for Automatic Lubrication LubePro H1900 is compatible with GL-42 and GL-43 injectors Pressure Ratio of 19:1 H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke Remote Fill - No need to manually fill the pump, its designed to attach to an oil header line from a remote fill station Pneumatic power makes it easy to install into existing air line Optional Low Level Detection available, factory installed Built with high-quality seals tested to outperform the competition Optimally lubricates while your machines are running Provides accurate, reliable lubrication for every lube point Provides higher lube output and faster lubrication cycle
SD SERIES 5 REEL, CORD, BLK, TRIPLUG, GFCI
GG 24Y864
SD SERIES 5 REEL, CORD, BLK, TRIPLUG, GFCI
Graco 24Y864 SD™ 5 Series 120 Volt Cord Reel - Tri-Plug GFCI Industrial Receptacle - 50 ft (15 m), 12 AWG, 15 Amp Cord - Black
Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.
- Heavy-duty steel construction, SD Series size 5.
- 50 foot cord and features a 5 foot lead-in cable.
- Duplex GFCI receptacle
- Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won&prime, t flex or twist.
MANIFOLD, ASSY, CC, 3 VALVE, LP, CIRC
GG 24Y939
MANIFOLD, ASSY, CC, 3 VALVE, LP, CIRC
3 Valve SST Low Pressure Circulating Valve Low Pressure Non-Circulating Valve
PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z015
PROMIX 2KE PROPORTIONER, METER, ACID
ProMix 2KE Acid Catalyst Meter, 1 color/1 catalyst, non intrinsically safe alternator power The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate. Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion. Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1 Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter Off-ratio material will not reach your product – eliminating expensive re-work Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more CSP VALVE, 14 OUTLET, NPT, PKG
GG 24Z490
CSP VALVE, 14 OUTLET, NPT, PKG
CSP Divider Valve, 1/8 inch NPT, 14 OutletsCompact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
1/8 inch NPT inlet Space efficient design with 14 outlets, without indicator Outlets can be combined to meet larger bearing needs Built-in durability with Zinc Iron plating to stand up to harsh environments High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease
KIT, COVER, FRONT, NO LOGO, CLEAR
GG 24Z962
KIT, COVER, FRONT, NO LOGO, CLEAR
Graco 24Z962 Electric Grease Jockey® Pump Protective Pump Cover
Application: For increased control panel impact protection on Electric Grease Jockey, G3, and G1 Automatic Lubrication Pumps- Protective pump cover

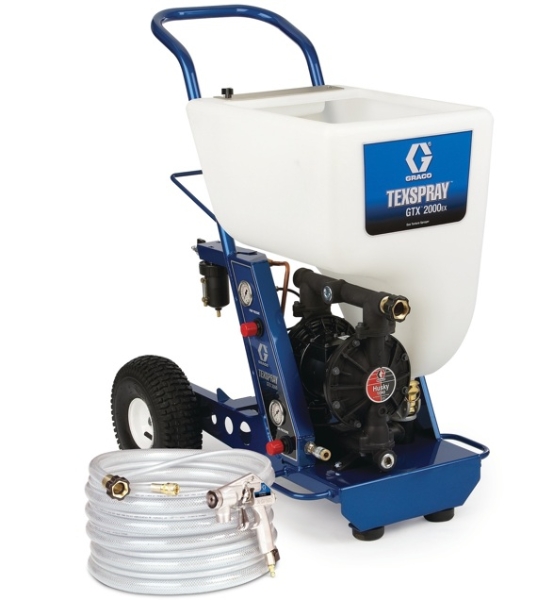

GTX SPRAYER, COMPRESSORLESS
GG 257030
GTX SPRAYER, COMPRESSORLESS
TexSpray GTX 2000EX Air-Powered Texture Sprayer with Graco Trigger Gun A highly portable texture system for both smooth materials and those with fine aggregates, the GTX 2000EX is the ideal solution for drywall muds, deck coatings, and exterior aggregate acrylic and elastomeric finishes. High-Performance Solutions for Heavy-Duty Jobs. Powered by your external air compressor, this air-powered texture solution gets the job done fast — whether coating a large interior surface or applying an exterior aggregate finish on a large commercial job. Husky 1040 Double Diaphragm Pump- Jobsite Proven Performance
- Texture delivery rates to 4.0 gpm from durable, high-output 1-inch pump
- Durable, User-Friendly Spraying
- Durable, User-Friendly Spraying
- Pump heavy mud mixes and larger aggregate with oversized fluid passages
- Quick nozzle changes with extra-coarse gun head threads
- Longer Spray Time
- Easy cleanup and removal with no-tools
- Complete Control
- Produce precise, consistent and repeatable texture finishes
- Improved Handling & Flexibility
- Both hoses are permanently bonded together for easy handling
- Oversized grip with no-tools hose connection
- Moisture Build-Up Eliminated
- Automatically filters air to keep your sprayer running at optimal performance
- Simulated Acoustic (Popcorn)
- Orange Peel & Fine Splatter
- Splatter
- Knockdown
- Textured Acrylics & Elastomerics
- EIFS & Synthetic Stucco Finish Coats

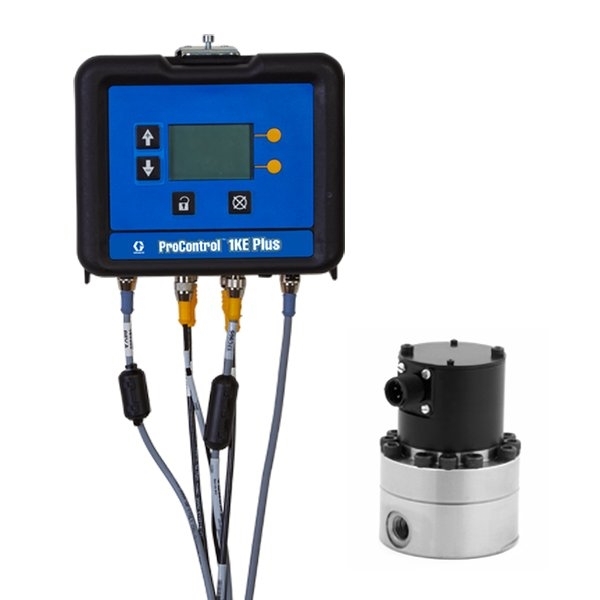

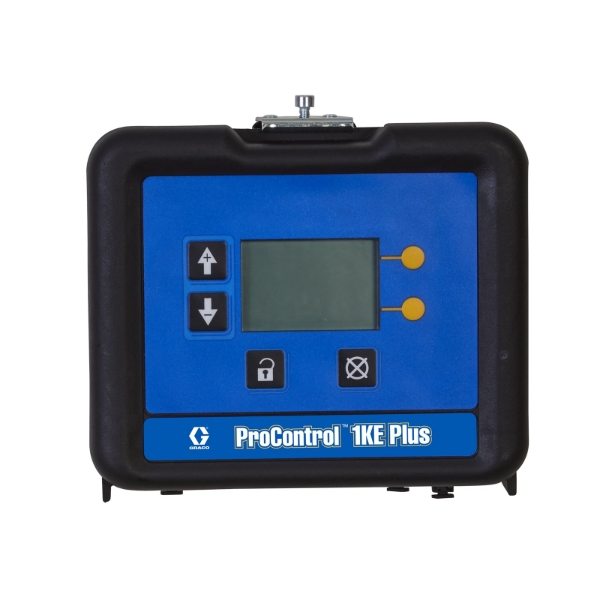

KIT, PROCONTROL 1KE PLUS
GG 25B283
KIT, PROCONTROL 1KE PLUS
ProControl 1KE Plus Advanced Display Control Module (ADCM) with software and bracket only This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. Settings protected by Personal Identification Number (PIN) security lock or limit adjustable ranges, helping ensure consistency and optimal results from operator to operator, job to job. Fluid management package works with manual paint spray guns or automatic spray applicators.
