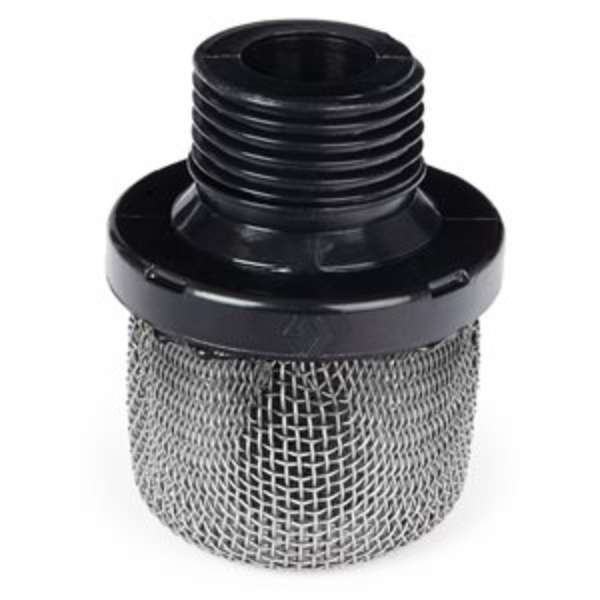

STRAINER, INLET, MAGNUM
GG 288716
STRAINER, INLET, MAGNUM
Inlet Strainer Removes unwanted debris from the paint and reduces tip clogging. Clean and replace the inlet strainer regularly for long pump life and superior finish. Inlet strainer removes debris from the coating protecting the pump, reducing tip clogging and providing a better quality finish Prolong pump life and reduce tip clogging by cleaning and replacing the inlet strainer regularly Damaged or worn inlet strainers can let unwanted debris to enter into the pump Use with Magnum models project painter plus, X5, X7, ProX17, ProX19, ProX17 and ProX19 airless paint sprayers

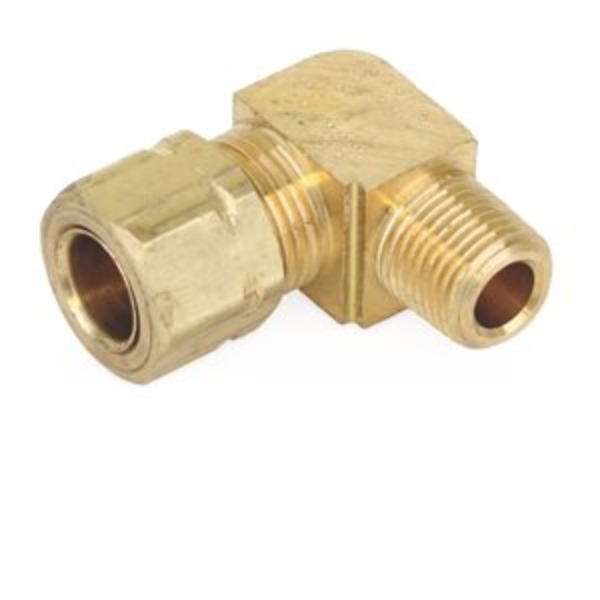

FITTING, ELBOW-MA 5/16T X 1/8NP
GG 556639
FITTING, ELBOW-MA 5/16T X 1/8NP
Fitting - Brass Male Tube Elbows 5/16 in. (7.94 mm) Tube x 1/8 in. (3.2 mm) NPTF For use with Pneumatic Grease Jockey Systems. Brass Male Tube Elbow 5/16 inch (7.94 mm) tube x 1/8 inch (3.2 mm) NPTF Lubriquip part number 435-440-060

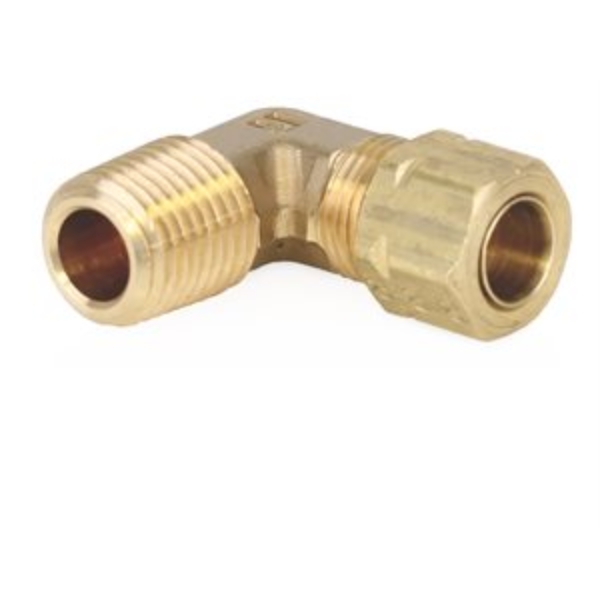

FITTING, ELBOW MALE 5/16T X 1/4 NPT
GG 556640
FITTING, ELBOW MALE 5/16T X 1/4 NPT
Fitting - Brass Male Tube Elbows 5/16 in. (7.94 mm) Tube x 1/4 in. (6.35 mm) NPTF For use with Pneumatic Grease Jockey Systems. Brass Male Tube Elbow 5/16 inch (7.94 mm) tube x 1/4 inch (6.35 mm) NPTF Lubriquip part number 435-440-070

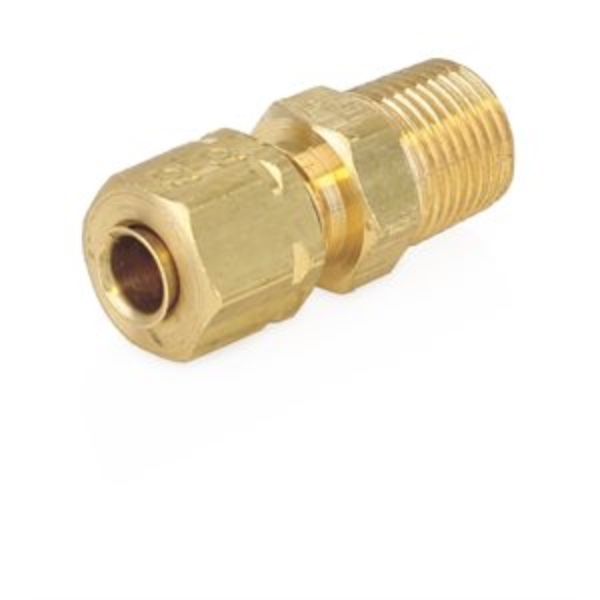

CONNECTOR, 5/16T X 1/8NPT
GG 556643
CONNECTOR, 5/16T X 1/8NPT
Graco 556643 Fitting - Female Connector - 5/16 in. (7.9 mm) Tube, 1/8 in. (3.2 mm) NPT
Application: For Pneumatic Grease Jockey mainline 5/16 in. (7.94 mm) tubing connections- Tube Fittings - Female Connector - 5/16 in. (7.9 mm) Tube, 1/8 in. (3.2 mm) NPT
- Lubriquip part number 435-450-050

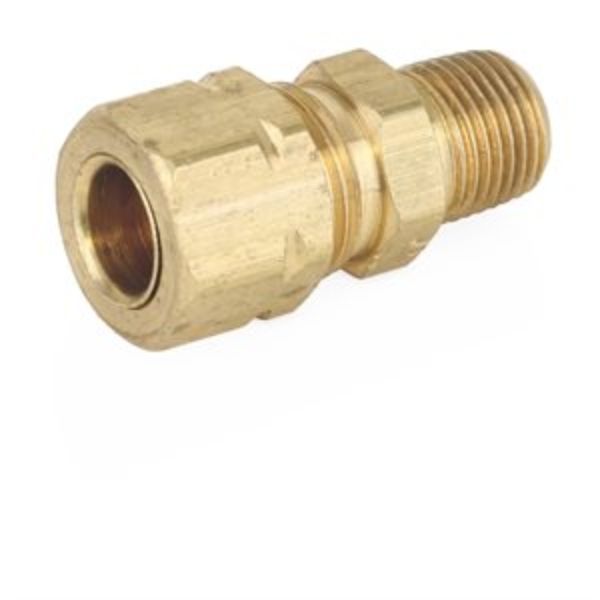

FITTING, ADAPTER, 5/16 T X 1/8 NPT
GG 556645
FITTING, ADAPTER, 5/16 T X 1/8 NPT
Graco 556645 Fitting - Male Connector, 5/16 inch (7.94 mm) tube x 1/8 inch (3.2 mm) NPTF
Application: For use with Pneumatic Grease Jockey Systems.- Brass Male Connector
- 5/16 inch (7.94 mm) tube x 1/8 inch (3.2 mm) NPTF
- Lubriquip part number 435-460-060
ROD, TIE MJ 6
GG 557518
ROD, TIE MJ 6
Graco 557518 Trabon® MJ Divider Valve - 6 Section Tie Rod (2 Required)
Application: For use with Trabon® MJ Divider Valves.- 6-Section Tie Rods
- Two tie rods and tie rod nuts required for assembly.
- NPSF
- Trabon part number 10999-6
MJ VALVE, ASSY MJ 10T
GG 562504
MJ VALVE, ASSY MJ 10T
Graco 562504 Trabon® MJ Series-Flo Divider Valve - MJ-10T - 0.010 in³ (0.16 cm³)
The Trabon MJ series features a compact and easily customizable design that can be tailor fit to meet a variety of specific lube requirements. Capable of handling grease grades up to NLGI #1.
Application: Compact and customizable divider block series for machine tool, product or press equipment.- Space efficient–from 6 to 16 points from one block assembly
- Built-in outlet check valves ensure accurate lube delivery, every time
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 001-010-002
MSP VALVE, ASSY MSP 25S
GG 562715
MSP VALVE, ASSY MSP 25S
Trabon® MSP Modular Divider Valve - MSP-25S - 0.050 in³ (0.82 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-055
MSP VALVE, ASSY MSP 35S
GG 562717
MSP VALVE, ASSY MSP 35S
Trabon® MSP Modular Divider Valve - MSP-35S - 0.070 in³ (1.15 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-075
MSP VALVE, ASSY MSP 25T
GG 562724
MSP VALVE, ASSY MSP 25T
Trabon® MSP Modular Divider Valve - MSP-25T - 0.025 in³ (0.41 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-215
MSP VALVE, ASSY MSP 35T
GG 562726
MSP VALVE, ASSY MSP 35T
Graco 562726 Trabon® MSP Modular Divider Valve - MSP-35T - 0.035 in³ (0.57 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-235
MSP VALVE, ASSY IND MSP 20S
GG 562729
MSP VALVE, ASSY IND MSP 20S
Graco 562729 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-20S - 0.040 in³ (0.66 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-735
MSP VALVE, ASSY IND MSP 30S
GG 562731
MSP VALVE, ASSY IND MSP 30S
Graco 562731 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-30S - 0.060 in³ (0.98 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-755
MSP VALVE, ASSY IND MSP 40T
GG 562743
MSP VALVE, ASSY IND MSP 40T
Graco 562743 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-40T - 0.040 in³ (0.66 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-975
MSA-100 PUMP, ASSY
GG 562855
MSA-100 PUMP, ASSY
MSA-100™ Pneumatic PumpMSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.
Ideal for applications where space is a premium Handles high pressure lubricant feed of direct line intake Used with or without a reservoir for the ultimate flexibility Lubriquip part number 140-000-171
TUBE, RESV REPLACE 20LB PLSTC
GG 562903
TUBE, RESV REPLACE 20LB PLSTC
Graco 562903 Modu-Flo and E-Pump Spare Parts and Accessories - 20 pt./lb. Plastic Replacement Reservoir Assembly, 6 in OD x 20 in long
- Reservoir Repair Kits - Plastic tube with u-cup seal for part numbers 562893 and 562897
- Lubriquip part number 185-100-740
MODEL 25 LUBRICATOR
GG 562920
MODEL 25 LUBRICATOR
Graco 562920 Manzel® Model 25 Lubricator
Manzel Model 25 Force Feed Lubricators are economical, general purpose units of double plunger design for precise metering of lubricants (either mineral oil base or synthetics). All working parts are totally enclosed—away from dust, water and impurities—and self-lubricated at all times by the lubricant in the reservoir.
Application: They provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.- General-Purpose Lubrication: automatic, precision metering for all types of machinery.
- Pressures: Up to 1000 psi (69 bar)
- Type Pumping Unit: Clear-Vue. Sight Feed Chamber functions at atmospheric pressure. Shows amount of lubricant being pumped.
- Unitized Construction: Contains complete feed regulating mechanism. Equipped with inlet strainer.
- Displacement, Output: 1/4 to 12 drops per stroke with 5/16 in plunger, 1/6 to 6 drops per stroke with 3/16 in plunger.
- Reservoirs: Single Compartment, sheet metal construction.
- Feed Regulator: External screw-type precisely adjustable while idle or in operation.
- Lubriquip part number 225-001-970
MODEL 25 PUMP, ASSY, .312, DIA
GG 562950
MODEL 25 PUMP, ASSY, .312, DIA
Graco 562950 Manzel® Model 25 Compressor Lubricator Replacement Pump, 5/16 in (7.9 mm), 1000 psi (69 bar)
Provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.
- General-purpose lubrication: automatic, precision metering for all types of machinery
- Clear-Vue pumping unit shows amount of lubricant being pumped
- Self-contained, removable pumping unit. All units interchangeable - remove two pump screws and lift out
- Lubriquip part number 321-410-015
- Manzel part number 60050-B
SWIVEL, 90 1/8 PORT NITRILE
GG 563148
SWIVEL, 90 1/8 PORT NITRILE
Compact 90º Angle Swivel - 1/8 inch, NitrileThe Trabon Straight and Angle Swivels are available in standard ball bearing or compact types. Primarily designed for medium to high pressure service in centralized oil and grease systems, these swivels provide a simple and inexpensive means of making line connections between either stationary, or oscillating surfaces.
90º Swivel Adapter - 1/8 inch (3.2 mm) NPT x 1/8 inch (3.2 mm) NPT Female Lubriquip part number 501-257-000 Trabon part number 1257
SWIVEL, 180 1/8 PORT NITRILE
GG 563150
SWIVEL, 180 1/8 PORT NITRILE
Compact 180º Straight Swivel - 1/8 inch, Nitrile180º Compact Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 501-258-000 Trabon part number 1258
VALVE, RELIEF, 1/4 NPT, 750 PSI
GG 563156
VALVE, RELIEF, 1/4 NPT, 750 PSI
Graco 563156 Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
INDICATOR, MAN RESET 1500 PS MJ/MSP
GG 563235
INDICATOR, MAN RESET 1500 PS MJ/MSP
Reset Indicator with Memory, 1500 psi (103 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-931-050
INDICATOR, CYCLE
GG 563251
INDICATOR, CYCLE
MSP and MHH Divider Valves - Visual Cycle IndicatorThe self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.
For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar). Makes physical contact with valve piston Polycarbonate housing allows for clear view of red indicator ring All parts are captured FKM o-ring seal for broad compatibility with synthetic oils and greases Replaces Lubriquip part number 509-932-522
INDICATOR, MANUAL RESET, O-RING, 1000 PSI
GG 563255
INDICATOR, MANUAL RESET, O-RING, 1000 PSI
Reset Indicator with Memory, 1000 psi (69 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-932-620
