SPINDLE ASSM, 1/4" QC, NO FLT
IR CPS2-A570-Q04
IR CPS2-A570-Q04
SPINDLE ASSM, 1/4" QC, NO FLT Call for pricing

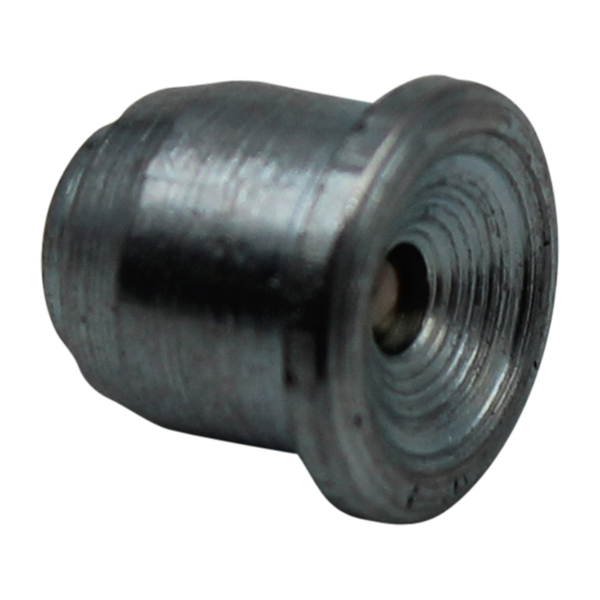

FITTING (48951-1)
IR 130SR-188
IR 130SR-188
Grease Fitting for Ingersoll Rand Rammers/Impact Wrenches
Product Application and Uses: For use with Ingersoll Rand 130A1M, 241A1M Rammers, 2235, 2115, 2135, 1702, 2705, 211, 212 Series Impact Wrenches.For Use With
- 130A1M
- 2115PTIMAX
- 2115QTIMAX
- 2115TIMAX
- 2125PTIMAX
- 2125QTIMAX
- 241A1M
$15.00
TUNE-UP KIT
IR 1702SB-TK2
IR 1702SB-TK2
Tune-Up Kit for Ingersoll Rand Power Tools
For Use With- 1702SB1
$101.00
HEAVY DUTY IMPACTOOL
IR 1720P1
IR 1720P1
3/4" Air Impact Wrench, Heavy Duty, 1100 ft-lb Torque, Thru-hole Retainer, Pistol
The 1720 Series Impact Wrench features a jumbo hammer impact mechanism with an optimized power-to-weight ratio. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.Features And Benefits
- Different Trigger Styles Available: Featuring both trigger and butterfly actuation, this tool is ready for anything.
- Durability: Ingersoll Rand has built the 1720 Series Impact Wrench to last. Even through frequent dropping and harsh environments, this tool is reliable from its first use to its last.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1132
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1000
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 8
Product Length (in): 7.63
Product Width (in): 11.4
Product Height (in): 5
Product Weight (lb): 12.4
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Retainer Type: Thru-hole
Side to Center Distance (in): 5.7
Side to Center Distance (mm): 145
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year
$979.20
SPRING
IR 1720P-51
IR 1720P-51
Throttle Valve Spring Replacement Part for Ingersoll Rand 261, 259, 1720P Series Impact Wrenches
$15.00
TRIGGER ASSEMBLY
IR 2115-D93
IR 2115-D93
Trigger Assembly for Ingersoll Rand 2115 and 2125 Series Impact Wrench
$15.00
AIR IMPACT WRENCH - 3/8
IR 212
IR 212
3/8" Air Impact Wrench, Super Duty, 150 ft-lb Torque, Friction Ring Retainer, Pistol
Whether you’re working on vehicle repair or maintenance repair, the 212 Impact Wrench will help you through even the toughest of jobs.Features And Benefits
- Reliability: This wrench was built to ensure high quality output from its first day to its last.
- Durability: This steel hammer case and metal housing make the 212 Impact Wrench as durable as it is efficient. It can withstand repeated drops and harsh environments with ease.
- Access: With a pistol grip and ergonomic design, this wrench helps you access hard-to-reach spots every time.
- Power: The wrench's finely tuned vane motor pairs smoothly with the jumbo hammer impact mechanism on the 212 Impact Wrench for maximum power.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 311
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 2.5
Average Air Consumption (l/min): 71
Blows per Min: 1500
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 150
Max Torque (in-lb): 1797
Max Torque (nm): 203
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 51.9
Product Length (in): 6
Product Width (in): 2.8
Product Height (in): 6.5
Product Weight (lb): 2.89
Recommended Forward Torque Range (ft-lb): 20-125
Recommended Forward Torque Range (in-lb): 239-1505
Recommended Forward Torque Range (nm): 27-170
Recommended Reverse Torque (ft-lb): 20-125
Recommended Reverse Torque (nm): 27-170
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year
Similar IR
- 2115TIMAX
- 231C
$224.00
SOCKET RETAINER KIT
IR 2125QTI-K425
IR 2125QTI-K425
Socket Retainer Kit for Ingersoll Rand Impact Wrench
Product Application and Uses: For use with Ingersoll Rand W5133, W5153, 2125QTIMAX, W7153, W7252, W7153 Impact WrenchesFor Use With
- IQV20-K201
- W5133
- W5153
- W5153-K12
- W5153-K22
- W5153-K22-AUNZ
- W5153-K22-CN
- W5153-K22-EU
- W5153-K22-JP
- W5153-K22-KR
- W5153-K22-SGHK
- W5153-K22A-EU
- W5153-K22B-EU
- W7152
- W7152-K12
- W7152-K22
- W7153
- W7153-AP
- W7153-K22
- W7153-K22-CN
- W7153-K22-IN
- W7153-K22-JP
- W7153-K22-KR
- W7153-K22-SGHK
- W7153-K22B-AN
- W7153-K22B-EU
- W7252
- W7252-K22
- W7252-K22B-EU
- W7252-TL
Similar IR
- 2125QTI-K425-10
$7.00
TUNE-UP KIT
IR 212-TK2
IR 212-TK2
Tune-up Kit for Ingersoll Rand 212 Series Impact Wrench
For Use With- 212
$59.00
DRIVE, SPINDLE ASSEMBLY 1/4"
IR CPS2-A580-S04
IR CPS2-A580-S04
DRIVE, SPINDLE ASSEMBLY 1/4" Call for pricing
REVERSE VALVE
IR 2161-329
IR 2161-329
Reverse Valve for Ingersoll Rand 2161 and 2171 Series Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 2161XP, 2161XP-6, 2171XP, 2161P, 2171P ImpactsFor Use With
- 2161XP
- 2161XP-6
- 2171XP
- 2161P
- 2171P
$22.00
IMPACTOOL
IR 2161XP
IR 2161XP
3/4" Air Impact Wrench, Ultra Duty, 1250 ft-lb Torque, Friction Ring Retainer, Pistol
The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.Features And Benefits
- Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
- Versatility: Ideal for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
- Power Regulator: 3-position power regulator with full power in reverse.
- Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.
Includes: Bare Tool
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Ultra Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 92.8 / 103.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.3
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.14
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 9.8
Warranty: 1-year
Similar IR
- 2161P
- 2161XP-6
- 2171XP
$1,024.80

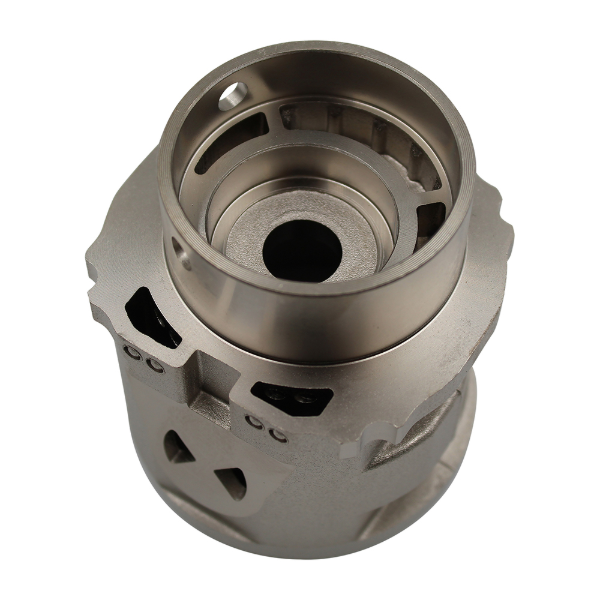

CYLINDER
IR 2235-3
IR 2235-3
Cylinder for Ingersoll Rand 2235 Series Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact WrenchFor Use With
- 2235QPTIMAX
- 2235TIMAX-2
- 2235QTIMAX
- 2235QTIMAX-G
- 2235TIMAX-G
- 2235TIMAX
- 2235QTIMAX-2
- 2235TIMAX-R
- 2235PTIMAX
$38.00
Hammer
IR 2235-724
IR 2235-724
Hammer for Ingersoll Rand 2235 Series Impact Wrench
Includes: (2) HammersProduct Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench
For Use With
- 2235QPTIMAX
- 2235TIMAX-2
- 2235QTIMAX
- 2235QTIMAX-G
- 2235TIMAX-G
- 2235TIMAX
- 2235QTIMAX-2
- 2235TIMAX-R
- 2235PTIMAX
$47.00
TUNE-UP KIT
IR 231XP-THK1
IR 231XP-THK1
Hammer Kit for Ingersoll Rand Impact Wrench
For Use With- 232TGSL
$106.00
