IR 2161-11

END PLATE

IR 2161-12

END PLATE

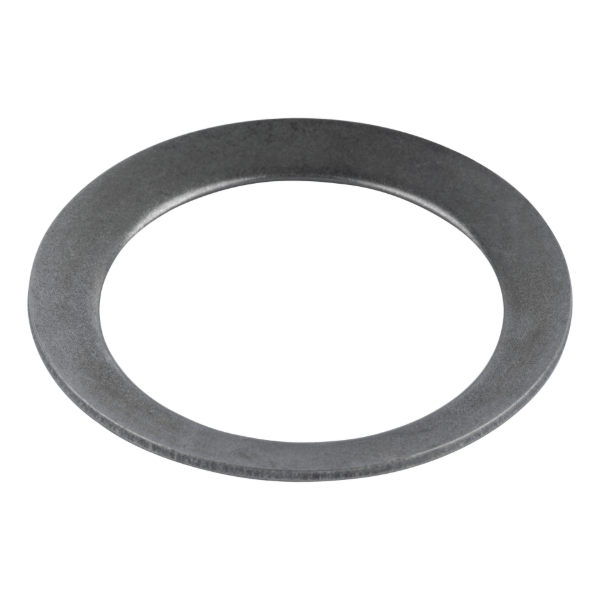

IR 2161-207

Motor Clamp Washer Service Part for Ingersoll Rand Power Tools

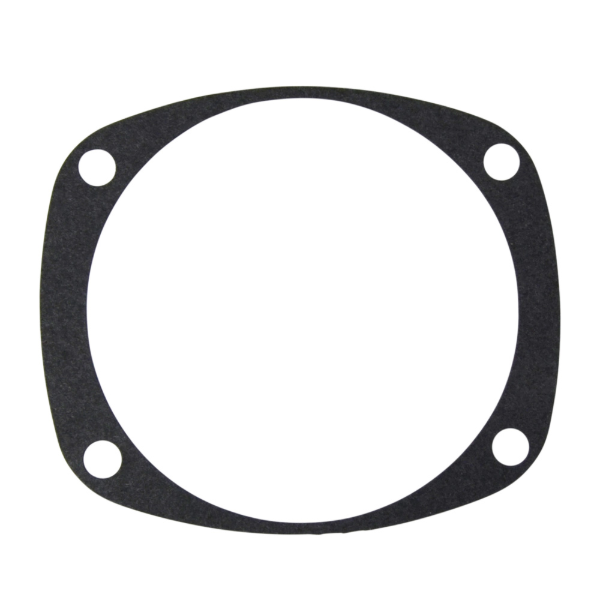

IR 2161-36

Hammer Case Gasket for Ingersoll Rand 2161, 2171 Series Impact Wrench

For Use With

• 2161P
• 2161XP
• 2161XP-6
• 2171P
• 2171XP

IR 2161-366

Vertical Hanger Kit Service Part for Ingersoll Rand Impact Wrench

For Use With

• 2161P
• 2925P1TI

IR 2161-638

BOLT

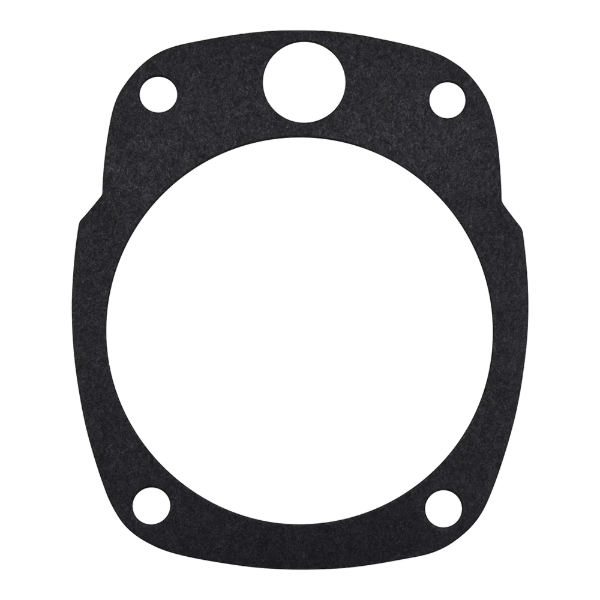

IR 2161-739

Backcap Gasket for Ingersoll Rand 2161 and 2171 Series Impact Wrench

For Use With

• 2161P
• 2161XP
• 2161XP-6
• 2171P
• 2171XP

IR 2161-A465A

Inlet Bushing Assembly

IR 2161-A93

TRIGGER

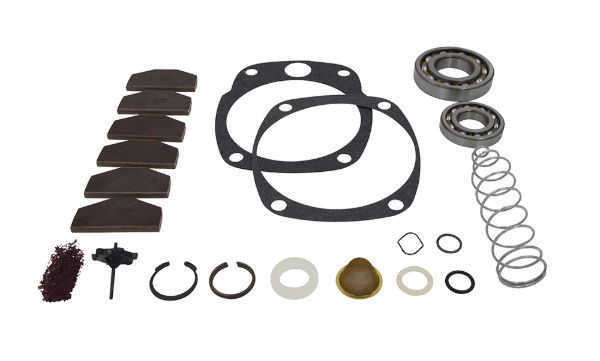

IR 2161-TK2

Tune-up Kit for Ingersoll Rand 2161 Series Impact Wrench

For Use With

• 2161P
• 2161XP
• 2161XP-6
• 2171P
• 2171XP

IR 2161XP-626

3/4" Drive Anvil for 2161XP Air Impact Wrench

For Use With

• 2161XP

IR 216B-53

ROTOR

IR 216B

3/8" Air Impact Wrench, 200 ft-lb Torque, Friction Ring Retainer, Inline

Full of power with an easy to access design, the 216B Straight Impact Wrench ensures every job is a job well done.

Features And Benefits

• Durable: Combining an aluminum hammer case with metal housing ensures this wrench is both durable and lightweight.
• Power: The ball and cam mechanism delivers a high output of power without ever risking your tool stalling out.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Butteryfly Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 1600
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.8 / 105.8
Hammer Case: Aluminum
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Pin Clutch
Impacting Sound Pressure/Power Db(A): 90.0 / 101.0
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 8500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 200
Max Torque (in-lb): 2400
Max Torque (nm): 271
Min Hose Size (in): 3/8
Motor: Non-Biased
Power Source: Air Powered
Product Length (in): 7.7
Product Width (in): 2.3
Product Height (in): 1.9
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 15-160
Recommended Forward Torque Range (in-lb): 177-1921
Recommended Forward Torque Range (nm): 20-217
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 5.2
Warranty: 1-year

Similar IR

• 211

IR 216B-A11

ASSEMBLY, FRONT END PLATE

IR 216B-704

PIN, HAMMER

IR 216B-630

GUIDE, SPINDLE

IR 216B-721

HAMMER CAM

IR 216B-A626

Anvil Assembly Replacement Part For Ingersoll Rand 216B Series Air Impact Wrench

For Use With

• 216B

IR 216B-A165

ASSEMBLY, SWIVEL INLET BODY

IR 2175-K48

AUXILIARY HANDLE KIT

IR 2190-A92

HANDLE ASSEMBLY

IR 216B-728

SPRING, HAMMER

IR 2175-283

GASKET, REAR

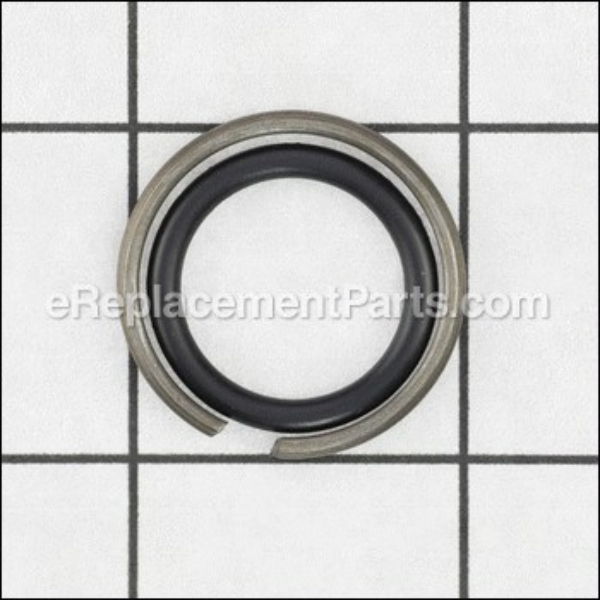

IR 2190-SRK1

SOCKET RETAINER KIT

IR 2190-K303

INLET PARTS KIT

IR 2190-TK1

Tune-up Kit for Ingersoll Rand 2190 Series Impact Wrench

Includes: (1) Vane pack, (1) Spring, (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (2) Snap Ring, (1) Spring pack

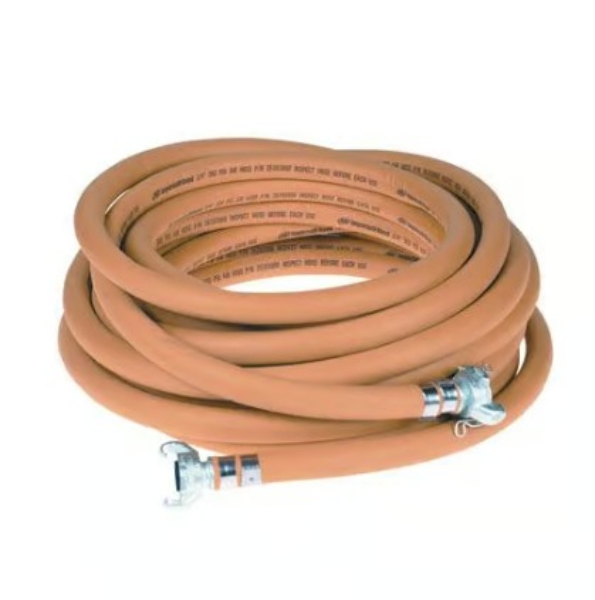

IR 22040679

HOSE, 3/4" X 50, 300 PSI

IR 2171P

1" Air Impact Wrench, 1250 ft-lb Torque, Pin Retainer, Pistol

The metal housing and steel hammer case of the 2171 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Increased Safety: The square pin drive of the 2171 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 55
Average Air Consumption (l/min): 1558
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.7 / 108.7
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.3 / 106.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.32
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Pin Detent
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 11.5
Warranty: 1-year

Similar IR

• 2161P
• 2171XP

IR 2236QTiMAX-2

1/2" X 2 INTERCHANGE ANVIL IMPACT WRENCH

IR 2235TIMAX-D727

Hammer Case Assy

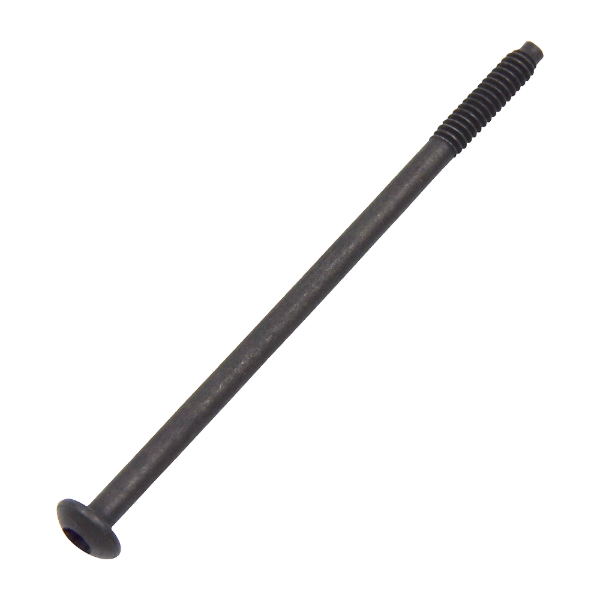

IR 2235-638

Hammer Case Screw for Ingersoll Rand 2235 Series Impact Wrench

Includes: (4) Hammercase Screws
Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

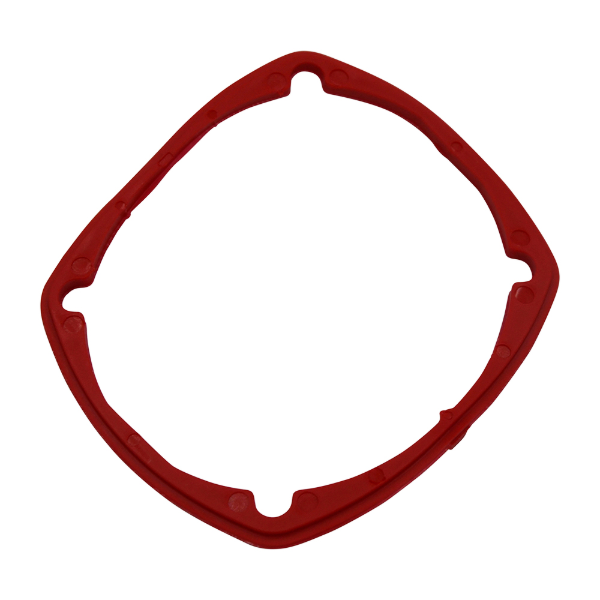

IR 2235-36RD

Hammer Case Gasket for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

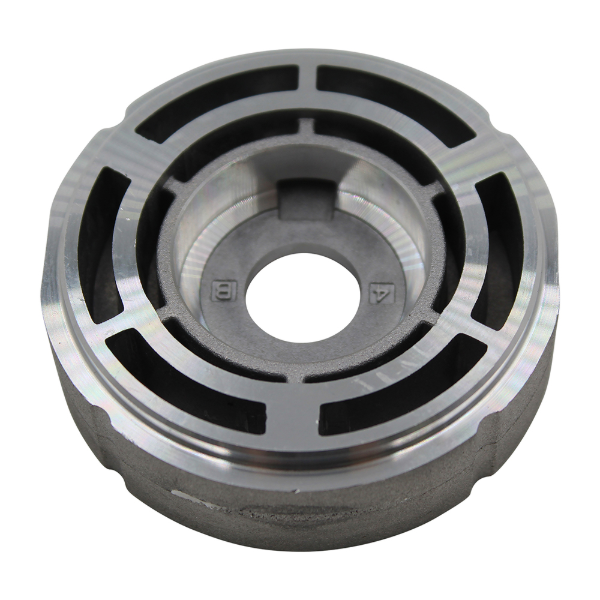

IR 2235-11

End Plate for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

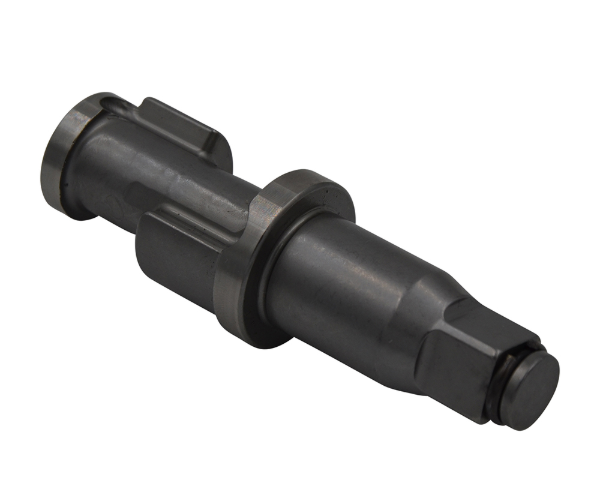

IR 2235-A626

Anvil for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand standard anvil hog ring 2235 series Impact wrenches.
Anvil Length: Standard
Drive Size (in): 1/2
Drive Type: Square
Retainer Type: Friction Ring

For Use With

• 2235TIMAX-O
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235TIMAX-R

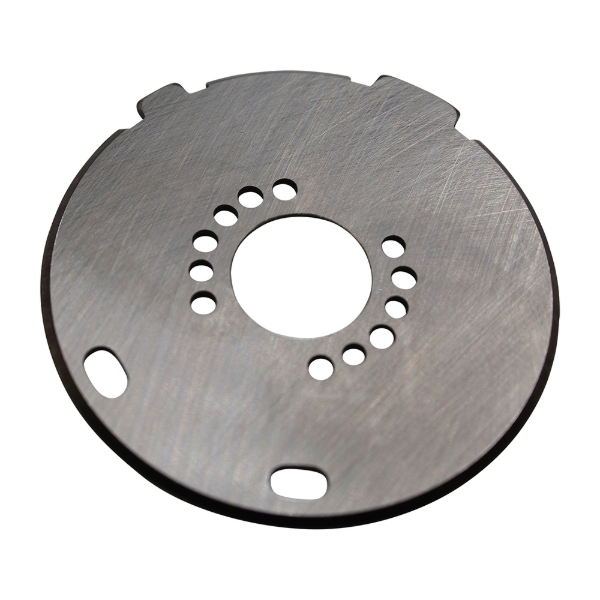

IR 2235-11X

Wear Plate for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

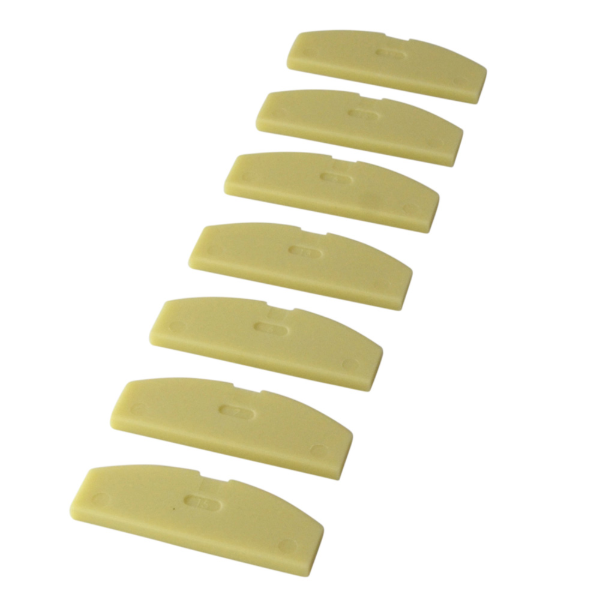

IR 2235-42-7

Vane Pack for Ingersoll Rand 2235 Series Impact Wrench, Set of 7

Includes: (7) Vanes
Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

IR 2235-THK1

Hammer Mechanism Kit for Ingersoll Rand 2235 Series Impact Wrench

Includes: Hammer frame, Hammer (2), Hammer pin
Product Application and Uses: Tool Boot for 2235 Series impact wrenches

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

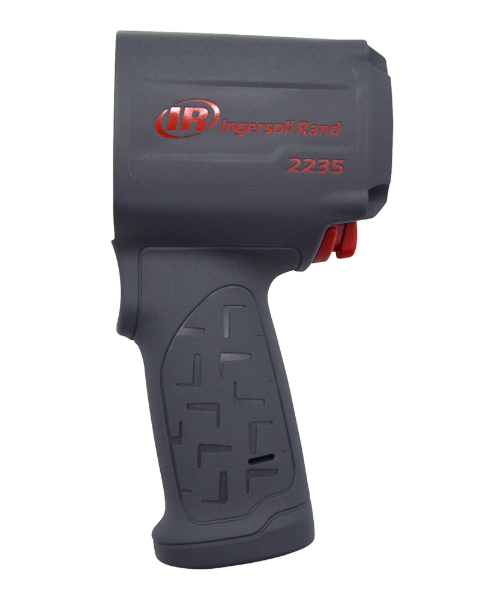

IR 2235MAX-A40

Housing for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235TIMAX-2
• 2235TIMAX
• 2235PTIMAX

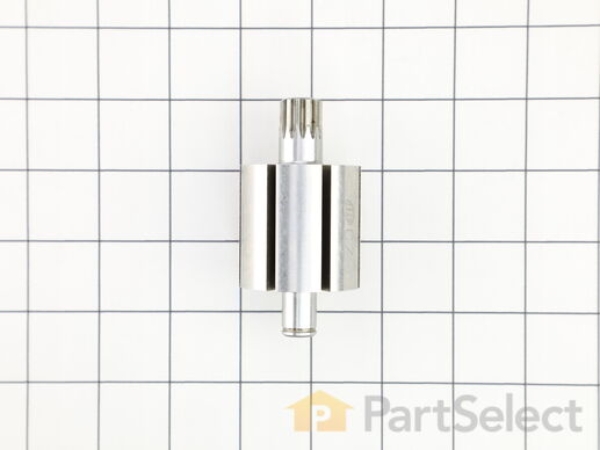

IR 2235-53

ROTOR

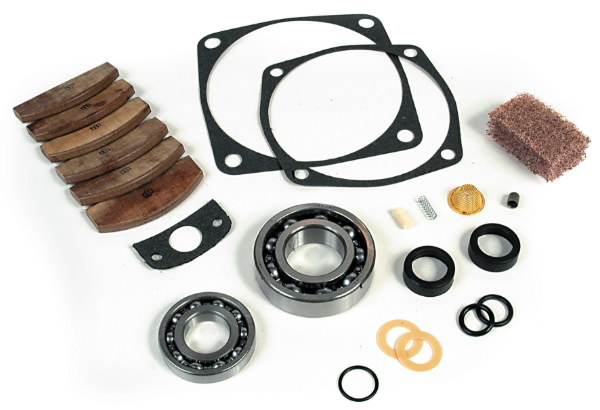

IR 2235-TK1

Tune-up Kit for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: Tool Boot for 2235 Series impact wrenches

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

IR 2236QTiMAX

1/2in STD Interchange Anvil Impact Wrench

IR 2236QPTiMAX

1/2" PIN INTERCHANGE ANVIL IMPACT WRENCH

IR 2235P-A726

Pin Anvil for Ingersoll Rand 2235P Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235PTIMAX and 2235QPTIMAX standard anvil pin retainer Impact wrenches.
Anvil Length: Standard
Drive Size (in): 1/2
Drive Type: Square
Retainer Type: Pin Detent

For Use With

• 2235QPTIMAX
• 2235PTIMAX

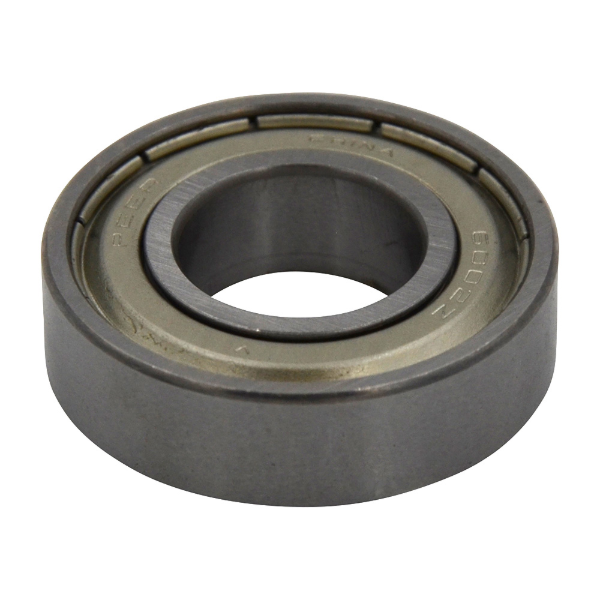

IR 2235-97

Ball Bearing for Ingersoll Rand 2235 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2235 Series Impact Wrench

For Use With

• 2235QPTIMAX
• 2235TIMAX-2
• 2235QTIMAX
• 2235QTIMAX-G
• 2235TIMAX-G
• 2235TIMAX
• 2235QTIMAX-2
• 2235TIMAX-R
• 2235PTIMAX

IR 2236QTIMAX-G

DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Green

The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits

• Visibility: The green 2236QTIMAX-G impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and red.
• Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8," 1/2", and 3/4" drive options and 5 different anvil lengths ranging from 2 to 10 inches, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4" overall length.
• Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
• Includes 1/2” Square Drive Anvil (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.

Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Product Application and Uses: Vehicle Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9
Average Air Consumption (l/min): 255
Blows per Min: 1350
Color: Green
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.4 / 107.4
Hammer Case: Titanium
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.2 / 105.2
Max Bolt Diameter (in): 1 1/4
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1000
Max Torque (in-lb): 12002
Max Torque (nm): 1356
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 1500
Nut-busting/Breakaway Torque (in-lb): 18002
Nut-busting/Breakaway Torque (nm): 2034
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 339
Product Length (in): 7.36
Product Width (in): 2.9
Product Height (in): 7.34
Product Weight (lb): 4.4
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 900
Recommended

IR 22MA2

Large Air Drill, Reversible Roll Throttle, 350 RPM, 1.75HP, No. 2 Morse Taper

We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
• Lightweight: The 22 Series large drills are strong but lightweight for increased ease of use.
• Balling bearing support for long life and efficient operation

Product Application and Uses: These air drills are designed for heavy duty drilling and reaming up to ⅞ inch (22mm) holes.
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 55
Air Consumption (l/min): 1558
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 7/8
Capacity in Steel Reaming (in): 5/8
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 18.63
Length of Feed (in): 2.5
Max Free Speed (rpm): 350
Max Power (hp): 1.75
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 14.25
Reversible: Reversible
Side to Center Distance (in): 1.44
Side to Center Distance (mm): 37
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 2 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 22JA1
• 22KA1
• 22KWA1

IR 22SR-83-3X3/4

STEEL BUTT FITS 5/8" TPD ROD, QTY 1

IR 231107K

IMPACT & RATCHET KIT

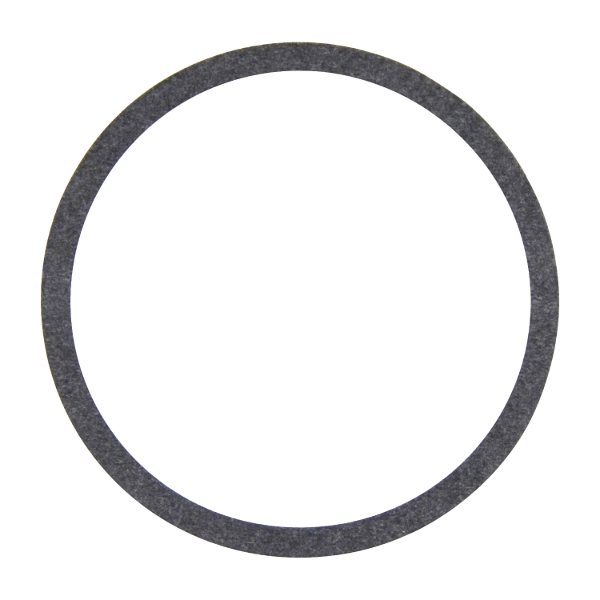

IR 230-36

Gasket for Ingersoll Rand 231 Series Air Impact Wrench

Product Application and Uses: For use with 231HA, 231HA-2 and 231R Series Air Impact Wrenches.

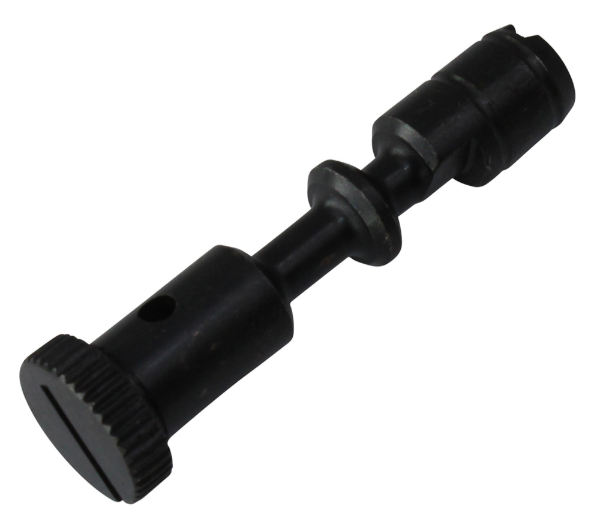

IR 231-329A

Valve for Ingersoll Rand 231C Series Impact Wrench

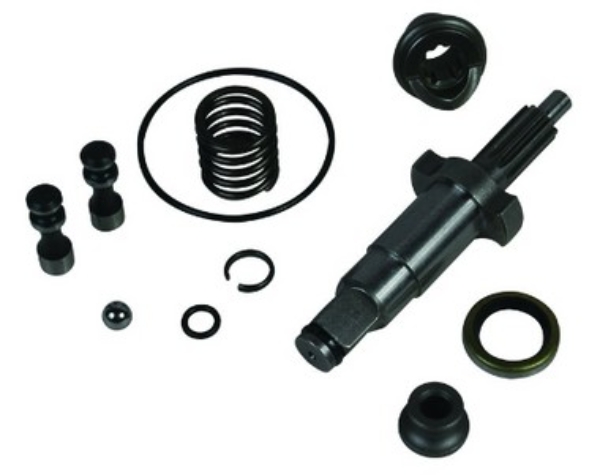

IR 231B-THK1

Hammer Kit for Ingersoll Rand 231 Series Air Impact Wrench

For Use With

• 231C
• 231C-AP
• 231HA
• 231HA-2

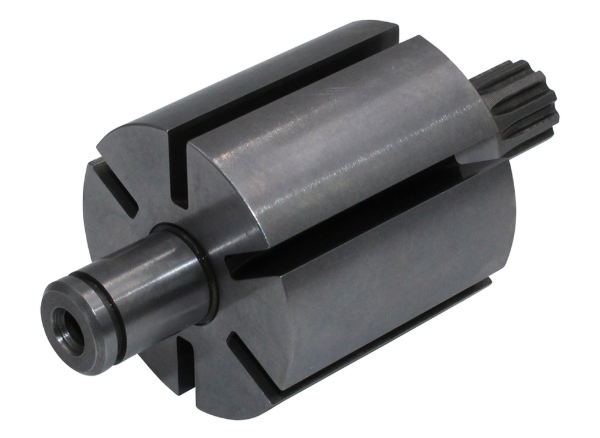

IR 231-53

Rotor for Ingersoll Rand Impact Wrenches

Product Application and Uses: For use with 236G, 232, 231, 231H, and 131 Series impact wrenches

IR 231C

1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

The heavy duty 231C impact wrench has the reliability and durability you’ve come to expect from the Ingersoll Rand name. The powerful tool provides an even impact and is durable enough to last through the toughest work environments.

Features And Benefits

• Performance: Delivers a max. torque of 600 ft.-lbs. and offers enough power to install and remove stubborn bolts, lug nuts, and other hardy fasteners.
• Reliable Choice: Lightweight and easy to maintain, this impact wrench is a reliable choice for auto hobbyists and professional mechanics alike. Built to withstand harsh environments and repeated drops, this impact wrench won’t let you down.
• Adjustable Power: Its adjustable power regulator lets you easily adjust power output needed for your task at hand; The twin hammer mechanism helps ensure efficient performance with impressive rotational speeds of up to 8,000 rpm.
• Comfort and Control: At 7.3 inches in length and weighing only 5.8 lbs, it's compact, ergonomic design minimizes stress on your wrists and hands; The contoured handle makes it easy to carry and control.
• Ready to Use: For added convenience, this impact wrench arrives fully lubricated, so it's ready to use out of the box. Exclusive impact mechanism Pressure-feed lubrication.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.2
Average Air Consumption (l/min): 119
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Front
Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.4
Product Length (in): 7.3
Product Width (in): 2.81
Product Height (in): 7.7
Product Weight (lb): 5.8
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Recommended Reverse Torque (ft-lb): 25-350
Recommended Reverse Torque (nm): 34-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 2135QXPA
• 2135PQXPA
• 244A
• 231HA
• 231HA-2

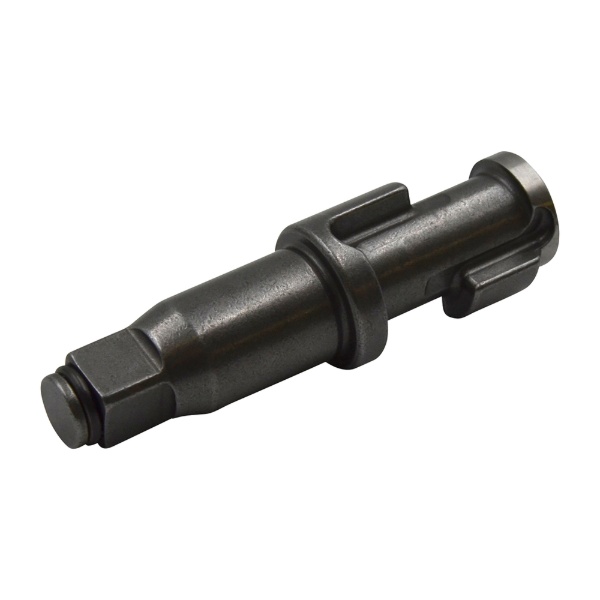

IR 231B-A626

1/2" Anvil Assembly, Ring Retainer for Ingersoll Rand 2135, 2131 and 231 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 1/2" ring retainer impact wrench models 2135TIMAX, 2135QTIMAX, 231C, 2131C, 2131QT

For Use With

• 2135QXPA
• 231C

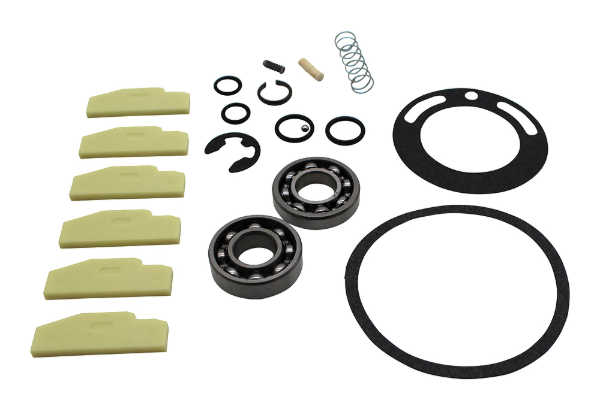

IR 231-TK3

Tune-up Kit for Ingersoll Rand 231 Series Impact Wrench

Includes: Felt, Bearings, Socket Retainer, O-Rings, Spring, Gaskets, Seals, Vane pack
Product Application and Uses: For use with Ingersoll Rand 231 Series Impact Wrenches.

For Use With

• 231C
• 231C-AP
• 231HA
• 231HA-2

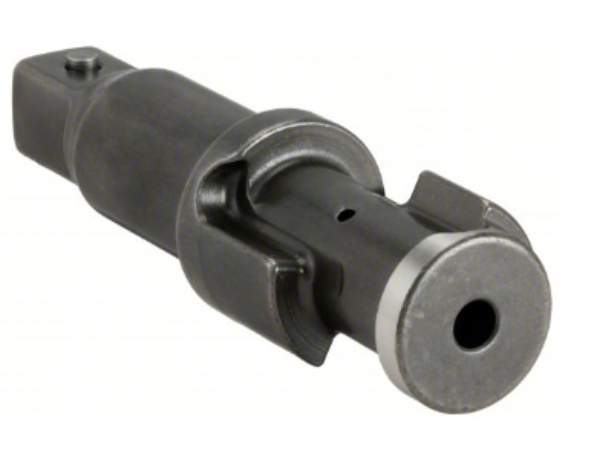

IR 231B-A726

Anvil Assembly Replacement Part for Ingersoll Rand 2135 Series Pin Anvil Impact Wrench

For Use With

• 2131PEX
• 2135PTIMAX

IR 231XP-724

Hammer for Ingersoll Rand Air Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2130, 2132, 2135, 231, 232 and 231H Series impact wrenches

IR 231HA-2

1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

The 231HA Series is the ideal impact wrench for any job you take it to, from facility maintenance and industrial work to vehicle repair and tire work. Tough and durable with a powerful vane motor, this impact wrench won’t let you down.

Features And Benefits

• Durability: This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals.
• Access: Pressure-fed lubrication system. Handle exhaust directs air away from user.
• Power Regulation: Adjustable power regulation in forward and reverse.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Easy to Service: Easy to service two-piece construction.
• Comfort: Contoured handle for comfort and control.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 22
Air Consumption @ Load (l/min): 623
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 4.2
Average Air Consumption (l/min): 119
Blows per Min: 1150
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.0 / 105.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 600
Max Torque (in-lb): 7196
Max Torque (nm): 813
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 172.1
Product Length (in): 9.1
Product Width (in): 2.75
Product Height (in): 7.9
Product Weight (lb): 6.1
Recommended Forward Torque Range (ft-lb): 25-300
Recommended Forward Torque Range (in-lb): 301-3602
Recommended Forward Torque Range (nm): 34-407
Recommended Reverse Torque (ft-lb): 25-350
Recommended Reverse Torque (nm): 34-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 231HA

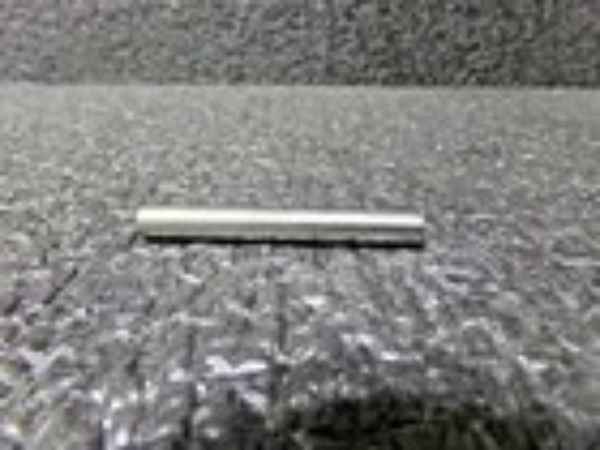

IR 231-704

PIN (131, 48951-82)

IR 232TGSL

1/2" Air Impact Wrench, Super Duty, 625 ft-lb Torque, Friction Ring Retainer, Pistol

If you’re looking for NASCAR pitstop-level speeds, the 232TGSL ½” is the impact wrench for you. Its powerful vane motor and smooth trigger actuation will help you fly through vehicle repair jobs with an added level of confidence and control.

Features And Benefits

• POWER: The 232TGSL impact gun delivers 625 ft/lbs of maximum reverse torque to give technicians the power they need to complete tough repairs.
• SPEED: This pneumatic thunder gun is the fastest 1/2 inch impact wrench in the Ingersoll Rand line, at 10,000 RPM, to deliver pit crew speed.
• Durability: The steel hammer case and metal housing in the 232TGSL ½” makes this impact wrench strong and durable to last through any job.
• Warranty: Your 232TGSL ½” comes with a one-year standard warranty to protect against any manufacturing defects.

Includes: Bare Tool
Product Application and Uses: Automotive Vehicle Service Racing
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1250
Color: Yellow
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 105.3 / 109.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 625
Max Torque (in-lb): 7497
Max Torque (nm): 847
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 104.1
Product Length (in): 7.3
Product Width (in): 2.8
Product Height (in): 7.3
Product Weight (lb): 6
Recommended Forward Torque Range (ft-lb): 500
Recommended Forward Torque Range (in-lb): 6001
Recommended Forward Torque Range (nm): 678
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Warranty: 1-year

Similar IR

• 2235TIMAX
• 231C

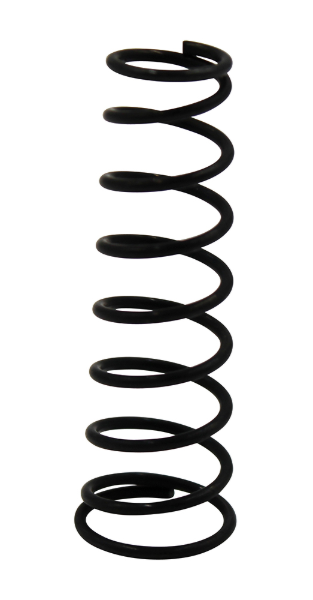

IR 231G-51

Throttle Valve Spring for Ingersoll Rand for 231G Series Impact Wrench

For Use With

• 231G
• 231GXP
• 231GXP-K

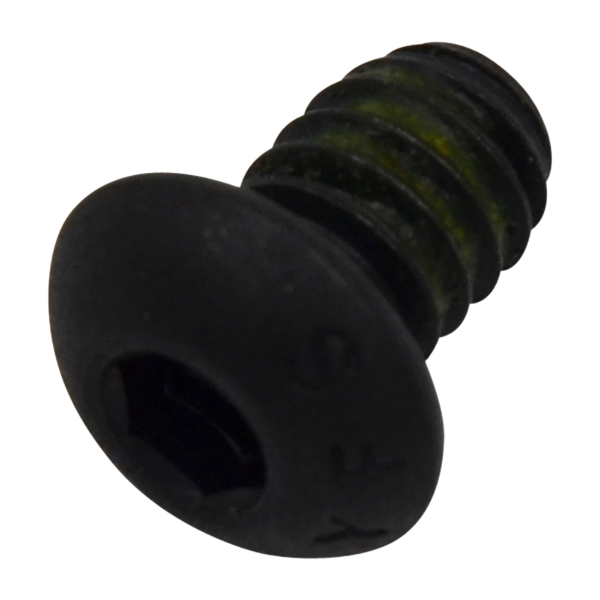

IR 231-665

Screw for Ingersoll Rand 231H Series Impact Wrench

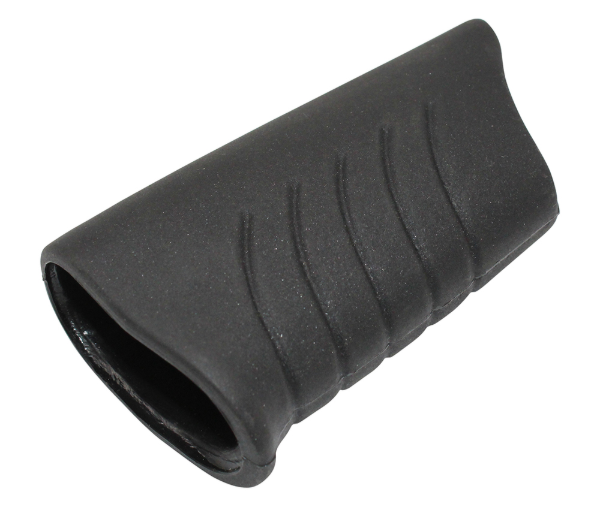

IR 231G-747

Grip for Ingersoll Rand 231G Impact Wrench

For Use With

• 231G
• 231GXP
• 231GXP-K

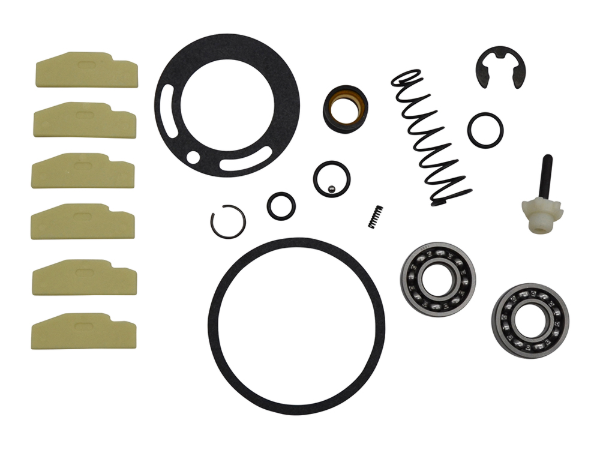

IR 231HP-TK1

Tune-up Kit for Ingersoll Rand 231H Series Impact Wrench

Includes: Bearings, Spring, O-Rings, Gaskets, Seat, Ball, Seals, Valve, Retainers, Vane pack

For Use With

• 231HA
• 231HA-2

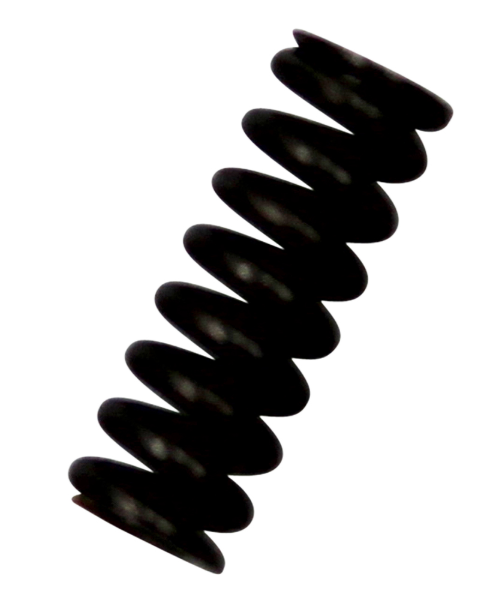

IR 231-664

Reverse Valve Dentent Spring Replacement Part for Ingersoll Rand 231C Series Impact Wrench

IR 236

1/2" Air Impact Wrench, 450 ft-lb Torque, Friction Ring Retainer, Pistol

If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 ½” is strong and reliable, with a power regulator that allows for increased control from start to finish.

Features And Benefits

• RELIABILITY: The 236 ½” Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it’ll deliver a high-performance output every time.
• POWER: This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 ½” impact wrench for maximum power.
• WARRANTY: A one-year warranty comes standard on all 236 ½” impact wrenches

Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.3
Average Air Consumption (l/min): 122
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 90.3 / 101.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 7400
Max Pressure (bar): 6.2
Max Torque (ft-lb): 450
Max Torque (in-lb): 5400
Max Torque (nm): 610
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 2
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 84.9
Product Length (in): 7
Product Width (in): 2.6
Product Height (in): 7.2
Product Weight (lb): 5.3
Retainer Type: Friction Ring
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 12
Warranty: 1-year

Similar IR

• 2135QXPA
• 2235TIMAX

IR 2372896

2372896 : HOOK, TOPSET, VH5, 2 TON, #Z701TA

IR 241SR-17

NUT

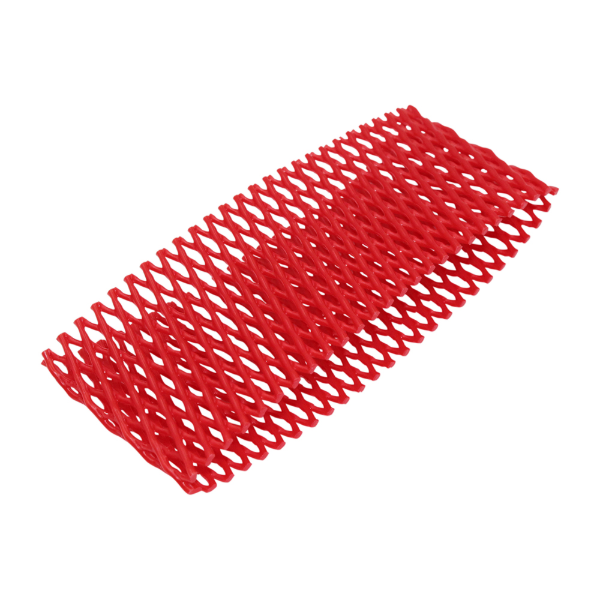

IR 241SR-122

Screen for Ingersoll Rand 130A1M, 241A1M, 341 and 441 Series Air Rammer

Product Application and Uses: For use with Ingersoll Rand 130A1M, 241A1M, 341A2M Air Rammers

For Use With

• 130A1M
• 241A1M
• 341A2M

IR 241SR-33A

GUIDE RETAINER

IR 241SR-31

SEAL

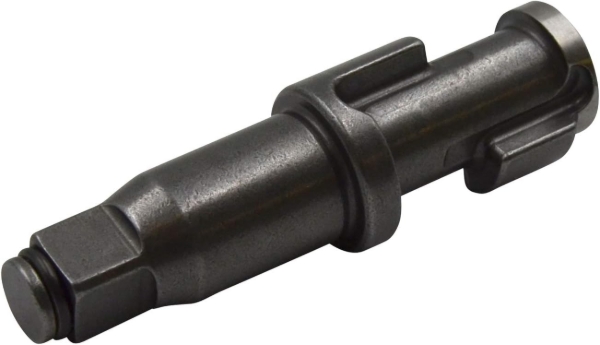

IR 236-A626

Anvil Assembly for Ingersoll Rand 236G Impact Wrench

For Use With

• 236
• 236G

IR 241SR-30

SEAL

IR 241SR-311

SILENCER

IR 236-TK1

Tune-up Kit for Ingersoll Rand 236G Impact Wrench

Includes: Throttle valve, exhaust silencer, trigger, bearing retainer, rear rotor bearing, rotor, cylinder dowel and hammer case bushing

For Use With

• 236
• 236G

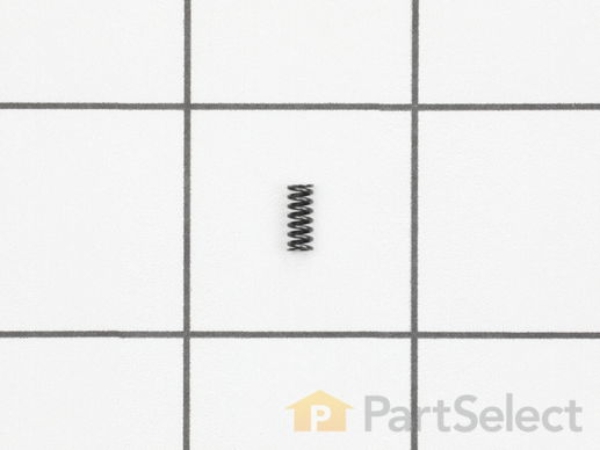

IR 236-52

SPRING

IR 241SR-5

SPRING

IR 241SR-A124

RETAINER

IR 241SR-A160

THRO BODY (33SR-A160)

IR 0031.1008

CIRCLIP A 14x1, SW

IR 03619772B

VALVE CHEST PLATE, MACHINE, NO PAINT

IR 03H-500AO-50

3" DISC

IR 03H-PAD-HL

3" Hook & Loop Backing Pad for Ingersoll Rand 3128 Mini Orbital Sander and 3129 Mini Polisher

IR 04648739

Pad Wrench Service Part for IR Sander

For Use With

• R035C-C1
• R035C-C1-HL
• R035C-C2
• R035C-C2-HL
• R035C-S1
• R035C-S1-HL
• R035C-S2
• R035C-S2-HL
• R036C-C1
• R036C-C1-HL
• R036C-C2
• R036C-C2-HL
• R036C-C3
• R036C-C3-HL
• R036C-S1
• R036C-S1-HL
• R036C-S2
• R036C-S2-HL
• R036C-S3
• R036C-S3-HL

IR 04648770

Valve Stem Replacement Part

IR 04648796

Valve Tip for Ingersoll Rand Orbital Sander

IR 04648820

ROTOR

IR 0-TK1

TUNE UP KIT

IR 101BMPD-17

PINION

IR 10084-20

Wire Rope Assembly

IR 10200

STOP

IR 10403

DECAL

IR 10202

LOAD BLOCK

IR 102A60-241

BIT RETAINING SPRING

IR 103A-718

Spring Replacement Part for Ingersoll Rand Qi Series Impact Drivers

Product Application and Uses: For use with QIS20Q4, QIS08Q4, QIP20Q4, QIP08Q4, QIP14Q4,QIP30Q4 Screwdrivers

IR 10415

WASHER

IR 10416

WASHER

IR 10417

WASHER

IR 105-1LB

SUPERCEDED TO 04616090

IR 10548774

REGULATOR, MINI RR150-RVHP-4M
