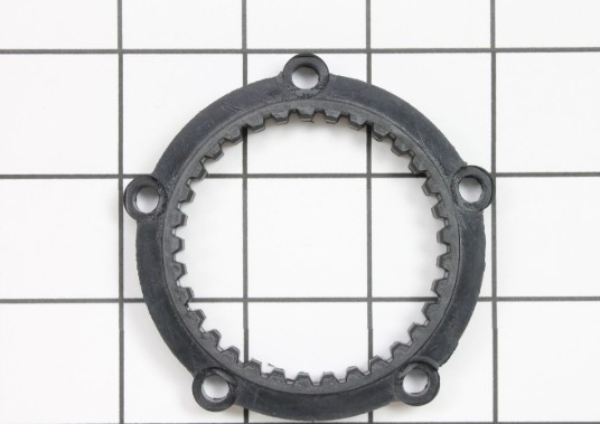

IR 328B-406

INTERNAL GEAR

IR 33989

BRACKET

IR 33SR-163

THROTTLE LEVER

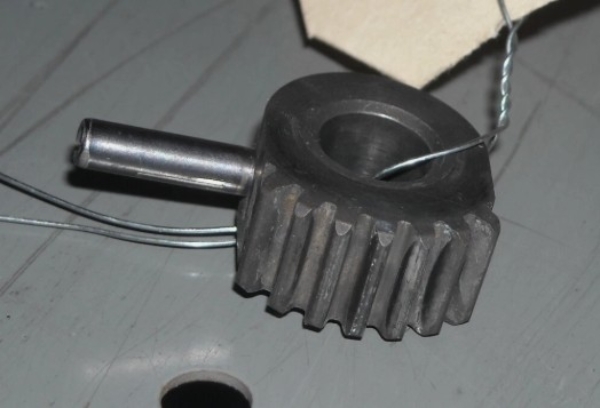

IR 34022

GEAR

IR 34028

FELT FILLER, NON-RETURNABLE PART

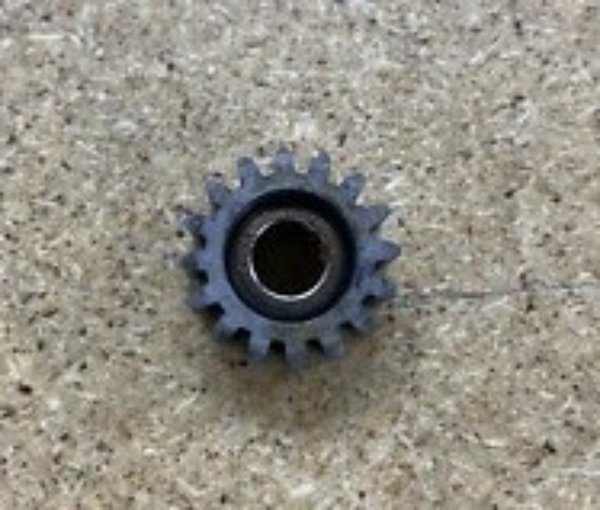

IR 34030

GEAR

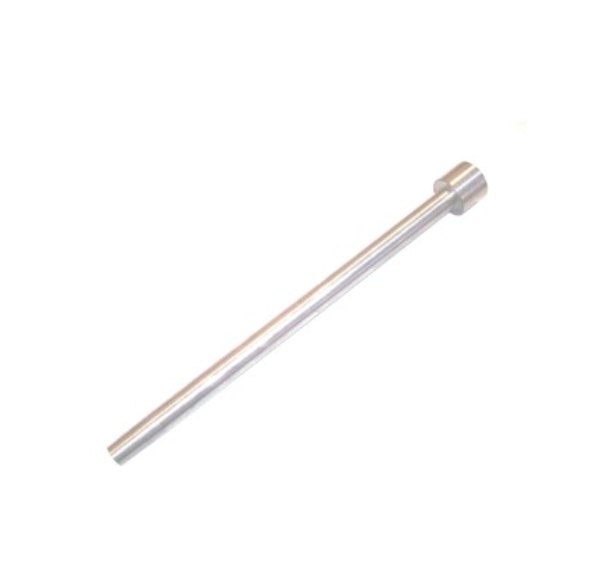

IR 341SR-R20

PISTON

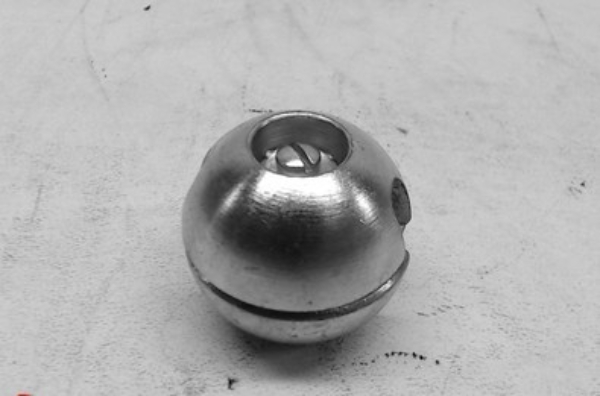

IR 34981

STOP ASSEMBLY

IR 34994

CHAIN STOP

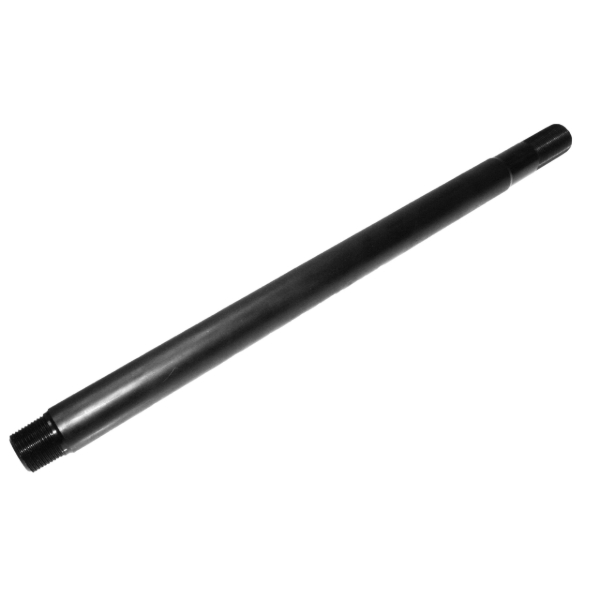

IR 34SR-1A

HANDLE

IR 34U-463-4

BOLT PACK

IR 34U-666

LEVER (29545-01)

IR 35023

LATCH

IR 35206

HOOK

IR 35861

GUIDE

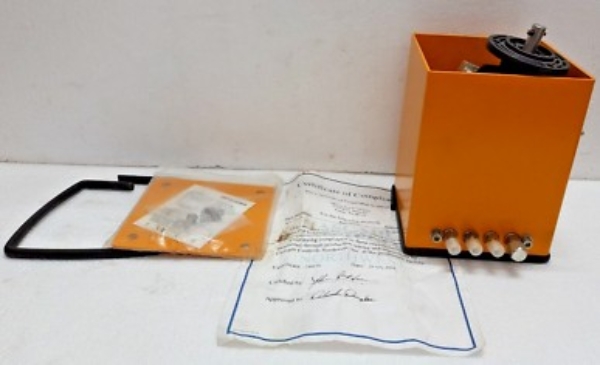

IR 382-32134-S

Limit Switch

IR 3934-123

Exhaust Deflector for Ingersoll Rand 3940, 3942 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 3940A1TI, 3940A2TI, 3940B1TI, 3940B2TI, 3940B2TIEX Air Impact Wrench

For Use With

• 3940A1TI
• 3940A2TI
• 3940B1TI
• 3940B2TI
• 3940B2TIEX

IR 3940-364

DEAD HANDLE BRACKET

IR 3940-75

FORWARD REVERSE LEVER

IR 3940-93

TRIGGER

IR 3940A1TI

No. 5 Spline Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

Similar IR

• 3940B1TI
• 3955B1TI

IR 3940A2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 13.5
Product Weight (lb): 21.2
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.1
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

Similar IR

• 3940B2TI

IR 3940P2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

With titanium hammer case, bronze end plates, and corrode-x up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 64
Average Air Consumption (l/min): 1812
Blows per Min: 800
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 95.2 / 106.2
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 97.8 / 108.8
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2750
Max Torque (in-lb): 33004
Max Torque (nm): 3729
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
Product Length (in): 10.1
Product Weight (lb): 20.4
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 500-1800
Recommended Forward Torque Range (in-lb): 6001-21596
Recommended Forward Torque Range (nm): 678-2440
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 14.2
Vibration Uncertainy K* (m/s2): 2
Warranty: 1-year

IR 3942A2TI

1" Air Impact Wrench, Super Duty, 3250 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

With a titanium hammercase, bronze end plates and torque up to 3,250 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 95
Average Air Consumption (l/min): 2690
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3250
Max Torque (in-lb): 39005
Max Torque (nm): 4407
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 14.3
Product Weight (lb): 22.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3000
Recommended Forward Torque Range (in-lb): 36005
Recommended Forward Torque Range (nm): 4068
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 16.9
Vibration Uncertainy K* (m/s2): 4.6
Warranty: 1-year

Similar IR

• 3942B2TI

IR 3942B2TI

1" Air Impact Wrench, Super Duty, 3250 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

With a titanium hammercase, bronze end plates and torque up to 3,250 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
• Integral muffler.

Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 95
Average Air Consumption (l/min): 2690
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3250
Max Torque (in-lb): 39005
Max Torque (nm): 4407
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 143.8
Product Length (in): 14.3
Product Weight (lb): 22.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3000
Recommended Forward Torque Range (in-lb): 36005
Recommended Forward Torque Range (nm): 4068
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 16.9
Vibration Uncertainy K* (m/s2): 4.6
Warranty: 1-year

Similar IR

• 3942A2TI

IR 3955-11

FRONT END PLATE

IR 3955-364

DEAD HANDLE BRACKET

IR 3955B1TI

SUPERCEDED BY 3956B1TI

IR 39853

HOSE ASSEMBLY

IR 39862-1

PLATE TIP

IR 3A1SA

Air Chipping Hammer, 3" Stroke, 1725 BPM, Hex Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1725
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 17
Product Weight (lb): 15.6
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 3
Warranty: 1-year

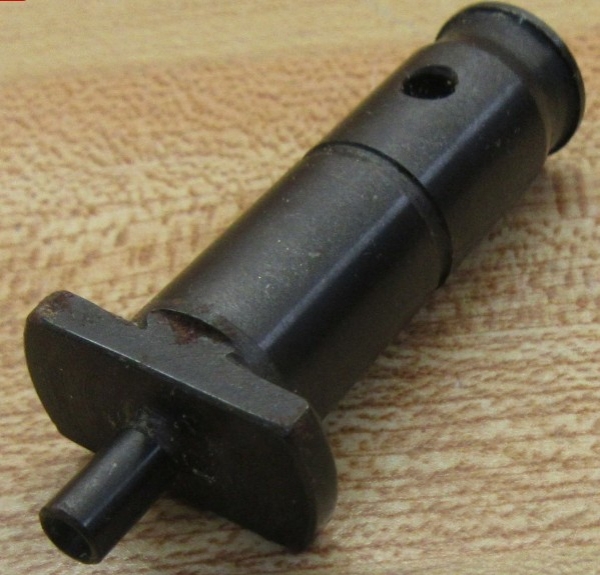

IR 3C1-586

BIT HOLDER

IR 3C1-781

CLUTCH HOUSING BUSHING

IR 3C1-A580A

CLUTCH HOUSING ASSEMBLY

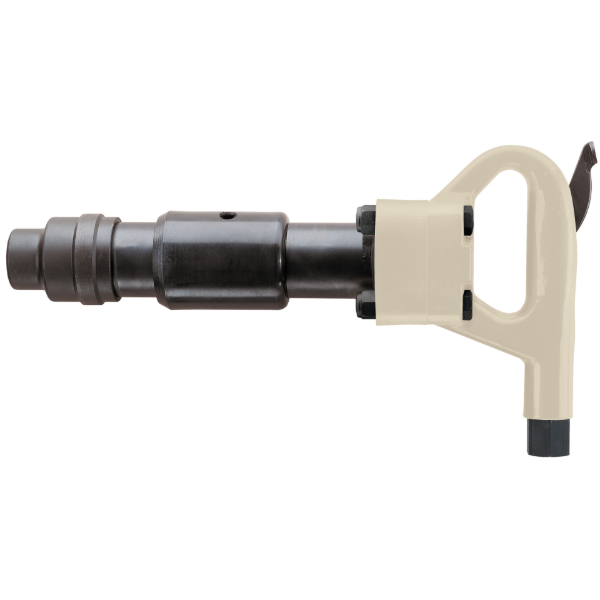

IR 3DA2SA

Air Chipping Hammer, 3" Stroke, 1900 BPM, Round Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 13 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 31
Air Consumption @ Load (l/min): 879
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 1900
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 17
Product Weight (lb): 13
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 3
Warranty: 1-year

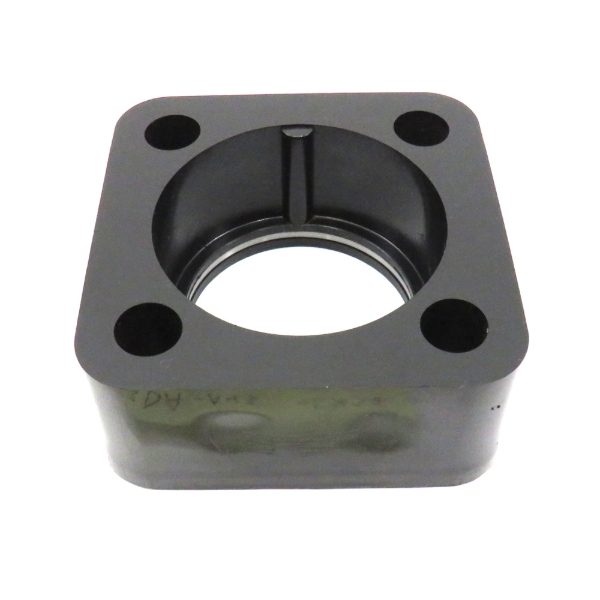

IR 3DA-A43

COLLAR ASSEMBLY

IR 3RLN-108

SPINDLE

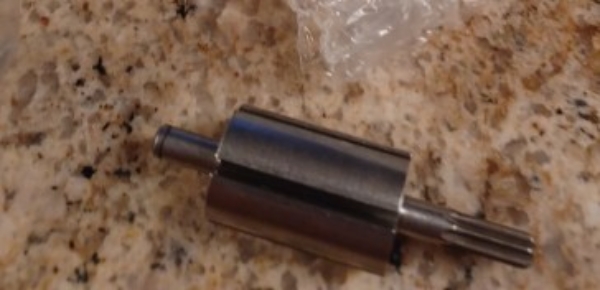

IR 3RP-53

ROTOR

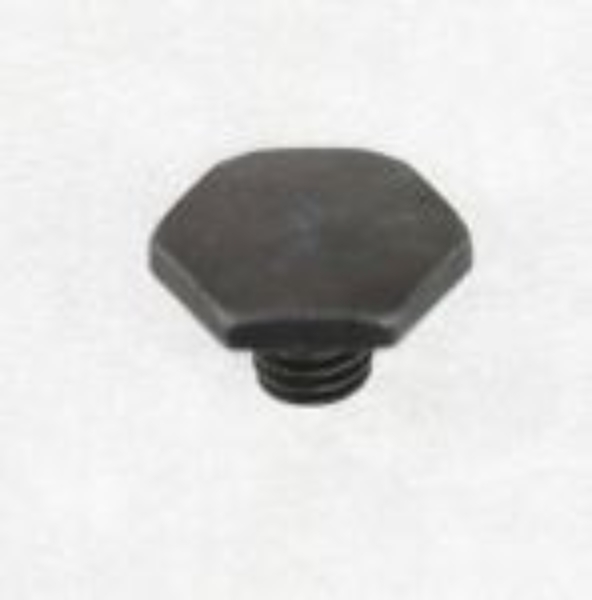

IR 401-665

STOP (48951-131)

IR 40191

DIFFUSER

IR 40836

SPINDLE

IR 40841

SHAFT

IR 41SA8LPQ4

SCREWDRIVER

IR 42958

END PLATE

IR 42959

SPINDLE

IR 42989

GUIDE

IR 42990

PLATE

IR 42994

BRAKE SHOE (1 ONLY)

IR 43068

ROTOR

IR 43076

END PLATE

IR 431L-32

TOOL GUARD

IR 431L-62

HAMMER CASE BOOT

IR 4429-5

PISTON ROD

IR 44806

Handle

IR 47600019001

REPLACEMENT KIT, CLK TOP BLOCK

IR 4800S

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 275 RPM, 3.5 HP, 323 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 238
Max Torque (in-lb): 2859
Max Torque (nm): 323
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 146
Standards/Certifications: ATEX
Starting Torque (ft-lb): 178
Starting Torque (nm): 241
Warranty: 1-year

IR 4800U

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 185 RPM, 3.5 HP, 480 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 185
Max Pressure (bar): 6.2
Max Torque (ft-lb): 354
Max Torque (in-lb): 4248
Max Torque (nm): 480
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 97
Standards/Certifications: ATEX
Starting Torque (ft-lb): 265
Starting Torque (nm): 359
Warranty: 1-year

IR 4840Q

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 350 RPM, 3 HP, 224 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 165
Max Torque (in-lb): 1983
Max Torque (nm): 224
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 167
Standards/Certifications: ATEX
Starting Torque (ft-lb): 123
Starting Torque (nm): 167
Warranty: 1-year

IR 4840U

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 170 RPM, 3 HP, 407 NM, Reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 170
Max Pressure (bar): 6.2
Max Torque (ft-lb): 300
Max Torque (in-lb): 3602
Max Torque (nm): 407
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 83
Standards/Certifications: ATEX
Starting Torque (ft-lb): 225
Starting Torque (nm): 305
Warranty: 1-year

IR 48494835

BOTTOM HOOK ASSEMBLY KM

IR 48494843

BOTTOM HOOK ASSEMBLY KM

IR 4A1SA

Air Chipping Hammer, 4" Stroke, 1480 BPM, Hex Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19
Product Weight (lb): 17.5
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 4
Warranty: 1-year

IR 4A2SA

Air Chipping Hammer, 4" Stroke, 1480 BPM, Round Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19
Product Weight (lb): 17.5
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

IR 4DA2SA

Air Chipping Hammer, 4" Stroke, 1600 BPM, Round Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 14 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 34
Air Consumption @ Load (l/min): 963
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 1600
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 18
Product Weight (lb): 14
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

IR 4E-10A

PLANET GEAR ASSEMBLY

IR 4U-664-10

SPRING PACK

IR 50719723

RATCHET JH40

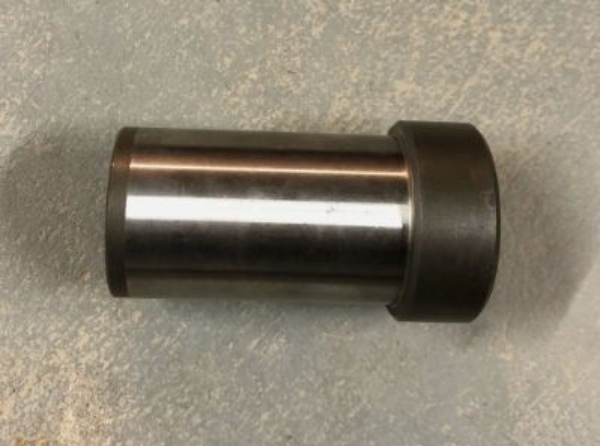

IR 51291425

BUSHING

IR 51913440

CONNECTOR

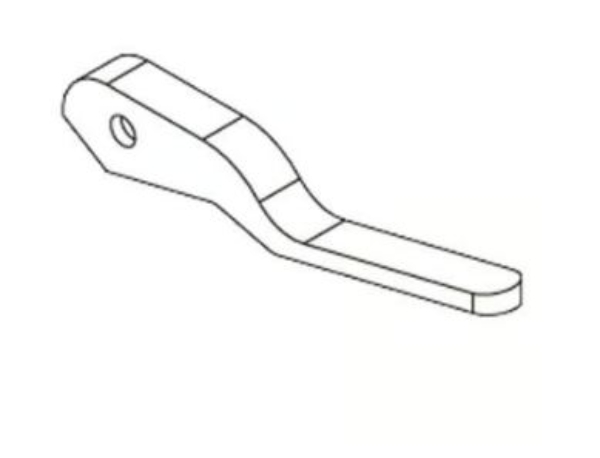

IR 51943017

LEVER

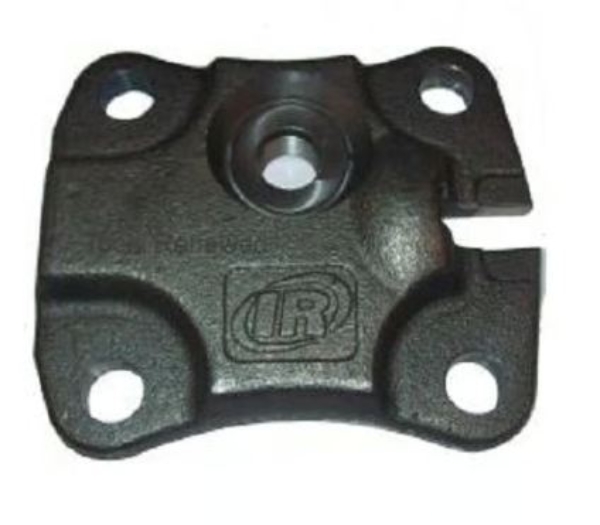

IR 51943447

BACKHEAD (MX90)

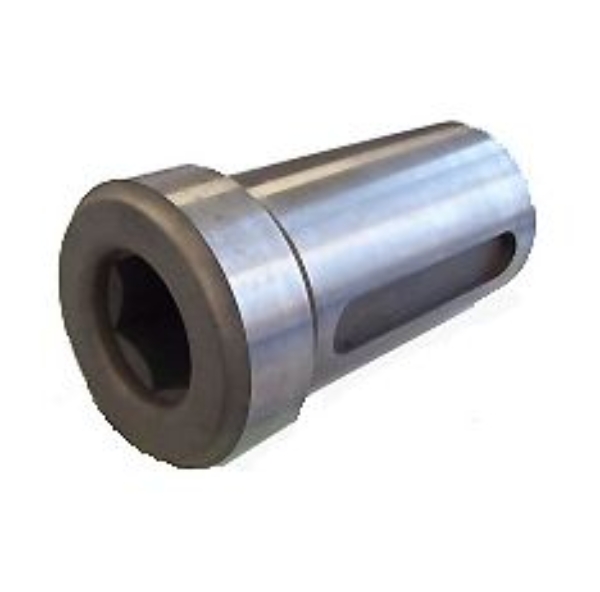

IR 51943470

BUSHING (MX60-MX90)

IR 51948131

BUSHING

IR 51948388

PISTON

IR 51955862

RETAINER

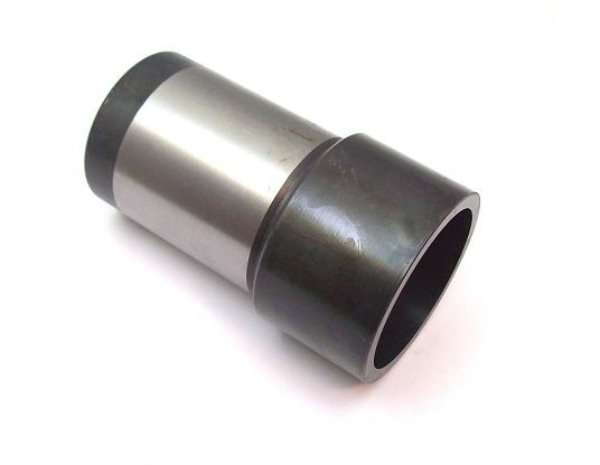

IR 51999738

SEAT

IR 54028097

HANDLE CONTROL

IR 577-12A

END PLATE

IR 5780-724

HAMMER

IR 577-53

ROTOR WITH PINION

IR 5C1-586

Holder

IR 5RAL-10B

PLANET GEAR

IR 5RAL-406A

RING GEAR

IR 5RALC1

SCREWDRIVER 13-35INLB

IR 5RALP1

SCREWDRIVER 35INLB

IR 5RAN-17

ROTOR PINION

IR 5RAN-406B

RING GEAR (5RAN-406A)

IR 5RANP1

SCREWDRIVER

IR 5RANST8

DRILL

IR 5RLL-53

ROTOR

IR 5RLLC1

SCREWDRIVER 13-40INLB

IR 61H120G4

Air Die Grinder, 12,000 RPM, 1.25 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• POWER: With a powerful 1.25 HP vane motor and 12,000 RPM, these grinders remove materials at top speed for maximum efficiency.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 37
Air Consumption @ Load (l/min): 1048
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Configuration/Handle Type: Straight
Exhaust Location: Side
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.25
Warranty: 1-year

IR 61H150G4

Air Die Grinder, 15,000 RPM, 1.33 HP, 1/4" Collet, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• POWER: With a powerful 1.33 HP vane motor and high power 15,000 RPM output, these grinders remove materials at top speed for maximum efficiency.
• RELIABILITY: The 61 Pro Series comes with a built-in mist lubricator, motor controller and grit rejection system, to prolong tool life and increase performance.
• DURABILITY: Featuring tough metal housing, these tools can withstand harsh environments and repeated drops with ease.
• ACCESS: With extended length and low profile, you can reach tight, hard-to-reach spaces.

Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Exhaust Location: Side
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 15.5
Product Weight (lb): 4.3
Rated Power (hp): 1.33
Speed Setting: Variable Speed
Warranty: 1-year

IR 62

ALUM RATCHET HOIST HAND

IR 6A-99

DRILL CHUCK (R1M-99)

IR 6WTM-10

PLANET GEAR

IR 7114-E

Air Pencil Grinder, 20,000 RPM, 1/8" Collet

Made with a metal housing and equipped with a vane motor, the rear exhaust ARO Series Die Grinder is one tough tool. It’s straight configuration and lever actuation throttle make it an ideal tool for industrial jobs and even aerospace projects.

Features And Benefits

• Comfort: Lightweight and easy to handle, this tool is easy to use for longer periods of time.
• Access: Get your work done fast with this compact tool, which can reach tight spaces and hard-to-access angles
• Durable: With a durable metal housing, this tool is built to last.

Product Application and Uses: Ideal tool for industrial jobs and even aerospace projects.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Lever
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 2.8
Configuration/Handle Type: Straight
Grinder Type: Die Grinder
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Power Source: Air Powered
Product Length (in): 6
Product Weight (lb): 13
Spindle Offset (in): 0.5
Vibration Level (m/s2): 3.9
Warranty: 1-year

IR 71372601-S

BUTTON, E-STOP FOR SPARE SALES

IR 77A-BM825-7

SANDING PAD ASSEMBLY

IR 77H120L10

Cone and Plug Air Grinder, 12000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Air Consumption @ Load (cfm): 39
Air Consumption @ Load (l/min): 1104
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone
