PANEL, FLUID, SOLVENT

PANEL, FLUID, SOLVENT

GG 26A165

GG 26A165

PANEL, FLUID, SOLVENT

Graco 26A165 ProDispense Fluid Panel Kit, Solvent Meter, light viscosity, high accuracy

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for solvent applications.

Application: For solvent applications
  • Use S3000 meter with solvents and clear light viscosity materials.


  • Model: ProDispense
  • For Use With: S3000 meter
$15,220.00
KIT, MIX MANIFOLD, HP

KIT, MIX MANIFOLD, HP

GG 26A225

GG 26A225

KIT, MIX MANIFOLD, HP

ProMix PD2K High Pressure Mix at the Belt Manifold Kit

Mix Manifold Kits

$4,850.00

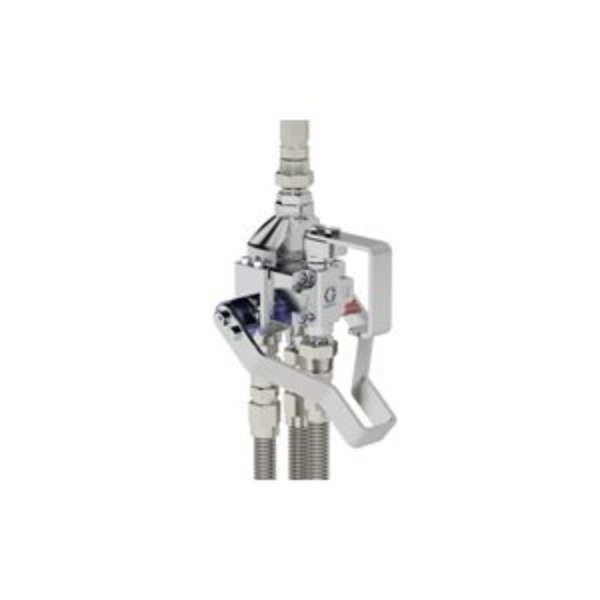

KIT, MIX MANIFOLD, LP

KIT, MIX MANIFOLD, LP

GG 26A358

GG 26A358

KIT, MIX MANIFOLD, LP

Graco 26A358 ProMix PD2K Low Pressure Mix at the Belt Manifold Kit

Mix Manifold Kits


    • Model: ProMix
    • Series: PD2K
$4,530.00

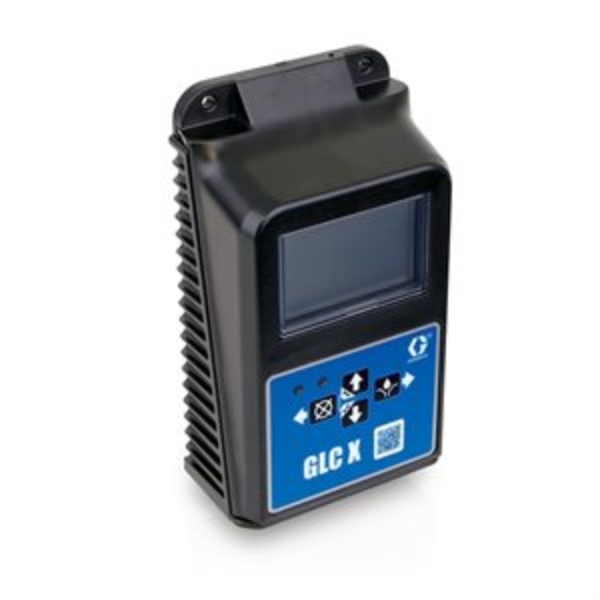

GLC CONTROL, X

GLC CONTROL, X

GG 26A814

GG 26A814

GLC CONTROL, X

Graco 26A814 GLC X Controller

The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.

  • Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
  • Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
  • Real-Time System Reporting - Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more.
  • Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory.
  • Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.


  • Model: GLC
  • Series: X
  • Amperage (A): 15
  • Application: In-Plant Machinery, Off-Road Equipment, On-Road Vehicles
  • Auxiliary Alarm Max Switching Current (A): 10
  • Auxiliary Alarm Max Switching Voltage (VDC): 9-30
  • Auxiliary Alarm Voltage: 9-30 VDC
  • Control Mode: Timer, Pressure, Cycle
  • Count Rate (counts/sec @ 50% duty cycle): 5
  • Current Consumption (A): 15
  • Intrusion Rating: IP69K
  • Low Level Alarm Max Switching Current (A): 10
  • Low Level Alarm Max Switching Voltage (VDC): 30
  • Lubrication Level Input: Input 1: 10V
  • Machine Count Control Input: Input 4
  • Maximum Operating Temperature (°C): 70
  • Maximum Operating Temperature (°F): 158
  • Maximum Program Time (min): 99
  • Maximum Program Time (sec): 5999
  • Maximum Storage Temperature (°C): 70
  • Maximum Storage Temperature (°F): 158
  • Maximum System Cycle Count: 100
  • Maximum Voltage (V dc): 30
  • Maximum Voltage (V): 30
  • Minimum Ambient Temperature (°F): -22
  • Minimum Monitor Time (hrs): 0
  • Minimum Monitor Time (min): 1
  • Minimum Monitor Time (sec): 0
  • Minimum Monitor Time (strokes): 1
  • Minimum Operating Temperature (°C): -30
  • Minimum Operating Temperature (°F): -22
  • Minimum Program Time (hrs): 0
  • Minimum Program Time (min): 0
  • Minimum Program Time (sec): 10
  • Minimum Program Time (strokes): 1
  • Minimum Storage Temperature (°C): -30
  • Minimum Storage Temperature (°F): -22
  • Minimum System Cycle Count: 1
  • Minimum Voltage (V dc): 9
  • Minimum Voltage (V): 9
  • Number of Pieces: 1
  • Overall Depth (cm): 5
  • Overall Depth (in): 1.98
  • Overall Height (cm): 16.9
  • Overall Height (in): 6.66
  • Overall Height (mm): 169
  • Overall Width (cm): 9.2
  • Overall Width (in): 3.62
  • Overall Width (mm): 92
  • Power Consumption (W): 450
$854.00
BOX, TEST, GLCX

BOX, TEST, GLCX

GG 26A853

GG 26A853

BOX, TEST, GLCX

Graco 26A853 GLC X Pump Simulator

Pump simulator for the GLC X controller. This tool simply plugs into a wall outlet to quickly program the controller and simulate pump inputs. Great for pre-programming the controller or training.


    • Application: In-Plant Machinery, Off-Road Equipment, On-Road Vehicles
$937.00
GLC CONTROL, X WITH CABLE

GLC CONTROL, X WITH CABLE

GG 26A855

GG 26A855

GLC CONTROL, X WITH CABLE

GLC X Controller w/14-Pin Connector, 2-Wire, 10 ft Power In and 12-Wire Color Coded 20 ft Cable, Flying Leads The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity. Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites. Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators. Real-Time System Reporting - Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more. Smart Device and Mobile App - With the Auto Lube™ app, monitor lubrication levels, configure settings, track history and share important diagnostics. Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory. Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.
$1,285.00

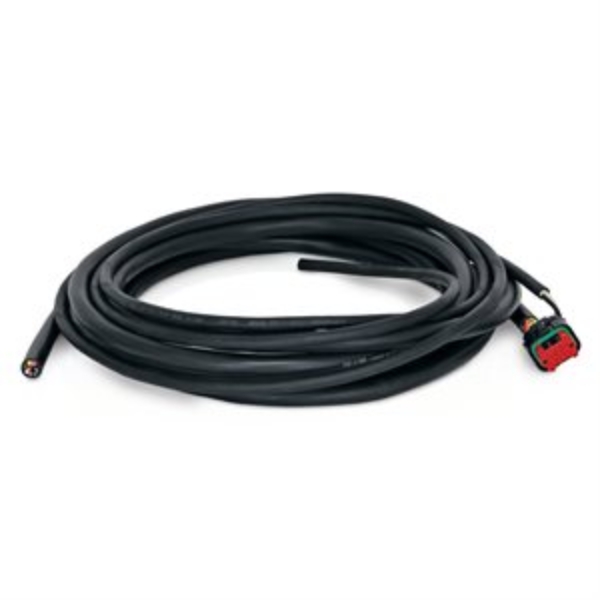

HARNESS, GLC X, KIT

HARNESS, GLC X, KIT

GG 26A882

GG 26A882

HARNESS, GLC X, KIT

14-Pin Connector, 2-Wire, 10 ft Power In and 12-Wire Color Coded 20 ft Cable, Flying Leads 14-pin connector, 2-wire, 10 foot power in and 12-wire color coded 20 foot cable with flying leads
$453.00

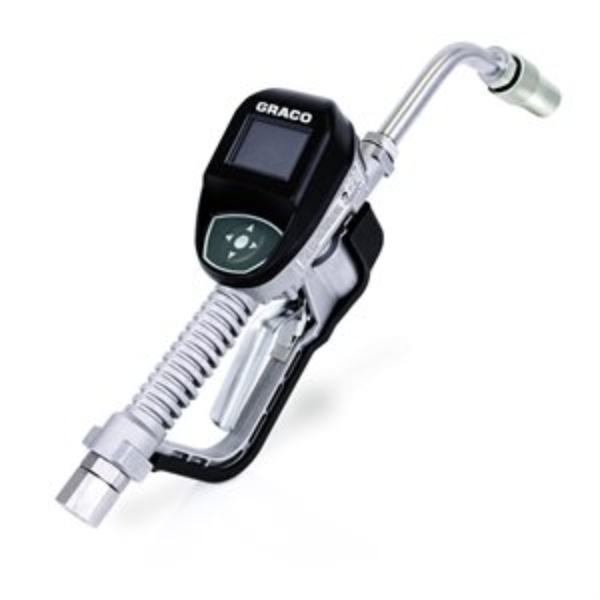

SD SERIES SDP18 VALVE, FC, 1/2NPT, RIDG, OIL

SD SERIES SDP18 VALVE, FC, 1/2NPT, RIDG, OIL

GG 26C356

GG 26C356

SD SERIES SDP18 VALVE, FC, 1/2NPT, RIDG, OIL

Graco 26C356 SDP18 Series Electronic Preset Oil/Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
  • Large, Intuitive Display—high-contrast display for low and bright light conditions
  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
  • Reliable—time-tested Graco engineering
  • Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
  • Long battery life—uses 4 AA easy-to-replace batteries


  • Model: SDP18
  • Compatible Material: Oil, Antifreeze, ATF, Gear Oil
  • Dispense Type: Preset
  • Display Type: Electronic
  • Extension Type: Rigid
  • Fluid Inlet Thread Gender: Female
  • Fluid Outlet Thread Gender: Female
  • Includes: Nozzle, Rigid Extension
  • Inlet Size (cm): 1.27
  • Inlet Size (in): 1/2
  • Inlet Size (mm): 12.7
  • Inlet Thread Type: NPT
  • Maximum Flow Rate (GPM): 18
  • Maximum Flow Rate (L/min): 68
  • Maximum Operating Temperature (°C): 70
  • Maximum Operating Temperature (°F): 158
  • Maximum Recorded Dispense: 9999
  • Maximum Storage Temperature (°C): 70
  • Maximum Storage Temperature (°F): 158
  • Maximum Working Pressure (bar): 103.4
  • Maximum Working Pressure (kPa): 10340
  • Maximum Working Pressure (MPa): 10.3
  • Maximum Working Pressure (psi): 1500
  • Meter Accuracy (%): ±0.5
  • Meter Technology: Oval Gear
  • Metering Gun Weight (kg): 2.4
  • Metering Gun Weight (lb): 5.3
  • Minimum Flow Rate (GPM): 0.25
  • Minimum Flow Rate (L/min): 0.9
  • Minimum Operating Temperature (°C): -16
  • Minimum Operating Temperature (°F): 4
  • Nozzle Type: Manual
  • Outlet Thread Type: Straight Thread O-Ring Boss
  • Overall Height (cm): 14.6
  • Overall Height (in): 5.75
  • Overall Height (mm): 146
  • Overall Length (cm): 33
  • Overall Length (in): 13
  • Overall Length (mm): 330
  • Overall Width (cm): 9.5
  • Overall Width (in): 3.75
  • Overall Width (mm): 95
  • Product Type: Meter
  • Recommended Environment: Indoor
$1,650.00

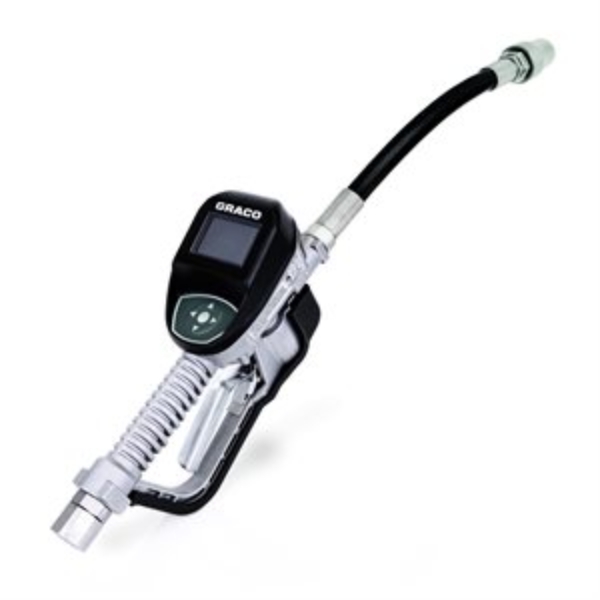

SD SERIES SDP18 VALVE, FC, 1/2NPT, FLEX, OIL

SD SERIES SDP18 VALVE, FC, 1/2NPT, FLEX, OIL

GG 26C357

GG 26C357

SD SERIES SDP18 VALVE, FC, 1/2NPT, FLEX, OIL

Graco 26C357 SDP18 Series Electronic Preset Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
  • Large, Intuitive Display—high-contrast display for low and bright light conditions
  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
  • Reliable—time-tested Graco engineering
  • Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
  • Long battery life—uses 4 AA easy-to-replace batteries


  • Model: SDP18
  • Compatible Material: Oil, Antifreeze, ATF, Gear Oil
  • Dispense Type: Preset
  • Display Type: Electronic
  • Extension Type: Flexible
  • Fluid Inlet Thread Gender: Female
  • Fluid Outlet Thread Gender: Female
  • Includes: Nozzle, Flexible Extension
  • Inlet Size (cm): 1.27
  • Inlet Size (in): 1/2
  • Inlet Size (mm): 12.7
  • Inlet Thread Type: NPT
  • Maximum Flow Rate (GPM): 18
  • Maximum Flow Rate (L/min): 68
  • Maximum Operating Temperature (°C): 70
  • Maximum Operating Temperature (°F): 158
  • Maximum Recorded Dispense: 9999
  • Maximum Storage Temperature (°C): 70
  • Maximum Storage Temperature (°F): 158
  • Maximum Working Pressure (bar): 103.4
  • Maximum Working Pressure (kPa): 10340
  • Maximum Working Pressure (MPa): 10.3
  • Maximum Working Pressure (psi): 1500
  • Meter Accuracy (%): ±0.5
  • Meter Technology: Oval Gear
  • Metering Gun Weight (kg): 2.4
  • Metering Gun Weight (lb): 5.3
  • Minimum Flow Rate (GPM): 0.25
  • Minimum Flow Rate (L/min): 0.9
  • Minimum Operating Temperature (°C): -16
  • Minimum Operating Temperature (°F): 4
  • Nozzle Type: Manual
  • Outlet Thread Type: Straight Thread O-Ring Boss
  • Overall Height (cm): 14.6
  • Overall Height (in): 5.75
  • Overall Height (mm): 146
  • Overall Length (cm): 33
  • Overall Length (in): 13
  • Overall Length (mm): 330
  • Overall Width (cm): 9.5
  • Overall Width (in): 3.75
  • Overall Width (mm): 95
  • Product Type: Meter
  • Recommended Environment: Indoor
$1,650.00

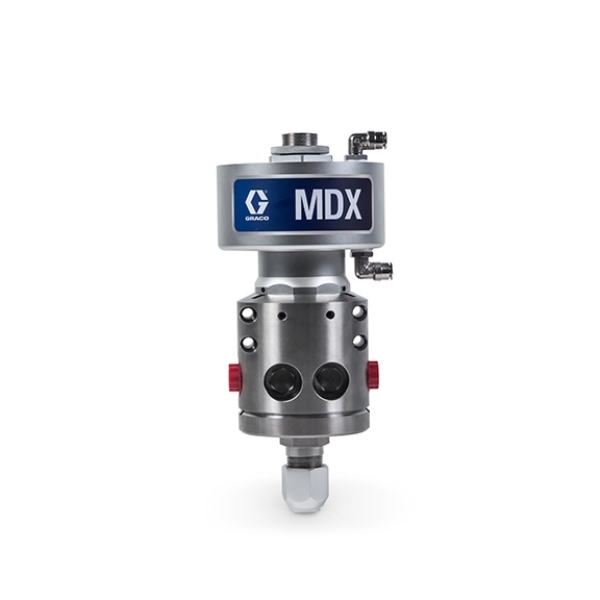

VALVE, DISPENCE, MDX

VALVE, DISPENCE, MDX

GG 26D274

GG 26D274

VALVE, DISPENCE, MDX

MDX, High flow valve, 2-component The Graco MDX valve is designed for a two-component high flow dispensing application. The high wear resistance design enables an excellent life performance even with dispensing highly abrasive material such as Thermal Interface Material. It`s a perfect fit in EV battery pack, solar energy, wind power and etc. markets. High flow rate dispensing, 2 component High flow rate Easy intergration for automation High wear resistance for reduced maintainance Wear resistant design handles viscous and abrasive thermal interface material, lessening required maintenance. Recirculation function keeps material from settling.
$15,000.00

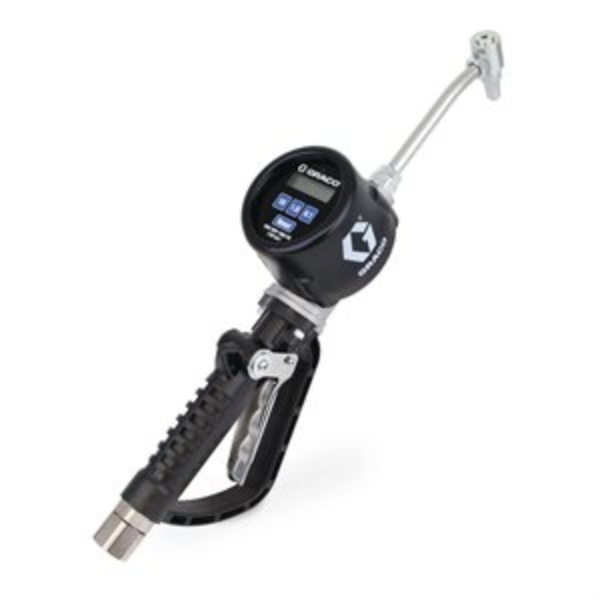

PM SERIES VALVE, PM8, NPT, GEAR LUBE

PM SERIES VALVE, PM8, NPT, GEAR LUBE

GG 273158

GG 273158

PM SERIES VALVE, PM8, NPT, GEAR LUBE

Graco 273158 PM™ 8 Electronic Preset Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.

  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
  • Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
  • Durable Cast Body - Designed for heavy duty and harsh applications.
  • High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
  • Long Battery Life - Features four easily-replaceable AA batteries.


  • Series: 8
  • Calibration Type: Factory Calibrated
  • Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
  • Dispense Type: Preset
  • Display Type: Electronic
  • Extension Type: Rigid
  • Fluid Inlet Thread Gender: Female
  • Fluid Outlet Thread Gender: Female
  • Includes: Nozzle, Extension
  • Inlet Size (cm): 1.27
  • Inlet Size (in): 1/2
  • Inlet Size (mm): 12.7
  • Inlet Thread Type: NPT
  • IP Rating: 69K
  • Maximum Flow Rate (cc/min): 30283
  • Maximum Flow Rate (cc/sec): 505
  • Maximum Flow Rate (GPM): 8
  • Maximum Flow Rate (L/min): 30.3
  • Maximum Operating Temperature (°C): 52
  • Maximum Operating Temperature (°F): 125
  • Maximum Recorded Dispense: 19999
  • Maximum Storage Temperature (°C): 85
  • Maximum Storage Temperature (°F): 185
  • Maximum Totalizer: 19999
  • Maximum Working Pressure (bar): 102
  • Maximum Working Pressure (kPa): 10340
  • Maximum Working Pressure (MPa): 10
  • Maximum Working Pressure (psi): 1500
  • Meter Accuracy: ±0.5
  • Meter Accuracy (%): ±0.5
  • Meter Pressure Loss (bar): 4.1 Bar at 6 GPM
  • Meter Pressure Loss (psi): 60 PSI at 6 GPM
  • Meter Technology: Oval Gear
  • Metering Gun Weight (kg): 2.4
  • Metering Gun Weight (lb): 5.2
  • Minimum Flow Rate (GPM): 0.25
  • Minimum Operating Temperature (°C): -29
  • Minimum Operating Temperature (°F): -20
  • Nozzle Type: Manual
  • Outlet Size (cm): 1.905
  • Outlet Size (in): 3/4
  • Outlet Size (mm): 19.05
  • Outlet Thread Type: ORB
  • Overall Height (cm): 18.3
  • Overall Height (in): 7.2
  • Overall Height (mm): 183
  • Overall Length (cm): 57.5
  • Overall Length (in): 22.6
  • Overall Length (mm): 575
  • Overall Width (cm): 10.4
  • Overall Width (in): 4.1
  • Overall Width (mm): 103.5
  • Recommended Environment: Indoor/Outdoor
$1,250.00

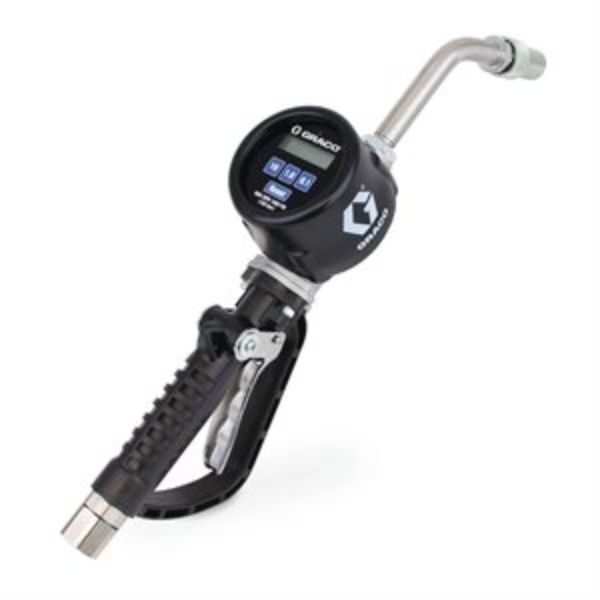

PM SERIES VALVE, PM20, 1/2"NPT, RIGID

PM SERIES VALVE, PM20, 1/2"NPT, RIGID

GG 273165

GG 273165

PM SERIES VALVE, PM20, 1/2"NPT, RIGID

Graco 273165 PM™ 20 Electronic Preset Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.

  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
  • Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
  • Durable Cast Body - Designed for heavy duty and harsh applications.
  • High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
  • Long Battery Life - Features four easily-replaceable AA batteries.


  • Series: 20
  • Calibration Type: Factory Calibrated
  • Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
  • Dispense Type: Preset
  • Display Type: Electronic
  • Extension Type: Rigid
  • Fluid Inlet Thread Gender: Female
  • Fluid Outlet Thread Gender: Female
  • Includes: Nozzle, Extension
  • Inlet Size (cm): 1.27
  • Inlet Size (in): 1/2
  • Inlet Size (mm): 12.7
  • Inlet Thread Type: NPT
  • IP Rating: 69K
  • Maximum Flow Rate (cc/min): 75708
  • Maximum Flow Rate (cc/sec): 1262
  • Maximum Flow Rate (GPM): 20
  • Maximum Flow Rate (L/min): 75.7
  • Maximum Operating Temperature (°C): 52
  • Maximum Operating Temperature (°F): 125
  • Maximum Recorded Dispense: 19999
  • Maximum Storage Temperature (°C): 85
  • Maximum Storage Temperature (°F): 185
  • Maximum Totalizer: 19999
  • Maximum Working Pressure (bar): 102
  • Maximum Working Pressure (kPa): 10340
  • Maximum Working Pressure (MPa): 10
  • Maximum Working Pressure (psi): 1500
  • Meter Accuracy: ±0.5
  • Meter Accuracy (%): ±0.5
  • Meter Pressure Loss (bar): 10.3 Bar at 12 GPM
  • Meter Pressure Loss (psi): 150 PSI at 12 GPM
  • Meter Technology: Oval Gear
  • Metering Gun Weight (kg): 2.4
  • Metering Gun Weight (lb): 5.2
  • Minimum Flow Rate (GPM): 0.25
  • Minimum Operating Temperature (°C): -29
  • Minimum Operating Temperature (°F): -20
  • Nozzle Type: Manual
  • Outlet Size (cm): 1.905
  • Outlet Size (in): 3/4
  • Outlet Size (mm): 19.05
  • Outlet Thread Type: ORB
  • Overall Height (cm): 18.3
  • Overall Height (in): 7.2
  • Overall Height (mm): 183
  • Overall Length (cm): 54.4
  • Overall Length (in): 21.4
  • Overall Length (mm): 544
  • Overall Width (cm): 10.4
  • Overall Width (in): 4.1
  • Overall Width (mm): 103.5
  • Recommended Environment: Indoor/Outdoor
$1,350.00

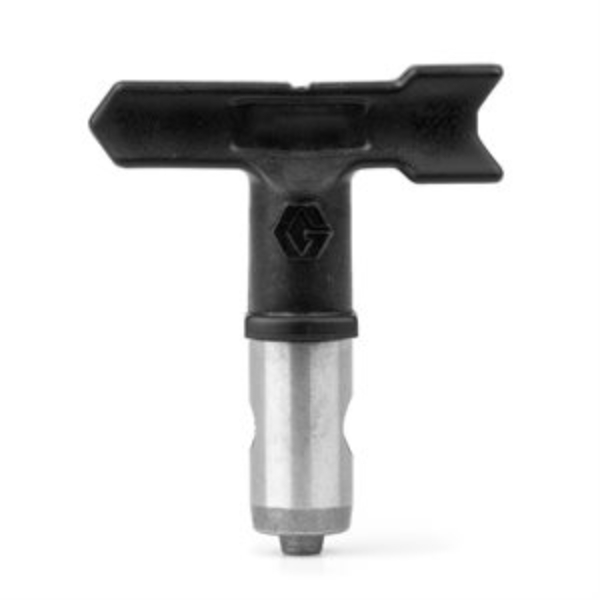

RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286111

GG 286111

RAC 5 TIP, SPRAY

Graco 286111 RAC 5 SwitchTip, 111

The Reverse-A-Clean (RAC) 111 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 111 SwitchTip has a 0.011 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.

  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Lacquer to Mastic, Latex Paint
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 10.2
  • Maximum Fan Width (in): 2
  • Maximum Fan Width (mm): 102
  • Maximum Flow Rate (GPM): 0.12
  • Maximum Flow Rate (L/min): 0.45
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 2
  • Minimum Fan Width (mm): 51
  • Orifice Diameter (in): 0.011
  • Pattern Size (in): 2 to 4
  • Pattern Size (mm): 50.8 to 101.6
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286121

GG 286121

RAC 5 TIP, SPRAY

Graco 286121 RAC 5 SwitchTip, 121

The Reverse-A-Clean (RAC) 121 RAC 5 SwitchTip is designed for narrower surfaces. The 121 SwitchTip has a 0.021 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.

  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Lacquer to Mastic, Latex Paint
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 10.2
  • Maximum Fan Width (in): 2
  • Maximum Fan Width (mm): 102
  • Maximum Flow Rate (GPM): 0.47
  • Maximum Flow Rate (L/min): 1.78
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 2
  • Minimum Fan Width (mm): 51
  • Orifice Diameter (in): 0.021
  • Pattern Size (in): 2 to 4
  • Pattern Size (mm): 50.8 to 101.6
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286213

GG 286213

RAC 5 TIP, SPRAY

Graco 286213 RAC 5 SwitchTip, 213

The Reverse-A-Clean (RAC) 213 RAC 5 SwitchTip is designed for narrower surfaces. The 213 SwitchTip has a 0.013 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

      Used for residential and commercial applications

      Includes OneSeal for most common coatings

      Large selection of tip sizes available

      Easy to identify laser stamped tip size

      Solvent seal available when using extremely hot solvents


    • Model: RAC 5
    • Series: SwitchTip
    • Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
    • For Use With: RAC 5 HandTite Tip Guard
    • Maximum Fan Width (cm): 15.2
    • Maximum Fan Width (in): 4
    • Maximum Fan Width (mm): 152
    • Maximum Flow Rate (GPM): 0.18
    • Maximum Flow Rate (L/min): 0.68
    • Maximum Working Pressure (bar): 280
    • Maximum Working Pressure (kPa): 28000
    • Maximum Working Pressure (psi): 4050
    • Minimum Fan Width (in): 4
    • Minimum Fan Width (mm): 102
    • Orifice Diameter (in): 0.013
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286215

GG 286215

RAC 5 TIP, SPRAY

RAC 5 SwitchTip, 215 The Reverse-A-Clean (RAC) 215 RAC 5 SwitchTip is designed for narrower surfaces. The 215 SwitchTip has a 0.015 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.

Most Widely Used Reversible Spray Tip on the Market (Black Handle)

  • Used for residential and commercial applications
  • Includes OneSeal for most common coatings
  • Large selection of tip sizes available
  • Easy to identify laser stamped tip size
  • Solvent seal available when using extremely hot solvents
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286219

GG 286219

RAC 5 TIP, SPRAY

Graco 286219 RAC 5 SwitchTip, 219

The Reverse-A-Clean (RAC) 219 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 219 SwitchTip has a 0.019 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.

  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Lacquer to Mastic, Latex Paint
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 15.2
  • Maximum Fan Width (in): 4
  • Maximum Fan Width (mm): 152
  • Maximum Flow Rate (GPM): 0.38
  • Maximum Flow Rate (L/min): 1.44
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 4
  • Minimum Fan Width (mm): 102
  • Orifice Diameter (in): 0.019
  • Pattern Size (in): 4 to 6
  • Pattern Size (mm): 101.6 to 152.4
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286223

GG 286223

RAC 5 TIP, SPRAY

Graco 286223 RAC 5 SwitchTip, 223

The Reverse-A-Clean (RAC) 223 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 323 SwitchTip has a 0.023 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.

  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Lacquer to Mastic, Latex Paint
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 15.2
  • Maximum Fan Width (in): 4
  • Maximum Fan Width (mm): 152
  • Maximum Flow Rate (GPM): 0.57
  • Maximum Flow Rate (L/min): 2.16
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 4
  • Minimum Fan Width (mm): 102
  • Orifice Diameter (in): 0.023
  • Pattern Size (in): 4 to 6
  • Pattern Size (mm): 101.6 to 152.4
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286525

GG 286525

RAC 5 TIP, SPRAY

Graco 286525 RAC 5 SwitchTip, 525

The Reverse-A-Clean (RAC) 525 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

      Used for residential and commercial applications

      Includes OneSeal for most common coatings

      Large selection of tip sizes available

      Easy to identify laser stamped tip size

      Solvent seal available when using extremely hot solvents


    • Model: RAC 5
    • Series: SwitchTip
    • Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
    • For Use With: RAC 5 HandTite Tip Guard
    • Maximum Fan Width (cm): 30.5
    • Maximum Fan Width (in): 10
    • Maximum Fan Width (mm): 305
    • Maximum Flow Rate (GPM): 0.67
    • Maximum Flow Rate (L/min): 2.54
    • Maximum Working Pressure (bar): 280
    • Maximum Working Pressure (kPa): 28000
    • Maximum Working Pressure (psi): 4050
    • Minimum Fan Width (in): 10
    • Minimum Fan Width (mm): 254
    • Orifice Diameter (in): 0.025
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286527

GG 286527

RAC 5 TIP, SPRAY

Graco 286527 RAC 5 SwitchTip, 527

The Reverse-A-Clean (RAC) 527 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Lacquer to Mastic, Latex Paint
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 30.5
  • Maximum Fan Width (in): 10
  • Maximum Fan Width (mm): 305
  • Maximum Flow Rate (GPM): 0.77
  • Maximum Flow Rate (L/min): 2.91
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 10
  • Minimum Fan Width (mm): 254
  • Orifice Diameter (in): 0.027
  • Pattern Size (in): 10 to 12
  • Pattern Size (mm): 254 to 304.8
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286617

GG 286617

RAC 5 TIP, SPRAY

Graco 286617 RAC 5 SwitchTip, 617

The Reverse-A-Clean (RAC) 617 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 35.6
  • Maximum Fan Width (in): 12
  • Maximum Fan Width (mm): 356
  • Maximum Flow Rate (GPM): 0.31
  • Maximum Flow Rate (L/min): 1.17
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 12
  • Minimum Fan Width (mm): 305
  • Orifice Diameter (in): 0.017
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286619

GG 286619

RAC 5 TIP, SPRAY

RAC 5 SwitchTip, 619 The Reverse-A-Clean (RAC) 619 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)
  • Used for residential and commercial applications
  • Includes OneSeal for most common coatings
  • Large selection of tip sizes available
  • Easy to identify laser stamped tip size
  • Solvent seal available when using extremely hot solvents
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286621

GG 286621

RAC 5 TIP, SPRAY

Graco 286621 RAC 5 SwitchTip, 621

The Reverse-A-Clean (RAC) 621 RAC 5 SwitchTip produces a 12 to 14 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.

Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
  • Most Widely Used Reversible Spray Tip on the Market (Black Handle)

    Used for residential and commercial applications

    Includes OneSeal for most common coatings

    Large selection of tip sizes available

    Easy to identify laser stamped tip size

    Solvent seal available when using extremely hot solvents


  • Model: RAC 5
  • Series: SwitchTip
  • Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
  • For Use With: RAC 5 HandTite Tip Guard
  • Maximum Fan Width (cm): 35.6
  • Maximum Fan Width (in): 12
  • Maximum Fan Width (mm): 356
  • Maximum Flow Rate (GPM): 0.47
  • Maximum Flow Rate (L/min): 1.78
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 12
  • Minimum Fan Width (mm): 305
  • Orifice Diameter (in): 0.021
$62.75
RAC 5 TIP, SPRAY

RAC 5 TIP, SPRAY

GG 286815

GG 286815

RAC 5 TIP, SPRAY

RAC 5 SwitchTip, 815 The Reverse-A-Clean (RAC) 815 RAC 5 SwitchTip produces a 16 to 18 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs.

Most Widely Used Reversible Spray Tip on the Market (Black Handle)

  • Used for residential and commercial applications
  • Includes OneSeal for most common coatings
  • Large selection of tip sizes available
  • Easy to identify laser stamped tip size
  • Solvent seal available when using extremely hot solvents
    • $62.75
    EXTENSION, TIP, 10"

    EXTENSION, TIP, 10"

    GG 287019

    GG 287019

    EXTENSION, TIP, 10"

    Graco 287019 RAC X Tip Extension, 10 in

    The 10 inch RAC X Tip Extension is ideal for hard-to-reach areas such as soffits, stairways, and vaulted ceilings. Includes RAC X HandTite Guard. Can be combined for extended reach up to 6 feet.

    • Includes RAC X HandTite Guard standard with 7/8 inch gun nut and OneSeal
    • Can be combined for extended reach up to 6 ft
    • Ideal for hard-to-reach areas such as soffits, stairways, and vaulted ceilings
    • Extend range and spray more efficiently without ladders or scaffolding
    • Made from aluminum for a durable and lightweight design
    • Extension lengths can be combined for extended reach up to 6 feet (1.82 meters)
    • Includes RAC X HandTite Guard standard with 7/8 inch gun nut and OneSeal


    • Model: RAC X
    • Series: Tip Extension
    • Compatible Spray Tip: RAC X
    • For Use With: RAC X SwitchTips
    • Includes: RAC X HandTite Guard Standard, 7/8 in Gun Nut, OneSeal
    • Maximum Working Pressure (bar): 279
    • Maximum Working Pressure (kPa): 27900
    • Maximum Working Pressure (MPa): 27.9
    • Maximum Working Pressure (psi): 4050
    • Overall Length (cm): 25.4
    • Overall Length (in): 10
    $52.25
