SILVER FLAT TIP, SPRAY
GG 163413
SILVER FLAT TIP, SPRAY
Graco 163413 Silver Flat Tip, 413
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 413 Silver Flat Tip has a 0.013 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254

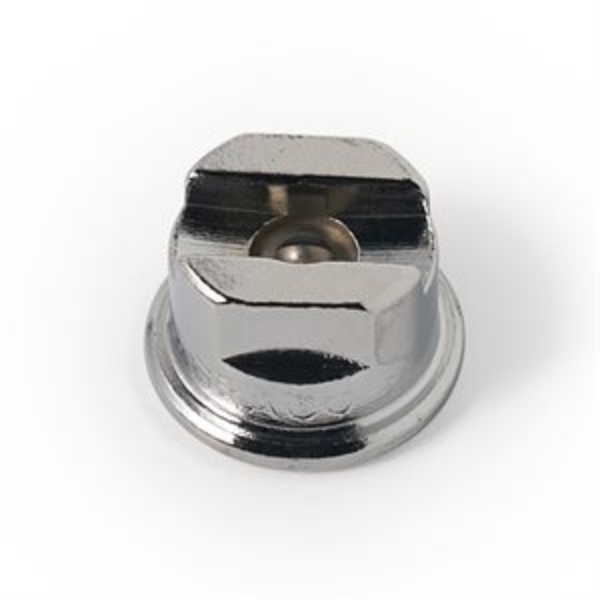

SILVER FLAT TIP, SPRAY TC
GG 163415
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 415 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 415 Silver Flat Tip has a 0.015 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
FF FLAT TIP, SPRAY TC
GG 163516
FF FLAT TIP, SPRAY TC
Graco 163516 Fine Finish Flat Tip, 516
The 516 Fine Finish Flat Tip produces a 10 to 12 inch fan pattern and a 0.016 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.27
- Maximum Flow Rate (L/min): 1.02
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.016
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC
GG 163609
SILVER FLAT TIP, SPRAY TC
Graco 163609 Silver Flat Tip, 609
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 609 Silver Flat Tip has a 0.009 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.087
- Maximum Flow Rate (L/min): 0.33
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.009
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
FF FLAT TIP, SPRAY TC
GG 163620
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 620 The 620 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.020 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163711
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 711 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 711 Silver Flat Tip has a 0.011 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.

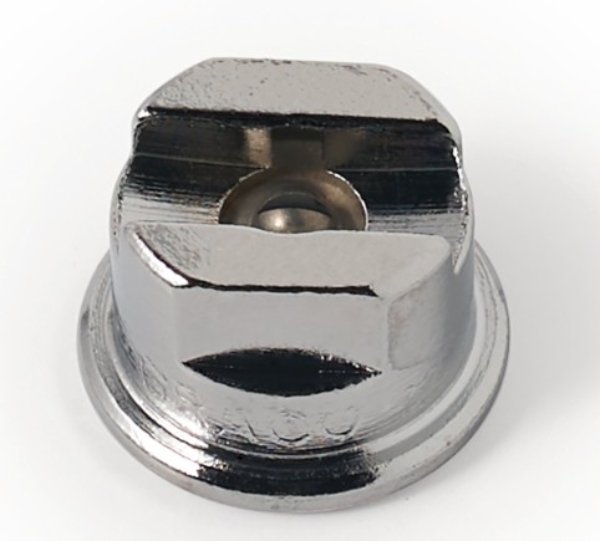

SILVER FLAT TIP, SPRAY TC
GG 163713
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 713 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 713 Silver Flat Tip has a 0.013 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.

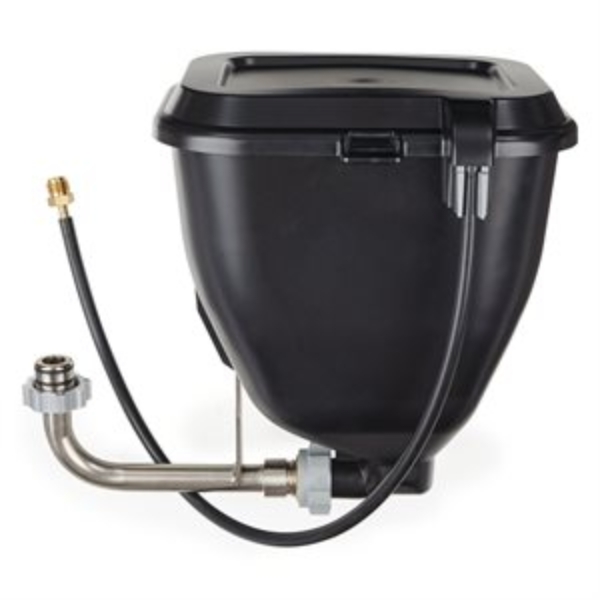

KIT, AIRLESS HOPPER
GG 17H171
KIT, AIRLESS HOPPER
Graco 17H171 Hopper for Small Electric & FinishPro AA Airless, 1.5 gal
Hopper connects directly to your airless sprayers to boost your productivity by minimizing clean up while being easy to move around the jobsite.
- Ideal for spraying small amounts of material
- Smooth inside surface cleans up fast
- Lid included for spill-proof portability

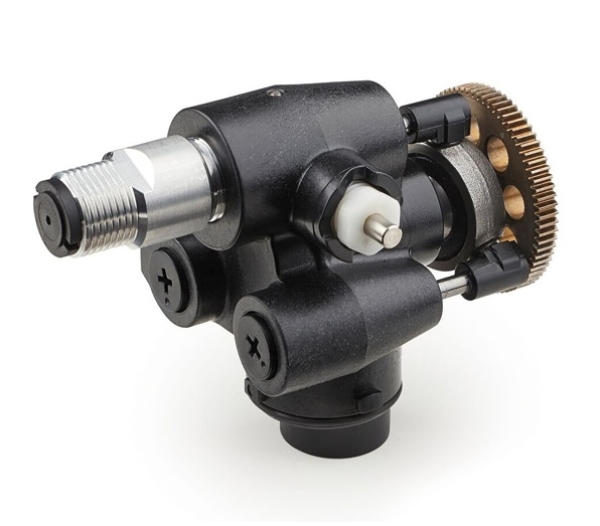

KIT, PUMP, AC
GG 17P185
KIT, PUMP, AC
Triax II Replacement Pump for Corded Handheld The Triax II triple piston pump gives you the most reliable performance in the industry and full tip support. It is built from durable stainless steel and carbide components and bonded with a high strength polymer for the most durable, lightest weight pump. Innovative drop-in on-the-job Triax II Pump Replacement with ProConnect lets you replace your modular pump right on the job.Compatible with Ultra Corded, Ultimate Corded, and TC Pro Corded.
Triax II Triple Piston Pump- Pump 3X more gallons before service
- Clean up in minutes
- No inlet check valve to get stuck - prime and spray in seconds
- Fast, on-the-job pump replacement with ProConnect

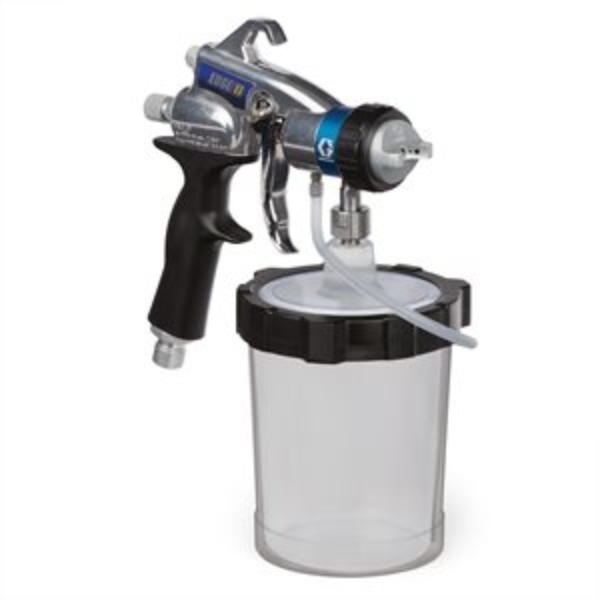

EDGE II GUN, HVLP, PACKAGED
GG 17P481
EDGE II GUN, HVLP, PACKAGED
Graco 17P481 EDGE II Gun with FlexLiner System
Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.
- Integrated Flow Control
Combines material and air flow into one simple control
Optimized to spray the majority of fine finish applications
Quick adjustment with 360° rotation and indicator for repeatable spray setting
- Adjustable Air Cap
3-position rotation to change spray pattern
Conveniently located at the front of the gun
Allows more air pressure into the material cup to spray heavier material
Easily clean and reuse versus replace
Located by gun to reduce clogged valves due to paint contamination
- EasyGlide 2-Finger Trigger and Ergonomic Handle
Trigger has up to 75% lighter pull than competition
2-finger trigger design gives more control while spraying
Form-fitted handle stays cool to the touch for extended use

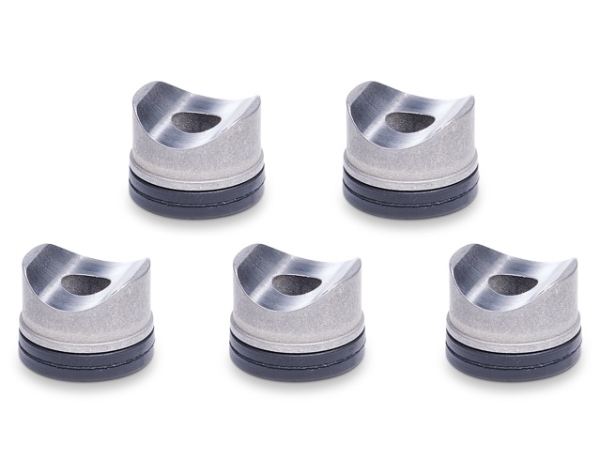

KIT, GASKET, FFLP
GG 17P501
KIT, GASKET, FFLP
RAC X FF LP OneSeal, 5 pack Designed specifically for the RAC X FF LP SwitchTips, these single seal gaskets help keep the tip in place.
