BLOCK, INLET, MSP/MHH NPSF
GG 560919
BLOCK, INLET, MSP/MHH NPSF
Manzel® MHH Divider Valve - Inlet - 1/4-18 NPSF For use with Trabon® MSP/MHH Divider Valves. Standard Inlet 1/4-18 NPSF (NPT) Lubriquip part number 527-001-800
MX VALVE, ASSY 125S IND RH
GG 562521
MX VALVE, ASSY 125S IND RH
Trabon® MX Divider Valve with Right Hand Cycle Pin Indicator - MX-125S - 0.250 in³ (4.10 cm³)Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.
Lubricates large bearings Delivers up to 0.3 cubic inches (4.92 cubic centimeters) per cycle and has a wide range of accessories to monitor critical lubrication points Durable design withstands harsh environments and operating conditions Built-in outlet check valves ensure accurate lube delivery every time Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Lubriquip part number 004-125-601
MSP VALVE, ASSY MSP 15S
GG 562713
MSP VALVE, ASSY MSP 15S
Trabon® MSP Modular Divider Valve - MSP-15S - 0.030 in³ (0.49 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-035
MSP VALVE, ASSY MSP 15T
GG 562722
MSP VALVE, ASSY MSP 15T
Graco 562722 Trabon® MSP Modular Divider Valve - MSP-15T - 0.015 in³ (0.26 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-195
MSP VALVE, ASSY MSP 40T
GG 562727
MSP VALVE, ASSY MSP 40T
Trabon® MSP Modular Divider Valve - MSP-40T - 0.040 in³ (0.66 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-245
TIMER, SOLID STATE
GG 562872
TIMER, SOLID STATE
LubriSystem Solid State Timer - 115 VAC For use with LubriSystem® Pneumatic Pumps. Solid State Timer, 115 VAC Lubriquip part number 163-400-000
RESERVOIR, 12LB PLSTC GRS GPS
GG 562884
RESERVOIR, 12LB PLSTC GRS GPS
12 lb. (5.42 kg) Plastic Cylindrical Grease Reservoir For use with Modu-Flo and E-Series Pumps. 12 lb (5.42 kg) Plastic Cylindrical Reservoir Lubriquip part number 185-100-000
VALVE, SOL ASSY 24VDC
GG 563332
VALVE, SOL ASSY 24VDC
Graco 563332 Trabon® Accessories - 3-way pneumatic solenoid valve, 24 VDC
Application: For use with LubriSystem®, Modu-Flo and E-Series Pneumatic Pumps.- 3-Way, 24 VDC Solenoid Valve
- Lubriquip part number 521-002-100
BODY, PUMP ASSY
GG 563380
BODY, PUMP ASSY
Lube Master® Pump Body For use with Electric and Mechanical Lube Master Pumps. Bare Pump Lubriquip part number 521-700-000
BLOCK, END, MSP/MHH
GG 563424
BLOCK, END, MSP/MHH
Trabon® MSP/Manzel® MHH Divider Valve Standard End Section For use with Trabon® MSP/MHH Divider Valves. Standard end section (Must be ordered in multiples of five) Must be ordered in multiples of 5 Lubriquip part number 527-000-851
BLOCK, BASE, MSP/MHH, NPSF
GG 563425
BLOCK, BASE, MSP/MHH, NPSF
Trabon® MSP Divider Valve - Intermediate Base Plate - 1/8-27 NPSF For use with Trabon® MSP/MHH Divider Valves. Intermediate base plate NPSF Lubriquip part number 527-000-871
FILTER, 10 MICRON PLUG END
GG 563509
FILTER, 10 MICRON PLUG END
Graco 563509 End Plug Filter Assembly with 10 micron Filter Element, Lubriquip part number 527-100-540
Application: For use with High Pressure In-Line Oil Filters.- 10 micron Replacement Filter Element for Graco part numbers 563511, 563513, 563516
- Replacement filter element for Lubriquip part numbers 527-100-230, 527-100-580, 527-100-581, 527-100-780, 527-101-120, 527-101-223
G-FORCE II TIP, SPRAY, Q-TYPE
GG 805537
G-FORCE II TIP, SPRAY, Q-TYPE
Washer Spray Tip, 2503 Maximize your cleaning power by selecting the tip that best matches the maximum pressure and flow of your pressure washer. For lower pressure spraying, choose a larger size tip to maximize your flow and cleaning power. Tips include filter with quick connect and offer heavy-duty components for long life and reliability. Can be used on sidewalks, driveways, track vehicles, muddy areas, old peeling paints and concrete surfaces.25 degree Flushing Tip
REGULATOR BACK PRESSURE
GG 903508
REGULATOR BACK PRESSURE
Graco 903508 Back Pressure Regulator, Low Pressure Corrosion Resistant, 15 GPM (56.7 lpm), 180 Max psi, Manual, 3/8 (m) x 3/8 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Air operated models available for automated control, Conversion kit (15J498)

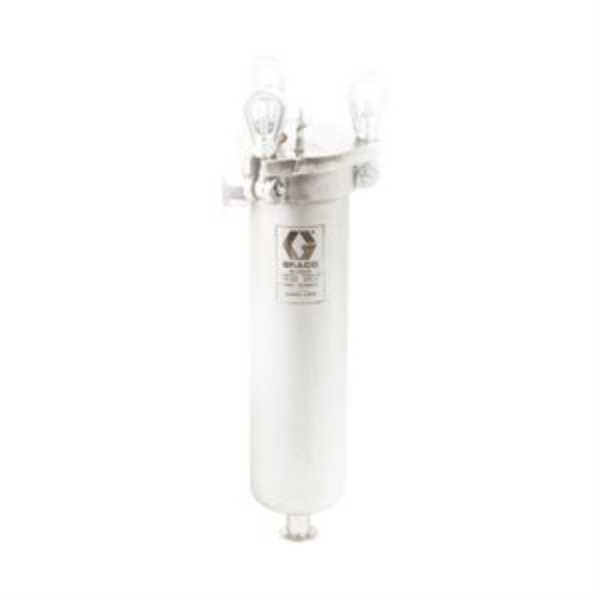

FILTER, BAG
GG 915518
FILTER, BAG
Model 12 Bag Filter Housing, CS, 30 gpm (113.4 lpm), 500 psi (21 bar)Model 12 bag filters can process large volumes of industrial paints and other industrial fluids. Standard filter assembly includes housing, cover, cover o-ring and unlined stainless steel basket. Order filters bags separately.
Model 12 bag filters for high flow capacity
RAC X FFLP TIP, SPRAY, (214)
GG FFLP214
RAC X FFLP TIP, SPRAY, (214)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 214 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 214 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
RAC X FFLP TIP, SPRAY, (312)
GG FFLP312
RAC X FFLP TIP, SPRAY, (312)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 312 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 312 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents

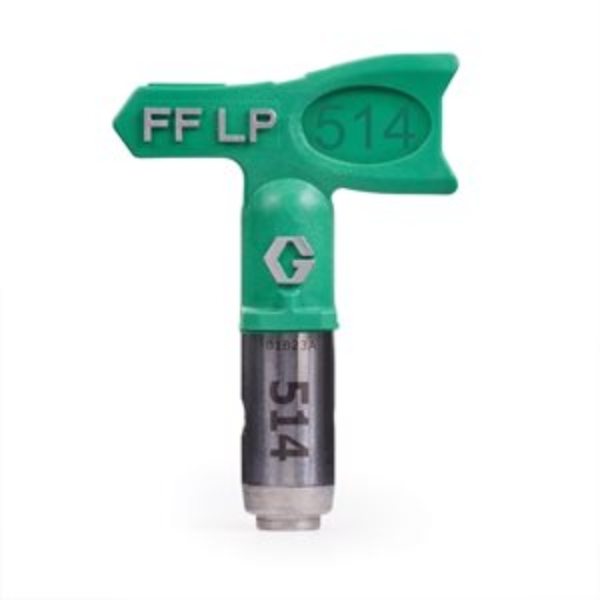

RAC X FFLP TIP, SPRAY, (514)
GG FFLP514
RAC X FFLP TIP, SPRAY, (514)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 514 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 514 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents

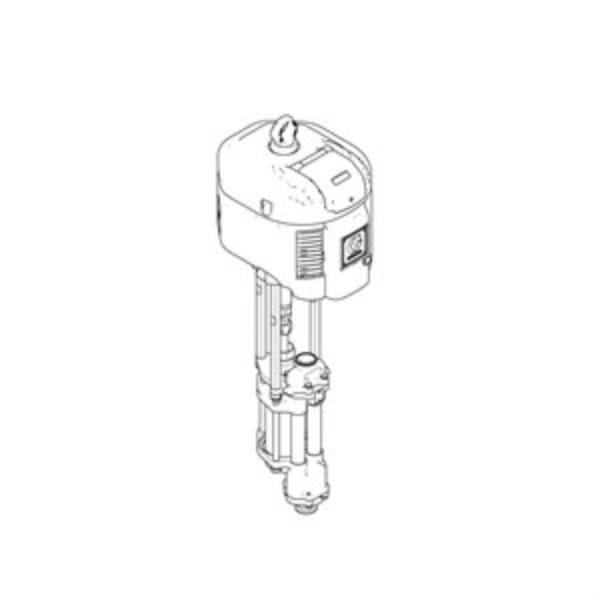

HIGH-FLO PUMP, 2200/1000, LOW DT, OPN, NPT
GG JC40M9
HIGH-FLO PUMP, 2200/1000, LOW DT, OPN, NPT
Graco JC40M9 High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, DataTrak, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Rugged body armor, won’t rust or dent
- De-icing controls eliminate stalling
- DataTrak tracks material usage, monitors and protects your pump
LOWER, CHEMICAL, 5, SST, UCUP
GG L005S1
LOWER, CHEMICAL, 5, SST, UCUP
Graco L005S1 Z-Pump, 5 cc, Severe Duty, S1
Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
LOWER, CHEMICAL, 010, SST, UCUP
GG L010S4
LOWER, CHEMICAL, 010, SST, UCUP
Z-Pump, 10 cc, Severe Duty, S4 Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

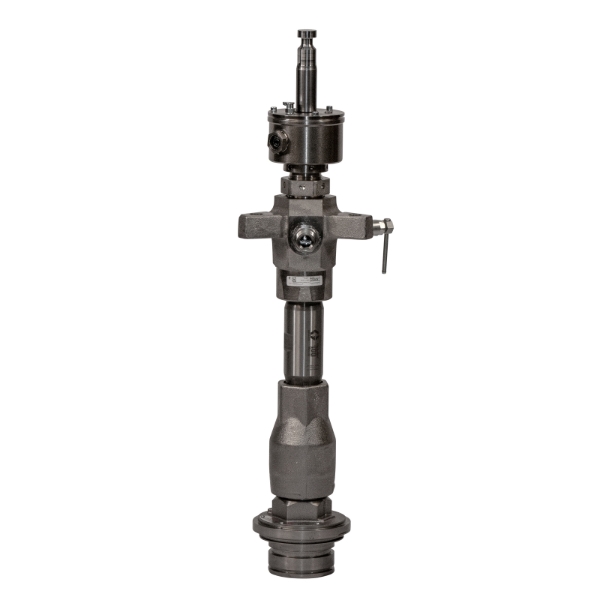

LOWER, CM100 MAXLIFE
GG L100CM
LOWER, CM100 MAXLIFE
Graco L100CM Carbon Steel MaxLife Check-Mate 100 Lower
Application: With priming piston, rod and cylinder.- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- For Use With: Check-Mate Pump Packages
- Maximum Flow Rate (GPM): 1.6
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 100
- Maximum Pump Speed (CPM): 60
- Maximum Working Pressure (psi): 6300

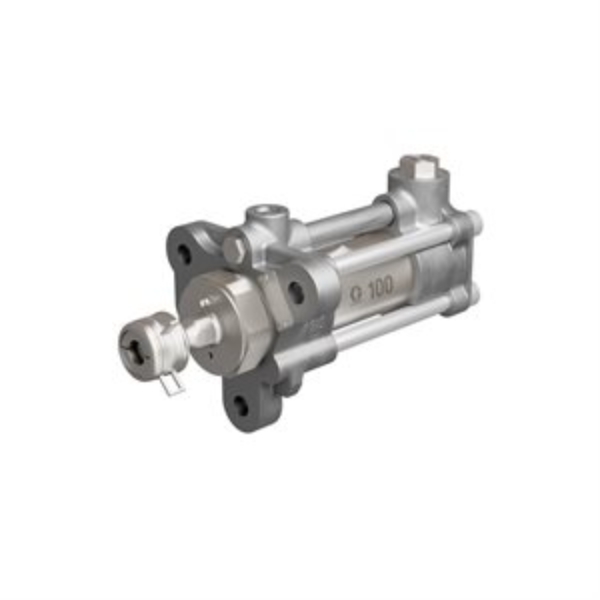

LOWER, CHEMICAL, 100, SST, UCUP
GG L100S1
LOWER, CHEMICAL, 100, SST, UCUP
Graco L100S1 Z-Pump, 100 cc, Severe Duty, S1
Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

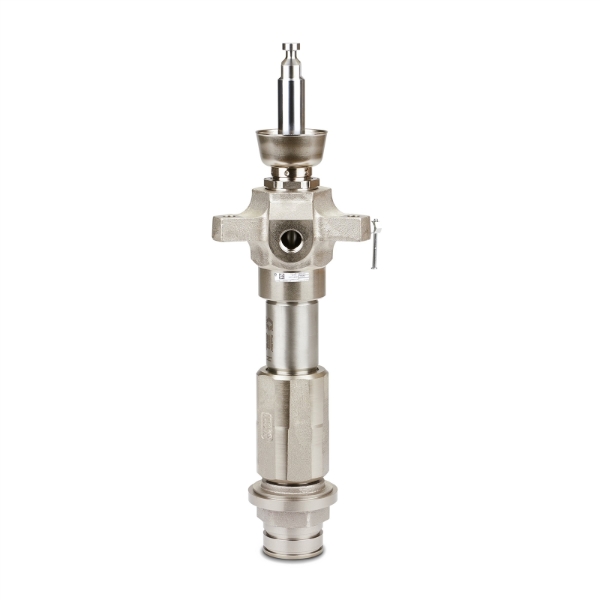

LOWER, CM250 SEVERE DUTY
GG L250CS
LOWER, CM250 SEVERE DUTY
Graco L250CS Carbon Steel Severe Duty Check-Mate 250 Lower
Application: With priming piston, rod and cylinder.- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: Check-Mate Pump Packages
- Maximum Flow Rate (GPM): 4
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 250
- Maximum Pump Speed (CPM): 60
- Maximum Working Pressure (psi): 6200

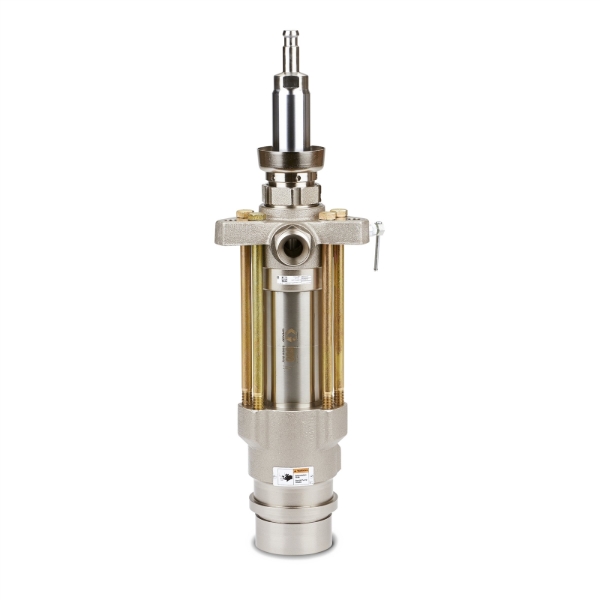

LOWER, CM500 SEVERE DUTY
GG L500CS
LOWER, CM500 SEVERE DUTY
Graco L500CS Carbon Steel Severe Duty Check-Mate 500 Lower
Application: With priming piston, rod and cylinder.- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- For Use With: Check-Mate Pump Packages
- Maximum Flow Rate (GPM): 8
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 500
- Maximum Pump Speed (CPM): 60
- Maximum Working Pressure (psi): 3900
