IR 100P4-A40

MOTOR HOUSING ASSEMBLY

IR 100P4-A626

MAIN SHAFT ASSEMBLY

IR 100P4-A727

HAMMER CASE ASSEMBLY

IR 100P4-C-HA

PRESSING SLEEVE

IR 100P4-A-HCT

HOUSING CAP SPANNER PLUG

IR 100P4-B-HA

DISASSEMBLY ARBOR

IR 100P4-H-HA

END PLATE JIG

IR 100P4-P32

PROTECTOR

IR 100P4-TK1

MOTOR TUNE-UP KIT

IR 100PQ-207

LINER CAP

IR 100P4-TKMS1

MECHANISM TUNE-UP KIT

IR 04556726

KIT

IR W5130-BOOT

PROTECTIVE BOOT

IR W5130-K37

PLANETARY GEAR KIT W5130-K37

IR W5133-K12

3/8" 20V Cordless Impact Wrench 1 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

The Ingersoll Rand W5133 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: 6.5” tip-to-tail ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Kit Includes: 3/8" Compact Cordless Impact Wrench, 1 BL2022 5.0Ah Battery, 20V Battery Charger & Bag

Includes: W5133 3/8" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, 20V Battery Charger & Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.

IR W5133-K2J

3/8" IQV20 IMPACT 2 BAT KIT

IR W5133-K65

SEAL

IR W5133-KLED

LED Assembly Kit for Ingersoll Rand W5133, W5153 Impact

Product Application and Uses: For use with Ingersoll Rand W5133 and W5153 Impact Wrenches
Lumens: 32

For Use With

• IQV20-K201
• W5133
• W5133-AUNZ
• W5133-K12
• W5133-K22
• W5133-K22-CN
• W5133-K22-EU
• W5133-K22-KR
• W5133P
• W5133P-C1D2
• W5133P-C1D2-K22
• W5133P-K22
• W5153
• W5153-K12
• W5153-K22
• W5153-K22-AUNZ
• W5153-K22-CN
• W5153-K22-EU
• W5153-K22-JP
• W5153-K22-KR
• W5153-K22-SGHK
• W5153-K22A-EU
• W5153P
• W5153P-C1D2
• W5153P-C1D2-K22
• W5153P-K22

IR 04556783

PENDENT

IR W5153-K12

1/2" 20V Cordless Impact Wrench 1 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

The Ingersoll Rand W5153 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree COB LED light casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Shadowless LED light ring with task light mode and 4 dimmable settings
• Compatible with IQV® 20 Series Battery System
• Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, 20V Battery Charger, Tool Bag

Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85

IR W5330-CASE

CASE, CARRYING W5330

IR W5330-K10

PLANET GEAR KIT

IR W5330-K105

FASTENER KIT

IR 04557260

PENDENT

IR W5330-K36

GASKET, COVER

IR W5330-K40

HOUSING KIT

IR W5330-K99

LABEL KIT

IR W5350-K12

1/2" 20V Impact Wrench 1 Battery Kit, 180 ft-lb Torque, Friction Ring Retainer, Inline

The 20V W5350 Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done.

Features And Benefits

• 180 ft-lbs. of reactionless torque and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself.
• From 0-1,900 rpm just like your favorite impact wrench, the W5330 flies through bolts with the variable speed trigger for more control.
• Durable steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench.
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Ergonomic handle and comfort grip offers the same reach as a ratchet.
• Conveniently located forward/ reverse switch for maximum control.
• Fully serviceable head for extended tool life; save on parts and replacement tool costs by removing a few quick screws for better accessibility.
• Patented Inline battery design can go places other impact wrenches only dream of- spaces that used to be reserved for a traditional ratchet or your bare hands.
• Compatible with all IQV® 20 batteries.
• Kit Includes 1/2” Impact Wrench, Charger, (1) BL2012 2.5Ah Li-ion Battery & Case

Includes: W5350 1/2” Impact Wrench, Charger, (1) BL2012 2.5Ah Li-ion Battery & Case
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 3000
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 1/2
Drive Type: Square
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Aluminum
Handle Material: Nylon
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 181
Max Torque (in-lb): 2168
Max Torque (nm): 245
Number of Batteries Required: 1
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 181
Recommended Forward Torque Range (in-lb): 2168
Recommended Forward Torque Range (nm): 245
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 85 / 96
Speed Setting: Variable Speed
Vibration Level (m/s2): 10
Vibration Uncertainy K* (m/s2): 6.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR 04557286

BUCKET

IR W54-376

SCREW

IR W54-930-10

SLEEVE (202744)

IR W54-931-10

SPRING (202745)

IR 04557336

POCKETWHEEL

IR W54-933-10

LOCK (202747)

IR W7000-CASE

CARRYING CASE, W7000 SERIES

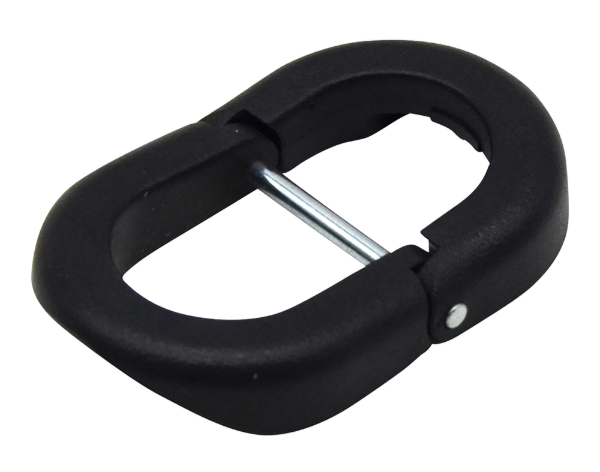

IR W7000-LATCH

Latch Replacement Part for Ingersoll Rand W7000 Series Impact Wrench Case

IR W7150-K105

FASTENER KIT W7150-K105

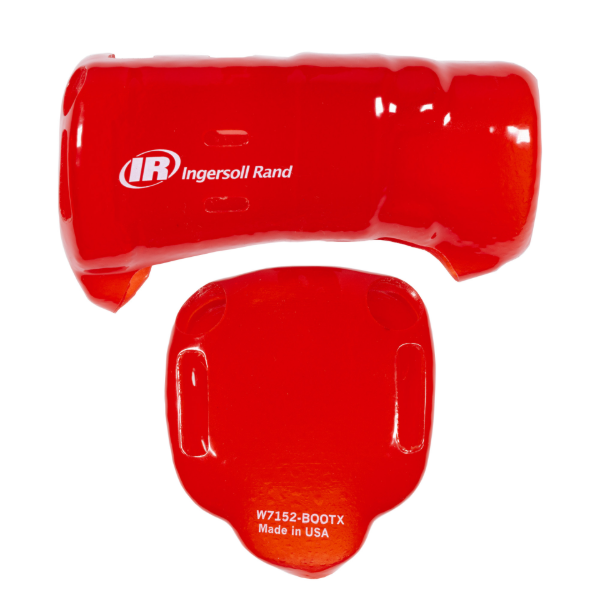

IR W7152-BOOTX

Covered Regulator Control Protective Boot for Ingersoll Rand W7000 Series Cordless Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand W7252-TL and W7253-TL series cordless impact wrench
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

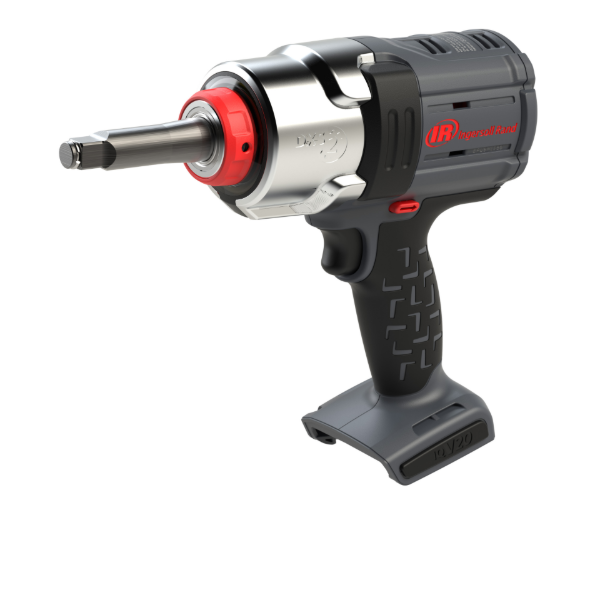

• W7253-TL
• W7252-TL

Similar IR

• W7152-BOOT

IR 04558391

DECAL CAP, NON-RETURNABLE PART

IR W7152-K624

INSULATOR SHEET KIT

IR W7152-K75

DIRECTIONAL SWITCH KIT, W7152

IR W7152P-K626

Anvil Kit for Ingersoll Rand W7152P Cordless Impact Wrench

Includes: 1/2" Anvil, Pin, retaining pin, spring

For Use With

• W7152P
• W7152P-K22

IR W7170-CASE

CARRYING CASE, W7170

IR W7170-K160

HAMMER CASE O-RING FOR W7170

IR W7170-K626

ANVIL KIT FOR W7170

IR W7172-K724

IMPACT MECHANISM KIT, W7172

IR W7250-K414

W7250 ANVIL KIT

IR 04559092

DRIVER

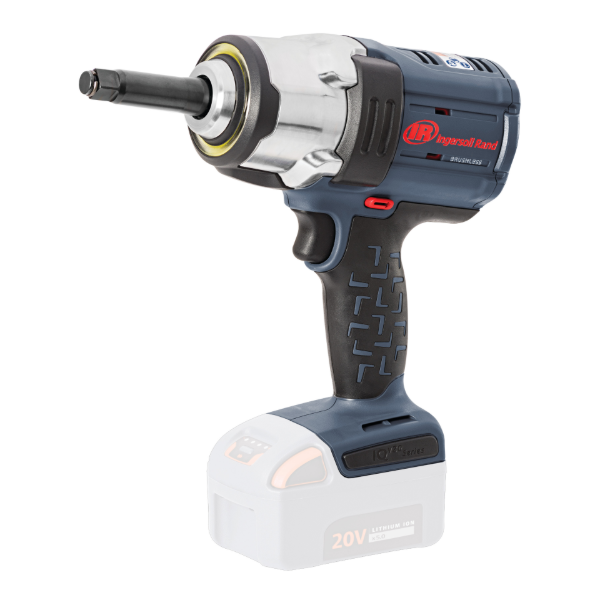

IR W7252-TL

1/2" 20V Cordless Impact Wrench, 2" Ext Anvil, 75 ft-lb Torque Limited Auto-Stop, Friction Ring Retainer, Pistol, Bare Tool

The W7252-TL delivers full breakaway power of 1500 ft-lbs of nut-busting torque and has only one auto-stop tightening mode designed for passenger tire installation.

Features And Benefits

• Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lbs of nut-busting torque and 75 ft-lbs of forward tightening torque.
• Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7252-TL from aggressive fluids, chemicals and repeated drops.
• Access: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access. The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Control: Includes the IQV® Power Control System with 1 mode to auto-stop pre-tightening passenger tires. Finish lug installation with a calibrated torque wrench for perfect installations.
• Variable-speed switch: With electronic brake provides maximum control of the tool and increased safety-release trigger, drive stops spinning.
• Lightweight: Weighs only 7.8 lbs (with BL2022 battery).
• Compatible with IQV® 20 Series Battery System.
• Ideally used in tire changing applications for removing and fastening passenger tire wheel bolts.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: Ideally used in tire changing applications for removing and fastening passenger tire wheel bolts.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 2
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 192.31
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 74
Recommended Forward Torque Range (in-lb): 894
Recommended Forward Torque Range (nm): 101
Retainer Type: Friction Ring
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 105
Speed Setting: Variable Speed
Standards/Certifications: Ul Listed, Csa Certified
Vibration Level (m/s2): 17.2
Vibration Uncertainy K* (m/s2): 2.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Superseded To

• W7253-TL

IR W7253-TL

DXS2 1/2" 20V Cordless Forward Torque Limited Impact Wrench, 2" Ext Anvil

The W7253-TL Forward Torque Limited Impact Wrench from Ingersoll Rand® is purpose-built for passenger tire service applications. Features one fixed forward tightening mode set at 76 ft-lbs to prevent accidental overtightening of tire lug nuts that can lead to costly damage to wheel rotors. The target torque is set to near specification for a wide variety of passenger tires and at a level that allows for a quick final tightening with a manually calibrated torque wrench. Compatible with all DXS® Drive Xchange System™ extended anvils and direct drive sockets.

Features And Benefits

• Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1600 ft-lbs of nut-busting torque (when used with ¾” DXS® drive accessories) and 75 ft-lbs of forward tightening torque.
• Durability: Steel reinforced frame, chemical and impact resistant housing and IPX6-certified environmental rating for protection against water ingress.
• Productivity: Fast-swapping DXS® accessories let you perform multiple jobs with one tool, decreasing downtime and saving space in your toolkit.
• Control: Variable speed trigger with electronic brake stops the drive when trigger is released. Includes the IQV® Power Control System with 1 mode to auto-stop pre-tightening passenger tires. Finish lug installation with a calibrated torque wrench for perfect installations.
• Versatility: Maneuver more easily with a compact design that provides greater access to tight spaces. IQV20™ battery compatibility eliminates the need to purchase multiple battery types.
• Visibility: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Ergonomics: Lightweight 6.1lb build and ergonomic overmold pistol grip for comfortable all-day use and less operator fatigue.
• Quality: Our best warranty ever – 5 yr. Limited Warranty stands behind our legendary quality and durability.
• Value: Increase your time in service and save replacement costs by simply switching out worn or broken drives to get the tool working like new.
• Includes: DXS2 1/2" 2" Extended Anvil (EA42H).

Includes: DXS2 1/2" 2" Extended Anvil (EA42H). Compatible with all DXS2 anvils and sockets sold as separate sets. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: DXS Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include removing and fastening passenger tire wheel bolts, tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Hammer Case: Steel-lined Aluminum
Handle Material: Overmolded Grip
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 2
Nut-busting/Breakaway Torque (ft-lb): 1601
Nut-busting/Breakaway Torque (in-lb): 19206
Nut-busting/Breakaway Torque (nm): 2170
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.2
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 76
Recommende

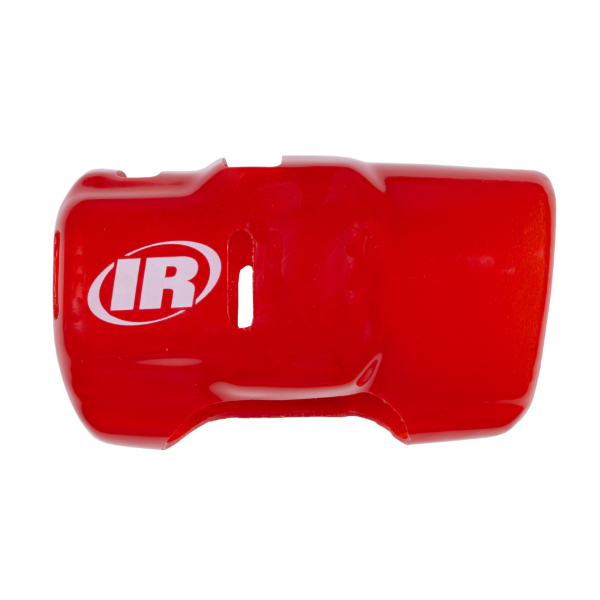

IR W8001-BOOT

Protective Tool Boot for Ingersoll Rand W8001 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with the Ingersoll Rand W8001 Series Impact Wrench
Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• W8171
• W8171-K2
• W8171-K2-AP1
• W8171-K2-CN
• W8171-K2-EU
• W8171-K2-IN
• W8171-K2-JP
• W8171-K2-KR
• W8191
• W8191-K2
• W8191-K2-AP1
• W8191-K2-CN
• W8191-K2-EU
• W8191-K2-IN
• W8191-K2-JP
• W8191-K2-KR
• W8571
• W8571-K2
• W8571-K2-AP1
• W8571-K2-CN
• W8571-K2-EU
• W8571-K2-IN
• W8571-K2-JP
• W8571-K2-KR
• W8591
• W8591-K2
• W8591-K2-AP1
• W8591-K2-CN
• W8591-K2-EU
• W8591-K2-IN
• W8591-K2-JP
• W8591-K2-KR

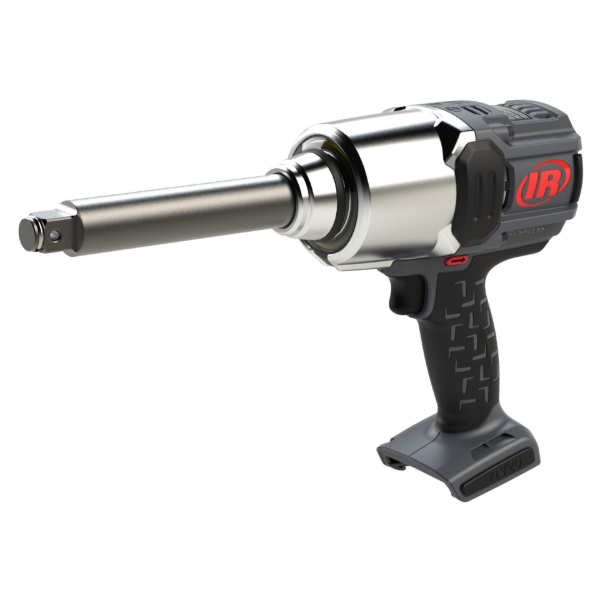

IR W8571

3/4" 20V Cordless Impact Wrench Bare Tool, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Also available in the W8571-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Also available in the W8571-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 6" Extended
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 14.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight

IR W8571-K2

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Kit includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Kit Includes: (2) BL2022 5.0Ah Batteries and 20V Battery Charger.

Includes: W8571 3/4" 6" Extended Anvil Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 6" Extended
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 14.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb): 7.7
Product Wei

IR 04559217

Housing

IR W8591

1" 20V Cordless Impact Wrench Bare Tool, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Also available in the W8591-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Also available in the W8591-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Includes: Hanger Kit included. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 6" Extended
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 14.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75<

IR W8591-K2

1" 20V Cordless Impact Wrench 2 Battery Kit, 2000 ft-lb Torque, 6" Extended Anvil, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Kit includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Kit Includes: (2) BL2022 5.0Ah Batteries and 20V battery charger.

Includes: W8971 1" 6" Extended Anvil Impact Wrench, Hanger Kit, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Charger Cord, Manuals
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 6" Extended
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 14.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb): 7.7
Produ

IR W9491-K2E

1" 20V Cordless Impact Wrench 2 Battery Kit, 2600 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle

Introducing the world’s most powerful 1" cordless impact wrench: the W9491 from Ingersoll Rand. Get 2,600 ft-lbs of nut busting torque with 100% mobility from the market leader in 1” impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.

Features And Benefits

• POWER: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 2,600 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
• PRODUCTIVITY: 250 bolts per charge – tackle a full day’s worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IP56 rated for tough environmental conditions.
• SAFETY: Remove hoses & trip hazards to keep operators & technicians safe
• IQV® Power Control System includes 3 modes: MAX Power, MID, and Snug
• Brushless motor delivers durability and efficiency
• 360° adjustable D-handle: rotates fully around the tool as the job demands
• Impact and chemical-resistant housing
• Compatible with IQV® 20 Series Battery System
• 3-year limited warranty
• Kit includes impact wrench, (2) batteries, charger, charger cord, and manuals

Includes: W9491 1" Impact Wrench, (2) BL2022 5.0Ah Batteries, BC1221 Dual Bay Charger, Charger Cord, Manuals
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Inside Trigger
Anvil Length: Standard
Blows per Min: 1170 (BL2022)
Bolts per Charge (on and Off): 250
Built-in Light: No
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Fasteners per charge: 250
Forward Torque setting 1 (ft-lb): 184
Forward Torque setting 1 (in-lb): 2213
Forward Torque setting 1 (nm): 250
Forward Torque setting 2 (ft-lb): 406
Forward Torque setting 2 (in-lb): 4868
Forward Torque setting 2 (nm): 550
Forward Torque setting 3 (ft-lb): 2213
Forward Torque setting 3 (in-lb): 26552
Forward Torque setting 3 (nm): 3000
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 890
Max Torque (ft-lb): 2213
Max Torque (in-lb): 26552
Max Torque (nm): 3000
Motor: Brushless Motor
Number of Batteries Required: 2
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2600
Nut-busting/Breakaway Torque (in-lb): 31200
Nut-busting/Breakaway Torque (nm): 3525
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 94.55
Product Length (in): 20.13
Product Width (in): 6.93
Product Height (in): 8.11
Product Weight (lb): 24.3
Product Weight (lb) (with Battery): 27.5
Recommended Forward Torque Range (ft-lb): 2213
Recommended Forward Torque Range (in-lb): 26552
Recommended Forward Torque Range (nm): 3000
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 500
RPM Setting 2: 540
Sound Pressure/Power Db(A): 94.0 / 105.0
Standards/Certifications: Ul Listed, Csa Certified, IP56 rated
Tool Type: High-torque
Vibration Level (m/s2): 25.8
Vibration Uncertainy K* (m/s2): 8.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• W9691-K2E
• 2850MAX
• 285B
• W9491-K4E

IR W9491-K2L

1" IMPACT KIT, W9491-K2L

IR W9491-K4L

1" IMPACT KIT, W9491-K4L

IR W9691-18

RETAING RING

IR W9691-249A

POWER REGULATOR

IR W9691-254

SPRING

IR W9691-40

HOUSING SET

IR W9691-93

TRIGGER

IR W9691-K2E

1" 20V Cordless Impact Wrench 2 Battery Kit, 6" Ext Anvil, 3000 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle

Introducing the world’s most powerful extended anvil 1" cordless impact wrench: the W9691 from Ingersoll Rand. Get 3,000 ft-lbs of nut busting torque with 100% mobility from the market leader in 1” impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.

Features And Benefits

• Power: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 3,000 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
• Productivity: 250 bolts per charge – tackle a full day’s worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• IP56 rated for tough environmental conditions.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe.
• IQV® Power Control System includes 3 modes: MAX Power, MID, and Snug.
• Brushless motor delivers durability and efficiency.
• 360° adjustable D-handle: rotates fully around the tool as the job demands.
• Impact and chemical-resistant housing.
• Compatible with IQV® 20 Series Battery System.
• 3-year limited warranty.
• Kit includes impact wrench, (2) batteries, charger, charger cord, and manuals.

Includes: W9691 6" Extended Anvil Impact Wrench, (2) BL2022 5.0Ah Batteries, BC1221 Dual Bay Charger, Charger Cord, Manuals
Product Application and Uses: Cordless Impact Wrenches Are Designed To Remove And Install Threaded Fasteners.
Actuation/Throttle Type/Switch Type: Inside Trigger
Anvil Length: 6" Extended
Blows per Min: 1170 (BL2022)
Bolts per Charge (on and Off): 250
Built-in Light: No
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Fasteners per charge: 250
Forward Torque setting 1 (ft-lb): 184
Forward Torque setting 1 (in-lb): 2213
Forward Torque setting 1 (nm): 250
Forward Torque setting 2 (ft-lb): 406
Forward Torque setting 2 (in-lb): 4868
Forward Torque setting 2 (nm): 550
Forward Torque setting 3 (ft-lb): 2213
Forward Torque setting 3 (in-lb): 26552
Forward Torque setting 3 (nm): 3000
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 890
Max Torque (ft-lb): 2213
Max Torque (in-lb): 26552
Max Torque (nm): 3000
Motor: Brushless Motor
Number of Batteries Required: 2
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 3000
Nut-busting/Breakaway Torque (in-lb): 35996
Nut-busting/Breakaway Torque (nm): 4067
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.09
Product Length (in): 26.13
Product Width (in): 6.93
Product Height (in): 8.11
Product Weight (lb): 25.9
Product Weight (lb) (with Battery): 27.5
Recommended Forward Torque Range (ft-lb): 2213
Recommended Forward Torque Range (in-lb): 26552
Recommended Forward Torque Range (nm): 3000
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 500
RPM Setting 2: 540
Sound Pressure/Power Db(A): 95.9 / 106.9
Standards/Certifications: Ul Listed, Csa Certified, IP56 rated
Tool Type: High-torque
Vibration Level (m/s2): 23.5
Vibration Uncertainy K* (m/s2): 7.7
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Trackin

IR W9691-K2L

1" IMPACT KIT, W9691-K2L

IR W9691-K4L

1" IMPACT KIT, W9691-K4L

IR W9691TL

TORQUE LIMITED-1" IQV20 BARE TOOL IMPACT WRENCH

IR W9691TL-K4

TORQUE LIMITED-1" IQV20 4 BATT. IMPACT WRENCH KIT

IR WARNING-10-99

WARNING LABEL

IR 04559415

BODY PENDANT

IR WARNING-17-99

WARNING LABEL

IR WARNING-22-99

LABEL

IR WARNING-25-99

LABEL

IR WARNING-27-99

LABEL WARNING-27-99

IR WARNING-38-99

WARNING LABEL

IR WARNING-39-99

Warning Label

IR WARNING-41-99

WARNING LABEL

IR WARNING-4-99

WARNING LABEL

IR WARNING-6-99

WARNING LABEL

IR WARNING-7-99

WARNING LABEL

IR 04560157

SNAP RING

IR WASHER LOCK-1.50

WASHER

IR WB1181518

1-1/8" DRILL STEEL - 18" SHK 7/8" X 3-1/4" , QTY 1

IR Y-8521-0033-0000

POWER CORD 1.5M FOR INDIA

IR Y-8521-7001-0000

CABLE (820MM)

IR Y-8673-2001-0000

PIN (2X4)

IR Y-8690-2001-0000

MINUS DRIVER

IR Y-9010-1001-0000

O-RING

IR Y-9010-1012-0000

O-RING

IR Y-9010-1017-0000

O-RING

IR Y-9010-1021-0000

O-RING

IR Y-9010-1032-0000

O-RING

IR Y-9010-1047-0000

O-RING

IR Y-9010-1054-0000

O-RING (P10)

IR Y-9010-1056-0000

O-RING (P4)

IR Y-9010-3003-0000

O-RING

IR Y-9010-4007-0000

O-RING (N14)

IR Y-9010-4011-0000

O-RING

IR Y-9010-4023-0000

O-RING
