PAVING BREAKER 1 X 4 1/4
IR PB35AL8
IR PB35AL8
Pavement Breaker, 1 X 4-1/4" Hex Shank, 6.25" Stroke Length, 1250 BPM, 1-3/4" Bore
Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB35 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.Features And Benefits
- Power: With 1250 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
- Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
- Built-in lubricator helps ensure adequate lubrication.
- Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
- 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
Product Application and Uses: Ideal for a variety of projects, from bridge deck resurfacing to general demolition
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 49
Air Consumption @ Load (l/min): 1388
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Height Over Spindle (in): 25
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: No
Power Source: Air Powered
Product Length (in): 25
Product Width (in): 19
Product Weight (lb): 40
Retainer Type: Latch
Shank SIze (in): 1 X 4-1/4
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year
Similar IR
- PB50AS1
$1,232.00
PAVING BREAKER 1X41/4
IR PB35AS8
IR PB35AS8
Pavement Breaker, 1 X 4-1/4" Hex Shank, 6.25" Stroke Length, 1250 BPM, 1-3/4" Bore
Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB35 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.Features And Benefits
- Power: With 1250 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
- Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
- Built-in lubricator helps ensure adequate lubrication.
- Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
- 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
- Muffler Reduces Noise
Product Application and Uses: These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work; breaking large boulders in mines, quarries and general demolition work.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 49
Air Consumption @ Load (l/min): 1388
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 25
Product Weight (lb): 43
Retainer Type: Latch
Shank SIze (in): 1 X 4-1/4
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year
Similar IR
- PB35AL8
$1,254.40
NARROW SCALER - 7" CLECO SHK, QTY 5
IR PF2200-392
IR PF2200-392
Narrow CLECO Scaler Chisel Steels 7"L
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.Includes: (5) Scaler Chisel Steels
Product Application and Uses: Designed for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with CLECO style chisels including Ingersoll Rand 125CI-A, 125CI, 125-A, 125.
Chisel Style: Narrow
Housing Material: Steel
Product Length (in): 7
Product Weight (lb): 0.5
Shank SIze (in): 0.68
Shank Type: CLECO
For Use With
- 125CI-A
$23.00
2" WIDE SCALER - 7" CLECO SHK, QTY 5
IR PF2200-390
IR PF2200-390
2" Wide CLECO Scaler Chisel Steels 7"L
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.Includes: (5) Scaler Chisel Steels
Product Application and Uses: Designed for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with CLECO style chisels including Ingersoll Rand 125CI-A, 125CI, 125-A, 125.
Chisel Style: 2" Wide
Housing Material: Steel
Product Length (in): 7
Product Width (in): 2
Product Weight (lb): 0.5
Shank SIze (in): 0.68
Shank Type: CLECO
For Use With
- 125CI-A
$76.00

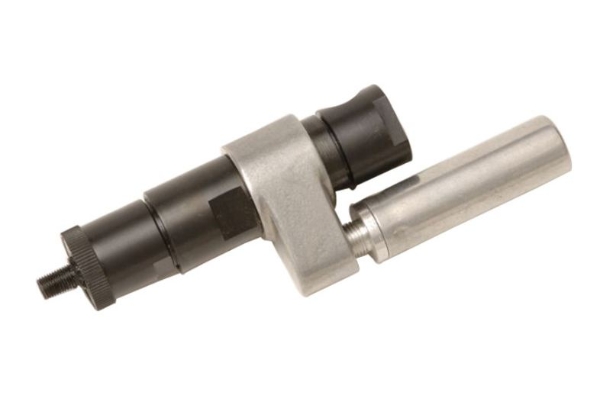

Power Motor
AA 7543-B
AA 7543-B
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 550 RPM, 0.25 HP, 10.6 NM, Reversible
$1,754.40
RPK; FA150 BU Lift to Shift Handle Assembl
IR 47524904001
IR 47524904001
RPK; FA150 BU Lift to Shift Handle Assembl Call for pricing
1" FLAT CHISEL - 9"
IR HH1-214F-9
IR HH1-214F-9
1" Flat Chipping Hammer Chisel Steel - 9"L Hex Shank Oval Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (10) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA1SA, 3DA1SA, 4DA1SA, 1A1SA, 2A1SA, 3A1SA, 4A1SA chipping hammers
Chisel Edge Style: Flat
Chisel Style: Flat
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 6.625
Product Length (in): 9
Product Width (in): 1
Product Weight (lb): 1.25
Shank Length (in): 2.375
Shank SIze (in): 0.58
Shank Type: Hex
For Use With
- 1A1SA
- 2A1SA
- 2DA1SA
- 3A1SA
- 3DA1SA
- 4A1SA
- 4DA1SA
$32.00
MOIL POINT - 9"
IR HH1-214M-9
IR HH1-214M-9
9" Moil Point Chipping Hammer Steel, Hex Shank Oval Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (10) Moil Point Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA1SA, 3DA1SA, 4DA1SA, 1A1SA, 2A1SA, 3A1SA, 4A1SA chipping hammers
Chisel Style: Moil Point
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 6.625
Product Length (in): 9
Product Weight (lb): 1.25
Shank Length (in): 2.375
Shank SIze (in): 0.58
Shank Type: Hex
For Use With
- 1A1SA
- 2A1SA
- 2DA1SA
- 3A1SA
- 3DA1SA
- 4A1SA
- 4DA1SA
$35.00
2" FLAT CHISEL - 12" .68 RD SHK OV COL, QTY 1
IR HH1-323-12
IR HH1-323-12
2" Scaling Chipping Hammer Chisel Steels, 12"L Round Shank Oval Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (10) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA2SA, 3DA2SA, 4DA2SA, 1A2SA, 2A2SA, 3A2SA, 4A2SA chipping hammers
Chisel Style: Scaling
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 9.625
Product Length (in): 12
Product Width (in): 2
Product Weight (lb): 2
Shank Length (in): 2.375
Shank SIze (in): 0.68
Shank Type: Round
For Use With
- 1A2SA
- 2A2SA
- 2DA2SA
- 3A2SA
- 3DA2SA
- 4A2SA
- 4DA2SA
$60.00
CASE
IR ILA582A1-A727
IR ILA582A1-A727
Aluminum Hammer Case Assembly Service Part for Ingersoll Rand 5982 Series Impact Wrench
For Use With- 5982A1
$2,620.00
SERIAL INTERFACE ADAPTER
IR QC-ADPT-1
IR QC-ADPT-1
INSIGHTqc Serial Interface Adapter
The INSIGHTqc™ Controller provides optimal flexibility for the workstation with compatibility to a variety of plug-n-play accessories to maximize productivity for your manufacturing line. A variety of cables and extension cables are available to customize your production setup.Color: Grey
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 115V, STANDARD
IR QCD11
IR QCD11
INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES option.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 115V, FIELDBUS
IR QCD11-F
IR QCD11-F
INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
Insight QC Controller, D-Type, 115V, FILEDBUS & MES
IR QCD11-FM
IR QCD11-FM
INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 115V, MES
IR QCD11-M
IR QCD11-M
INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
Insight QC Controller, 120V, Standard Plus Profibus Card
IR QCD12-F
IR QCD12-F
INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 115V, Profibus, Filedbus &Mes
IR QCD12-FM
IR QCD12-FM
INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 115V, Devicenet, Fieldbus
IR QCD13-F
IR QCD13-F
INSIGHTqc™ Controller, 120V AC, Display, Standard Plus DeviceNet Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 115V, Devicenet, Filedbus &Mes
IR QCD13-FM
IR QCD13-FM
INSIGHTqc™ Controller, 120V AC, Display, Standard Plus DeviceNet Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 220V, STANDARD
IR QCD21
IR QCD21
INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES option.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 220V, FILEDBUS & MES
IR QCD21-FM
IR QCD21-FM
INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 220V, FIELDBUS
IR QCD21-F
IR QCD21-F
INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
INSIGHT QC CONTROLLER, D-TYPE, 220V, MES
IR QCD21-M
IR QCD21-M
INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 220V, Profibus, Fieldbus
IR QCD22-F
IR QCD22-F
INSIGHTqc™ Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 220V, Profibus, Filedbus &Mes
IR QCD22-FM
IR QCD22-FM
INSIGHTqc™ Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 220V, Devicenet, Fieldbus
IR QCD23-F
IR QCD23-F
INSIGHTqc™ Controller, 230V AC, Display, Standard plus DeviceNet Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
Insight Qc Controller, D-Type, 220V, Devicenet, Filedbus &Mes
IR QCD23-FM
IR QCD23-FM
INSIGHTqc™ Controller, 230V AC, Display, Standard plus DeviceNet Card Hardware
The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.Features And Benefits
- SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
- FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
- CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
- Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
- System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year
Call for pricing
INSIGHTQCX CONTROLLER, DISPLAY, STANDARD
IR QCXD11
IR QCXD11
INSIGHTqcx Cordless Controller, Standard Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year
Call for pricing
INSIGHTQCX CONTROLLER, DISPLAY, FIELDBUS
IR QCXD11-F
IR QCXD11-F
INSIGHTqcx Cordless Controller, Standard Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year
Call for pricing
INSIGHTQCX CONTROLLER, DISPLAY, FIELDBUS & MES
IR QCXD11-FM
IR QCXD11-FM
INSIGHTqcx Cordless Controller, Standard Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year
Call for pricing
INSIGHTQCX CONTROLLER, DISPLAY, MES
IR QCXD11-M
IR QCXD11-M
INSIGHTqcx Cordless Controller, Standard Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year
Call for pricing
Insightqcx Controller, Display, Profibus, Fieldbus & Mes
IR QCXD12-FM
IR QCXD12-FM
INSIGHTqcx Cordless Controller Standard plus PROFIBUS Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Warranty: 1-year
Call for pricing
Insightqcx Controller, Display, Profibus, Fieldbus
IR QCXD12-F
IR QCXD12-F
INSIGHTqcx Cordless Controller, Standard plus PROFIBUS Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Warranty: 1-year
Call for pricing
Insightqcx Controller, Display, Ccâ€Link, Fieldbus
IR QCXD15-F
IR QCXD15-F
INSIGHTqcx Cordless Controller Standard plus CC-LINK Hardware, Display
When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.Features And Benefits
- SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
- FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
- CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls
Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Warranty: 1-year
Call for pricing
Cordless Clutch Non-Programmable 8 Nm Pistol - 1/4" Quick-Change
IR QCN2P08Q4
IR QCN2P08Q4
Cordless Clutch Non-Programmable 8 Nm Pistol - 1/4" Quick-Change Call for pricing
Cordless Clutch Programmable 30NM Angle - 3/8in Square Dr.
IR QCP2A30S6
IR QCP2A30S6
3/8" 20V Cordless Angle Clutch Tool, 30 Nm, 300 RPM, Programmable
QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. The clutch tool offers a seamless setup experience via the INSIGHT™ Connect app, enabling quick programming of advanced parameters to meet specific application needs. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.Features And Benefits
- Precise: Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/—10% accuracy, providing higher repeatability and consistent output; The QC Series Clutch Tool configuration is equipped with a lockable, tamper-proof clutch that delivers up to 30 Nm of torque for various applications; Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
- Simple: The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece; Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality; Unlock faster and smarter tool configurations with 8 programmable parameters, making it easy to meet specific application requirements; QC Series Clutch Tools are compatible with IQV20™ battery and charger platform, providing flexibility and reducing operational costs.
- Durable: Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Production Environment
Housing Material: Nylon
Lumens: 11
Max Free Speed (rpm): 300
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.07
Product Weight (lb): 3.7
Product Weight (lb) (with Battery): 4.6
Recommended Forward Torque Range (ft-lb): 11-22
Recommended Forward Torque Range (in-lb): 133-266
Recommended Forward Torque Range (nm): 15-30
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 72 / 80
Vibration Level (m/s2): 0.7
Vibration Uncertainy K* (m/s2): 0.4
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: USB-C
Similar IR
- QCN2A30S6
- QCP2P02Q4
- QCP2P04Q4
- QCP2P08Q4
- QCP2P12Q4
Call for pricing
CORDLESS CLUTCH PROGRAMMABLE 8 NM PISTOL - 1/4" QUICK-CHANGE
IR QCP2P08Q4
IR QCP2P08Q4
1/4" Quick Change 20V Cordless Clutch Tool, 8 Nm, 700 RPM, Programmable, Pistol
QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. The clutch tool offers a seamless setup experience via the INSIGHT™ Connect app, enabling quick programming of advanced parameters to meet specific application needs. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.Features And Benefits
- Precise: Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/—10% accuracy, providing higher repeatability and consistent output; The QC Series Clutch Tool configuration is equipped with a lockable, tamper-proof clutch that delivers up to 30 Nm of torque for various applications; Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
- Simple: The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece; Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality; Unlock faster and smarter tool configurations with 8 programmable parameters, making it easy to meet specific application requirements; QC Series Clutch Tools are compatible with IQV20™ battery and charger platform, providing flexibility and reducing operational costs.
- Durable: Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Housing Material: Nylon
Lumens: 11
Max Free Speed (rpm): 700
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.26
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Recommended Forward Torque Range (ft-lb): 2.2-5.9
Recommended Forward Torque Range (in-lb): 27-71
Recommended Forward Torque Range (nm): 3-8
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 73 / 81
Vibration Level (m/s2): 0.8
Vibration Uncertainy K* (m/s2): 0.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: USB-C
Similar IR
- QCP2P02Q4
- QCP2P04Q4
- QCP2P12Q4
- QCP2A30S6
- QCN2P02Q4
- QCN2P04Q4
- QCN2P08Q4
- QCN2P12Q4
Call for pricing
CORDLESS CLUTCH PROGRAMMABLE 12 NM PISTOL - 1/4" QUICK-CHANGE
IR QCP2P12Q4
IR QCP2P12Q4
1/4" Quick Change 20V Cordless Clutch Tool, 12 Nm, 700 RPM, Programmable, Pistol
QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. The clutch tool offers a seamless setup experience via the INSIGHT™ Connect app, enabling quick programming of advanced parameters to meet specific application needs. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.Features And Benefits
- Precise: Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/—10% accuracy, providing higher repeatability and consistent output; The QC Series Clutch Tool configuration is equipped with a lockable, tamper-proof clutch that delivers up to 30 Nm of torque for various applications; Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
- Simple: The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece; Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality; Unlock faster and smarter tool configurations with 8 programmable parameters, making it easy to meet specific application requirements; QC Series Clutch Tools are compatible with IQV20™ battery and charger platform, providing flexibility and reducing operational costs.
- Durable: Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Housing Material: Nylon
Lumens: 11
Max Free Speed (rpm): 700
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.26
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Recommended Forward Torque Range (ft-lb): 3.7-8.9
Recommended Forward Torque Range (in-lb): 44-106
Recommended Forward Torque Range (nm): 5-12
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 73 / 81
Vibration Level (m/s2): 0.8
Vibration Uncertainy K* (m/s2): 0.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: USB-C
Similar IR
- QCP2P02Q4
- QCP2P04Q4
- QCP2P08Q4
- QCP2A30S6
- QCN2P02Q4
- QCN2P04Q4
- QCN2P08Q4
- QCN2P12Q4
Call for pricing
Insight QCX RF Carrier Board Assembly Kit, No Radio
IR QCX-A499-CARR-NR-K
IR QCX-A499-CARR-NR-K
Insight QCX RF Carrier Board Assembly Kit, No Radio Call for pricing
PLASTIC HOUSING ASSEMBLY KIT, D TYPE
IR QCX-A830D-K
IR QCX-A830D-K
PLASTIC HOUSING ASSEMBLY KIT, D TYPE Call for pricing
TOOLING FOR ANGLEHOUSING CAP
IR 120A4-531T-30
IR 120A4-531T-30
TOOLING FOR ANGLEHOUSING CAP Call for pricing
