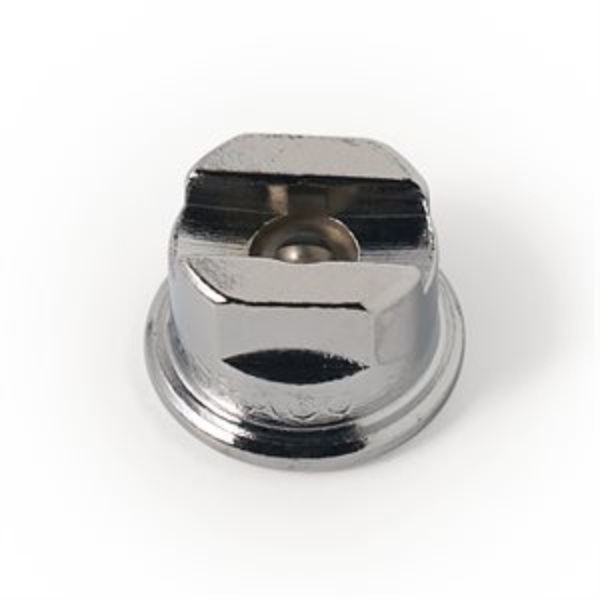

SILVER FLAT TIP, SPRAY TC
GG 163223
SILVER FLAT TIP, SPRAY TC
Graco 163223 Silver Flat Tip, 223
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 223 Silver Flat Tip has a 0.023 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.023
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SILVER FLAT TIP, SPRAY TC
GG 163225
SILVER FLAT TIP, SPRAY TC
Graco 163225 Silver Flat Tip, 225
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 225 Silver Flat Tip has a 0.025 inch orifice and produces a 4 to 6 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.025
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4

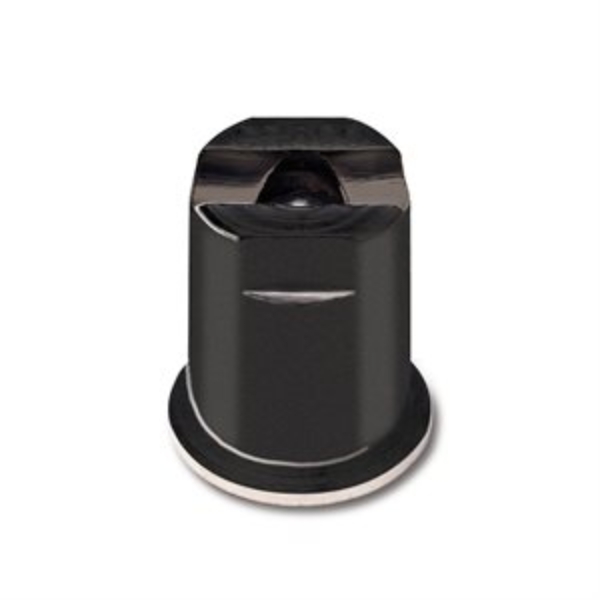

FF FLAT TIP, SPRAY TC
GG 163312
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 312 The 312 Fine Finish Flat Tip produces a 6 to 8 inch fan pattern and a 0.012 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163315
SILVER FLAT TIP, SPRAY TC
Graco 163315 Silver Flat Tip, 315
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 315 Silver Flat Tip has a 0.015 inch orifice and produces a 6 to 8 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 15
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.015
- Pattern Size (in): 6 to 8
- Pattern Size (mm): 152.4 to 203.2
SILVER FLAT TIP, SPRAY TC
GG 163317
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 317 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 317 Silver Flat Tip has a 0.017 inch orifice and produces a 6 to 8 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163409
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 409 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 409 Silver Flat Tip has a 0.009 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163419
SILVER FLAT TIP, SPRAY TC
Graco 163419 Silver Flat Tip, 419
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 419 Silver Flat Tip has a 0.019 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.019
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
FF FLAT TIP, SPRAYTC
GG 163514
FF FLAT TIP, SPRAYTC
Graco 163514 Fine Finish Flat Tip, 514
The 514 Fine Finish Flat Tip produces a 10 to 12 inch fan pattern and a 0.014 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.21
- Maximum Flow Rate (L/min): 0.79
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.014
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
SILVER FLAT TIP, SPRAY TC, FF
GG 163535
SILVER FLAT TIP, SPRAY TC, FF
Graco 163535 Silver Flat Tip, 535
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 535 Silver Flat Tip has a 0.035 inch orifice and produces a 10 to 12 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.035
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
FF FLAT TIP, SPRAY TC
GG 163612
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 612 The 612 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.012 inch orifice.
FF FLAT TIP, SPRAY TC
GG 163614
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 614 The 614 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.014 inch orifice.
SILVER FLAT TIP, SPRAY TC
GG 163625
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 625 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 625 Silver Flat Tip has a 0.025 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163627
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 627 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 627 Silver Flat Tip has a 0.027 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163629
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 629 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 629 Silver Flat Tip has a 0.029 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163633
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 633 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 633 Silver Flat Tip has a 0.033 inch orifice and produces a 12 to 14 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163719
SILVER FLAT TIP, SPRAY TC
Graco 163719 Silver Flat Tip, 719
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 719 Silver Flat Tip has a 0.019 inch orifice and produces a 14 to 16 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.39
- Maximum Flow Rate (L/min): 1.48
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.019
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
SILVER FLAT TIP, SPRAY TC
GG 163731
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 731 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 731 Silver Flat Tip has a 0.031 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163733
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 733 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 733 Silver Flat Tip has a 0.033 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163823
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 823 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 823 Silver Flat Tip has a 0.023 inch orifice and produces a 16 to 18 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
SILVER FLAT TIP, SPRAY TC
GG 163923
SILVER FLAT TIP, SPRAY TC
Graco 163923 Silver Flat Tip, 923
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 923 Silver Flat Tip has a 0.023 inch orifice and produces a 18 to 20 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 45
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 508
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 18
- Minimum Fan Width (mm): 457
- Orifice Diameter (in): 0.023
- Pattern Size (in): 18 to 20
- Pattern Size (mm): 457.2 to 508
