SANDER
IR 77A60W107
IR 77A60W107
Extended Angle Air Sander, 7" Pad, 6,000 RPM, 1.5 HP, 5/8"-11 Thread, Side Exhaust
This Pro Series 77A extended angle sander is designed for large areas and heavy duty materials. Your tool works hard so you don’t have to.Features And Benefits
- Increased Safety: With a unique spring-loaded latch that resets each time the lever is released, you’ll never have to worry about your safety while working with this sander.
- Durability: With double-row ball bearings, a solid steel motor, and arbor housing, this tool will last.
- Reach: Thanks to an ergonomic design, the 77A extended angle sander can reach tough and tight spaces.
- Automatic Lubrication: Built-in mist lubricator automatically oils motor when throttle is activated.
Product Application and Uses: These air sanders are designed for both light and heavy sanding jobs such as roughing body filler, removing rust and smoothing welds.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 39
Bearing Type: Double Row Ball
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Heavy Duty
Exhaust Location: Side
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Mounting Type: Arbor
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Length (in): 17.56
Product Weight (lb): 7.81
Rated Power (hp): 1.5
Rated Power (kW): 1.12
Sound Pressure/Power Db(A): 85.9 / 98.9
Speed Setting: Variable Speed
Standards/Certifications: CE
Vacuum: None
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 7
$2,420.00
POWER MOTOR
IR 7800-1B
IR 7800-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 18000 RPM, 0.85 HP, 1.4 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 9000
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.68
Warranty: 1-year
$2,250.00
POWER MOTOR
IR 7800-B
IR 7800-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 18000 RPM, 0.85 HP, 1.4 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 9000
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.68
Warranty: 1-year
$2,270.00
POWER MOTOR
IR 7801-3B
IR 7801-3B
Milling Air Motor, 7/16"-20 Thd Spindle 5/8" Shaft, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 7/16"-20 Thread
Drive Size (in): 5/8
Drive Type: Round Keyed, Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 49
Max Torque (nm): 5.5
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.89
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 2400
Torque Output @ Max HP (ft-lb): 1.8
Torque Output @ Max HP (nm): 2.5
Warranty: 1-year
$2,880.00
POWER MOTOR
IR 7801-1B
IR 7801-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 49
Max Torque (nm): 5.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 2400
Torque Output @ Max HP (ft-lb): 1.8
Torque Output @ Max HP (nm): 2.5
Warranty: 1-year
$2,250.00
POWER MOTOR
IR 7801-B
IR 7801-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 49
Max Torque (nm): 5.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 2400
Torque Output @ Max HP (ft-lb): 1.8
Torque Output @ Max HP (nm): 2.5
Warranty: 1-year
$2,270.00
POWER MOTOR
IR 7802-1B
IR 7802-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 2500 RPM, 0.85 HP, 10.3 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 2500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 7.6
Max Torque (in-lb): 91
Max Torque (nm): 10.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 1300
Torque Output @ Max HP (ft-lb): 3.5
Torque Output @ Max HP (nm): 4.7
Warranty: 1-year
$2,270.00
POWER MOTOR
IR 7802-B
IR 7802-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 2500 RPM, 0.85 HP, 10.3 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 2500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 7.6
Max Torque (in-lb): 91
Max Torque (nm): 10.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 1300
Torque Output @ Max HP (ft-lb): 3.5
Torque Output @ Max HP (nm): 4.7
Warranty: 1-year
$2,290.00

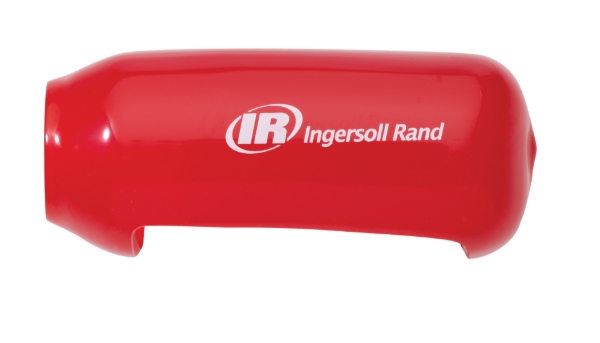

BOOT
IR 7802-BOOT
IR 7802-BOOT
Protective Tool Boot for Ingersoll Rand 7802 Series Air Drill
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Color: Red
Housing Material: Thermoplastic Polymer
For Use With
- 7802A
- 7802AKC
- 7802RA
- 7802RAKC
- 7802RAKCEX
$24.00
POWER MOTOR
IR 7803-1B
IR 7803-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$2,540.00
POWER MOTOR
IR 7803-3B
IR 7803-3B
Milling Air Motor, 7/16"-20 Thd Spindle 5/8" Shaft, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 7/16"-20 Thread
Drive Size (in): 5/8
Drive Type: Round Keyed, Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$3,200.00
POWER MOTOR

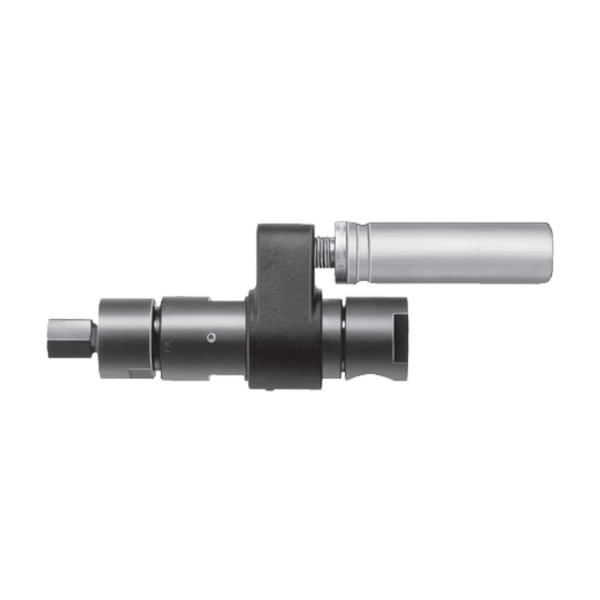

IR 7803-4B
IR 7803-4B
Milling Air Motor, 3/8" Collet, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: Milling
Mounting Type: Base
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$3,200.00
POWER MOTOR
IR 7803-B
IR 7803-B
Inline Multi-Vane Air Motor, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
$2,510.00
BOOT
IR 7803-BOOT
IR 7803-BOOT

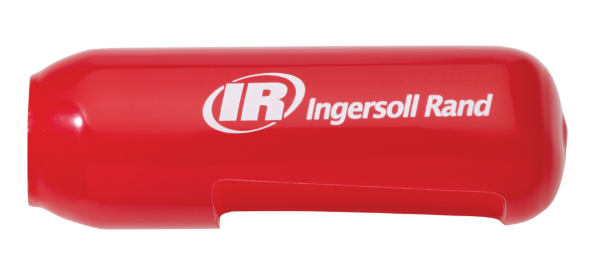

Protective Tool Boot for Ingersoll Rand 7803 Series Air Drill
Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.Features And Benefits
- Protects surrounding surfaces from scratches, nicks ect.
- Protects tool from damage if dropped.
- Adds further protection from unwanted contaminates that can affect tool performance.
Product Application and Uses: For use with Ingersoll Rand 7803, 7803RA, 7803RAKC and 7803RAKCEX air drills
Color: Red
Housing Material: Thermoplastic Polymer
For Use With
- 7803A
- 7803AKC
- 7803RA
- 7803RAKC
- 7803RAKCEX
$25.00
POWER MOTOR
IR 7804-1B
IR 7804-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 365
Max Torque (nm): 41.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 320
Torque Output @ Max HP (ft-lb): 14
Torque Output @ Max HP (nm): 19.1
Warranty: 1-year
$2,520.00
POWER MOTOR
IR 7804-3B
IR 7804-3B
Milling Air Motor, 7/16"-20 Thd Spindle 5/8" Shaft, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 7/16"-20 Thread
Drive Size (in): 5/8
Drive Type: Round Keyed, Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 365
Max Torque (nm): 41.2
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 330
Torque Output @ Max HP (ft-lb): 14
Torque Output @ Max HP (nm): 19.1
Warranty: 1-year
$3,210.00
POWER MOTOR
IR 7804-2B
IR 7804-2B
Milling Air Motor, 3/8" Collet, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 365
Max Torque (nm): 41.2
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 320
Torque Output @ Max HP (ft-lb): 14
Torque Output @ Max HP (nm): 19.1
Warranty: 1-year
$3,220.00
POWER MOTOR
IR 7804-B
IR 7804-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 650 RPM, 0.85 HP, 41.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 365
Max Torque (nm): 41.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 320
Torque Output @ Max HP (ft-lb): 14
Torque Output @ Max HP (nm): 19.1
Warranty: 1-year
$2,530.00
POWER MOTOR
IR 7805-3B
IR 7805-3B
Milling Air Motor, 7/16"-20 Thd Spindle 5/8" Shaft, 350 RPM, 0.85 HP, 75.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 7/16"-20 Thread
Drive Size (in): 5/8
Drive Type: Round Keyed, Threaded
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 668
Max Torque (nm): 75.5
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 170
Torque Output @ Max HP (ft-lb): 27
Torque Output @ Max HP (nm): 36
Warranty: 1-year
$3,190.00
POWER MOTOR
IR 7805-B
IR 7805-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 350 RPM, 0.85 HP, 75.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 668
Max Torque (nm): 75.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 170
Torque Output @ Max HP (ft-lb): 27
Torque Output @ Max HP (nm): 36
Warranty: 1-year
$2,550.00
POWER MOTOR
IR 7806-1B
IR 7806-1B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 13500 RPM, 0.7 HP, 1.4 NM, Reversible
Air Consumption at Max HP (scfm): 37.3Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 4.36
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 7000
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.71
Warranty: 1-year
$2,450.00
POWER MOTOR
IR 7806-B
IR 7806-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 13500 RPM, 0.7 HP, 1.4 NM, Reversible
Air Consumption at Max HP (scfm): 37.3Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 7000
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.71
Warranty: 1-year
$2,480.00
POWER MOTOR
IR 7805-4B
IR 7805-4B
Milling Air Motor, 3/8" Collet, 350 RPM, 0.85 HP, 75.5 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 668
Max Torque (nm): 75.5
Motor: Rotary Vane
Motor: Milling
Mounting Type: Base
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 170
Torque Output @ Max HP (ft-lb): 27
Torque Output @ Max HP (nm): 36
Warranty: 1-year
$3,150.00
POWER MOTOR
IR 7807-B
IR 7807-B
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 3400 RPM, 0.7 HP, 5.5 NM, Reversible
Air Consumption at Max HP (scfm): 37.3Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 3400
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 49
Max Torque (nm): 5.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 4.24
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 1800
Torque Output @ Max HP (ft-lb): 2.1
Torque Output @ Max HP (nm): 2.8
Warranty: 1-year
$2,460.00
