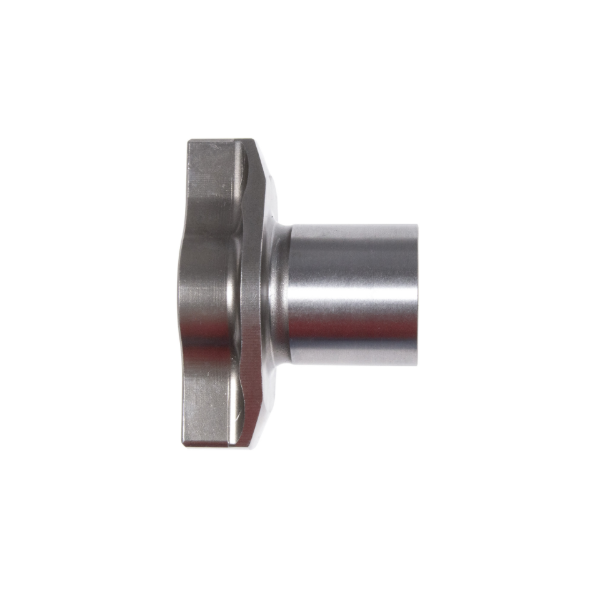

ANVIL ASSEMBLY INTERNAL
IR TA-W7153-526SD
IR TA-W7153-526SD
Anvil Assembly for Ingersoll Rand W7153 Impact
Includes: Internal Anvil, Grease FittingProduct Application and Uses: For use with Ingersoll Rand W7153 Cordless Impact Wrench
For Use With
- W7153
- W7153-AP
- W7153-K22
- W7153-K22-CN
- W7153-K22-IN
- W7153-K22-JP
- W7153-K22-KR
- W7153-K22-SGHK
- W7153-K22B-AN
- W7153-K22B-EU
- W7253-TL
$31.00

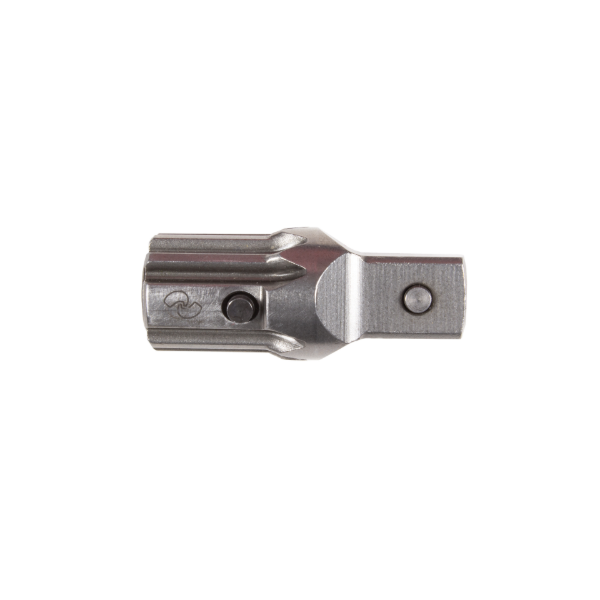

ANVIL ASSM.FOR MODEL 2236PQTIMAX (PIN)
IR TD-2236P-726SD
IR TD-2236P-726SD
1/2" Pin Retainer Anvil Assembly for Ingersoll Rand DXS 2236 Series Air Impact Wrench
Includes: 1/2" Standard Pin AnvilProduct Application and Uses: For use with the Ingersoll Rand 2236QPTIMAX DXS Air Impact Wrench (Pin Retainer)
Anvil Length: Standard
Drive Size (in): 1/2
Drive Type: Square
Retainer Type: Pin Detent
For Use With
- 2236QPTIMAX
Similar IR
- TD-2236-626SD-2
- TD-2236-626SD
$31.00
TROLLEY, 3 TON, STEEL WHEELS, HLK HOIST ADAPTER, D FLANGE
IR TIR6600S-000DJ
IR TIR6600S-000DJ
TROLLEY, 3 TON, STEEL WHEELS, HLK HOIST ADAPTER, D FLANGE $4,200.00
TROLLEY, 3 TON, 2-MTR PENDANT, STEEL WHEEL, HLK HOIST ADAPTER
IR TIR6600S-307AK
IR TIR6600S-307AK
TROLLEY, 3 TON, 2-MTR PENDANT, STEEL WHEEL, HLK HOIST ADAPTER $5,400.00
MOTOR KIT
IR TK-D5241-054
IR TK-D5241-054
Motor Kit for Ingersoll Rand D5241 Cordless Hammer Drill/Driver
Includes: Pinion, Bearing, DC Motor AssemblyProduct Application and Uses: For use with the Ingersoll Rand D5241 Hammer Drill
For Use With
- D5241
- D5241-K22
- D5241-K22-AP1
- D5241-K22-AR
- D5241-K22-BR
- D5241-K22-CN
- D5241-K22-EU
- D5241-K22-IN
- D5241-K22-JP
- D5241-K22-KR
$26.00
3/4" SAE SOCKET SET - DEEP WELL - 8 PIECES
IR SK6H8LN
IR SK6H8LN
3/4" Drive Hex SAE Deep Impact Socket Set, 8-Piece
Includes: 8 sockets (1", 1-1/16", 1-1/8", 1-1/4", 1-5/16", 1-3/8", 1-7/16", 1-1/2") and blow-molded caseDrive Size (in): 3/4
Drive Type: Square
Number of Points: 6
Socket Bit Type: Hex
Socket Depth: Deep
Socket Measurement Type: SAE
Special Features: Impact-grade toughness
Special Features: Chrome-molybdenum steel
Warranty: Lifetime Limited
For Use With
- 259G
$243.00
IMPACT SOCKET SET, 3/4" DRIVE, METRIC
IR SK6M6LN
IR SK6M6LN
3/4" Drive Hex Deep Metric Impact Socket Set, 6-Piece
Includes: 6 sockets (24mm, 2mm, 30mm, 32mm, 33mm, 36mm) and blow-molded caseDrive Size (in): 3/4
Drive Type: Square
Finish: Chrome-molybdenum steel
Number of Points: 6
Socket Bit Type: Hex
Socket Depth: Deep
Socket Measurement Type: Metric
Warranty: Lifetime Limited
For Use With
- 1720P1
- 1720P3
- 2145QIMAX-AP
- 2161XP
- 259
- 2925RBP1TI
$265.00
Lube-Free Multi-Vane Air Motor .90Hp (NEMA)
IR SM2AMAN-A
IR SM2AMAN-A
Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 0.9HP, 1.7ft-lb, 8000 RPM, NEMA
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 30
Air Inlet: 3/8"-18 NPT
Air Pressure (psi): 90
Drive Length (in): 1.95
Drive Size (in): 5/8
Drive Type: Round Keyed
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.26
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2.3
Max Torque (in-lb): 27
Max Torque (nm): 3.1
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: NEMA
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 5.54
Product Width (in): 3.74
Product Height (in): 6.42
Product Weight (lb): 9.15
Rated Power (hp): 0.9
Rated Power (kW): 0.67
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 1.7
Starting Torque (nm): 2.3
Warranty: 1-year
Supersedes
- SM2AMAN
$378.40
Tune-Up Kit
IR SM2AMAN-TK1-A
IR SM2AMAN-TK1-A
Tune-Up Kit for Ingersoll Rand SM2AMAN-A/SM2AMC-A AIngersoll Rand Motor
Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap GasketProduct Application and Uses: For use with SM2AMAN-A and SM2AMC-A Air Motors
For Use With
- SM2AMAN-A
- SM2AMC-A
$117.00
Lube-Free Multi-Vane Air Motor 1.5Hp (NEMA)
IR SM4AMAN-A
IR SM4AMAN-A
Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 1.5HP, 2.6ft-lb, 7900 RPM, NEMA
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 67
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.94
Drive Size (in): 5/8
Drive Type: Round Keyed
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.31
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 50
Max Torque (nm): 5.6
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: NEMA
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 6.56
Product Width (in): 3.9
Product Height (in): 7
Product Weight (lb): 11.22
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 2.6
Starting Torque (nm): 3.5
Warranty: 1-year
Supersedes
- SM4AMAN
$470.00
Lube-Free Multi-Vane Air Motor 3.6Hp (NEMA)
IR SM6AMAN-A
IR SM6AMAN-A
Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 5.3ft-lb, 3.6HP, 7900 RPM, NEMA
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 120
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.95
Drive Size (in): 5/8
Drive Type: Round Keyed
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.31
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 8.7
Max Torque (in-lb): 104
Max Torque (nm): 11.8
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: NEMA
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 7.77
Product Width (in): 5.12
Product Height (in): 8.18
Product Weight (lb): 16.25
Rated Power (hp): 3.6
Rated Power (kW): 2.7
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 5.3
Starting Torque (nm): 7.2
Warranty: 1-year
Supersedes
- SM6AMAN
$520.30
STRAINER ELEMENT 40 MESH, 1-1/2"
IR ST1000-266-24
IR ST1000-266-24
STRAINER ELEMENT 40 MESH, 1-1/2" $127.00
TUNE UP KIT ST15()FP()()()()() MODELS
IR ST150FP-TK1
IR ST150FP-TK1
TUNE UP KIT ST15()FP()()()()() MODELS $705.00
