QX WIFI AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM ETS SQUARE 3/8 INCH
IR QXWD2PT012ES06
IR QXWD2PT012ES06
3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol
QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.Features And Benefits
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth
Call for pricing
QX WIFI AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM STANDARD SQUARE 3/8 INCH
IR QXWD2PT012PS06
IR QXWD2PT012PS06
3/8" 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol
QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.Features And Benefits
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth
Call for pricing

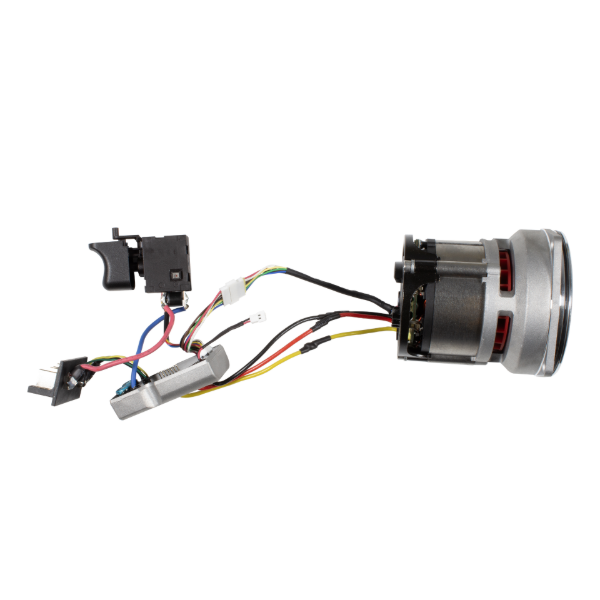

MOTOR KIT
IR TK-W8171-MRK
IR TK-W8171-MRK
Motor Kit for Ingersoll Rand W8000 Series Impact Wrench
Includes: Motor Assembly, Hammer Case O-ringProduct Application and Uses: For use with Ingersoll Rand W8000 Series Impact Wrench
For Use With
- W8171
- W8171-K2
- W8191
- W8191-K2
- W8571
- W8571-K2
- W8591
- W8591-K2
$255.00

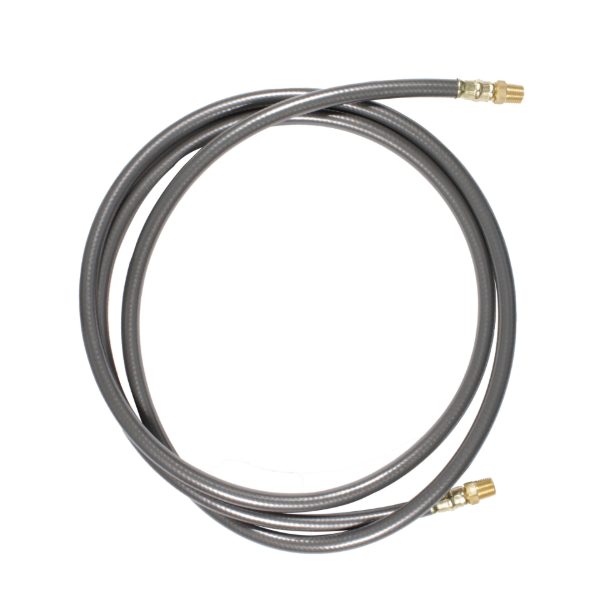

HOSE
IR TP-EP51-130
IR TP-EP51-130
Hose Replacement Part for Ingersoll Rand EP51 Engraving Pen
Product Application and Uses: For use with Ingersoll Rand EP51 Air Engraving penProduct Length (in): 72.05
Product Width (in): 0.5
Product Height (in): 0.5
For Use With
- EP51
- EP51K
Supersedes
- DG100-130
$22.00
NOSE
IR TP-EP51-502
IR TP-EP51-502
Nose for Ingersoll Rand EP51 Engraving Pen
Product Application and Uses: For use with Ingersoll Rand EP51 Air Engraving penProduct Length (in): 1
Product Width (in): 0.62
Product Height (in): 0.62
For Use With
- EP51
- EP51K
$39.00
SOCKET RETAINER KIT FOR W1120
IR W1120-K425
IR W1120-K425
Socket Retainer Kit for Ingersoll Rand W1120 Series Impact Wrench
$15.00
CHIPPER ROUND NOZZLEW/RETAINER
IR W2A2
IR W2A2
Air Chipping Hammer, 2" Stroke, 2300 BPM, Round Shank Round Collar
As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.Features And Benefits
- Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
- Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.
- Reliability: With a long nozzle that allows the bit to rotate, you can expect the same result every time you use these hammers.
Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 16.38
Product Weight (lb): 15.13
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 2
Warranty: 1-year
$750.40
SOCKET RETAINER
IR RR10010S
IR RR10010S
Socket Retainer Kit for Ingersoll Rand QM9 Electric Nutrunner
$15.00
SOCKET RETAINER
IR RR10015S
IR RR10015S
1" Square Thu-Hole Socket Retainer
Product Application and Uses: For use with Ingersoll Rand 2922P1 Air Impact Wrench.Drive Size (in): 1
Drive Type: Square
Retainer Type: Friction Ring and Thru-hole
For Use With
- 2922P1
- 2934B2
- 2934P2
$15.00
ONE PIECE SOCKET RETAIN
IR RR10019S
IR RR10019S
Socket Retainer, 1" Square Drive Thru Hole Retainer for Ingersoll Rand Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 1" Square Drive Thru Hole Retainer Impact WrenchesDrive Size (in): 1
Drive Type: Square
Retainer Type: Thru-hole
$15.00
SOCKET RETAINER
IR RR10035S
IR RR10035S
Socket Retainer, 1-1/2" Square Drive Thru Hole Retainer for Ingersoll Rand Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 1-1/2" Square Drive Thru Hole Retainer Impact WrenchesDrive Size (in): 1-1/2
Drive Type: Square
Retainer Type: Thru-hole
$20.00
AIR MOTOR SM1UPC
IR SM1UPC
IR SM1UPC
Direct Drive Lube Free Air Motor, 12500 RPM, 0.6 HP, 0.81 NM, Reversible
Air Consumption at Max HP (scfm): 42Air Pressure (psi): 90
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Lubrication Type: Lube Free
Max Free Speed (rpm): 12500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.6
Max Torque (in-lb): 7.2
Max Torque (nm): 0.81
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Face
Power Source: Air Powered
Product Weight (lb): 1.75
Rated Power (hp): 0.6
Rated Power (kW): 0.45
Reversible: Reversible
Speed at Max Power (rpm): 6000
Starting Torque (ft-lb): 0.4
Starting Torque (nm): 0.6
Warranty: 1-year
$322.50
Lube-Free Multi-Vane Air Motor .45Hp
IR SM1AMA-A
IR SM1AMA-A
Lube-Free Multi-Vane Air Motor, 3/8 Round Keyless, 0.45HP, 0.4ft-lb, 15000 RPM, Foot/Face/Hub Mount
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 20
Air Inlet: 1/8"-27 NPT
Air Pressure (psi): 90
Drive Length (in): 1.12
Drive Size (in): 3/8
Drive Type: Round Keyless
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.6
Max Torque (in-lb): 6.8
Max Torque (nm): 0.77
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Mounting Type: Hub
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 4.13
Product Width (in): 2.58
Product Height (in): 4.7
Product Weight (lb): 2.43
Rated Power (hp): 0.45
Rated Power (kW): 0.34
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 0.4
Starting Torque (nm): 0.55
Warranty: 1-year
Supersedes
- SM1AMA
$283.80
Air Motor
IR SM4AMB
IR SM4AMB
Direct Drive Lube Free Air Motor, 7900 RPM, 1.5 HP, 5.6 NM, Reversible
Air Consumption at Max HP (scfm): 67Air Pressure (psi): 90
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Lubrication Type: Lube Free
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 50
Max Torque (nm): 5.6
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Face
Power Source: Air Powered
Product Weight (lb): 8.25
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Reversible: Reversible
Speed at Max Power (rpm): 3000
Starting Torque (ft-lb): 2.6
Starting Torque (nm): 3.5
Warranty: 1-year
Call for pricing
