IR 48NB-767

RACE

IR 48NB-769

BEARING

IR 48NB-A750-029

BOX

IR 48NB-A750-045

BOX

IR 48NB-A750-036

BOX

IR 48NB-A750-078

BOX

IR 48NB-A751

COVER

IR 48RA008

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1160 RPM, 3.1 HP, 69.8 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 51
Max Torque (in-lb): 618
Max Torque (nm): 69.8
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 638
Starting Torque (ft-lb): 38
Starting Torque (nm): 51.5
Warranty: 1-year

IR 48RA011

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 772 RPM, 3.1 HP, 105 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 772
Max Pressure (bar): 6.2
Max Torque (ft-lb): 77
Max Torque (in-lb): 929
Max Torque (nm): 105
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 423
Starting Torque (ft-lb): 57
Starting Torque (nm): 77.3
Warranty: 1-year

IR 48RA005

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1690 RPM, 3.1 HP, 47.5 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1690
Max Pressure (bar): 6.2
Max Torque (ft-lb): 35
Max Torque (in-lb): 420
Max Torque (nm): 47.5
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 930
Starting Torque (ft-lb): 26
Starting Torque (nm): 35.3
Warranty: 1-year

IR 48RA017

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 511 RPM, 3.1 HP, 159 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 511
Max Pressure (bar): 6.2
Max Torque (ft-lb): 117
Max Torque (in-lb): 1407
Max Torque (nm): 159
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 278
Starting Torque (ft-lb): 86
Starting Torque (nm): 117
Warranty: 1-year

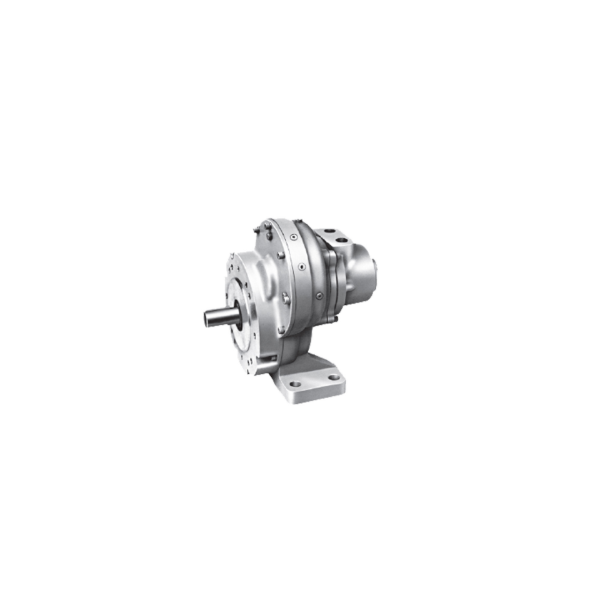

IR 48RA022

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 390 RPM, 3.1 HP, 209 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 390
Max Pressure (bar): 6.2
Max Torque (ft-lb): 154
Max Torque (in-lb): 1850
Max Torque (nm): 209
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 213
Starting Torque (ft-lb): 113
Starting Torque (nm): 153
Warranty: 1-year

IR 48RA014

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 612 RPM, 3.1 HP, 133 NM, Reversible

Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 612
Max Pressure (bar): 6.2
Max Torque (ft-lb): 98
Max Torque (in-lb): 1177
Max Torque (nm): 133
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 332
Starting Torque (ft-lb): 72
Starting Torque (nm): 97.6
Warranty: 1-year

IR 48RB036

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 236 RPM, 3 HP, 317 NM, Reversible

Air Consumption at Max HP (scfm): 90
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 236
Max Pressure (bar): 6.2
Max Torque (ft-lb): 234
Max Torque (in-lb): 2806
Max Torque (nm): 317
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 131
Starting Torque (ft-lb): 167
Starting Torque (nm): 227
Warranty: 1-year

IR 48RB029

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 292 RPM, 3 HP, 256 NM, Reversible

Air Consumption at Max HP (scfm): 90
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 292
Max Pressure (bar): 6.2
Max Torque (ft-lb): 189
Max Torque (in-lb): 2266
Max Torque (nm): 256
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 162
Starting Torque (ft-lb): 135
Starting Torque (nm): 183
Warranty: 1-year

IR 48RB078

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 108 RPM, 3 HP, 696 NM, Reversible

Air Consumption at Max HP (scfm): 90
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 108
Max Pressure (bar): 6.2
Max Torque (ft-lb): 513
Max Torque (in-lb): 6160
Max Torque (nm): 696
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 60
Starting Torque (ft-lb): 364
Starting Torque (nm): 494
Warranty: 1-year

IR 49013

BEARING

IR 48RB045

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 188 RPM, 3 HP, 400 NM, Reversible

Air Consumption at Max HP (scfm): 90
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 188
Max Pressure (bar): 6.2
Max Torque (ft-lb): 295
Max Torque (in-lb): 3540
Max Torque (nm): 400
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 105
Starting Torque (ft-lb): 209
Starting Torque (nm): 283
Warranty: 1-year

IR 49054-3

BUSHING

IR 49000020

SPANNER WRENCH

IR HL2000K-3HD13-C9U

HOIST, AIR, 2 TON, HLK SERIES, POWERED TROLLEY,

IR HL2000K-3HD10-R6

HOIST, AIR, 2 TON, HLK SERIES, POWERED TROLLEY (D FLG.), BRONZE HOOK, 10' LIFT, 6’ DROP

IR HL2000K-3HD60-C10

HOIST, AIR, 2 TON, HLK SERIES, STEEL HOOKS, 60' LIFT, 10 DROP

IR HL2000K-99

DECAL, NON-RETURNABLE PART

IR HL2000K-AS377

HOOK

IR HL2000K-ABB377

HOOK

IR HL2000K-BB377

BB HOOK

IR HL2000K-ASR377

HOOK NUT & BR

IR HL2000K-CPS377

HOOK

IR HL2000K-K378

BLOCK

IR HL2000K-K378-CR

BLOCK ASSEMBLY

IR HL2000K-K378-CP

BLOCK ASSEMBLY

IR HL2000K-K590

HOOK

IR HL2000K-R377

HOOK

IR HL3000K-0C10-C0S

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 10' LIFT, 0 DROP

IR HL2000K-R377N

BRONZE HOOK, MACHINED

IR HL3000K-0C60-C0S

3 Ton Air Hoist, Hook Mount, No Controls, 30 Ft Lift, No Control/No Drop

IR HL2000K-SR377N

HOOK AND LATCH ASSEMBLY

IR HL3000K/D11073A

HL3000K/D11073A : HOIST, HLK SERIES >

IR HL3000K-1A40-C40S

HOIST, AIR, 3 TON, HLK SERIES, PULL CHAIN, LUG ADAPTOR & STEEL HOOK, 40' LIFT, 40’ CL

IR HL3000K-1C10-C6

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 10' LIFT, 6’ DROP

IR HL3000K-1C22-C17

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 22' LIFT, 17' FT DROP

IR HL3000K-1C33-C30S

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 33' LIFT, 30� DROP, STEEL CHAIN CONTAINER

IR HL3000K-2A26-C23

HOIST, AIR, 3 TON, HLK SERIES, 26' LIFT, 23’ DROP

IR HL3000K-2A45-C15SS

IST, AIR, 3 TON, HLK SERIES, 45' LIFT, 15’ DROP, STAINLESS STEEL CHAIN CONTAINER

IR HL3000K-2B10-B6PU

HOIST, AIR, 3 TON, HLK SERIES, BULLARD HOOK, 10' LIFT, 6 DROP

IR HL3000K-2B30-C26

HOIST, AIR, 3 TON, MLK SERIES, 30' LIFT, 2 6’ DROP

IR HL3000K-2C0-C20

HOIST, AIR, 3 T, HLK SERIES, 0' LIFT, 20' DROP

IR HL3000K-2C10-C7

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 10' LIFT, 7� DROP

IR HL3000K-2C10-B6S

HOIST, AIR, 3 TON, HLK SERIES, BOTTOM BULLARD HOOK, 10 LIFT, 6 DROP

IR HL3000K-2C14-C19S

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 14' LIFT, 19’ DROP, STEEL CHAIN CONTAINER

IR HL3000K-2C12-C6U

HOIST, AIR, 3 T, HLK SERIES, 12' LIFT, 6’ DROP, FABRIC CHAIN CONTAINER

IR HL3000K-2C15-C12U

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 15' LIFT, 12 DROP

IR HL3000K-2C14-C9S

HOIST, AIR, 3 TON, HLK SERIES, 14' LIFT, 9’ DROP, STEEL CHAIN CONTAINER

IR HL3000K-2C17-C13U

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 17' LIFT, 13’ DROP, FABRIC CHAIN CONTAINER,

IR HL3000K-2C15-C15S

HOIST, AIR, 3 T, HLK SERIES, 15' LIFT, 15' DROP, STEEL CHAIN CONTAINER

IR HL3000K-2C20-C4U

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 20' LIFT, 4’ DROP, FABRIC CHAIN CONTAINER

IR HL3000K-2C20-C16U

HOIST, AIR, 3 T, HLK SERIES, 20' LIFT, 16' DROP, FABRIC CHAIN CONTAINER

IR HL3000K-2C30-C26

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOK, 30' LIFT, 26’ DROP

IR HL3000K-2C27-C23

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 27' LIFT, 23� DROP

IR HL3000K-2C60-C20

3 Ton Air Hoist, Hook Mount, Single Motor Pendant, 60 Ft Lift, 20 Ft Pendant Drop

IR HL3000K-2C50-C6

HOIST, AIR, 3 T, HLK SERIES, 50' LIFT, 6 DROP

IR HL3000K-2C60-C29

HOIST, 3T, HLK, STEEL HK, 60' LT, 29' DROP

IR HL3000K-2DA11-C12U

HOIST, AIR, 3 TON, HLK SERIES, RIGID TROLLEY MOUNT, 11' LIFT, 12’ DROP

IR HL3000K-2C60-C30

Air Hoist, 3T, Hook Mount, 60 Ft Lift, 30 Ft Pendant Drop

IR HL3000K-2DD20-C16U

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOKS, 20' LIFT, 16 DROP

IR HL3000K-2DA10-C12U

HOIST, AIR, 3 TON, HLK SERIES, 10' LIFT, 12' DROP, FABRIC CHAIN CONTAINER

IR HL3000K-377

HOOK

IR HL3000K-305

NUT, NON-RETURNABLE PART

IR HL3000K-3HA15-C11

HOIST, AIR, 3 TON, HLK SERIES, POWERED TROLLEY

IR HL3000K-3HA10-R6S

HOIST, AIR, 3 TON, HLK SERIES, POWERED TROLLEY, 10' LIFT, 6' DROP

IR HL3000K-3HA40-C36

HOIST, AIR, 3 TON, HLK SERIES, POWERED TROLLEY (A FLG.), STEEL HOOK, 40' LIFT, 36’ DROP

IR HL3000K-3HA40-C12S

HOIST, AIR, 3 TON, HLK SERIES, STEEL HOOK, 40' LIFT, 12 DROP

IR HL3000K-3HAR12-R8U

HOIST, AIR, 3 TON, HLK SERIES, BRONZE SNAP HOOK, 12' LIFT, 8 DROP

IR HL3000K-4HA35-C12S

Air Hoist, 3 Ton, 35 Ft Lift, 12 Ft Drop, Power Trolley, Steel Container

IR HL3000K-425-E

YOKE

IR HL3000K-590

YOKE

IR HL3000K-4HD55-C21

HOIST, AIR, 3 TON, HLK SERIES, POWERED TROLLEY, STEEL HOOK, 55' LIFT, 21’ DROP

IR HL3000K-AS377

HOOK

IR HL3000K-ABB377

HOOK

IR HL3000K-ASR377

HOOK ASSEMBLY

IR HL3000K-K378-CR

BLOCK ASSEMBLY

IR HL3000K-K378

BLOCK

IR HL3000K-K589

HOOK KIT

IR HL3000K-K444A

LUG KIT

IR HL3000K-K590

HOOK

IR HL3000K-R377N

BRONZE HOOK, MACHINED

IR HL4500K-2C13-C9U

HOIST, AIR, 4-1/2 TON, HLK SERIES, STEEL HOOKS, 13' LIFT, 9' DROP

IR HL4500K-2A10-C6S

HOIST, AIR, 4 1/2 TON, HLK SERIES, TROLLEY ADAPTER, 10' LIFT, 6’ DROP

IR HL4500K-2C15-C10S

HOIST, AIR, 4 1/2 TON, HLK SERIES, STEEL HOOK, 15' LIFT, 10’ DROP

IR HL4500K-2C40-C10

HOIST, AIR, 4-1/2 TON, HLK SERIES, STEEL HOOKS, 40' LIFT, 10’ DROP

IR HL4500K-2C30-C28

HOIST, AIR, 4-1/2 TON, HLK SERIES, 30' LIFT, 28' DROP

IR HL4500K-2C40-C36

HOIST, AIR, 4-1/2 T, HLK SERIES, STEEL HOOKS, 40' LIFT, 36’ DROP

IR HL4500K-2C40-C6

HOIST, AIR, 4 1/2 TON, HLK SERIES, STEEL HOOK, 40 LIFT, 6 DROP

IR HL4500K-2C65-C35

HOIST, AIR, 4-1/2 TON, HLK SERIES, 65' LIFT, 35' DROP

IR HL4500K-2DA16-C13

HOIST, AIR, 4-1/2 TON, HLK SERIES, 16' LIFT, 13' DROP

IR HL4500K-2DA16-C13S

HOIST, AIR, 4-1/2 TON, HLK SERIES, 16' LIFT, 13' DROP, STEEL CHAIN CONTAINER

IR HL4500K-305

NUT, NON-RETURNABLE PART

IR HL4500K-378

BLOCK

IR HL4500K-377

HOOK
