MOTOR -- MULTI-VANE
IR 48RA008
IR 48RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1160 RPM, 3.1 HP, 69.8 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 51
Max Torque (in-lb): 618
Max Torque (nm): 69.8
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 638
Starting Torque (ft-lb): 38
Starting Torque (nm): 51.5
Warranty: 1-year
$7,500.00
MOTOR -- MULTI-VANE
IR 48RA011
IR 48RA011
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 772 RPM, 3.1 HP, 105 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 772
Max Pressure (bar): 6.2
Max Torque (ft-lb): 77
Max Torque (in-lb): 929
Max Torque (nm): 105
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 423
Starting Torque (ft-lb): 57
Starting Torque (nm): 77.3
Warranty: 1-year
$7,700.00
MOTOR -- MULTI-VANE
IR 48RA005
IR 48RA005
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1690 RPM, 3.1 HP, 47.5 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1690
Max Pressure (bar): 6.2
Max Torque (ft-lb): 35
Max Torque (in-lb): 420
Max Torque (nm): 47.5
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 930
Starting Torque (ft-lb): 26
Starting Torque (nm): 35.3
Warranty: 1-year
$7,550.00
MOTOR -- MULTI-VANE
IR 48RA017
IR 48RA017
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 511 RPM, 3.1 HP, 159 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 511
Max Pressure (bar): 6.2
Max Torque (ft-lb): 117
Max Torque (in-lb): 1407
Max Torque (nm): 159
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 278
Starting Torque (ft-lb): 86
Starting Torque (nm): 117
Warranty: 1-year
$7,650.00
MOTOR -- MULTI-VANE
IR 48RA022
IR 48RA022
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 390 RPM, 3.1 HP, 209 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 390
Max Pressure (bar): 6.2
Max Torque (ft-lb): 154
Max Torque (in-lb): 1850
Max Torque (nm): 209
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 213
Starting Torque (ft-lb): 113
Starting Torque (nm): 153
Warranty: 1-year
$7,700.00
MOTOR -- MULTI-VANE
IR 48RA014
IR 48RA014
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 612 RPM, 3.1 HP, 133 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 612
Max Pressure (bar): 6.2
Max Torque (ft-lb): 98
Max Torque (in-lb): 1177
Max Torque (nm): 133
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 332
Starting Torque (ft-lb): 72
Starting Torque (nm): 97.6
Warranty: 1-year
$7,650.00
MOTOR -- MULTI-VANE
IR 48RB036
IR 48RB036
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 236 RPM, 3 HP, 317 NM, Reversible
Air Consumption at Max HP (scfm): 90Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 236
Max Pressure (bar): 6.2
Max Torque (ft-lb): 234
Max Torque (in-lb): 2806
Max Torque (nm): 317
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 131
Starting Torque (ft-lb): 167
Starting Torque (nm): 227
Warranty: 1-year
$8,150.00
MOTOR -- MULTI-VANE
IR 48RB029
IR 48RB029
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 292 RPM, 3 HP, 256 NM, Reversible
Air Consumption at Max HP (scfm): 90Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 292
Max Pressure (bar): 6.2
Max Torque (ft-lb): 189
Max Torque (in-lb): 2266
Max Torque (nm): 256
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 162
Starting Torque (ft-lb): 135
Starting Torque (nm): 183
Warranty: 1-year
$8,000.00
MOTOR -- MULTI-VANE
IR 48RB078
IR 48RB078
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 108 RPM, 3 HP, 696 NM, Reversible
Air Consumption at Max HP (scfm): 90Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 108
Max Pressure (bar): 6.2
Max Torque (ft-lb): 513
Max Torque (in-lb): 6160
Max Torque (nm): 696
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 60
Starting Torque (ft-lb): 364
Starting Torque (nm): 494
Warranty: 1-year
$8,850.00
MOTOR -- MULTI-VANE
IR 48RB045
IR 48RB045
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 188 RPM, 3 HP, 400 NM, Reversible
Air Consumption at Max HP (scfm): 90Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 188
Max Pressure (bar): 6.2
Max Torque (ft-lb): 295
Max Torque (in-lb): 3540
Max Torque (nm): 400
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 105
Starting Torque (ft-lb): 209
Starting Torque (nm): 283
Warranty: 1-year
$8,350.00
PAD
IR 49095-1
IR 49095-1

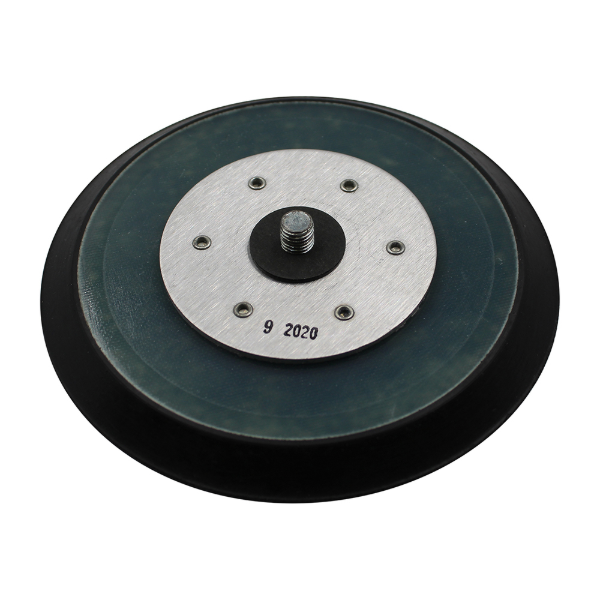

5" Sanding Backer Pad, Duck face, for Ingersoll Rand 3/8" Non-Vacuum Aluminum Random Orbital Sanders
$29.00
