IR 49094-1

5" Disc Backup Pad, Adhesive/PSA

For Use With

• 5151-5
• 5151-5-HL
• 5152-5
• 5152-5-HL

IR 49835

SANDING PAD

IR 50050392

24" Moil Point Pavement Breaker/Digger Steel, Hex 1" x 4-1/4" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.

Includes: (1) Moil Point Steel
Product Application and Uses: Ideal for concrete, asphalt, excavation, and general demolition. For use with Ingersoll Rand PB35A pavement breakers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 24
Product Length (in): 28.25
Product Weight (lb): 6.75
Shank Length (in): 4.25
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex

For Use With

• PB35AL8
• PB35AS8

IR 50055698

18" Moil Point Pavement Breaker/Digger Steel, Hex 1-1/4" x 6" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.

Includes: (10) Moil Point Steels
Product Application and Uses: Ideal for concrete, asphalt, excavation, and general demolition. For use with Ingersoll Rand MX60B, MX90B pavement breakers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 18
Product Length (in): 24
Product Weight (lb): 9
Shank Length (in): 6
Shank SIze (in): 1-1/4 x 6
Shank Type: Hex

For Use With

• MX60B
• MX90B

IR 50055755

MOIL POINT - 60" SHK 1-1/4" X 6" , QTY 1

IR 502-95

PLUG (EQ106S-377)

IR 5102MAX-24

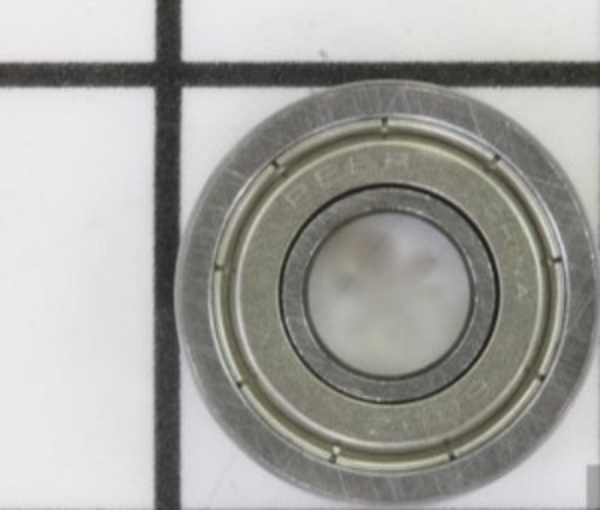

Bearing for Ingersoll Rand 5102MAX and 5104MAX Die Grinder

Product Application and Uses: For use use Ingersoll Rand 5102MAX and 5104MAX Air Die Grinder

For Use With

• 5102MAX

IR 51464

Seal, JM NO.12797 LDS

IR 52084936

HANDLE (51910255)

IR 52472

Muffler, Quietaire, MA012A, 1.5 Inch

IR 529-A5

PISTON SHAFT

IR 54375

Ring, Retaining

IR 5L2C6

ATTACHMENT

IR 61H150L6

Cone and Plug Air Grinder, 15,000 RPM, 1.33 HP, 3/8"-24 Thread, Side Exhaust

Ingersoll Rand Pro Series grinder are tough, easy to handle and ready to tackle any project you need them to. Specifically designed for heavy duty production applications. With their superior output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyard.

Features And Benefits

• POWER: With a powerful vane motor, 1.33HP and 15000 RPM output, these grinders remove materials at top speed for maximum efficiency.
• RELIABILITY: The 61 Pro Series Cone and Plug Grinders come with a built-in mist lubricator, motor controller and grit rejection system to prolong the life of your tools.
• DURABILITY: The metal housing on these grinders ensures a strong tool that can withstand harsh environments and repeated drops.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Grinder Type: Horizontal Grinder
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 14.75
Product Weight (lb): 4.25
Rated Power (hp): 1.33
Sound Pressure/Power Db(A): 86.8 / 97.8
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Type: Cone

IR 728-99-KC8

Keyless 1/2-Inch Chuck, 3/8"-24 Thread

IR 7810-1B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 450 RPM, 0.7 HP, 39.8 NM, Reversible

Air Consumption at Max HP (scfm): 37.3
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 29
Max Torque (in-lb): 352
Max Torque (nm): 39.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.67
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 240
Torque Output @ Max HP (ft-lb): 15
Torque Output @ Max HP (nm): 21
Warranty: 1-year

IR 8206-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 275 RPM, 1.9 HP, 142.3 NM, Reversible

Air Consumption at Max HP (scfm): 93.5
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 49:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 105
Max Torque (in-lb): 1259
Max Torque (nm): 142.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 18.24
Rated Power (hp): 1.9
Rated Power (kW): 1.42
Reversible: Reversible
Sound Level dB(A): 95
Speed at Max Power (rpm): 150
Torque Output @ Max HP (ft-lb): 66
Torque Output @ Max HP (nm): 90.1
Warranty: 1-year

IR 89940811

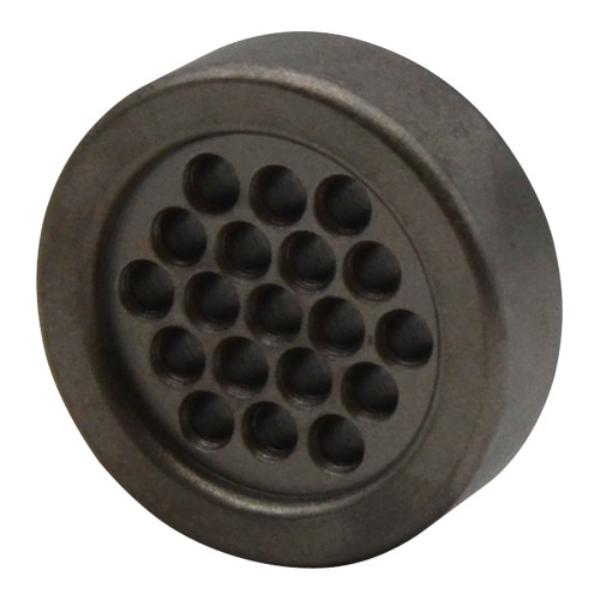

NEEDLE HOLDER 2B, 3MM

IR 89940829

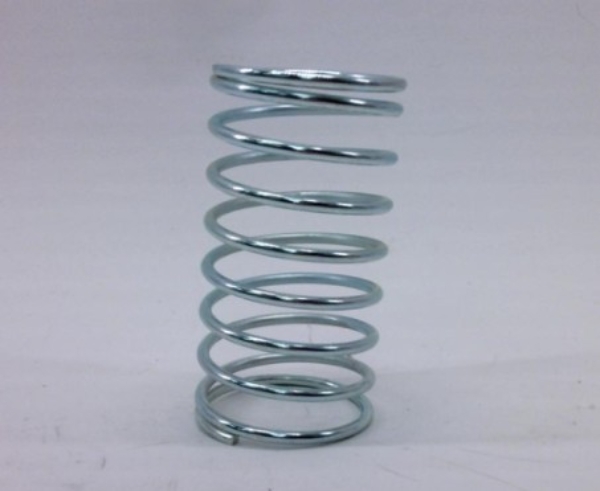

SPRING COMPRESSION 2B

IR 8SL-42-5

VANE PACK (03665346)

IR 910-706

WASHER

IR 92RB029

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 327 RPM, 7.9 HP, 545 NM, Reversible

Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 327
Max Pressure (bar): 6.2
Max Torque (ft-lb): 402
Max Torque (in-lb): 4824
Max Torque (nm): 545
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Speed at Max Power (rpm): 160
Starting Torque (ft-lb): 280
Starting Torque (nm): 380
Warranty: 1-year

IR 92RB045

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 210 RPM, 7.9 HP, 849 NM, Reversible

Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 210
Max Pressure (bar): 6.2
Max Torque (ft-lb): 626
Max Torque (in-lb): 7514
Max Torque (nm): 849
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Speed at Max Power (rpm): 103
Starting Torque (ft-lb): 440
Starting Torque (nm): 597
Warranty: 1-year

IR 95LA3

Digger, 1 x 4-1/4" Hex Shank, 1850 BPM, 4" Stroke Length, 1.69" Bore

The 95 Series diggers are meant for heavy duty work, from foundation work, to piping, to break demolition. With a 4 inch piston stroke, and a steel cone, these diggers will not let you down.

Features And Benefits

• Weight: With a die cast aluminum handle and housing, the 95 Series is as lightweight as it is powerful, making hard work easy.
• Durability: Built with premium materials, the 95 Series can withstand harsh conditions and repeated drops without affecting its performance.
• Reliability: The 95 Series is equipped with rubber buffer retainers to absorb shock and prolong the life of your tool.

Product Application and Uses: Foundation work, piping, break demolition
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 47
Air Consumption @ Load (l/min): 1331
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1850
Bore Diameter (in): 1.69
Collar Type: Round
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 21.88
Product Weight (lb): 30
Retainer Type: Latch
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex
Stroke Length (in): 4
Vibration Level (m/s2): 29.5 / 6.6
Warranty: 1-year

Similar IR

• 95LA1
• 95A1
• 93LA1

IR 9644-1421

Spring
