INDICATOR, RESET 3000 PSI 1/8 NPSF

GG 563261

INDICATOR, RESET 3000 PSI 1/8 NPSF

Graco 563261 Reset Indicator with Memory, 3000 psi (207 bar), 1/8 NPSF with O-Ring - MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication
No tools for reset or parts to replace after indication
Easy information on blocked lines, high system pressure or blocked bearings

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment, Compressor Equipment
Compatible Material: Oil, Grease
Connection Size (in): 0.125
Indicator Type: Reset Indicator with Memory
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 21
Maximum Working Pressure (psi): 3000

$27.90

SPRA VALVE, SPRAY 4 IN DIA

GG 563275

SPRA VALVE, SPRAY 4 IN DIA

Graco 563275 Air-lube Control Valve and Nozzle Assembly - 4 in. spray diameter, normal

Conserves air–air required only during spray interval
Versatile–can be used with any centralized lube system or mechanical oiler and will handle grease or oil
External mix nozzle purges itself and prevents clogging
4 in. spray diameter, normal
Lubriquip part number 510-652-000
Trabon part number 10652

Compatible Material: Oil, Grease

Maximum Air Pressure (bar): 11
Maximum Air Pressure (kPa): 1100
Maximum Air Pressure (psi): 150
Maximum Fan Width (in): 4
Maximum Fan Width (mm): 102
Maximum NLGI Grade: #2
Overall Width (cm): 2.54
Overall Width (in): 1
Overall Width (mm): 25.4

$884.00

RESERVOIR, TANK 12PT T1

GG 563319

RESERVOIR, TANK 12PT T1

Graco 563319 12 pt. (5.67 liter) Rectangular Oil Reservoir - Metal

Application: For use with Modu-Flo and E-Series Pumps.

12 pt (5.67 liter) Rectangular - Metal
Lubriquip part number 521-001-060

Model: Trabon

Application: Compressor Equipment
Compatible Material: Oil
Material: Metal

$959.00

SWITCH, LL GRS RESV

GG 563322

SWITCH, LL GRS RESV

Graco 563322 Low Level Switch, 15 Amp, for all Grease Reservoirs

Application: For use with Modu-Flo, E-Series, LubriSystem and Lube Master Pumps.

Low Level Switch for 5, 6, 12 and 20 pt Cylindrical Grease Reservoirs
Lubriquip part number 521-001-110

Inlet Size (cm): 1.2700
Inlet Size (in): 0.5
Inlet Size (mm): 12.7000

Inlet Thread Type: NPT

$184.50

KIT, CROSSPORT, MSP, RH, CS

GG 563469

KIT, CROSSPORT, MSP, RH, CS

Trabon® MSP Divider Valve - Right Cross Port Bar For use with Trabon® MSP Divider Valves. Right Cross Port Bar - 1 outlet port plug is required for each cross port bar Lubriquip part number 527-005-320

$66.75

KIT, CROSSPORT, MSP, LH/RH, CS

GG 563471

KIT, CROSSPORT, MSP, LH/RH, CS

Trabon® MSP Divider Valve - Right and Left Cross Port Bar For use with Trabon® MSP Divider Valves. Left and Right Cross Port Bar - 2 outlet port plugs are required for each double cross port bar Lubriquip part number 527-005-340

$75.50

FILTER, 10 MICRON INLINE 1/4 NPT

GG 563511

FILTER, 10 MICRON INLINE 1/4 NPT

In-Line Oil Filters - High Pressure, 7500 psi, 1/4-18 NPTF, 10 Micron Lubriquip part number 527-100-581 Direct replacement for Lubriquip part number 527-100-230, 527-100-480, 527-100-580 Replacement element is Graco part number 563509

$320.00

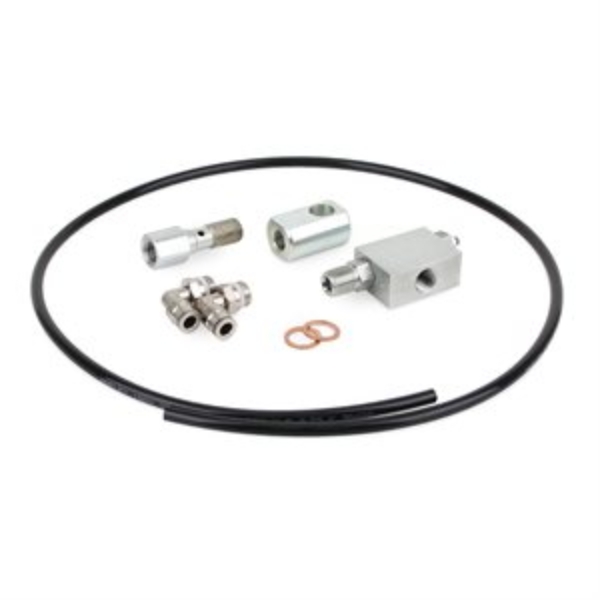

KIT, ACC, ADJ PRESSURE RELIEF

GG 571028

KIT, ACC, ADJ PRESSURE RELIEF

Graco 571028 Adjustable Return-to-Reservoir Pressure Relief Kit - 500-3500 psi (35-241 bar) - 1/4” NPT

Application: For use with G-Series Pumps.

Adjustable Return-to-Reservoir Pressure Relief Kit – 500-3500 psi (35-241 bar)

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment
Compatible Material: Oil, Grease
For Use With: G1 Pumps, G3 Pumps, Pressure Relief Valve
Includes: Pressure Relief Valve, Fittings, Hardware, Tube

$437.00

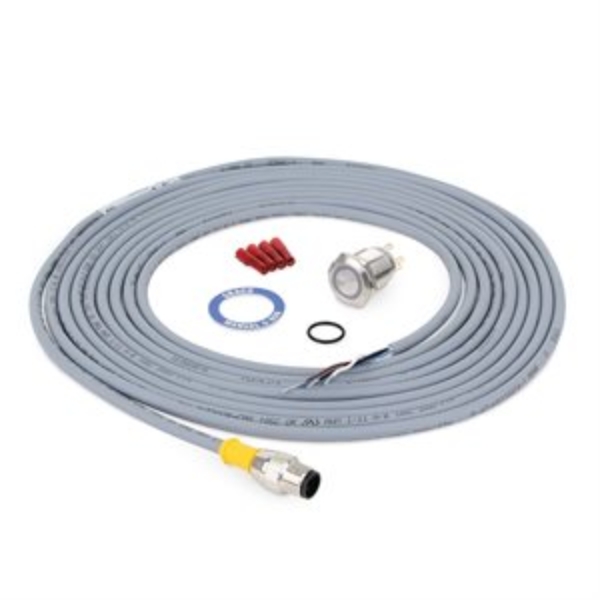

KIT, REMOTE MAN RUN, 24V, W/CABLE

GG 571033

KIT, REMOTE MAN RUN, 24V, W/CABLE

Graco 571033 G-Series Pump Accessory - Remote manual monitoring light run kit–24 VDC, 90-240 VAC, includes 16 foot M12 cable

Application: For use with G-Series Pumps.

Remote manual monitoring light run kit–24 VDC, 90-240 VAC, includes 16 foot M12 cable

For Use With: G-Series Pumps

Includes: Remote manual run/monitoring light, 16 foot M12 Cable
Number of Pieces: 2

$171.50

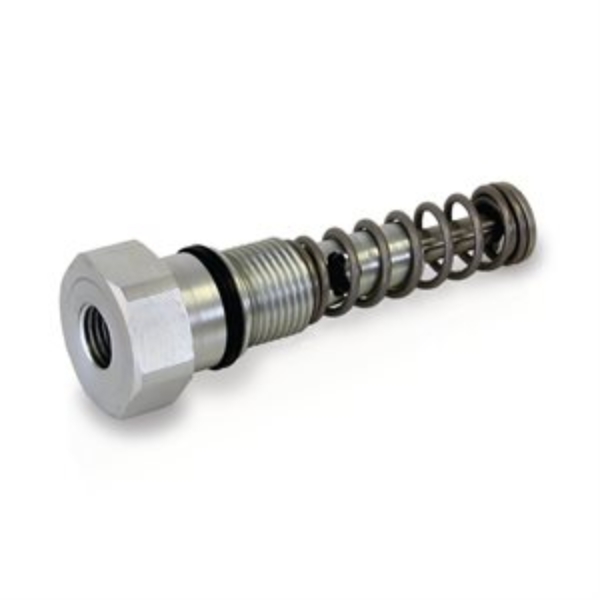

KIT, ACC, PUMP ELEMENT

GG 571041

KIT, ACC, PUMP ELEMENT

Graco 571041 G-Series Pump Accessories - G3 Pump Element

Application: For use with G-Series Pumps.

G3 pump element–the same adjustability as the pump included with G3

For Use With: G3 Pumps

Includes: Pump Element, Spacer
Kit Type: Repair Kit

$246.00

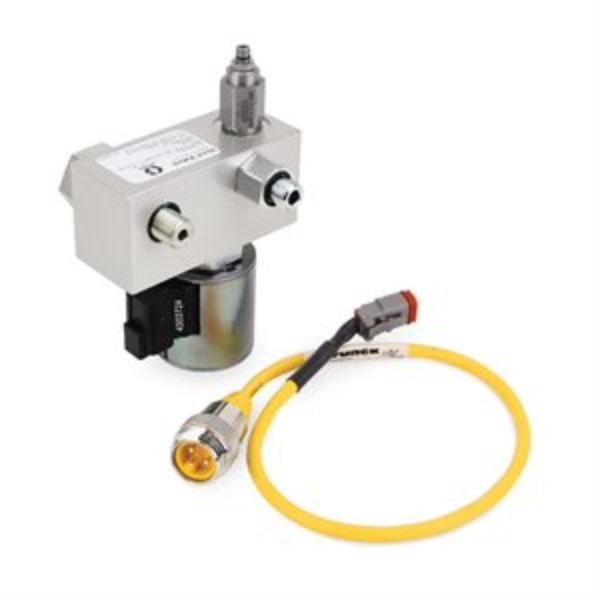

VALVE, VENT 24VDC N.C. NPT

GG 571170

VALVE, VENT 24VDC N.C. NPT

Direct-Mount Vent Valves for G3™ Pumps - NPT, 24 VDC, 500-3500 psi (35-241 bar), Normally Closed, RH

Industry leading feature for your lube system needs.

Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems. Easily mounts to your G3 pump. Eliminates time and material costs associated with remote mounted vent valves. 24 VDC Normally Closed The normally closed valve works with the G3 Max pumps controller, and vents pressure based on the time duration you program into the G3 control. Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.

Deutsch Power Connection

$537.00

MANIFOLD, REMOTE FILL WITH VENT ASM

GG 77X542

MANIFOLD, REMOTE FILL WITH VENT ASM

Graco 77X542 Remote-Fill Port Manifold with Vent for use with Auto-Fill Shut-Off Option Lubrication Pumps

Application: For use with optional Auto-Fill Shut-Off Electric Dyna-Star® HP and HF, G3, and Compact Dyna-Star Lubrication Systems.

Remote-fill port manifold with vent

Application: Off-Road Equipment

Compatible Material: Grease
For Use With: Compact Dyna-Star Pumps, Electric Dyna-Star Pumps, G3 Pumps, Hydraulic Dyna-Star Jakes
Includes: Remote Fill Port Manifold, Manual Valve, Pressure Gauge, Relief Valve, Lubricant, Fittings, Hardware
Kit Type: Remote-Fill Port Manifold

$770.00

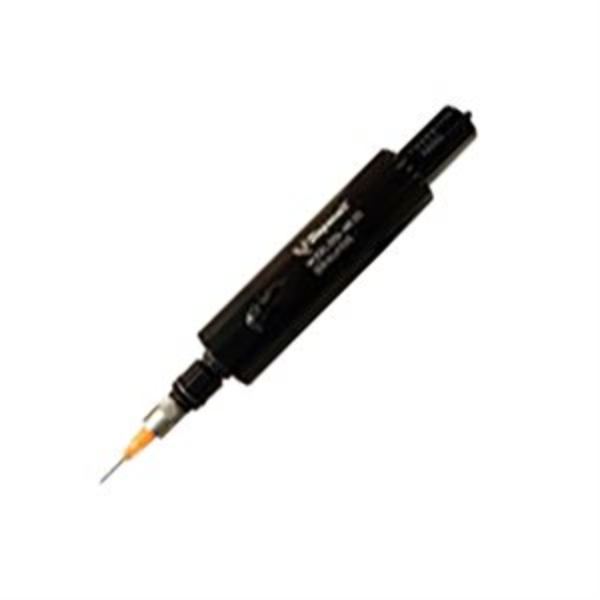

DISPENSIT VALVE, 1206-S1-062-V, LL, SS, FING

GG A2A08051

DISPENSIT VALVE, 1206-S1-062-V, LL, SS, FING

Graco A2A08051 1206 Dispensit Valve with 0.062 diameter rod and nitrided tool steel wetted components

Application: Patented meter and dispense system for precise one-component micro-dispensing.

For low to high viscosity materials with various wetted component configurations for abrasive filled, or corrosive materials.
Pneumatically-controlled valve with micrometer adjustable dispense volumes for accurate, repeatable shot dispensing.
Accurate and resetable shot size selection.
Pneumatic and electronic controls that can be integrated for automated applications.

Model: Dispensit
Series: 1206

Application: Bonding, Sealing
Component Type: Single Component
Maximum Working Pressure (bar): 138
Maximum Working Pressure (kg/cm²): 141
Maximum Working Pressure (kPa): 13800
Maximum Working Pressure (MPa): 14
Maximum Working Pressure (psi): 2000
Meter Type: Positive Displacement

$4,130.00

KIT, DIAPHRAGM-D1 TP

GG D07005

KIT, DIAPHRAGM-D1 TP

TPE (Hytrel) Diaphragm Kit for 1-inch Pump

$296.00

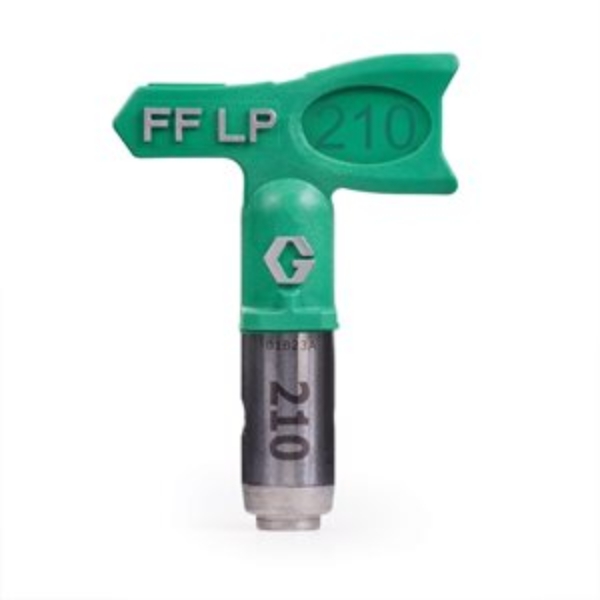

RAC X FFLP TIP, SPRAY, (210)

GG FFLP210

RAC X FFLP TIP, SPRAY, (210)

Graco FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 210 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

Application: For fine finish applications

Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: FF LP SwitchTip

Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
For Use With: RAC X HandTite Tip Guard
Material: Tungsten Carbide
Maximum Fan Width (cm): 10
Maximum Fan Width (in): 4
Maximum Fan Width (mm): 152
Maximum Flow Rate (GPM): 0.11
Maximum Flow Rate (L/min): 0.42
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 4
Minimum Fan Width (mm): 102
Orifice Diameter (in): 0.010
Pattern Size (in): 4 to 6
Pattern Size (mm): 101.6 to 152.4

$82.00

RAC X FFLP TIP, SPRAY, (310)

GG FFLP310

RAC X FFLP TIP, SPRAY, (310)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 310 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 310 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

Less mess with less overspray
Put the paint where you want it

Easiest Pattern Overlap

Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality

Extended Life

Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life

SmartTip Technology

Exclusive internal tip geometry
Reduces energy required to atomize paints, stains, and other materials
Delivers a superior finish with less pressure
Works with SmartControl on select Graco sprayers

Best Tip on the Market

Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$82.00

RAC X FFLP TIP, SPRAY, (510)

GG FFLP510

RAC X FFLP TIP, SPRAY, (510)

Fine Finish Low Pressure RAC X FF LP SwitchTip, 510 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 510 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time

Less mess with less overspray
Put the paint where you want it

Easiest Pattern Overlap

Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality

Extended Life

Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life

SmartTip Technology

Exclusive internal tip geometry
Reduces energy required to atomize paints, stains, and other materials
Delivers a superior finish with less pressure
Works with SmartControl on select Graco sprayers

Best Tip on the Market

Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern

Easy to Identify Tip Size

Large raised tip size numbers are always legible – even when covered with paint

Superior Tip Design

Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

$82.00

RAC X FFLP TIP, SPRAY, (616)

GG FFLP616

RAC X FFLP TIP, SPRAY, (616)

Graco FFLP616 Fine Finish Low Pressure RAC X FF LP SwitchTip, 616

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 616 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 12 to 14 inch Fan pattern and has a 0.016 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

Application: For fine finish applications

Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents

Model: RAC X
Series: FF LP SwitchTip

Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
For Use With: RAC X HandTite Tip Guard
Material: Tungsten Carbide
Maximum Fan Width (cm): 30
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 356
Maximum Flow Rate (GPM): 0.27
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (psi): 4050
Minimum Fan Width (in): 12
Minimum Fan Width (mm): 305
Orifice Diameter (in): 0.016
Pattern Size (in): 12 to 14
Pattern Size (mm): 304.8 to 355.6

$82.00

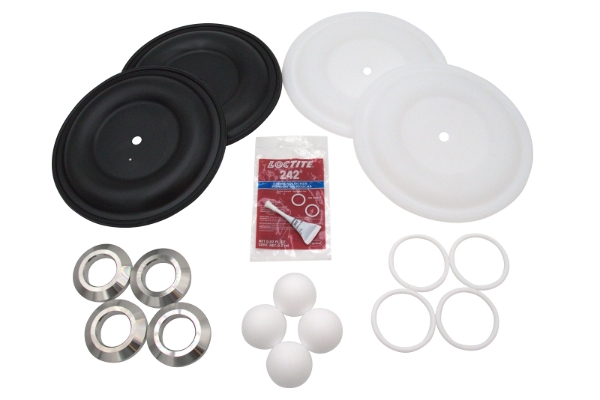

KIT, 1590 FG, SS, PT, PT, PT

GG FK2111

KIT, 1590 FG, SS, PT, PT, PT

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, PT Seal

$1,470.00

KIT, 1590 FG SS, SP, SP, EP

GG FK2222

KIT, 1590 FG SS, SP, SP, EP

SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, EP Seal

$476.00

KIT, 515 FG SS, PT, PT, PT

GG FK5111

KIT, 515 FG SS, PT, PT, PT

SaniForce 515 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, PT Seal

$350.00

KIT, 515 FG SS, SP, SP, EP

GG FK5622

KIT, 515 FG SS, SP, SP, EP

SaniForce 515 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, EP Seal

$136.00

REACTOR A-25 SYSTEM, FUSION PC

GG FP2614

REACTOR A-25 SYSTEM, FUSION PC

Graco FP2614 Reactor A25 Proportioner Package, Fusion PC Gun, Wheels, DataTrak, 230/400 V

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you&prime, re spraying at maximum flow rates - resulting in better quality foam.

Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.

Maintains temperature setpoints for better yield
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain
DataTrak Control
Resettable counter tracks material usage
Three Heat Zones
Three independent heat zones – ISO, resin and hose heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls
Recirculation Manifold
A quick, easy way to balance system pressures
NXT Air Motor
Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover
Quick Knockdown Lower Pumps
For easy disassembly and maintenance
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft

Model: Reactor
Series: A-25

Air Inlet Size (cm): 1.27
Air Inlet Size (in): 1/2
Air Inlet Size (mm): 12.7
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 3/4
Component A Inlet Size (mm): 19.05
Component A Thread Gender: Female
Component A Thread Type: NPT
Component B Inlet Size (in): 3/4
Component B Inlet Size (mm): 19.05
Component B Thread Gender: Female
Component B Thread Type: NPT
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion PC
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Includes: Proportioner, Fusion PC Gun, Heated Hose, Wheels, DataTrak
Material Application: Polyurethane Foam
Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (kg/min): 11.4
Maximum Flow Rate (lb/min): 25
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid

$27,540.00

Spray Tip

GG GGW519

Spray Tip

$247.00

LDX SERIES REEL, HOSE, 3/8" X 50', GREASE

GG HEH006

LDX SERIES REEL, HOSE, 3/8" X 50', GREASE

LDX™ Series, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction. Designed for smaller garages, independent repair facilities and industrial manufacturing environments. Dual Pedestal Frame - Ribbed metal for increased stability and robustness. External Swivel Housing - Quickly access swivel seal for faster repairs. Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation. Adjustable Arm - Easily change to one of six arm positions to fit your application. Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.

$725.00
