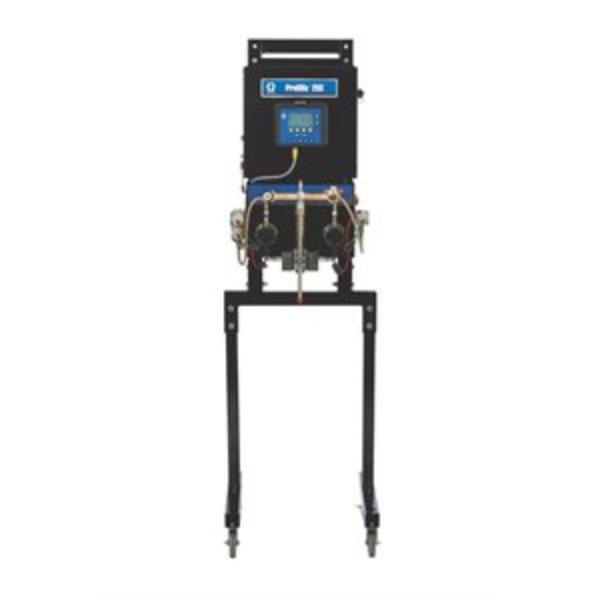

PROMIX 2KE PROPORTIONER, SYSTEM, METER

GG 24F080

PROMIX 2KE PROPORTIONER, SYSTEM, METER

Graco 24F080 ProMix 2KE Proportioner, electric, G3000 meter, 1 color/1 catalyst, screen reporting, for non-hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

Designed for multi-color, two component, in-booth applications
Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

Model: ProMix
Series: 2KE

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual Air Spray, Air-Assist
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Includes: 2KE Meter-Based Proportioner, G3000 Meter, 1 Color, 1 Catalyst
Material Type: Two Component
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 5000
Maximum Fluid Viscosity (cP): 5000
Maximum Mix Ratio: 30:1
Maximum Number of Colors: Up to 3
Maximum Operating Temperature (°C): 50
Maximum Operating Temperature (°F): 122
Maximum Working Pressure (bar): 206.8
Maximum Working Pressure (kPa): 20680
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Measuring Type: Meter
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: N/A
Number of Colors: 1
Number of Resin Colors: 1
Overall Depth (cm): 37.6
Overall Depth (in): 14.8
Overall Depth (mm): 376
Overall Height (cm): 91.7
Overall Height (in): 36.1
Overall Height (mm): 917
Overall Width (cm): 51.1
Overall Width (in): 20.1
Overall Width (mm): 511
Power Source: Electric
Proportioning Type: Manual Electronic
Pump Ratio: Meter only

$24,340.00

PROMIX 2KE PROPORTIONER, SYSTEM, METER

GG 24F081

PROMIX 2KE PROPORTIONER, SYSTEM, METER

Graco 24F081 ProMix 2KE Proportioner, electric, G3000 meter, 3 color/1 catalyst, screen reporting, for non-hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

Designed for multi-color, two component, in-booth applications
Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

Model: ProMix
Series: 2KE

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual Air Spray, Air-Assist
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Includes: 2KE Meter-Based Proportioner, G3000 Meter, 3 Color, 1 Catalyst
Material Type: Two Component
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 5000
Maximum Fluid Viscosity (cP): 5000
Maximum Mix Ratio: 30:1
Maximum Number of Colors: Up to 3
Maximum Operating Temperature (°C): 50
Maximum Operating Temperature (°F): 122
Maximum Working Pressure (bar): 206.8
Maximum Working Pressure (kPa): 20680
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Measuring Type: Meter
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: N/A
Number of Colors: 3
Number of Resin Colors: 3
Overall Depth (cm): 37.6
Overall Depth (in): 14.8
Overall Depth (mm): 376
Overall Height (cm): 91.7
Overall Height (in): 36.1
Overall Height (mm): 917
Overall Width (cm): 51.1
Overall Width (in): 20.1
Overall Width (mm): 511
Power Source: Electric
Proportioning Type: Manual Electronic
Pump Ratio: Meter only

$27,830.00

PROMIX 2KE PROPORTIONER, SYSTEM, METER

GG 24F086

PROMIX 2KE PROPORTIONER, SYSTEM, METER

Graco 24F086 ProMix 2KE Proportioner, air, G3000 meter, 1 color/1 catalyst, USB reporting, for hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

Designed for multi-color, two component, in-booth applications
Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

Model: ProMix
Series: 2KE

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 2
Applicator Type: Manual Air Spray, Air-Assist
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Activation: Manual
Includes: 2KE Meter-Based Proportioner, G3000 Meter, 1 Color, 1 Catalyst, USB Module
Material Type: Two Component
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Viscosity (cP): 5000
Maximum Fluid Viscosity (cP): 5000
Maximum Mix Ratio: 30:1
Maximum Number of Colors: Up to 3
Maximum Operating Temperature (°C): 50
Maximum Operating Temperature (°F): 122
Maximum Working Pressure (bar): 206.8
Maximum Working Pressure (kPa): 20680
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Measuring Type: Meter
Minimum Flow Rate (cc/min): 75
Minimum Flow Rate (GPM): 0.02
Minimum Flow Rate (L/min): 0.075
Minimum Fluid Viscosity (cP): 20
Minimum Mix Ratio: 0.1:1
Mix Accuracy (%): 1
Number of Catalysts: 1
Number of Color Valves: N/A
Number of Colors: 1
Number of Resin Colors: 1
Overall Depth (cm): 37.6
Overall Depth (in): 14.8
Overall Depth (mm): 376
Overall Height (cm): 91.7
Overall Height (in): 36.1
Overall Height (mm): 917
Overall Width (cm): 51.1
Overall Width (in): 20.1
Overall Width (mm): 511
Power Source: Air
Proportioning Type: Manual Electronic
Pump Ratio: Meter only

$26,480.00

CART, 180 KG

GG 24F915

CART, 180 KG

Graco 24F915 LD Series 50:1 Grease Pump Drum Cart with Pneumatic Wheels for 400 lb. Drums, Includes Chain for Securing Drum to Cart

Drum cart with pneumatic wheels for 400 lb drums
Includes chain for securing drum to cart

$662.00

PLATE, BASE, 3 SECTION, MSP NPSF

GG 24G485

PLATE, BASE, 3 SECTION, MSP NPSF

Graco 24G485 Trabon® MSP Divider Valve - 3 Section Base Plate Assemblies - NPSF

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!

Application: For use with mobile, industrial, food and beverage, wind, and many more applications.

Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.

Model: Trabon
Series: MSP

Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material: Oil, Grease
Cycle Indicator: None
Discharge Per Piston Stroke (in³): N/A
Divider Valve Series: MSP
Inlet Size (in): 1/4
Inlet Thread Gender: Female
Inlet Thread Type: NPSF
Material: Carbon Steel
Maximum NLGI Grade: #2
Maximum Operating Temperature (°C): 176
Maximum Operating Temperature (°F): 350
Maximum Working Pressure (bar): 241
Maximum Working Pressure (kPa): 24100
Maximum Working Pressure (psi): 3500
Number of Outlets: 6
Outlet Size (cm): 0.3175
Outlet Size (in): 1/8
Outlet Size (mm): 3.175
Outlet Thread Gender: Female
Outlet Thread Type: NPSF

$240.50

KIT, CONVERTER FO

GG 24N978

KIT, CONVERTER FO

Graco 24N978 Fiber Optic to Serial Converter, communicate from the Informer to a PLC

Use to communicate from a Display Control Module (DCM) or Advanced Display Control Module (ADCM) to a Non-Graco Programmable Logic Controller (PLC) or an Advanced Web Interface (AWI)

$1,885.00

KIT, PUMP 3, RESIN, LP

GG 24R968

KIT, PUMP 3, RESIN, LP

Graco 24R968 ProMix PD2K Expansion Pump, Air Spray, 70 cc, Low Pressure

Base Unit Expansion Kit to add a third or fourth pump to your system

Model: ProMix
Series: PD2K

Includes: Pump, Control Module, Solenoid, Frame, Mounting Bracket, Cables

$17,830.00

KIT, REPLACEMENT, PISTON ROD, PC

GG 24W617

KIT, REPLACEMENT, PISTON ROD, PC

Graco 24W617 ProConnect Replacement Rod Paint Sprayer Pump Kit for Pro210ES

Replace your pump rod with genuine Graco parts.Replacement part for rebuilding ProConnect pump. kit includes rod with installed piston valve. ProConnect pump is for Pro 210ES cart or stand model sprayers. Refer to the parts manual for your sprayer to ensure part compatibility

Application: Rod and piston are part of the sprayer pump for pumping fluid

Rod and piston are part of the sprayer pump for pumping fluid
Sprayer does not prime or spray, it may be from high pressure cuts, scratches and wear from not repacking the pump
Graco tech support can further assist with troubleshooting sprayer operation
Genuine Graco parts kit includes rod with installed piston valve

For Use With: Pro210ES Stand, Pro210ES Cart

$144.50

Kit, Hopper

GG 24X570

Kit, Hopper

$1,810.00

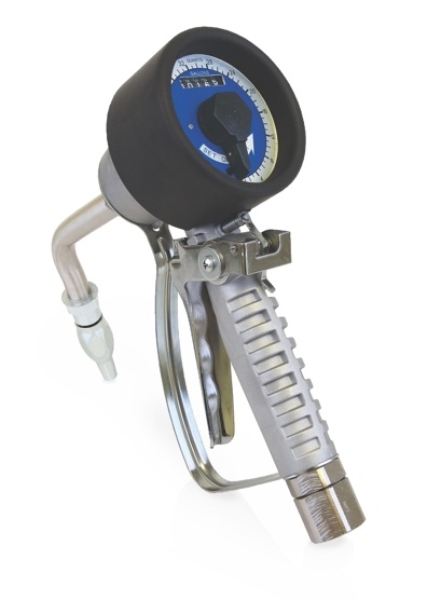

METER, PRESET, 60 QRT, RIGID, NPT

GG 24Z125

METER, PRESET, 60 QRT, RIGID, NPT

60 Quart Preset Meter - Includes Nozzle/Extension Kit - Rigid Extension - NPT

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining. Preset meter automatically shuts-off flow when preset quantity has been dispensed Impact-resistant shroud resists against scratches and protects knob and dial from damage Dial and face design made simple, easy to read and set Durable aluminum cast housing is balanced and lightweight for a comfortable grip Built-in totalizer to manage material usage Inlet 1/2 in. NPT with swivel Measures fluid in quarts Features rigid extension with oil nozzle 5 Year Warranty

$852.00

METER, PRESET, 60 GAL, RIGID, NPT

GG 24Z128

METER, PRESET, 60 GAL, RIGID, NPT

60 Gallon Preset Meter - Includes Nozzle/Extension Kit - Rigid Extension - NPT

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining. Preset meter automatically shuts-off flow when preset quantity has been dispensed Impact-resistant shroud resists against scratches and protects knob and dial from damage Dial and face design made simple, easy to read and set Durable aluminum cast housing is balanced and lightweight for a comfortable grip Built-in totalizer to manage material usage Inlet 1/2 in. NPT with swivel Measures fluid in gallons Features rigid extension with oil nozzle 5 Year Warranty

$877.00

Housing, Valve, Seat, Assy

GG 253743

HOUSING, VALVE, SEAT, ASSY

$613.00

MODULE, STACK, LG MXR, VLV

GG 25A997

MODULE, STACK, LG MXR, VLV

Graco 25A997 Straight Thread Single Pass Mixing Stack with Material Valves

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

Application: Reduce downtime and increase production with mixing stacks.

Reduce pressure drops
- Easier to clean + assemble- No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.
Air Line Tube Length (ft): 3
Air Line Tube Length (m): 0.915
Air Line Tube Outside Diameter (cm): 0.8
Air Line Tube Outside Diameter (in): 5/16
Air Line Tube Outside Diameter (mm): 8
For Use With: Fluid Automation F4 Series
Includes: Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Two Solenoids
Number of Pieces: 12

$6,320.00

KIT, PROCONTROL 1KE PLUS

GG 25B296

KIT, PROCONTROL 1KE PLUS

ProControl 1KE Plus Closed Loop Fluid Pressure/Flow & Atomizing Air Control, ADCM, G3000, Regulators, Pressure Transducer, 2 I/P's This ProControl 1KE Plus package includes everything manufacturers need to actively manage one component (1K) fluids, improve spray performance, and increase efficiency. Atomizing air control helps manual or automatic paint spray guns consistently produce a high quality finish. Closed loop control automatically and precisely adjusts fluid pressure or flow rate to maintain optimal spray performance, minimizing waste and maximizing quality. Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste. Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen. Full feature fluid management package works with manual paint spray guns or automatic spray applicators.

$21,430.00

Kit, Package, 35# Dolly Npt

GG 25C549

Kit, Package, 35# Dolly Npt

$1,925.00

Kit, 5:1 400# Dolly Npt

GG 25C554

Kit, 5:1 400# Dolly Npt

$2,460.00

KIT, ACCESSORY, LEAK SENSE HAZ

GG 25F109

KIT, ACCESSORY, LEAK SENSE HAZ

Graco 25F109 Hazardous Location Leak Sensor Accessory Kit

Includes:
1 level switch sensor
2 elbow swivels (1/4 in. NPT, 3/8 in. hose port)
1 tee union
1 hose (30 in. long, 3/8 in. outer diameter)
1 elbow swivel (1/4 in. NPT, 1/4 in hose port)
1 elbow swivel (1/8 in. NPT)
1 hose (20 in. long, 1/4 in. outer diameter)
1 pipe bushing

$337.00

MANIFOLD, AUTO, GUN

GG 25F155

MANIFOLD, AUTO, GUN

Stellair Auto Manifold, Side Fluid Inlet, with Inch Threads Side fluid inlet manifold connects a Stellair Auto air spray gun to an automated finishing system’s robot, reciprocator, or flat line machine. Manifold sets automatic air spray gun in place to produce stellar results for industrial finishing of automotive components, industrial metal and plastic parts, wood products and architectural structures. Stellair Auto manifold has the same tool center point as legacy AirPro Auto air spray guns, making it easy to upgrade paint line and spray booth equipment. Durable and lightweight construction reduces equipment wear, especially on high speed production lines. Two-screw, gun-to-manifold connection simplifies automatic air spray gun removal and maintenance.

$353.00

SD SERIES SDM8 VALVE, 1/2NPT, FLEX, OIL

GG 25M406

SD SERIES SDM8 VALVE, 1/2NPT, FLEX, OIL

Graco 25M406 SDM8 Series Electronic Manual Oil Meter - Flexible Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries

Model: SDM8

Compatible Material: Oil, ATF
Dispense Type: Manual
Display Type: Electronic
Extension Type: Flexible
Fluid Inlet Thread Gender: Female
Fluid Outlet Thread Gender: Female
Includes: Nozzle, Flexible Extension
Inlet Size (cm): 1.27
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 8
Maximum Flow Rate (L/min): 30
Maximum Operating Temperature (°C): 70
Maximum Operating Temperature (°F): 158
Maximum Recorded Dispense: 9999
Maximum Storage Temperature (°C): 70
Maximum Storage Temperature (°F): 158
Maximum Working Pressure (bar): 103.4
Maximum Working Pressure (kPa): 10340
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Meter Accuracy (%): ±0.5
Meter Technology: Oval Gear
Metering Gun Weight (kg): 2.4
Metering Gun Weight (lb): 5.3
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.9
Minimum Operating Temperature (°C): -16
Minimum Operating Temperature (°F): 4
Nozzle Type: Oil Automatic Quick-Close
Outlet Thread Type: Straight Thread O-Ring Boss
Overall Height (cm): 14.6
Overall Height (in): 5.75
Overall Height (mm): 146
Overall Length (cm): 33
Overall Length (in): 13
Overall Length (mm): 330
Overall Width (cm): 9.5
Overall Width (in): 3.75
Overall Width (mm): 95
Recommended Environment: Indoor

$1,000.00

SD SERIES SDM18 VALVE, 3/4NPT, RIGD, OIL, HF

GG 25M416

SD SERIES SDM18 VALVE, 3/4NPT, RIGD, OIL, HF

Graco 25M416 SDM18 Series Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 3/4 in. Inlet

Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries

Model: SDM18

Compatible Material: Oil, Antifreeze, ATF, Gear Oil
Dispense Type: Manual
Display Type: Electronic
Extension Type: Rigid
Fluid Inlet Thread Gender: Female
Fluid Outlet Thread Gender: Female
Includes: Nozzle, Rigid Extension
Inlet Size (cm): 1.905
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 18
Maximum Flow Rate (L/min): 68
Maximum Operating Temperature (°C): 70
Maximum Operating Temperature (°F): 158
Maximum Recorded Dispense: 9999
Maximum Storage Temperature (°C): 70
Maximum Storage Temperature (°F): 158
Maximum Working Pressure (bar): 103.4
Maximum Working Pressure (kPa): 10340
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Meter Accuracy (%): ±0.5
Meter Technology: Oval Gear
Metering Gun Weight (kg): 2.4
Metering Gun Weight (lb): 5.3
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.9
Minimum Operating Temperature (°C): -16
Minimum Operating Temperature (°F): 4
Nozzle Type: Manual
Outlet Thread Type: Straight Thread O-Ring Boss
Overall Height (cm): 14.6
Overall Height (in): 5.75
Overall Height (mm): 146
Overall Length (cm): 33
Overall Length (in): 13
Overall Length (mm): 330
Overall Width (cm): 9.5
Overall Width (in): 3.75
Overall Width (mm): 95
Recommended Environment: Indoor

$1,110.00

GT 750 PUMP, TOPPER

GG 25P544

GT 750 PUMP, TOPPER

Graco 25P544 GT 750 36:1 Grease Transfer Topper-Inductor Package for 400 lb (180 kg) drums

The GT 750 36:1 pump was engineered for efficient grease transfer in demanding applications. The Topper-Inductor package allows for quick drum changes and reduces strain on operators.

Call for pricing

KIT, FUSION PC, RETRO, RND, 00-01

GG 25R087

KIT, FUSION PC, RETRO, RND, 00-01

Graco 25R087 Fusion ProConnect Retrofit Kit with Round 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size

Transform your Fusion Air Purge gun into a Fusion PC with the ProConnect Retrofit Kit, allowing you to take full advantage of what the Fusion PC delivers: A perfect rebuild in seconds. The Retrofit Kit is compatible with all Fusion AP guns and is available in multiple mix chamber sizes. Acquire all the advantages of the revolutionary Fusion ProConnect while leveraging your existing Fusion AP handle and fluid manifold.

Application: Same Fusion AP gun, all new possibilities

A single cartridge replaces the entire fluid section in seconds
Sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns

Model: Fusion PC
Series: Round

Includes: PC37RD Mix Chamber Tip
Mix Chamber: 00-01 (.037)

$1,615.00

KIT, FUSION PC, RETRO, FL, 00, 438

GG 25R089

KIT, FUSION PC, RETRO, FL, 00, 438

Graco 25R089 Fusion ProConnect Retrofit Kit with Flat 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size

Application: Same Fusion AP gun, all new possibilities

A single cartridge replaces the entire fluid section in seconds
Sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns

Model: Fusion PC
Series: Flat

Includes: PC29RD Mix Chamber Tip
Mix Chamber: 00 (.029)

$1,615.00

IQ Valve Outlet Manifold, 200MM Nozzle

GG 25R639

IQ Valve Outlet Manifold, 200MM Nozzle

$802.00

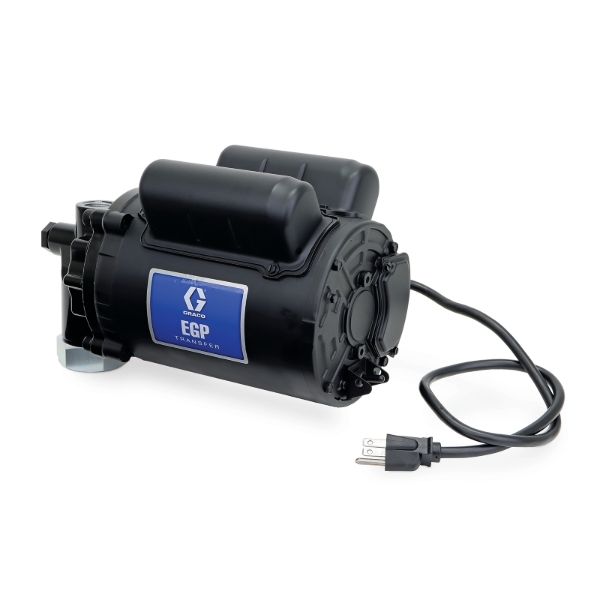

PUMP, 115V, 7.7 GPM, 120 PSI

GG 25U346

PUMP, 115V, 7.7 GPM, 120 PSI

EGP™ Transfer Pump, 115 VAC, 8 gpm (30.3 lpm), 120 psi (8.3 bar) Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience. Use the EGP Transfer Pump in locations where compressed air is unavailable or too cumbersome for shortdistance fluid transfer. Electrical Flexibility - Available in 12 VDC and 115 VAC power options. Smooth Fluid Flow 8 gpm (30 lpm) - Output flow is continuous and non-pulsating up to 8 gpm (30 lpm). Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models. Consistent Pressure - Built-in fluid bypass valve protects pump and downstream components. Pump Protection - Includes inlet strainer to keep larger debris out of pump housing and extend pump life. Plug and Play - Self-priming, precision machined pump design.

$1,190.00
