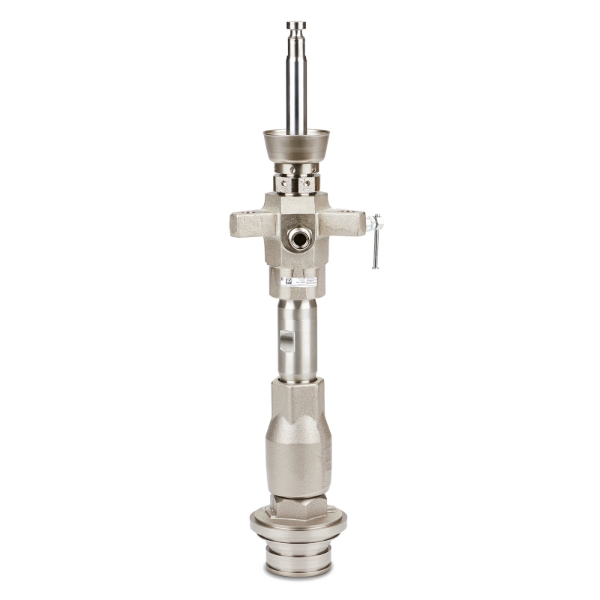

LOWER, CM100 SEVERE DUTY
GG L100CS
GG L100CS
LOWER, CM100 SEVERE DUTY
Graco L100CS Carbon Steel Severe Duty Check-Mate 100 Lower
Application: With priming piston, rod and cylinder.- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- For Use With: Check-Mate Pump Packages
- Maximum Flow Rate (GPM): 1.6
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 100
- Maximum Pump Speed (CPM): 60
- Maximum Working Pressure (psi): 6300
$3,960.00

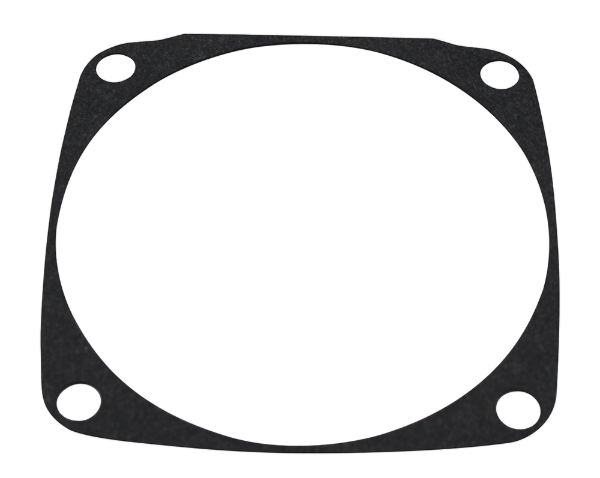

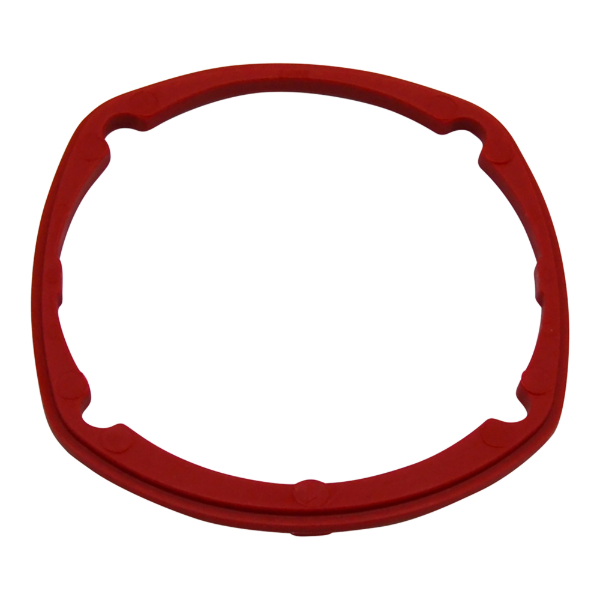

HAMMER CASE GASKET
IR 285B-36
IR 285B-36
Hammer Case Gasket for Ingersoll Rand 285B Series Air Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 285B Series Air Impact Wrench.For Use With
- 285B
- 285B-6
- 285B-6-AP
- 285B-S6
$15.00

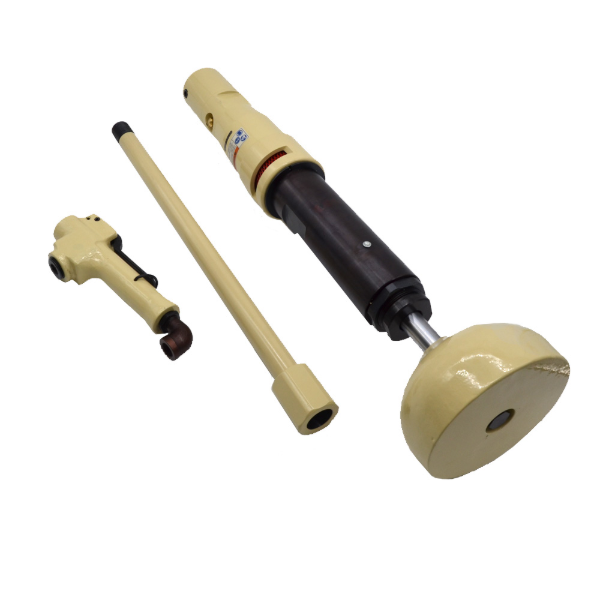

Tamper - 5 3/4in, MALLEAB
IR 341A2M
IR 341A2M
Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 1-5/8" Bore
With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.Features And Benefits
- Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
- Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
- Power: Thanks to its high-power output, you’ll be able to breeze through any job.
- Access: This tool is as lightweight as it is powerful making compact spaces easy to reach
Includes: Malleable Butt
Product Application and Uses: These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1550
Bore Diameter (in): 1-5/8
Butt Diameter (in): 5.75
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 6.7
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Built In
Power Source: Air Powered
Product Length (in): 52.75
Product Width (in): 7.56
Product Weight (lb): 15.8
Retainer Type: Latch
Shank Opening: 7/8" Tapered Rod
Side to Center Distance (in): 3.6
Side to Center Distance (mm): 91
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 4
Warranty: 1-year
Similar IR
- 130A1M
- 241A1M
$1,316.00
