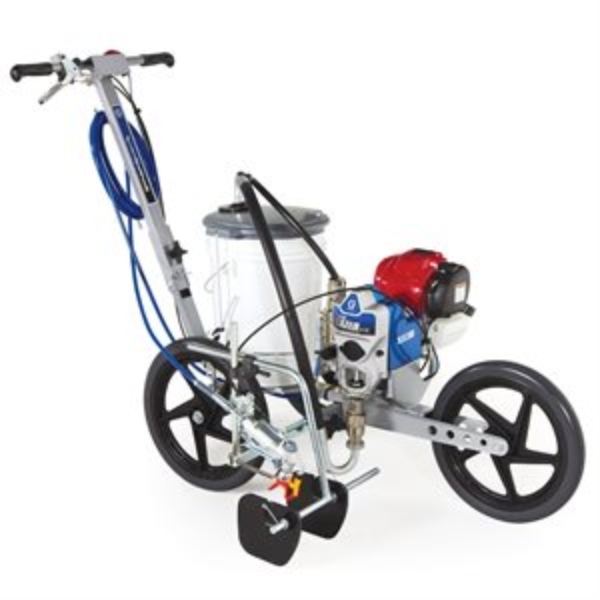

FIELDLAZER SPRAYER, S100
GG 248942
FIELDLAZER SPRAYER, S100
Graco 248942 FieldLazer S100 Airless Field Striper
Introduced in 2004, the original FieldLazer striper was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.
USER-FRIENDLY OPERATION
Easy Reach Handlebar Controls
High-comfort design for greater control and less operator fatigue
Operator controls are located on the handlebars
DURABLE PUMP
Endurance Pump
Hardened stainless steel rod and cylinder holds up to abrasive materials
QuikAccess intake for easy cleaning
RELIABLE POWER
Honda® Engine
Contractor preferred—excellent power and proven reliability
Easy starting
PRECISE SPRAY CONTROL
FieldLazer RAC 5 Tip
Turn tip 180° to clear clogs
SMOOTHER APPLICATIONS
Exclusive Tall Wheel Design
Easily rolls over rough terrain
Reduces operator fatigue
COMPACT, USER-FRIENDLY DESIGN
Fold-Down Handle
Fits into minivans, SUVs, even pickups with toppers
FAST AND EASY PAINT HANDLING
5-Gallon Bucket-Ready
Eliminates hassle of cleaning tanks or pots
EASY STENCILING
No-Tool Gun Removal
Switch for spraying stencils or large solid areas
- Model: FieldLazer
- Series: S100
- Compatible Surfaces: Turf
- Engine Brand: Honda
- Engine Model: GX35
- Features: Adjustable Spray Guides, Disposable Paint Bucket Siphon System, Handlebar Operator Controls
- Fuel Tank Capacity (gal): 0.17
- Fuel Tank Capacity (L): 0.64
- Gun Activation: Manual
- Hopper Volume Capacity (gal): 5
- Hopper Volume Capacity (L): 19
- Includes: SG2 Spray Gun, FieldLazer RAC 5 421 Spray Tip, RAC 5 Guard, 3/16 in x 25 ft BlueMax II Airless Hose, TSL, 4 oz
- Maximum Sound Pressure Level (dB(A)): 87
- Maximum Tip Size (cm): 0.0533
- Maximum Tip Size (in): 0.021
- Maximum Tip Size (mm): 0.533
- Maximum Working Pressure (bar): 62
- Maximum Working Pressure (kPa): 6200
- Maximum Working Pressure (psi): 900
- Number of Colors: One Color
REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
GG 249588
REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
50 ft x 3/8 in Heated Hose, 3500 psi, Without Cable, No Scuff, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
KIT, ACCESSORY
GG 24A217
KIT, ACCESSORY

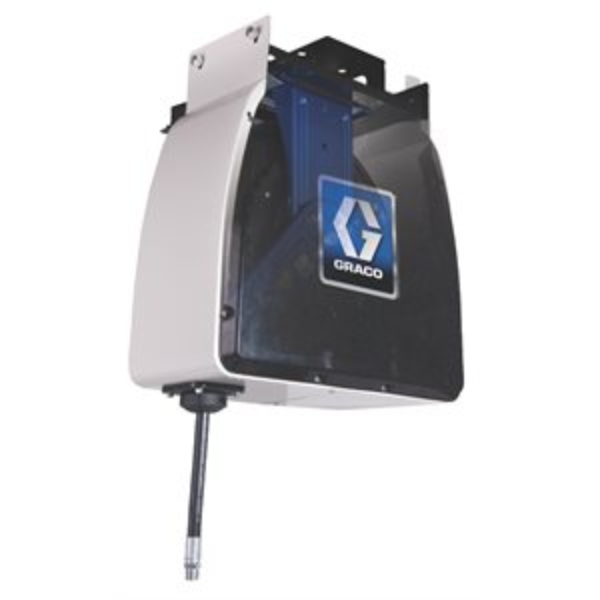

Graco 24A217 SD 10 Oil Reel Enclosure - White
- Number of Pieces: 22
KIT, ORIFICE, ADJ, 1/4, 016
GG 24C805
KIT, ORIFICE, ADJ, 1/4, 016
Graco 24C805 250 Model Polyol Orifice Kit with 0.016 in (0.41 mm) Impingement Port Size
KIT INCLUDES: HOUSING, ORIFICE, EP, 0.011 [QTY. 1 ], O-RING, [QTY. 1 ], O-RING, VITON ETP, 011, 90A [QTY. 1 ], PACKING, O-RING [QTY. 1 ], STEM, VALVE [QTY. 1 ], RING, BACKUP, PTFE [QTY. 1 ], O-RING, [QTY. 1 ], LUBRICANT, GREASE [QTY. 1 ], CAP, ORIFICE, EP [QTY. 1 ], TOOL, CLEANOUT, #78 [QTY. 1 ]
- Model: EP
- Connection Type: Threaded
- For Use With: EP250 Pour Gun
- Includes: Housing, Stem, Cap, O-rings, Clean-out tool
- Orifice Diameter (in): 0.0162
- Pattern Size (in): 0.016
- Pattern Size (mm): 0.4064

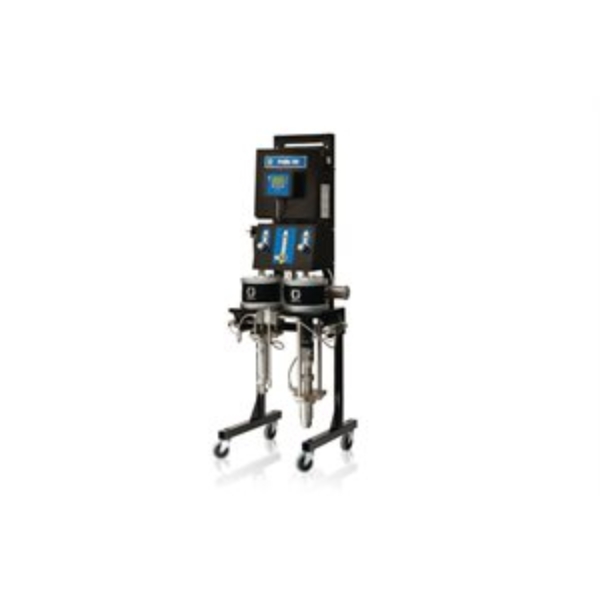

PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
GG 24F102
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
Graco 24F102 ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur pumps, screen reporting, for hazardous location
The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.
- Designed for multi-color, two component, in-booth applications
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Model: ProMix
- Series: 2KE
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Manual Air Spray
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Includes: Air Motor, Adapter Plate, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Coupling, Lower Adapter, TSL Reservoir
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Mix Ratio: 30:1
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Measuring Type: Pump
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 1
- Number of Resin Colors: 1
- Overall Depth (cm): 37.6
- Overall Depth (in): 14.8
- Overall Depth (mm): 376
- Overall Height (cm): 91.7
- Overall Height (in): 36.1
- Overall Height (mm): 917
- Overall Width (cm): 51.1
- Overall Width (in): 20.1
- Overall Width (mm): 511
- Power Source: Air
- Proportioning Type: Manual Electronic
- Pump Ratio: 3:1
- Pump Type: Air Spray
PLATE, BASE, 4 SECTION, MHH
GG 24F597
PLATE, BASE, 4 SECTION, MHH
Graco 24F597 Manzel® MHH Divider Valve - 4 Section Base Plate Assemblies - NPSF
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
Application: For compressors, industrial equipment, and where high-pressure lubrication in required.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Manzel
- Series: MHH
- Application: In-Plant Machinery, Compressor Equipment
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MHH
- Inlet Thread Type: NPSF
- Material: Steel
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (psi): 7500
- Number of Outlets: 8
- Outlet Thread Type: NPSF
PLATE, BASE, 6 SECTION, MHH
GG 24F599
PLATE, BASE, 6 SECTION, MHH
Graco 24F599 Manzel® MHH Divider Valve - 6 Section Base Plate Assemblies - NPSF
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
Application: For compressors, industrial equipment, and where high-pressure lubrication in required.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Manzel
- Series: MHH
- Application: In-Plant Machinery, Compressor Equipment
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MHH
- Inlet Thread Type: NPSF
- Material: Steel
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (psi): 7500
- Number of Outlets: 12
- Outlet Thread Type: NPSF
GBL 7500 PUMP, GRAVITY, 1/4
GG 24J395
GBL 7500 PUMP, GRAVITY, 1/4

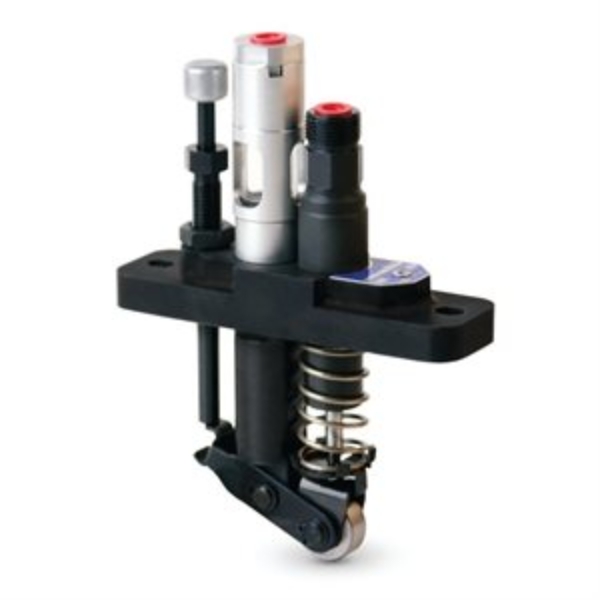

Manzel® GBL 7500 Replacement Pump, Gravity Fed, 1/4 in (6.4 mm)The Graco Manzel GBL 7500 Gravity pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
For force-feed oil lubrication systems Mechanically driven from camshaft in reservoir. Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar). Rugged construction for high quality performance and durability with easy to adjust pump output. 1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments. Double Ball Outlet Check reduces ball travel. Improved O-ring seals to eliminate leak paths. Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life. Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.
KIT, ACCESSORY, PRESS SWITCH
GG 24K414
KIT, ACCESSORY, PRESS SWITCH
General Pressure Switch, 1/4 NPT Male, 9.6-32 VDC, 4-Pin, M12 Micro-ConnectorSignals your lubrication controller when the lube system reaches the desired pressure level.
Durable design allows operation in harsh environment. Easy to visually adjust line pressure and reset pressure to ensure your lube system has vented properly LED lights visually display pressure switch functions Modern 4-pin M12 micro-connector easily connects to the G3 and other controllers Moisture resistant and factory set to ensure accuracy for long life and reliability Sends an alarm signal to alert either a high or low pressure condition Available for hydraulic pressures from 290 to 5800 psi (20 to 400 bar) 1/4 in NPT thread allows quick connection to injector systems
VALVE, VENT, 12VDC, N.O. NPT, DEU RH
GG 24M478
VALVE, VENT, 12VDC, N.O. NPT, DEU RH
Direct-Mount Vent Valves for G3™ Pumps - NPT, 12 VDC, 500-3500 psi (35-241 bar), Normally Open, RHIndustry leading feature for your lube system needs.
Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems. Easily mounts to your G3 pump. Eliminates time and material costs associated with remote mounted vent valves. 12 VDC Normally Open The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure. Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve. Deutsch Power Connection
SWITCH, PRESSURE 1/4 NPT
GG 24N181
SWITCH, PRESSURE 1/4 NPT

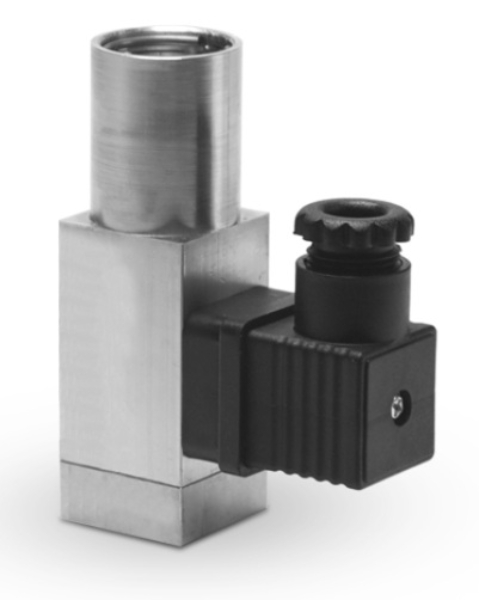

High, Low Adjustable Pressure Switch, 1/4 NPT, IP65 Rated for Harsh Environments For use with single line, parallel, injector based automatic lubrication systems Pressure Switch, 1/4” NPT(f) inlet, DIN 43650 connector (1 NO/1 NC), 7,250 psi (500 bar) IP65 rated for harsh environments. Fluoroelastomer seals are suitable for use in high temperature environments and synthetic lubricants.
KIT, PRESSURE SENSOR
GG 24P600
KIT, PRESSURE SENSOR
Graco 24P600 Pressure Transducer Kit, 100 psi (7 bar, 0.7 MPa). Used to measure fluid or air pressure.
Order Non-IS Cable 16V380 or IS Cable 16V381 to connect either the low-pressure or the high-pressure transducer to the ProControl 1KE.
Application: For use ProControl 1KE In-Line Fluid Monitoring Packages. Used to measure fluid or air pressure.- For Use With: ProControl 1KE Kit
- Maximum Working Pressure (bar): 8.6
- Maximum Working Pressure (kPa): 860
- Maximum Working Pressure (psi): 125
KIT, MIX-MANIFOLD, HP
GG 24R992
KIT, MIX-MANIFOLD, HP
Graco 24R992 High Pressure Mix Manifold Kit for Mix at Belt
For at-the-gun mixing of 2 component materials when used with a ProMix PD Proportioner
- Model: ProMix
- Series: PD2K
- For Use With: ProMix™ PD2K Proportioner
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1500
TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
GG 24T834
TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
Graco 24T834 ToughTek M680a Piston Pump Package, Flex Hose Applicator, Stainless Steel Hopper
The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.
Application: Portable sprayer for mortar, cementitious and heavily filled materials- Primary features:
- Flex Hose Applicator
- Pole Applicator
- Large Capacity Hopper
25 gal (95 L) hopper kit
Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
Boost productivity by minimizing refills
Easily connects to ToughTek M680a
Easy to connect and maneuver
Order part number 24W889
- Model: ToughTek
- Series: M680a
- Application: Industrial
- Compatible Material: Cementitious Material
- Fluid Inlet Thread Gender: Male
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Flow Rate (GPM): 10.88
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 70
- Maximum Working Pressure (kPa): 7000
- Maximum Working Pressure (MPa): 7
- Maximum Working Pressure (psi): 1000
- Motor Type: Pneumatic
For hard to reach areas
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T946
- Large Capacity Hopper
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T947
- Pole Applicator
Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
Less material waste and more consistent finish than hand-trowling
Fast, easy cleaning with high velocity flush
Can be quickly disassembled for hand cleaning
Explosion-proof for hazardous spray areas
One convenient air source to run pump and atomize air
- Flex Hose Applicator
METER, PRESET, 60 GAL, RIG, NPT
GG 24V055
METER, PRESET, 60 GAL, RIG, NPT
Graco 24V055 60 Gallon Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in gallons
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Rigid
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: Manual
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
METER, PRESET, 60 LIT, RIG, NPT
GG 24V058
METER, PRESET, 60 LIT, RIG, NPT
Graco 24V058 60 Liter Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in liters
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Rigid
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: Manual
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
