MOTOR
IR 3840M2
IR 3840M2
Inline Multi-Vane Air Motor, 3/4" Square Shaft, 825 RPM, 1.40 HP, 47.7 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 825
Max Pressure (bar): 6.2
Max Torque (ft-lb): 35
Max Torque (in-lb): 422
Max Torque (nm): 47.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 7.38
Rated Power (hp): 1.40
Rated Power (kW): 1.04
Reversible: Reversible
Speed at Max Power (rpm): 390
Standards/Certifications: ATEX
Starting Torque (ft-lb): 23
Starting Torque (nm): 31.2
Warranty: 1-year
$4,200.00
MOTOR
IR 3840P2
IR 3840P2
Inline Multi-Vane Air Motor, 3/4" Square Shaft, 440 RPM, 1.35 HP, 72.6 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 440
Max Pressure (bar): 6.2
Max Torque (ft-lb): 54
Max Torque (in-lb): 643
Max Torque (nm): 72.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 215
Standards/Certifications: ATEX
Starting Torque (ft-lb): 40
Starting Torque (nm): 54.2
Warranty: 1-year
$4,325.00
MOTOR
IR 3840S2
IR 3840S2
Inline Multi-Vane Air Motor, 3/4" Square Shaft, 190 RPM, 1.35 HP, 156 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 190
Max Pressure (bar): 6.2
Max Torque (ft-lb): 115
Max Torque (in-lb): 1381
Max Torque (nm): 156
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 100
Standards/Certifications: ATEX
Starting Torque (ft-lb): 86
Starting Torque (nm): 116
Warranty: 1-year
$4,825.00
MOTOR
IR 3840U2
IR 3840U2
Inline Multi-Vane Air Motor, 3/4" Square Shaft, 162 RPM, 1.35 HP, 181 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 162
Max Pressure (bar): 6.2
Max Torque (ft-lb): 133
Max Torque (in-lb): 1602
Max Torque (nm): 181
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 83
Standards/Certifications: ATEX
Starting Torque (ft-lb): 100
Starting Torque (nm): 135
Warranty: 1-year
$5,125.00

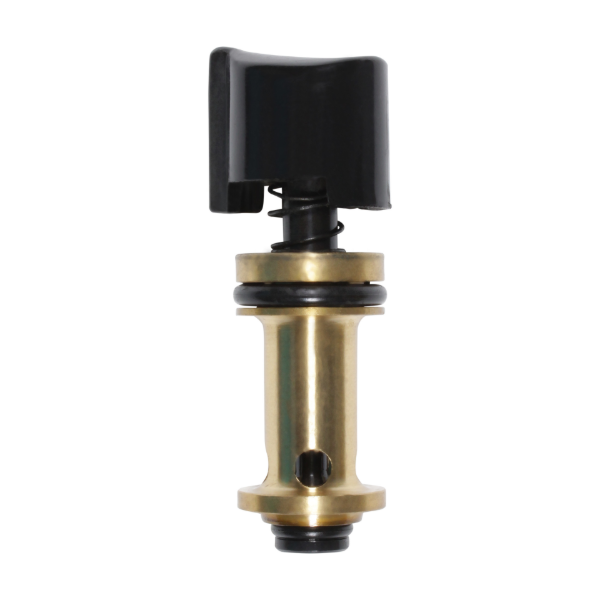

TRIGGER ASSEMBLY
IR 317-B-A93
IR 317-B-A93
Trigger Assembly Service Part for Ingersoll Rand Air Sander
Includes: Spring Pin, Trigger, Spring, O-rings, Valve Stem, Throttle ValveProduct Application and Uses: For use with Ingersoll Rand 317-B Air Sander
For Use With
- 317-B
$20.00
COLLET, ERICK
IR 31812-1
IR 31812-1
Air Motor 3/64" Collet
1/64" - 3/64" (.40mm - 1.19mm) CapacityProduct Application and Uses: For use with Ingersoll Rand 000 Series Air Milling Motors
Arbor/Collet: 3/64"
Drive Size (in): 3/64"
For Use With
- 7533-2-B
- 7534-2-B
- 7536-2-B
$71.00
COLLET, ERICK
IR 31812-7
IR 31812-7
Air Motor 7/32" Collet
3/16" - 7/32" (4.76mm - 5.56mm) CapacityProduct Application and Uses: For use with Ingersoll Rand 000 Series Air Milling Motors
Arbor/Collet: 7/32"
Drive Size (in): 7/32"
For Use With
- 7533-2-B
- 7534-2-B
- 7536-2-B
$50.00
ENGAGEMENT ASSEMBLYBRACKET
IR 31834983_2D21
IR 31834983_2D21
ENGAGEMENT ASSEMBLYBRACKET Call for pricing
ENGAGEMENT ATTACHMENTDETAIL
IR 31834983_2D23
IR 31834983_2D23
ENGAGEMENT ATTACHMENTDETAIL Call for pricing
