PROTECTOR (FOR BPL-1820)
IR Y-0446-0029-0001
IR Y-0446-0029-0001
PROTECTOR (FOR BPL-1820) Call for pricing
POWERSUPPLY BASIC ASSEMBLY
IR Y-0446-0195-0099
IR Y-0446-0195-0099
POWERSUPPLY BASIC ASSEMBLY Call for pricing
BRACKET
IR 37896
IR 37896
Flounge Mounting Bracket for Ingersoll Rand Air Motor
Product Application and Uses: For use with Ingersoll Rand 0 Series Air MotorsFor Use With
- 8229-1A
- 8229-2A
- 8229-3A
- 8229-4A
- 8229-5A
- 8229-6A
- 8229-7A
- 8229-8A
- 8229-9A
- 8230-1A
- 8230-2A
- 8230-3A
- 8230-4A
- 8230-5A
- 8230-6A
- 8230-7A
- 8230-8A
- 8230-9A
- 8231-1B
- 8231-2B
- 8231-3B
- 8231-4B
- 8231-5B
- 8231-6B
- 8231-7B
- 8231-8B
- 8231-9B
$655.00

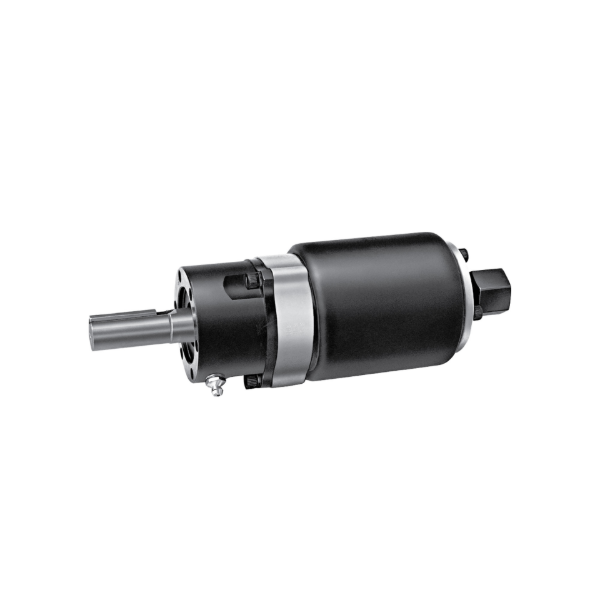

MOTOR
IR 3800M
IR 3800M
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 1100 RPM, 1.55 HP, 44.8 NM, Non-reversible
Air Consumption at Max HP (scfm): 48Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 1100
Max Pressure (bar): 6.2
Max Torque (ft-lb): 33
Max Torque (in-lb): 397
Max Torque (nm): 44.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 7.13
Rated Power (hp): 1.55
Rated Power (kW): 1.16
Reversible: Non-reversible
Speed at Max Power (rpm): 520
Standards/Certifications: ATEX
Starting Torque (ft-lb): 24
Starting Torque (nm): 32.5
Warranty: 1-year
$3,725.00
MOTOR
IR 3800P
IR 3800P
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 600 RPM, 1.45 HP, 76.6 NM, Non-reversible
Air Consumption at Max HP (scfm): 48Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 56
Max Torque (in-lb): 678
Max Torque (nm): 76.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.5
Rated Power (hp): 1.45
Rated Power (kW): 1.08
Reversible: Non-reversible
Speed at Max Power (rpm): 285
Standards/Certifications: ATEX
Starting Torque (ft-lb): 42
Starting Torque (nm): 57
Warranty: 1-year
$4,050.00
MOTOR
IR 3800Q
IR 3800Q
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 375 RPM, 1.45 HP, 113 NM, Non-reversible
Air Consumption at Max HP (scfm): 48Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 375
Max Pressure (bar): 6.2
Max Torque (ft-lb): 83
Max Torque (in-lb): 1000
Max Torque (nm): 113
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.5
Rated Power (hp): 1.45
Rated Power (kW): 1.08
Reversible: Non-reversible
Speed at Max Power (rpm): 180
Standards/Certifications: ATEX
Starting Torque (ft-lb): 62
Starting Torque (nm): 84
Warranty: 1-year
$4,325.00
MOTOR
IR 3800R
IR 3800R
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 320 RPM, 1.45 HP, 130 NM, Non-reversible
Air Consumption at Max HP (scfm): 48Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 320
Max Pressure (bar): 6.2
Max Torque (ft-lb): 96
Max Torque (in-lb): 1151
Max Torque (nm): 130
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.5
Rated Power (hp): 1.45
Rated Power (kW): 1.08
Reversible: Non-reversible
Speed at Max Power (rpm): 150
Standards/Certifications: ATEX
Starting Torque (ft-lb): 72
Starting Torque (nm): 98
Warranty: 1-year
$4,350.00
