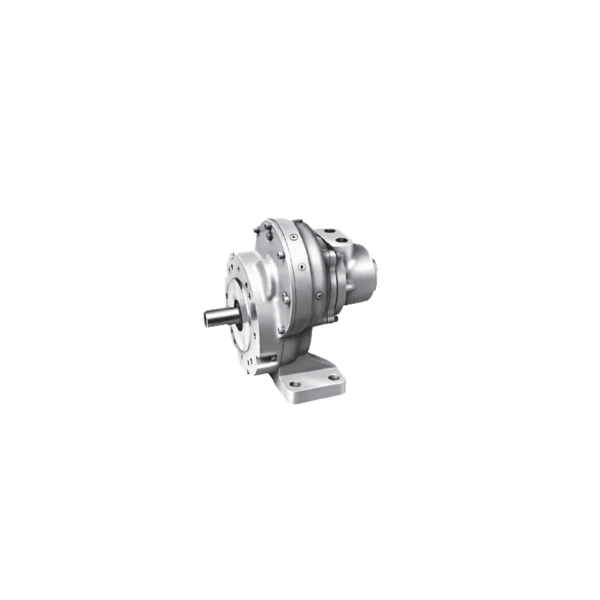

MOTOR -- MULTI-VANE
IR 48RA008
IR 48RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1160 RPM, 3.1 HP, 69.8 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 51
Max Torque (in-lb): 618
Max Torque (nm): 69.8
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 638
Starting Torque (ft-lb): 38
Starting Torque (nm): 51.5
Warranty: 1-year
$7,500.00
MOTOR -- MULTI-VANE
IR 48RA011
IR 48RA011
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 772 RPM, 3.1 HP, 105 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 772
Max Pressure (bar): 6.2
Max Torque (ft-lb): 77
Max Torque (in-lb): 929
Max Torque (nm): 105
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 423
Starting Torque (ft-lb): 57
Starting Torque (nm): 77.3
Warranty: 1-year
$7,700.00
MOTOR -- MULTI-VANE
IR 48RA005
IR 48RA005
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1690 RPM, 3.1 HP, 47.5 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1690
Max Pressure (bar): 6.2
Max Torque (ft-lb): 35
Max Torque (in-lb): 420
Max Torque (nm): 47.5
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 930
Starting Torque (ft-lb): 26
Starting Torque (nm): 35.3
Warranty: 1-year
$7,550.00
MOTOR -- MULTI-VANE
IR 48RA017
IR 48RA017
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 511 RPM, 3.1 HP, 159 NM, Reversible
Air Consumption at Max HP (scfm): 95Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 511
Max Pressure (bar): 6.2
Max Torque (ft-lb): 117
Max Torque (in-lb): 1407
Max Torque (nm): 159
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 44
Rated Power (hp): 3.1
Rated Power (kW): 2.31
Reversible: Reversible
Speed at Max Power (rpm): 278
Starting Torque (ft-lb): 86
Starting Torque (nm): 117
Warranty: 1-year
$7,650.00
BRACKET, CLAMP & HARDWARE WALL MOUNT-10-12 COLUM
IR 47515730001
IR 47515730001
BRACKET, CLAMP & HARDWARE WALL MOUNT-10-12 COLUM $1,145.00
47519434004 : CHAIN, ROLLER, BULK
IR 47519434004
IR 47519434004
47519434004 : CHAIN, ROLLER, BULK $65.00
TUBING POLYURETHANE 5/32 RED PER FOOT
IR 47519434007
IR 47519434007
TUBING POLYURETHANE 5/32 RED PER FOOT $15.00
CHAIN, Q100, UNIT OF MEASURE IS BY THE FOOT
IR 47519434013
IR 47519434013
CHAIN, Q100, UNIT OF MEASURE IS BY THE FOOT $29.00
WIRE, ELECTRIC, 4* 12 AWG SO COVER
IR 47519434016
IR 47519434016
WIRE, ELECTRIC, 4* 12 AWG SO COVER $15.00
CABLE, ELECTRICAL, PENDANT, QCH-SERIES
IR 47519434022
IR 47519434022
CABLE, ELECTRICAL, PENDANT, QCH-SERIES $25.00
SEL SW./ PRESS REG. BRACKET 1IN TUBE
IR 47529422001
IR 47529422001
SEL SW./ PRESS REG. BRACKET 1IN TUBE $485.00
PHS2E-U Pendant w/40 ft. Hose Assy
IR 47533591001
IR 47533591001
PHS2E-U Pendant w/40 ft. Hose Assy $2,485.00
END TRUCK, DUAL, RIGID, ZRS2 ON 3.25" I-BEAM
IR 47533321001
IR 47533321001
END TRUCK, DUAL, RIGID, ZRS2 ON 3.25" I-BEAM $2,420.00
CYLINDER, AIR, 2.5 BORE X 12.0 STROKE, MP2 MOUNT
IR 47533689001
IR 47533689001
CYLINDER, AIR, 2.5 BORE X 12.0 STROKE, MP2 MOUNT $780.00
CHAIN BUCKET, ASSEMBLY, STAINLESS STEEL, 105 FT CAPACITY, HLK CHAIN,
IR 47535536001
IR 47535536001
CHAIN BUCKET, ASSEMBLY, STAINLESS STEEL, 105 FT CAPACITY, HLK CHAIN, $1,970.00
CUP, VACUUM, ROUND 6.0 DIA., 1" MOUNT PATTERN
IR 47537094001
IR 47537094001
CUP, VACUUM, ROUND 6.0 DIA., 1" MOUNT PATTERN $180.00
BRAKE MAGNEY ASSEMBLY LESS COILS
IR 47539189001
IR 47539189001
BRAKE MAGNEY ASSEMBLY LESS COILS $2,530.00
SCREW 10-32 X .375 SET LOCKING W/ LOCKTITE
IR 47540445001
IR 47540445001
SCREW 10-32 X .375 SET LOCKING W/ LOCKTITE $15.00
I-BEAM SUSPENSION KIT FOR 150 LB. BALANCER
IR 47541417001
IR 47541417001
I-BEAM SUSPENSION KIT FOR 150 LB. BALANCER $1,035.00
ZRA2 ON ZRS2 END TRUCK ASSEMBLY 3000 LB. CAPACIT
IR 47544216001
IR 47544216001
ZRA2 ON ZRS2 END TRUCK ASSEMBLY 3000 LB. CAPACIT $3,975.00
