IR 50597

LATCH

IR 507100006173

MOTOR PLATE

IR 507100006174

C-BAIL

IR 507100003955

BAIL HOLDER

IR 507100007300

REACTION BAR

IR 50712975

72" H Thread Jackhammer/Rock Drill Rod Steel 7/8" x 4-1/4" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. All jackhammer rods are sold as single units (no required box quantities).

Includes: All jackhammer rods are sold as single units (no required box quantities).
Product Application and Uses: For use with Ingersoll Rand JRD30-B, JRD50-C rock drills and JH40C2 jack hammers.
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 72
Product Length (in): 76.25
Product Weight (lb): 13.25
Shank Length (in): 4.25
Shank SIze (in): 7/8 x 4-1/4
Shank Type: Hex

For Use With

• JH40C2
• JRD30-B
• JRD50-C

IR 507100007301

REACTION BAR

IR 50719822

GUIDE JH40

IR 50719830

VALVECHEST JH40

IR 47817-1

SPINDLE

IR 47818-3

SPINDLE

IR 47817357001

HL2000K-2F12D16-C12S : HOIST, AIR, 2 TON, HLK SERIES, HAND GEAR TROLLEY, 16 LIFT, 12 DROP

IR 47818-5

SPINDLE

IR 47817358001

HL3000K-3HAR20-R16U : HOIST, AIR, 3 TON, HLK SERIES, POWERED TROLLEY, 20 LIFT, 16 DROP

IR 47818646001

CLAMP BRACKET FORK HD W/C

IR 47818891001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818894001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47817354001

HL1000KR-3HDR15-R13PU : HOIST, AIR, 1 TON, HLK SERIES, POWERED TROLLEY, 15 LIFT, 13 DROP, SPARK RESISTANT

IR 47818895001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818645001

FRAME FORK HD W/C

IR 47818896001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818897001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818892001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818898001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818893001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47818900001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47819-1

SPINDLE

IR 47819-2

SPINDLE

IR 47818899001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47820-3

SPINDLE

IR 47820-5

SPINDLE

IR 47818901001

ELK SERIES ELECTRIC CHAIN HOIST

IR 47821

SPACER

IR 47820-1

SPINDLE

IR 47822

FLANGE ASSEMBLY

IR 47817355001

HL1000KR-2DAR15-R11U : HOIST, AIR, 1 TON, HLK SERIES, PUSH TROLLEY, 15 LIFT, 11 DROP, SPARK RESISTANT

IR 47823286001

HL4500K-4HA14-C11PS

IR 47820-2

SPINDLE

IR 47823287001

ML1000K-3HD15-R13PU

IR 47827117001

CLAMP PAD 1.0 X 4.0 HKI1S

IR 47855430001

HOIST, AIR, 1/4 TON, MLK SERIES, SPARK RESISTANT, RIGID TROLLEY & BRONZE HOOK, 37' LIFT, 35’ DROP

IR 47839980001

HOIST, AIR, 2 TON, HLK SERIES, HAND GEAR TROLLEY, 20' LIFT, 16’ DROP, FABRIC CHAIN CONTAINER

IR 47864174001

HOIST, AIR, 1.5 TON, HLK, TROLLEY, BRONZE WHEELS AND HOOK, 25' LIFT, 18' DROP

IR 47877138001

IMI MAGNET TPCA300EM

IR 47877

HOUSING

IR 47876

ADAPTER

IR 47878

HOUSING

IR 47881

BUSHING

IR 47884705001

HOIST, AIR, 1 TON, HLK SERIES SPARK RESISTANT, POWER TROLLEY, 10' LIFT, 12’ DROP, FABRIC CONTAINER

IR 47885

LABEL, MODEL

IR 47886

HOUSING ASSEMBLY

IR 47888

HOUSING ASSEMBLY

IR 47889939001

HOIST, AIR, 1 TON, HLK SERIES, 19' LIFT, 19’ DROP, FABRIC CHAIN CONTAINER

IR 47904226001

ELECTRIC HOIST, ELK50-1ND50E13-9-4CF110

IR 47892222001

HOIST, HL1000KR-2DAR26-R10U, SPARK RESISTANT, 1 TON, TROLLEY, 26' LIFT, 10' DROP, CONTAINER

IR 47907

ADAPTER

IR 47907488001

ELK SERIES, 1/2 TON, ELK50-1NS50 1PHH-300-8-2CF10

IR 47913

HOUSING

IR 47826773001

ML1000KS-2F12A18-C12U : HOIST, AIR, 1 TON, MLK SERIES, SLOW SPEED SPOTTING, HAND CHAIN, 18' LIFT, 12' DROP

IR 47914

HEAD

IR 47919208001

HOIST, AIR, 1 TON, MLK SERIES, 15' LIFT, 14' DROP, FABRIC CHAIN CONTAINER

IR 47919870001

SCHUNK GRIPPER PAD HK1S 1IN X 3IN

IR 47924348001

HOIST, AIR, 3 T, HLK SERIES, 15' LIFT, 12' DROP, STEEL CHAIN CONTAINER

IR 47831558001

HOIST, AIR, 1 TON, HLK SERIES SPARK RESISTANT, RIGID TROLLEY, BRONZE SNAP HOOK, 20' LIFT, 13 DROP, FABRIC CHAIN CONTAINER

IR 47927014001

ELK HOIST , ELK50-2ND100M2-9-W-4CF30

IR 47969

SPACER

IR 47945-1

STEM, VALVE

IR 47970

RING GEAR

IR 47981

HOUSING

IR 47982

ADAPTER ASSEMBLY

IR 47984-1

MUFFLER

IR 48000000

BRACKET-DUAL BRASS PUSH BUTTON

IR 4800D

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 9850 RPM, 3.8 HP, 10.4 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 98
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 9850
Max Pressure (bar): 6.2
Max Torque (ft-lb): 7.7
Max Torque (in-lb): 92
Max Torque (nm): 10.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.8
Rated Power (kW): 2.83
Reversible: Non-reversible
Speed at Max Power (rpm): 5250
Standards/Certifications: ATEX
Starting Torque (ft-lb): 5.8
Starting Torque (nm): 7.8
Warranty: 1-year

IR 48001000

BRACKET-DUAL BRASS LVR BUTTON

IR 4800K

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1538 RPM, 3.7 HP, 63.7 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1538
Max Pressure (bar): 6.2
Max Torque (ft-lb): 47
Max Torque (in-lb): 564
Max Torque (nm): 63.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.7
Rated Power (kW): 2.76
Reversible: Non-reversible
Speed at Max Power (rpm): 821
Standards/Certifications: ATEX
Starting Torque (ft-lb): 35
Starting Torque (nm): 47.8
Warranty: 1-year

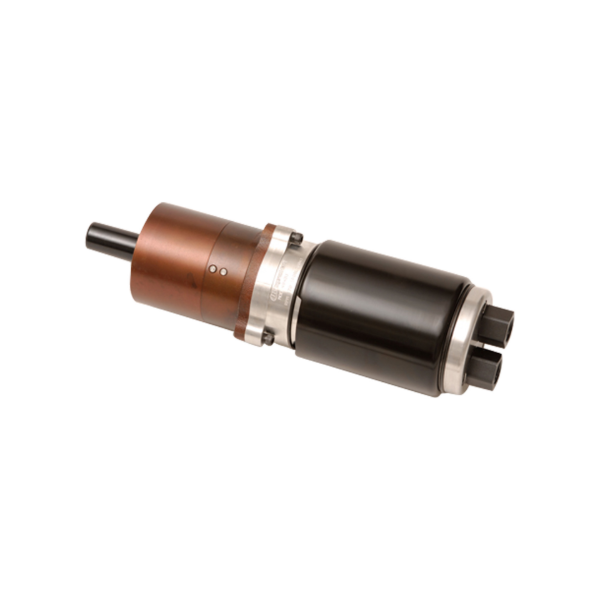

IR 4800P

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 510 RPM, 3.5 HP, 178 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 510
Max Pressure (bar): 6.2
Max Torque (ft-lb): 131
Max Torque (in-lb): 1575
Max Torque (nm): 178
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 260
Standards/Certifications: ATEX
Starting Torque (ft-lb): 98
Starting Torque (nm): 133
Warranty: 1-year

IR 4800N

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 726 RPM, 3.7 HP, 136 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 726
Max Pressure (bar): 6.2
Max Torque (ft-lb): 100
Max Torque (in-lb): 1204
Max Torque (nm): 136
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.7
Rated Power (kW): 2.76
Reversible: Non-reversible
Speed at Max Power (rpm): 387
Standards/Certifications: ATEX
Starting Torque (ft-lb): 75
Starting Torque (nm): 102
Warranty: 1-year

IR 4800Q/VSM-6500-1

HOUSING, HANDLE

IR 4800Q/VSM-6500

MOTOR, AIR

IR 4800Q/VSM-6500-108

SPINDLE

IR 4800Q/VSM-6500-1A

HANDLE ASSEMBLY

IR 4800Q/VSM-6500-38

BUSHING

IR 4800U W/123

MOTOR

IR 48010000

BRACKET, SINGLE RED PB

IR 48013000

BRACKET-ZA/LEVER ERGO HANDLE

IR 48048-1

SPINDLE

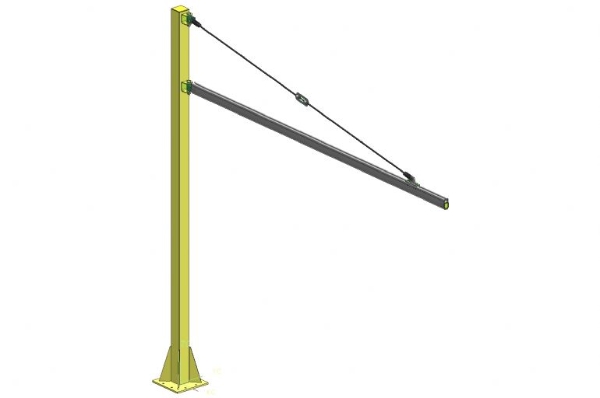

IR 7046JA1F08144

JIB CRANE 700J SERIES

IR 70480

SCREW, SOCKETCAP, 1/4-20 X 4.0

IR 70486

SCREW, SHOULDER, .25 X 1.75LG

IR 7050JA2F16120

700J SERIES JIB ASSEMBLY 500 LB. 16 FT. BOOM 10

IR 7050JA2F16168

700J SERIES JIB ASSEMBLY ZRA2 16FT BOOM 14FT UC

IR 70512

BOLT, 1/4-20 X 1/25 LONGB.H.C.S.

IR 7053JS2F16144

700J JIB CRANE, ZRS216FT BOOM, 530 LB CAP

IR 7055JA2F15144

700J SERIES MED DUTY JIB CRANE 15FT ZRA2 BOOM 12F

IR 7056JS2F15120

700J SERIES JIB ZRS2 15FT BOOM 10FT UC 560LB CAP

IR 705-926A-7

ANVIL (48951-159)

IR 7060JA2F14096

700J SERIES JIB ASSEMBLY ZRA2 14FT BOOM 8FT UC 700LB

IR 7060JA2F14132

700J SERIES JIB ASSEMBLY ZRA2 14FT BOOM 132IN UC

IR 7060JA2F14138

700J SERIES JIB ASSEMBLY ZRA2 14FT BOOM 138IN UC

IR 7060JA2F14144

700JIB
