Die Grinder
IR 3107G
IR 3107G
Air Die Grinder, 27,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Ingersoll Rand’s EDGE Series 3017G 1/4" Air Straight Die Grinder is the right tool for the job. It offers a ball-bearing construction that is sturdy yet lightweight. Features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. An ergonomic grip makes this pneumatic grinder comfortable to hold and use and provides exceptional torque accuracy. Offering longer life and higher free speed at 27,000 rpm, this general purpose air grinder is designed for finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.Features And Benefits
- Powered by compressed air and comes with a 1/3 HP motor, a 1/4" collet, rear exhaust and a self-locking throttle. With 27,000 rpm, it will power through difficult jobs.
- Contoured grip gives greater comfort and control. Its ergonomic design delivers exceptional torque precision, as well as increased productivity and safety.
- The 3107G is light and sturdy at only 1 lb. It has a ball bearing construction and is exceptionally rugged, compact and lightweight.
- Use this air grinder as a handheld power rotary tool for grinding, cutting, polishing and more.
- Each componet, mechanism and function has undergone rigerous testing to ensure its long-lasting performace.
Includes: tool, Large Wrench, Small Wrench
Product Application and Uses: Finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 3
Air Consumption @ Free Speed (l/min): 85
Air Consumption @ Load (cfm): 18
Air Consumption @ Load (l/min): 500
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.36
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 27000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Width (in): 2.87
Product Height (in): 1.46
Product Weight (lb): 1
Rated Power (hp): 0.33
Right Angle Length (in): 4.92
Right Angle Length (mm): 125
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 92.4 / 103.4
Vibration Level (m/s2): 2.6
Warranty: 1-year
Similar IR
- 307B
$49.28
THROTTLE VALVE PLUNGER
IR 3940-302
IR 3940-302
Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools
$44.00

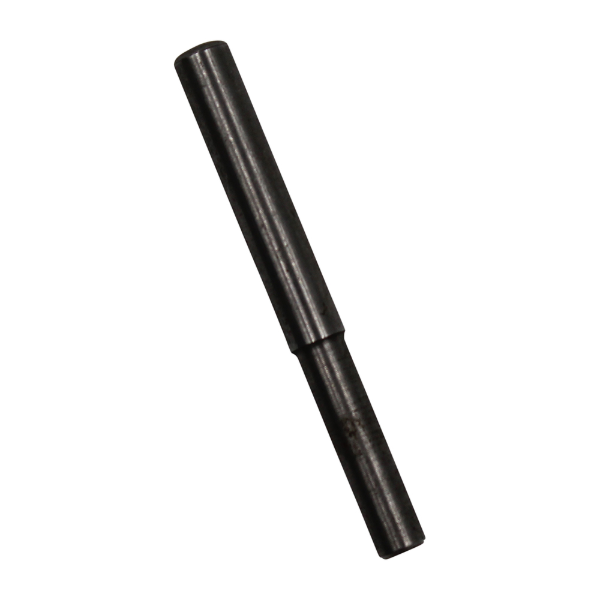

Throttle Valve Stem
IR 402-302
IR 402-302
Throttle Valve Stem for Ingersoll Rand 231C, 2707P1, 2705P1 Impact Wrench
For Use With- 231C
- 2705P1
- 2707P1
$15.00

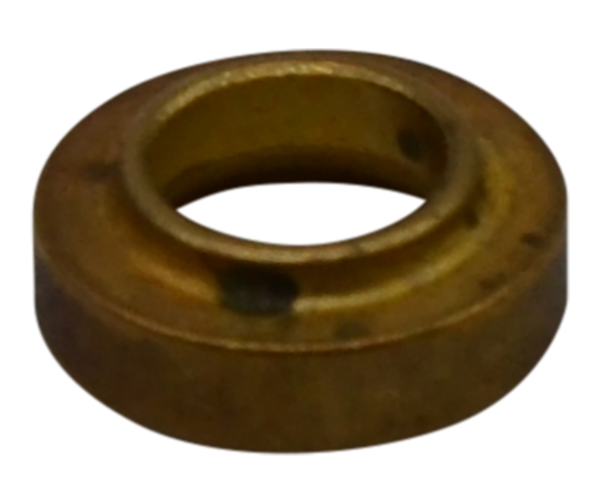

SEAT
IR 402-303
IR 402-303
Throttle Valve Seat for Ingersoll Rand 231C, 2707P1, 2705P1
For Use With- 231C
- 2705P1
- 2707P1
$15.00
TAMPER 441A2
IR 441A2
IR 441A2
Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 2" Bore
With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.Features And Benefits
- Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
- Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
- Power: Thanks to its high-power output, you’ll be able to breeze through any job.
Product Application and Uses: These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1020
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1750
Bore Diameter (in): 2
Butt Diameter (in): 5.75
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Built In
Power Source: Air Powered
Product Length (in): 50.88
Product Weight (lb): 21.4
Retainer Type: Latch
Shank Opening: 1" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 4
Warranty: 1-year
$1,528.80
3" CHISEL - 14" , 1-1/4" X 6" , QTY 1
IR 50193879
IR 50193879
3" Pavement Breaker/Digger Chisel Steel, 14"L Hex 1-1/4" x 6" Shank
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.Includes: (10) Chisel Steels
Product Application and Uses: Designed for concrete demolition and asphalt cutting. For use with Ingersoll Rand MX60B, MX90B pavement breakers.
Chisel Style: 3" Wide
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 14
Product Length (in): 20
Product Width (in): 3
Product Weight (lb): 7.5
Shank Length (in): 6
Shank SIze (in): 1-1/4 x 6
Shank Type: Hex
For Use With
- MX60B
- MX90B
$129.00
BEARING (105589)
IR 508-97
IR 508-97
Rear Motor Bearing Service Part for Ingersoll Rand Power Tools
$20.00
JIB, MEDIUM DUTY WITH 16 FOOT BOOM A2 RAIL
IR 7050JA2F16144
IR 7050JA2F16144
JIB, MEDIUM DUTY WITH 16 FOOT BOOM A2 RAIL $8,300.00
CTR BLADE
IR 7802S-6021
IR 7802S-6021
Shear Blades for Ingersoll Rand 7802SA Air Shears
Product Application and Uses: For use with Ingersoll Rand 7802SA Air ShearsFor Use With
- 7802SA
$60.00
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 200, 500 N-M (3/4" SQUARE)
IR NSP-766-52SLK12
IR NSP-766-52SLK12
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 200, 500 N-M (3/4" SQUARE) Call for pricing
REACTION ARM, 52MM, SLIDING PLATE FOR SLIDING SLAVE SQUARE, STRAIGHT, STEEL, 5.0"
IR NSP-766-52SLS050
IR NSP-766-52SLS050
REACTION ARM, 52MM, SLIDING PLATE FOR SLIDING SLAVE SQUARE, STRAIGHT, STEEL, 5.0" Call for pricing
REACTION ARM, 52MM, STRAIGHT, ALUMINUM, 15.5"
IR NSP-766-52STA155
IR NSP-766-52STA155
REACTION ARM, 52MM, STRAIGHT, ALUMINUM, 15.5" Call for pricing
REACTION ARM, 52MM, STRAIGHT, STEEL, 15.5"
IR NSP-766-52STS155
IR NSP-766-52STS155
REACTION ARM, 52MM, STRAIGHT, STEEL, 15.5" Call for pricing
REACTION ARM, 52MM, DOUBLE SIDED, STRAIGHT, STEEL, 9.84"
IR NSP-766-52STSD098
IR NSP-766-52STSD098
REACTION ARM, 52MM, DOUBLE SIDED, STRAIGHT, STEEL, 9.84" Call for pricing
CRANKED REACTION ARM (STANDARD) - 72MM, STEEL
IR NSP-766-72CR
IR NSP-766-72CR
CRANKED REACTION ARM (STANDARD) - 72MM, STEEL Call for pricing
REACTION ARM, 72MM, PLATE AND PEG, STEEL, 10.0"
IR NSP-766-72PP100
IR NSP-766-72PP100
REACTION ARM, 72MM, PLATE AND PEG, STEEL, 10.0" Call for pricing
NOSE EXT ASSEMBLY - 72MM X 6" WHEEL
IR NSP-766-72NXW060
IR NSP-766-72NXW060
NOSE EXT ASSEMBLY - 72MM X 6" WHEEL Call for pricing
REACTION ARM, 72MM, SLIDING PLATE FOR SLIDING SLAVE SQUARE, STRAIGHT, STEEL, 8.0"
IR NSP-766-72SL
IR NSP-766-72SL
REACTION ARM, 72MM, SLIDING PLATE FOR SLIDING SLAVE SQUARE, STRAIGHT, STEEL, 8.0" Call for pricing
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 1000, 1350, 2000 N-M (1" SQUARE)
IR NSP-766-72SLK16
IR NSP-766-72SLK16
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 1000, 1350, 2000 N-M (1" SQUARE) Call for pricing
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 1000, 1350, 2000 N-M (3/4" SQUARE)
IR NSP-766-72SLK12
IR NSP-766-72SLK12
SLAVE SQUARE KIT FOR SLIDING REACTION ARM, 1000, 1350, 2000 N-M (3/4" SQUARE) Call for pricing
IR PISTOL ADAPTER KIT
IR NSP-766-W2222
IR NSP-766-W2222
Norbar Gearbox Pistol Adapter Kit for Ingersoll Rand Torque Wrench
Product Application and Uses: For Use with Ingersoll Rand QX Connect Precision Torque Multiplier SeriesColor: Grey
For Use With
- QXX2A52T0396PS12
- QXX2A52T0594PS12
- QXX5A45T0180PS12
- QXX5A45T0270PS12
- QXX5A52T0880PS12
- QXX5A72T1080PS16
- QXX5A72T1620PS16
- QXXD2PT10CPM12
- QXXD2PT10CPM12-K2
- QXXD2PT200PM12
- QXXD2PT200PM12-K2
- QXXD2PT500PM12
- QXXD2PT500PM12-K2
- QXXD5PT01KPW16
- QXXD5PT01KPW16K2
- QXXD5PT10CPM12K2
- QXXD5PT13CPM16
- QXXD5PT13CPM16K2
- QXXD5PT200PM12K2
- QXXD5PT20CPM16K2
- QXXD5PT27CPM16
- QXXD5PT27CPM16K2
- QXXD5PT40CPM16K2
- QXXD5PT500PM12K2
Call for pricing
REACTION ARM, 72MM, STRAIGHT, STEEL, 15.5"
IR NSP-766-72STS155
IR NSP-766-72STS155
REACTION ARM, 72MM, STRAIGHT, STEEL, 15.5" Call for pricing
HANDLE KIT
IR NSP-A48
IR NSP-A48
Auxiliary Handle Assembly Service Part for Ingersoll Rand Torque Wrench
Product Application and Uses: For Use with Ingersoll Rand QX Connect Precision Torque Multiplier SeriesColor: Grey
For Use With
- QXX2A52T0396PS12
- QXX2A52T0594PS12
- QXX5A45T0180PS12
- QXX5A45T0270PS12
- QXX5A52T0880PS12
- QXX5A72T1080PS16
- QXX5A72T1620PS16
- QXXD2PT10CPM12
- QXXD2PT10CPM12-K2
- QXXD2PT200PM12
- QXXD2PT200PM12-K2
- QXXD2PT500PM12
- QXXD2PT500PM12-K2
- QXXD5PT01KPW16
- QXXD5PT01KPW16K2
- QXXD5PT10CPM12K2
- QXXD5PT13CPM16
- QXXD5PT13CPM16K2
- QXXD5PT200PM12K2
- QXXD5PT20CPM16K2
- QXXD5PT27CPM16
- QXXD5PT27CPM16K2
- QXXD5PT40CPM16K2
- QXXD5PT500PM12K2
Call for pricing
SWITCH PANEL MEMBRANE, LC1D CONTROLLER
IR PC80114348
IR PC80114348
SWITCH PANEL MEMBRANE, LC1D CONTROLLER Call for pricing
