IR MRV050A-TK1

TUNE-UP KIT

IR MRV050A-010-RP-A

Muffler Assembly for Ingersoll Rand SM SM8AMA-A/SM8AMAN-A AIngersoll Rand Motor

Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A
• SM8AMAN-A

IR MS1200

REDUCER 3/8 FEMALE X 1/4 MALE

IR MS950

REDUCER 3/8IN MALE X 1/4IN FEMALE

IR MSCF22

COUPLER (3000ATH)

IR MSCF44

COUPLER

IR MSPM22

PLUG

IR MSCM22

COUPLER

IR MT2141-36

GASKET

IR MTK-18

NUT, NON-RETURNABLE PART

IR MTK-255

SHAFT

IR MTK-238

COVER

IR MTK-346

CLEVIS EYE (VRH-346)

IR MTK-300

HOUSING

IR MTK-418

NUT, NON-RETURNABLE PART

IR MTK-395CW

HOUSING

IR MTK-502

COVER

IR MTK-440

NUT, NON-RETURNABLE PART

IR MTK-581

BRACKET

IR MTK-545

VAL CHEST

IR MTK-699

BOLT

IR MTK-690

PLATE

IR MTK-703

HITCH

IR MTK-711

SPACER

IR MTK-715

SPRING (TVL-715)

IR MTK-713

BOLT

IR MTK-725

WASHER

IR MTK-719

FOLLOWER

IR MTK-746-A

SHAFT

IR MTK-741

WASHER

IR MTK-748

WASHER

IR MTK-746-D

MTK-746-D : SHAFT

IR MTK-863

BOLT, NON-RETURNABLE PART

IR MTK-776

NUT, NON-RETURNABLE PART

IR MTK-99

DECAL, NON-RETURNABLE PART

IR MTK-A395EAB

BRAKE

IR MTK-A690

TROLLEY

IR MTK-A691

WHEEL (TVH50A-A691)

IR MTK-CYL

CYLINDER

IR MTK-CTW

COUNTERWEIGHT

IR MTK-KEB

BRAKE KIT

IR MTK-K746D

WIDE FLANGE KIT

IR MTK-KEXH

EXHAUST KIT

IR MTK-KFW

FREE WHEEL KIT

IR MTKS-000A

MTKS-000A : TRACTOR STD 01309293

IR MTKS-000AM

TRACTOR, STEEL WHEELS, 0’ CONTROL DROP, MANUAL BRAKE RELEASE

IR MTKS-00A

TRACTOR, STEEL WHEELS, 0 CONTROL DROP

IR MTKS-00AF

TRACTOR, STEEL WHEELS, 0 CONTROL DROP, FREE WHEEL KIT

IR MTKS-207AF

TRACTOR, STEEL WHEELS, 7 CONTROL DROP, FREE WHEEL KIT

IR MTKS-207AFP

TRACTOR, STEEL WHEELS, SINGLE MOTOR, 7' DROP, FREE WHEEL KIT, PIPED EXHAUST

IR MTKS-207AM

45491982, TRACTOR, MTK SERIES, STEEL WHEELS, 7' DROP, A FLANGE, MANUAL BRAKE RELEASE

IR MTKS-210FP/D11191

TRACTOR, MTK

IR MTKS-212A

TRACTOR, STEEL WHEELS, 12’ DROP

IR MTKS-310AF

TRACTOR, STEEL WHEELS, 10 CONTROL DROP, FREE WHEEL KIT

IR MTKS-310AFP

TRACTOR, STEEL WHEELS, 10’ DROP, FREE WHEEL KIT, PIPED EXHAUST

IR MTKS-317D

TRACTOR, STEEL WHEELS, 17 CONTROL DROP

IR MTKS-37A

TRACTOR, STEEL WHEELS, 7 CONTROL DROP

IR MTKS-37AF

TRACTOR, STEEL WHEELS, 7 CONTROL DROP, FREE WHEEL KIT

IR MTKS-37AM

TRACTOR, STEEL WHEELS, 7 CONTROL DROP, MANUAL BRAKE RELEASE

IR MTKS-410A

TRACTOR, STEEL WHEELS, 10’ CONTROL DROP

IR MVA008-301

NAMEPLATE

IR MVA008-240A

FRONT HEAD

IR MVA008-301S

NAMEPLATE (SOLAR)

IR MVA008-302

SCREW (R41F-302)

IR MVA008-4

FOOT

IR MVA008-53

ROTOR

IR MVA017-3

CYLINDER

IR MVA008-K4

Mounting Foot Kit for Air Motor

Product Application and Uses: For use with Ingersoll Rand M0VA017A and M0VA034B Air Motors

For Use With

• MVA017B
• MVA034B

IR MVA017-53

ROTOR

IR MVA017-3 R

CYLINDER

IR MVA017A/VSM-5252

MOTOR

IR MVA017-A3

CYLINDER

IR MVA017B/VSM-5018

MOTOR

IR MVA034-52

SHAFT

IR MVA034-53

ROTOR

IR MVA034A/VSM-5019

MOTOR

IR MVA034-A3

CYLINDER

IR MVA034A-VSM-6503

MOTOR, AIR

IR MVA034B

Direct Drive Air Motor, 7/8" Keyed Shaft, 6250 RPM, 4.15 HP, 17.4 NM, Reversible

Air Consumption at Max HP (scfm): 181
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 6250
Max Pressure (bar): 6.2
Max Torque (ft-lb): 13
Max Torque (in-lb): 154
Max Torque (nm): 17.4
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Flanged Mounting
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 16.5
Rated Power (hp): 4.15
Rated Power (kW): 3.09
Reversible: Reversible
Speed at Max Power (rpm): 3000
Starting Torque (ft-lb): 8.3
Starting Torque (nm): 11.3
Warranty: 1-year

IR MVA034B/VSM-5159

MOTOR

IR MVA034-TK1

TUNE UP KIT

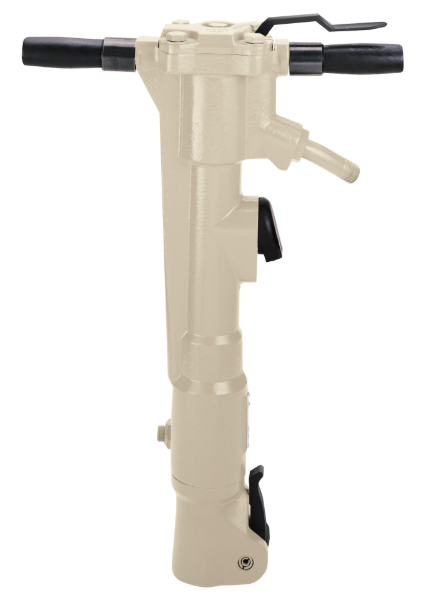

IR MX60AF

Pavement Breaker, 1-1/8 X 6" Hex Shank, 5.75" Stroke, 2.06" Bore, Vibration Reduced Flex Handle

The most versatile of our available pavement breakers, the MX60 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and the "flex handle" will reduce vibration. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Vibration-Reduced Flex Handle: The optional vibration-reduced flex handle of the MX Series provides vibration dampening in full 360-degree range of movement.
• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX60 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Special Features: Vibration Reduced Flex Handle
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX60A

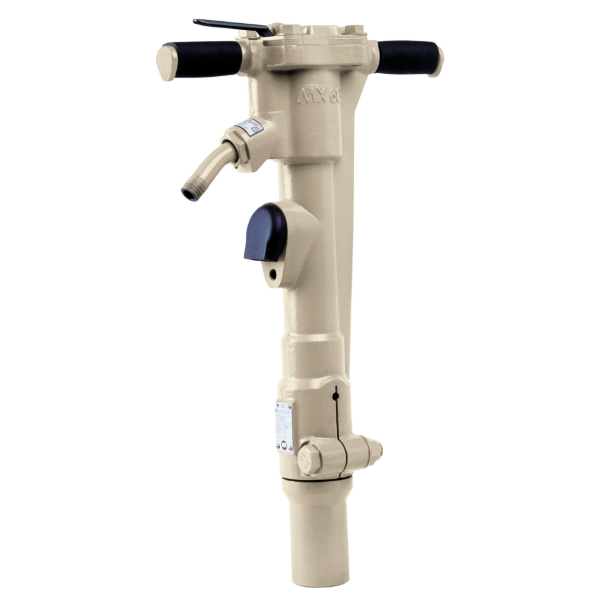

IR MX60F-SD

Spike Driver, Vibration Reduced Flex T-Handle, 5.75" Stroke, 1250 BPM, 2.06" Bore

The MX60 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok™ piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.

Features And Benefits

• Powerful: The MX Series spike drivers are powerful, but still easy to handle.
• Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series’ 360-degree directional exhaust capabilities.
• Vibration-Reduced Flex Handle: The flex handles of the MX Series provide vibration dampening in a full 360-degree range of movement, increasing maximum operator comfort and productivity.
• Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.

Product Application and Uses: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Exhaust Location: Side - Adjustable
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 69
Stroke Length (in): 5.75
Warranty: 1-year

IR N12-100

BULKHOSE-1/2" ID X100'-N

IR N12-12

COILHOSE-1/2" ID X12'-1/

IR N12-25

COILHOSE-1/2" ID X25'-1/

IR N12-25B

COILHOSE

IR N14-12

COILHOSE-1/4" ID X12'-1/4 NPT STD.

IR N14-12B

COILHOSE (REPL. TN-412S)

IR N14-25A

COILHOSE-1/4" ID X25'-1/

IR N14-25B

COILHOSE (REPL. TN-425S)

IR N14-50B

COILHOSE-1/4" ID X50'-1/

IR N34-50B

COILHOSE-3/4" ID X50'-3/

IR N38-100

BULKHOSE-3/8" ID X100'-N

IR N38-124B

COILHOSE-3/8" ID X12'-1/

IR N38-12A

COILHOSE-3/8" ID X12'-3/

IR N38-12B

COILHOSE (REPL. TN-612S)

IR N38-25

COILHOSE-3/8" ID X25'-3/

IR N38-254B

COILHOSE-3/8" ID X25'-1/

IR N38-25A

COILHOSE-3/8" ID X25'-3/
