PAVING BREAKER 1 1/8 X 6
IR MX90AF
IR MX90AF
Pavement Breaker, 1-1/8 X 6" Hex Shank, 5.75" Stroke, 2.62" Bore, Vibration Reduced Flex Handle
The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and the "flex handle" will reduce vibration. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.Features And Benefits
- Vibration-Reduced Flex Handle: The optional vibration-reduced flex handle of the MX Series provides vibration dampening in full 360-degree range of movement.
- Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
- Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
- Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
- 1-year warranty.
Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 87
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Special Features: Vibration Reduced Flex Handle
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year
Similar IR
- MX90BF
$1,540.00
Pullstar Air Winch, Long Drum, Lever, 2400Kg
IR PS2-2400RGC-L
IR PS2-2400RGC-L
Pullstar Air Winch, Long Drum, Lever, 2400Kg Call for pricing

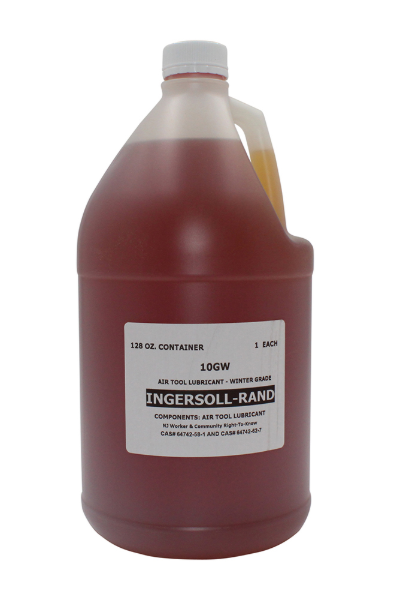

ANTIFREEZE
